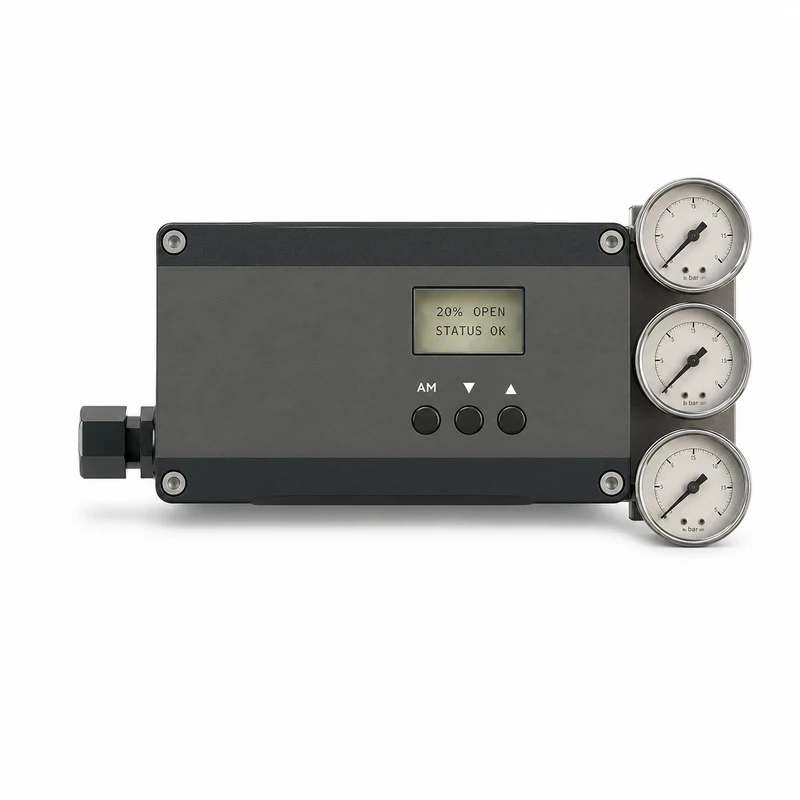

A smart valve positioner uses a microprocessor to compare the command signal with measured valve travel and adjust the pneumatic output to the actuator. Its core task remains position control: reducing the error between the demanded and actual stem or shaft position.
The word “smart” does not guarantee better control or predictive maintenance. Depending on the model, the positioner may add automatic setup, bidirectional communication, stored operating data, pressure or travel monitoring, diagnostic tests and alarms. Their practical value depends on the installed sensors, host software, mechanical valve condition and maintenance workflow.
Selection therefore covers the complete valve, actuator, positioner, air-supply and host-system package. Readers who need a broader explanation of positioner types and accessories can review these valve positioner basics.
What makes a valve positioner “smart”?
The microprocessor changes how the positioner processes valve-travel feedback. It calculates position error digitally and controls the pneumatic output according to its configured response.
The inner valve-travel control loop
The positioner receives a command representing the required stem travel or shaft angle. A travel sensor measures the actual valve position, allowing the microprocessor to compare command and feedback continuously.
When an error exists, the processor drives an electrical-to-pneumatic conversion stage and pneumatic relay. The relay supplies or vents actuator air until the measured position approaches the command. Double-acting actuators require a positioner with two appropriate pneumatic outputs.
This closed-loop correction cannot remove mechanical faults. Poor mounting, linkage play, restricted air supply, actuator sizing problems, packing friction or damaged valve internals can still limit movement and installed response.
Configuration and communication beyond 4-20 mA
The microprocessor may store actuator action, calibrated travel limits, tuning values, signal characterisation and alarm thresholds. Available parameters and automatic setup functions vary by model, firmware and actuator arrangement.
A conventional 4-20 mA command can be combined with HART communication on the same wiring, provided the positioner and host system support it. Fully digital fieldbus models use a different communication architecture and require compatible system interfaces.
Travel data, pressure data, event histories and diagnostic tests remain model-dependent. A smart positioner without the required sensor, software licence or host integration cannot provide the same diagnostic depth as a fully supported installation.
Smart vs conventional positioner: differences that affect selection
Both conventional and smart positioners can correct valve-position error. The selection changes when commissioning methods, communication, diagnostic data and plant-system support become part of the requirement.
| Selection point | Conventional positioner | Smart positioner |
|---|---|---|
| Control method | Mechanical, pneumatic or analogue electronic feedback | Microprocessor-based processing of command and travel feedback |
| Commissioning | Manual zero, span and response adjustment | Model-dependent automatic setup with manual verification |
| Communication | Normally limited to the command signal and local adjustment | May support HART, fieldbus or another digital protocol |
| Diagnostic data | Limited stored data; checks rely mainly on local measurements | May record travel, pressure, deviation, alarms and test results |
| System dependency | Usually operates without asset-management software | Advanced functions may require a communicator, host or device software |
| Maintenance use | Suitable when local inspection and adjustment are acceptable | Useful when the plant can collect, interpret and act on device data |
A conventional electro-pneumatic positioner remains a valid choice for a stable loop where local adjustment is acceptable and stored diagnostic data would not be used. Its simpler interface can also reduce software and training requirements.
A smart positioner becomes more useful when remote configuration, condition monitoring or maintenance history supports an established plant workflow. It does not guarantee higher accuracy because installed performance still depends on air quality, mounting, actuator capacity, tuning and valve friction.
What can smart-positioner diagnostics actually tell you?
A diagnostic value may be a direct measurement, a calculated indicator, a test result or an alarm. These outputs do not carry the same evidential weight, so an alert should begin an investigation rather than confirm a root cause.
Travel, pressure and deviation data
The travel sensor allows the positioner to record commanded and measured valve position. Persistent deviation can reveal that the valve is not following the command within the configured tolerance.
Supply and output pressure data are available only when the selected positioner includes the required pressure sensors. Those measurements can help separate an air-supply problem from an actuator response problem, but they do not prove that the positioner is the failed component.
Calculated friction, deadband or performance indicators depend on the device algorithm and available sensors. Abnormal values may be associated with packing friction, linkage play, actuator problems, restricted air flow, process force or valve-internal damage. Each possibility requires supporting checks.
Online monitoring versus offline tests
Online diagnostics observe the valve during normal process movement. Depending on the model, they may track deviation, travel accumulation, reversals, response time and alert history without commanding a separate test stroke.
Offline tests can provide more controlled evidence. Valve signatures, step-response tests and full-stroke measurements may require deliberate valve movement, so they can disturb the process and must follow the site’s isolation, bypass and authorisation procedures.
Baselines, alerts and false confidence
A commissioning baseline gives later diagnostic results a useful reference. Comparisons are strongest when the valve configuration, supply pressure, test method and process conditions are similar.
Alarm limits must also reflect the valve duty. Frequent movement may be normal for one control loop, while the same pattern elsewhere could indicate signal noise, poor tuning, process instability or mechanical friction.
Smart-positioner data can narrow the next inspection, but it cannot replace checks of instrument air, mounting, actuator output, packing, valve internals and control-loop behaviour. Predictive maintenance claims remain conditional until the plant can collect consistent data and verify the suspected failure mechanism.
Auto-calibration does not complete commissioning
An automatic setup routine may move the valve to detect travel limits, determine feedback direction and calculate initial tuning parameters. The functions and amount of valve movement vary by positioner model, actuator arrangement and selected setup mode.
A routine that commands a full stroke can disturb the process. It should be performed only when valve movement is permitted by the site’s operating, isolation and authorisation procedures.
Successful auto-calibration confirms that the positioner completed its programmed setup sequence. It does not prove that the actuator has adequate force at the worst process condition, the instrument air can support the required stroke speed or the specified failure response is correct.
Commissioning should still confirm the following installed conditions:
- Rigid positioner mounting, correct feedback alignment and unrestricted linkage movement.
- Suitable supply pressure, air quality, regulator capacity and tubing flow.
- Correct valve travel without mechanical interference or unintended overtravel.
- Required response to loss of air, signal or electrical power under an approved test procedure.
- Correct command scaling, position feedback, alarm mapping and host-system communication.
- Stable response and acceptable stroke time during permitted command changes.
Where the process cannot tolerate a full stroke, commissioning must follow a manufacturer-supported partial procedure or defer the remaining checks to a planned outage. Auto-calibration provides an initial configuration, while acceptance still depends on the complete valve, actuator, positioner, air-supply and control-system response.
How to specify a smart valve positioner
The actuator sets the starting requirements for the positioner. Selecting by protocol or diagnostic features first can produce a device that does not match the valve motion, pneumatic outputs or mounting arrangement.
Match the valve and actuator
Confirm whether the valve has linear travel or rotary motion, then state the required stroke length or shaft angle. The positioner must also suit a single-acting or double-acting actuator and provide the correct number of pneumatic outputs.
Control direction and failure position are separate decisions. The specification should identify the required signal-to-travel relationship and the intended response to loss of air, signal or power.
The mounting kit, feedback mechanism and available installation space must match the selected control valve and actuator package. A suitable electrical and pneumatic specification cannot compensate for incorrect linkage geometry.
Confirm pneumatic capacity and air supply
Supply pressure must stay within the limits of the positioner and actuator. Actuator volume, required stroke time, tubing size and positioner output capacity determine whether the assembly can move at the required rate.
Instrument-air quality and pressure stability affect the pneumatic relay and actuator response. The air filter regulator must be selected for the required pressure range and flow demand rather than treated as a generic accessory.
Match the signal, host system and diagnostic tier
Specify the command signal, communication protocol, wiring and any required position-feedback output or switching functions. A 4-20 mA positioner with HART communication needs compatible host hardware or a communicator before its digital functions can be used.
Host compatibility includes the control-system interface, device description or DTM, asset-management software and required licences. A diagnostic feature listed in a datasheet has limited value when the plant cannot access, store or interpret its data.
Define the required diagnostic tier instead of requesting every available option. Travel monitoring may be sufficient for one loop, while pressure sensors, valve signatures, stroke tests or partial-stroke testing may be justified for another. Each function must be confirmed against the exact model and software configuration.
Verify the environment and approvals
Ambient temperature, ingress exposure, corrosion, vibration and mounting location affect enclosure and installation choices. Remote travel sensing or additional protection may be required where heat or vibration exceeds the positioner’s permitted conditions.
Hazardous-area and functional-safety requirements must be checked against the exact certificate, protection method and device variant. A general product-family claim does not confirm suitability for a specified zone, gas group, temperature class or safety function.
A final model selection remains conditional until the valve motion, actuator action, air demand, signal architecture, host compatibility, environment and diagnostic functions are all confirmed together.
When is a smart positioner worth the added complexity?
A smart positioner is most useful when its digital functions support an actual operating or maintenance decision. Buying diagnostic capability without a process for reviewing and acting on the data adds complexity without improving the valve package.
Critical control loops may justify travel monitoring, deviation alarms and controlled diagnostic tests where poor valve response affects production, quality or process stability. Remote configuration and status access can also help at difficult locations, although mounting, air supply and mechanical movement still require field verification.
Plants with compatible HART or fieldbus interfaces, asset-management software and trained maintenance staff can use stored device data for condition-based work. Baselines, alarm ownership and review intervals are needed before the data can support maintenance planning.
A conventional electro-pneumatic positioner may be more appropriate for a stable, accessible loop that needs only a 4-20 mA command and local adjustment. This choice can simplify spares, software support and technician training without making the positioning function inherently inferior.
The decision should compare the required diagnostic functions with the plant’s host system, maintenance workflow, device-support capability and expected service life. Claims of guaranteed downtime, energy or cost reduction are not sufficient selection criteria without application-specific evidence.
Common smart-positioner symptoms and the next checks
A positioner alarm identifies an observed condition, not necessarily a failed component. Compare the command, measured travel, pressure data and communication status before separating pneumatic, mechanical and control-system causes.
| Symptom | Useful positioner data | Next checks |
|---|---|---|
| Slow or incomplete travel | Travel trend, stroke time and pressure data if fitted | Regulator, tubing, air leaks, actuator capacity, friction and obstruction |
| Hunting or oscillation | Command, travel and output-pressure trends | Controller tuning, positioner tuning, signal noise, supply instability and friction |
| Persistent command-to-travel deviation | Command, measured travel, deviation alarm and pressure data | Calibration, feedback linkage, mounting, actuator force and valve resistance |
| Abnormal supply or output pressure | Pressure readings and related alarms if sensors are fitted | Air source, regulator, filter, tubing, leaks, gauges and pneumatic relay |
| Unstable or implausible travel feedback | Travel signal, sensor alarm and calibration status | Sensor alignment, linkage, connector, wiring and travel configuration |
| Loss of digital communication | Device status, communication errors and analogue command response | Loop wiring, power, interface, address, host configuration and device file |
In an analogue-plus-HART installation, the valve may continue responding to the 4-20 mA command while digital communication is unavailable. That pattern directs the investigation towards the communication path rather than proving a positioning failure.
Do not loosen pneumatic connections, adjust linkage, open certified enclosures or command diagnostic strokes on a live process without the required isolation and authorisation. Intrusive checks must follow the site’s process-safety and hazardous-area procedures.
Confirm the complete package before ordering
Final selection requires the valve motion and travel, actuator action and failure position, supply pressure, pneumatic capacity, stroke-time target, command signal, communication protocol, host software, installation environment, required approvals and diagnostic tier.
