Socket weld ball valves are essential components in industrial fluid control, known for their robustness and ability to handle high-pressure systems. In this article, we explore what socket weld ball valves are, their general applications, and how they compare to other valve connection types. By understanding their unique features and benefits, you can better determine if these valves are suitable for your specific industrial needs.
What Is a Socket Weld Ball Valve?

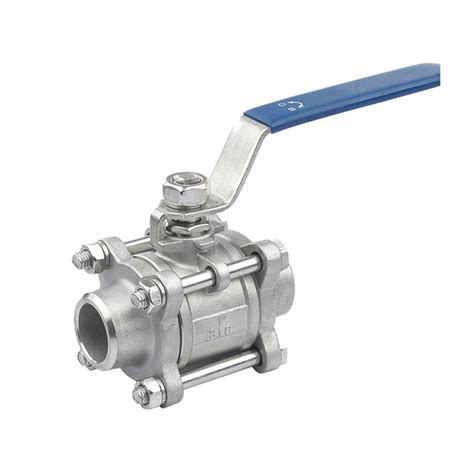

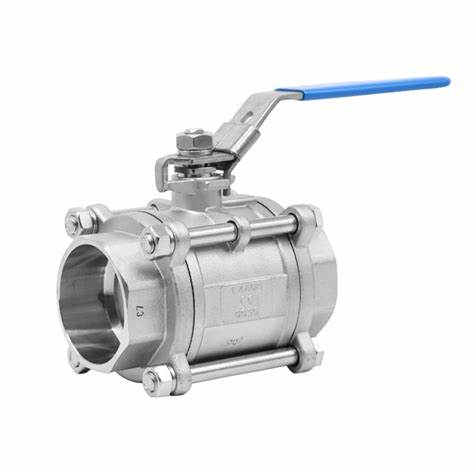

A socket weld ball valve is a type of valve that uses a welded socket connection to join the valve to the pipeline. This design involves inserting the pipe into a recessed area of the valve end and performing a weld around the joint, creating a permanent and secure connection. The internal ball mechanism, which has a hole through its center, rotates to align with the pipeline, allowing or obstructing fluid flow. This configuration offers precise control over the flow of liquids, gases, or steam within the system.
Key Components and Design Features
Socket weld ball valves are integral to many industrial applications due to their robust construction and reliable performance. Understanding their key components and design features is essential for selecting the appropriate valve for specific applications.
Construction Materials
Socket weld ball valves are manufactured using various materials, each offering distinct properties suitable for different operational environments:
-
Stainless Steel: Valves made from stainless steel, such as 304 or 316 grades, provide excellent corrosion resistance, making them ideal for applications involving corrosive fluids or environments.
-
Carbon Steel: Carbon steel valves are known for their strength and durability, suitable for high-pressure applications where corrosion is not a significant concern.
-
Alloys: Specialized alloys like Monel, Inconel, and Hastelloy are used for valves operating under extreme conditions, including high temperatures, high pressures, or highly corrosive environments.
| Part | Material |
|---|---|
| Body | Carbon steel, stainless steel, forged steel |
| Ball | Stainless steel with chrome or nickel coating |
| Stem | Stainless steel |
| Seat | PTFE (polytetrafluoroethylene) or other high-performance plastics |
| Seals and Gaskets | PTFE, graphite, or other high-temperature materials |
| End Caps | Same material as the valve body |
Dimensional Details of Socket Weld Ball Valve
Dimensional details ensure the socket weld ball valve fits appropriately within the pipeline and meets necessary specifications. Below are the typical dimensions for socket weld ball valves:
| Size (inches) | A (Body Length) | B (End to End) | C (Port Diameter) | D (Height) | E (Handle Length) |
| 1/4″ | 65 mm | 38 mm | 10 mm | 70 mm | 100 mm |
| 1/2″ | 75 mm | 42 mm | 15 mm | 75 mm | 110 mm |
| 3/4″ | 85 mm | 50 mm | 20 mm | 80 mm | 120 mm |
| 1″ | 95 mm | 60 mm | 25 mm | 85 mm | 130 mm |
| 1-1/2″ | 110 mm | 80 mm | 38 mm | 100 mm | 150 mm |
| 2″ | 120 mm | 90 mm | 50 mm | 120 mm | 180 mm |
Key Features and Benefits
Socket weld ball valves offer several notable features and benefits, including:
- Durability: The socket weld connection ensures that the valve remains securely attached to the pipeline, even under high-pressure conditions.
- Reliable Sealing: The welding process creates a tight, leak-proof seal, minimizing the risk of fluid loss.
- Vibration Resistance: These valves are less likely to experience leaks caused by vibration or mechanical stress, thanks to the welded joint.
- Compact Design: Socket weld ball valves typically have a more compact form, making them ideal for use in tight spaces where larger valves may not fit.
Socket Weld Connection vs. Other Valve Types
Selecting the appropriate valve connection type is crucial for ensuring system integrity, performance, and maintenance efficiency. Below is a comparison of socket weld connections with other common valve connection types: threaded, flanged, and butt weld.
Socket Weld Connections
Socket weld connections involve inserting the pipe into a recessed area of the valve end and applying a fillet weld around the joint. This method provides a strong, leak-proof bond suitable for high-pressure and high-temperature applications. Socket welds are commonly used in systems where disassembly is infrequent and a permanent, robust connection is desired.
Threaded Connections
Threaded connections feature male and female threads on the valve and pipe, allowing for easy assembly without welding. They are typically used in low-pressure applications and smaller pipe sizes due to their simplicity and cost-effectiveness. However, threaded joints may be prone to leakage over time and are not recommended for high-pressure or high-temperature environments.
Flanged Connections
Flanged connections consist of two flanges bolted together with a gasket in between to ensure a tight seal. They are widely used in various industries due to their ease of assembly and disassembly, making maintenance straightforward. Flanged connections are suitable for high-pressure and high-temperature applications but require more space and are generally more expensive than threaded or socket weld connections.
Butt Weld Connections
Butt weld connections involve welding the beveled ends of the valve and pipe together, creating a seamless and robust joint. This type of connection is ideal for high-pressure and high-temperature systems and provides excellent flow characteristics due to the smooth interior surface. However, butt weld connections require precise alignment and skilled welding, making installation more complex and time-consuming.
For a visual comparison between butt weld and socket weld methods, you might find the following video informative:
Source:The Metal Company
Applications of Socket Weld Ball Valves

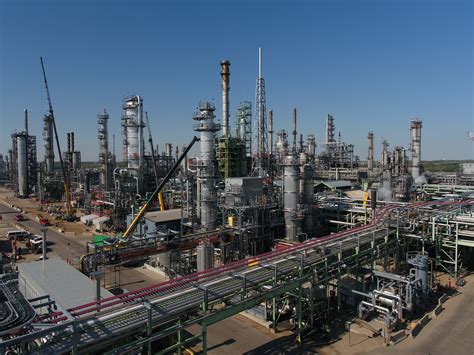

Source:Pine Bend Oil Refinery
Socket weld ball valves are integral components in various industrial sectors, offering reliable performance in demanding conditions.
High-Pressure Systems
In the oil and gas industry, socket weld ball valves are essential for controlling the flow of hydrocarbons under high-pressure conditions. Their robust construction ensures safe operation in upstream, midstream, and downstream processes. Similarly, in petrochemical plants, these valves manage the flow of chemicals under high pressure, ensuring process integrity and safety.
High-Temperature Environments
Power plants and refineries operate under high-temperature conditions, necessitating components that can withstand such environments. Socket weld ball valves, often made from materials like stainless steel and carbon steel, are suitable for these applications due to their ability to endure elevated temperatures without compromising performance.
Compact Spaces Where Leakage Prevention is Critical
In settings where space is limited and leakage prevention is crucial, such as chemical processing facilities, socket weld ball valves are advantageous. Their compact design and welded connections minimize potential leak points, making them ideal for installations where reliability and space efficiency are paramount.
Advantages of Socket Weld Ball Valves
Socket weld ball valves offer several notable advantages, making them a preferred choice in various industrial applications:
Superior Leak Resistance and Durability
The socket weld design involves inserting the pipe into a recessed area of the valve end and applying a fillet weld around the joint. This method creates a robust, leak-proof connection, minimizing the risk of leaks even under high-pressure conditions. The welded joint ensures long-term stability and durability, making these valves suitable for demanding environments.
High-Pressure and Temperature Tolerance
Socket weld ball valves are engineered to withstand high pressures and temperatures, making them ideal for applications in industries such as oil and gas, petrochemicals, and power generation. Their sturdy construction and secure welding allow them to maintain integrity under extreme conditions, ensuring reliable performance.
Minimal Maintenance Requirements
Once installed, socket weld ball valves require minimal maintenance. The permanent welded connection reduces the need for regular inspections and adjustments associated with threaded connections, leading to lower maintenance costs and increased operational efficiency.
Installation Guide for Socket Weld Ball Valves
Proper installation of socket weld ball valves is crucial for ensuring optimal performance and safety in industrial piping systems. Below is a comprehensive guide outlining the step-by-step installation process, common mistakes to avoid, and essential safety precautions.
Step-by-Step Installation Process
-
Pre-Installation Inspection:
-
Verify Specifications: Ensure the valve’s size, pressure rating, and material are compatible with the piping system’s requirements.
-
Examine Valve Condition: Check the valve for any visible damage or defects incurred during shipping or handling.
-
Clean Components: Remove any debris, dirt, or protective coatings from the valve and adjacent piping to prevent contamination.
-
-
Preparation:
-
Disassemble Valve: For valves without extended ends, disassemble the valve to prevent heat damage to internal components during welding.
-
Align Piping: Ensure the pipes to be connected are properly aligned to avoid undue stress on the valve.
-
-
Welding Procedure:
-
Insert Pipe: Push the pipe into the valve’s socket end until it bottoms out, then back off slightly (approximately 1/16 inch) to allow for thermal expansion.
-
Tack Weld: Secure the valve to the pipe with tack welds to maintain alignment.
-
Apply Final Weld: Complete the circumferential weld around the socket, using appropriate welding techniques to minimize heat input and prevent warping.
-
Cool Down: Allow the welds to cool naturally; avoid rapid cooling methods that could induce thermal shock.
-
-
Reassembly (if disassembled):
-
Reinstall Components: Carefully reassemble any parts removed prior to welding, ensuring all seals and seats are correctly positioned.
-
Torque Bolts: Tighten all bolts uniformly in a crisscross pattern to the manufacturer’s specified torque values.
-
-
Post-Installation Testing:
-
Operational Check: Cycle the valve through open and closed positions to verify smooth operation.
-
Leak Testing: Perform pressure tests to ensure there are no leaks at the welded joints or through the valve.
-
Common Mistakes to Avoid During Installation
-
Overheating the Valve: Excessive heat during welding can damage valve seats and seals. To prevent this, wrap a wet cloth around the valve body to dissipate heat.
-
Misalignment: Improper alignment of the valve and piping can lead to mechanical stress and potential failure. Ensure accurate alignment before welding.
-
Incomplete Cleaning: Failing to thoroughly clean the valve and piping can introduce contaminants, leading to seal damage and leakage.
-
Incorrect Welding Techniques: Using inappropriate welding methods or parameters can cause defects. Employ qualified welders and adhere to established welding procedures.
Safety Precautions
-
Personal Protective Equipment (PPE): Wear appropriate PPE, including gloves, safety glasses, and welding helmets, to protect against hazards.
-
Ventilation: Ensure adequate ventilation in the work area to disperse fumes generated during welding.
-
Handling Hot Components: Allow welded parts to cool before handling to prevent burns.
-
Pressure Testing: Conduct pressure tests in accordance with safety standards, and never exceed the valve’s rated pressure during testing.
-
Emergency Preparedness: Have fire suppression equipment readily available, and ensure personnel are trained in emergency response procedures.
How to Choose the Right Socket Weld Ball Valve
Selecting the appropriate socket weld ball valve is essential for ensuring optimal performance, safety, and longevity in industrial applications. Key considerations include pressure rating, temperature tolerance, media compatibility, material selection based on industry standards, and relevant certifications and compliance.
Factors to Consider:
-
Pressure Rating:
-
Determine the maximum operating pressure of your system to ensure the valve can withstand these conditions without failure. Valves are rated for specific pressure ranges; selecting one with an appropriate rating is crucial.
-
-
Temperature:
-
Assess the operating temperature range of your application. Valve materials and seals must tolerate these temperatures without degrading. For instance, stainless steel valves typically handle temperatures from -40°F to 392°F (-40°C to 200°C).
-
-
Media Compatibility:
-
Identify the type of media (liquids, gases, corrosive substances) that will flow through the valve. Ensure both the valve body and sealing materials are compatible with the media to prevent corrosion and maintain integrity. For example, PTFE seals are suitable for most chemicals, while elastomers like Viton may be required for specific applications.
-
Material Selection Based on Industry Standards (ASTM, ASME)
Choosing materials that comply with recognized industry standards ensures reliability and safety:
-
ASTM (American Society for Testing and Materials):
-
Specifies material properties for valve components. For example, ASTM A216 WCB is a common specification for carbon steel valve bodies.
-
-
ASME (American Society of Mechanical Engineers):
-
Provides guidelines on design and manufacturing. ASME B16.34 outlines standards for valve pressure-temperature ratings, materials, and dimensions.
-
Certifications and Compliance (API 6D, ISO 9001)
Ensuring that valves comply with relevant certifications is vital for quality assurance and regulatory adherence:
-
API 6D (American Petroleum Institute):
-
Specifies requirements for pipeline valves, including design, manufacturing, testing, and documentation. Compliance with API 6D indicates the valve’s capability to meet stringent industry requirements.
-
-
ISO 9001 (International Organization for Standardization):
-
Certifies that the manufacturer’s quality management systems meet international standards. An ISO 9001 certification ensures consistent product quality and continuous improvement processes.
-
Maintenance and Troubleshooting Tips for Socket Weld Ball Valves
Proper maintenance of socket weld ball valves is essential to ensure their longevity and reliable performance in industrial applications. Regular inspections and timely interventions can prevent operational issues and costly downtime.
Routine Inspection Practices
-
Scheduled Inspections: Implement a maintenance schedule to regularly inspect valves for signs of wear, corrosion, or damage. This proactive approach helps in identifying potential issues before they escalate.
-
Operational Testing: Periodically operate the valve through its full range to ensure smooth movement and detect any irregularities.
-
Leak Checks: Examine the valve and surrounding pipeline for any signs of leakage, which could indicate seal deterioration or connection issues.
Signs of Wear and Tear to Watch For
-
Leakage: Presence of fluid around the valve stem or body suggests seal failure or internal damage.
-
Difficulty in Operation: Increased torque or stiffness when operating the valve may indicate internal corrosion, debris buildup, or mechanical wear.
-
Corrosion: Visible rust or corrosion on the valve body or components can compromise structural integrity and sealing performance.
Repair vs. Replacement Guidelines
-
Minor Issues: Problems such as slight leaks or stiffness due to debris can often be resolved through cleaning, seal replacement, or lubrication.
-
Major Damage: Significant issues like extensive corrosion, cracked valve bodies, or persistent leakage after repairs typically necessitate complete valve replacement to ensure system safety and reliability.
FAQs About Socket Weld Ball Valves
1.Are Socket Weld Valves Reusable?
Socket weld valves are typically designed for permanent installation, as the welding process creates a fixed and durable connection between the valve and the piping system. Once welded, removing and reusing these valves is challenging without cutting the pipe, which can compromise the integrity of both the valve and the piping. Therefore, socket weld valves are generally not considered reusable.
2.Can Socket Weld Valves Handle Corrosive Fluids?
Socket weld valves can handle corrosive fluids if they are constructed from appropriate materials. For instance, valves made from stainless steel or other corrosion-resistant alloys are suitable for such applications. However, it’s essential to consider that socket welds may be susceptible to crevice corrosion due to the gap required for thermal expansion during installation. This gap can create a crevice where corrosive media might accumulate, potentially leading to corrosion over time. Therefore, in highly corrosive environments, alternative welding methods like butt welding, which provide a smoother internal surface, might be more appropriate.
Conclusion
Socket weld ball valves are versatile and reliable components in industrial fluid control, especially in applications involving high pressure and temperature. Their robust construction, secure weld-sealed connections, and ability to handle challenging environments make them an ideal choice for industries such as oil and gas, chemical processing, power generation, and water treatment. By understanding their features, benefits, and applications, you can make informed decisions about whether socket weld ball valves are the right solution for your specific industrial needs. Contact us today to buy our high-quality socket weld ball valves.
