A valve can match the nominal pipe size and still have the wrong weld end for the line. In a socket weld vs butt weld decision, pipe schedule, end preparation, cyclic loading, corrosion sensitivity, weld examination and maintenance access can matter as much as NPS.
A socket-weld end can simplify fit-up on a compact small-bore line, but its inserted geometry leaves a crevice and creates a different stress profile. A butt-weld end requires matched bevels and accurate alignment, yet its end-to-end joint is often better suited to larger pipe and services exposed to vibration or thermal cycling. Neither connection is universally stronger, nor does the joint type alone determine the pressure-temperature rating.
The specification should therefore identify the pipe outside diameter and wall thickness, schedule, material, operating medium, temperature cycles, examination plan and removal requirements. These details determine whether the selected valve end can be fitted, welded and inspected correctly.
How Socket Weld and Butt Weld Joints Are Formed

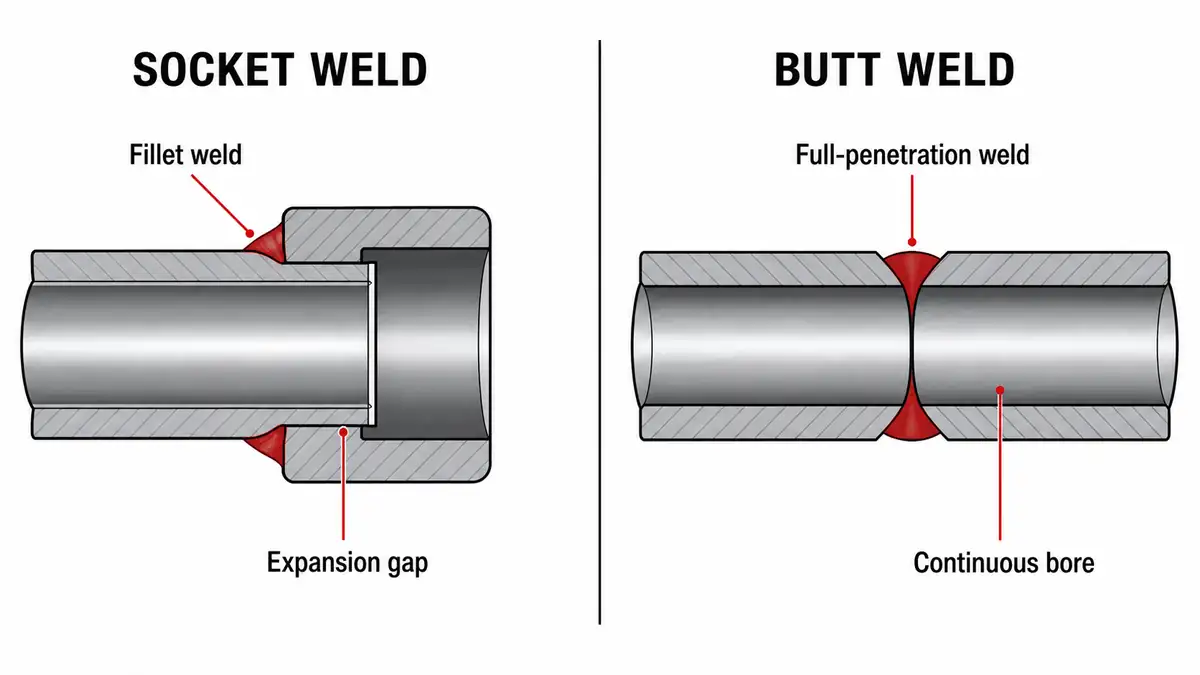

A socket-weld joint places the pipe inside the valve or fitting end, while a butt-weld joint joins two prepared ends on the same centreline. This difference changes the fit-up, weld profile and internal joint geometry.
What Is a Socket Weld?
A socket-weld valve end contains a recessed bore slightly larger than the pipe outside diameter. The pipe enters this socket and stops near an internal shoulder. The fabricator then positions the pipe according to the applicable welding procedure and completes an external fillet weld around the joint.
The pipe end does not become part of the weld groove. A small internal space remains between the pipe end and the socket shoulder, creating a crevice that must be considered when the medium can stagnate, contaminate the process or promote corrosion. This compact construction is commonly used for small-bore piping and valve connections, although the permitted size and service depend on the component standard and project specification.
What Is a Butt Weld?
A butt-weld valve end is aligned directly with the prepared pipe end. Both ends are bevelled to form a weld groove, which is filled to produce a full-penetration joint. The bevel and root preparation must match the pipe wall thickness, welding procedure and specified end details.
Correct alignment can provide a continuous internal bore without the socket shoulder and internal crevice. Poor fit-up, however, can leave internal mismatch or an uneven root profile. The pipe schedule and required end preparation must therefore be confirmed before an integral butt-weld valve is manufactured.
Socket-weld and butt-weld ends are two of several valve connection types. They are not normally interchangeable on an integral-end valve because the body-end geometry and pipe preparation are different.
Video source: The Metal Company
Socket Weld vs Butt Weld: Key Differences
The joint geometry changes fit-up, bore condition, fatigue behaviour, inspection access and fabrication cost. It does not create a universal rule that one connection is always stronger or suitable for higher pressure.
| Factor | Socket Weld | Butt Weld | Selection Implication |
|---|---|---|---|
| Joint formation | Pipe enters a recessed socket and is joined by an external fillet weld. | Prepared ends align on the same centreline and are joined by a groove weld. | The geometry affects the load path, bore profile and examination options. |
| Typical size pattern | Common on small-bore valve connections, often through NPS 2. | Available across a broad size range and commonly used above small bore. | Treat NPS 2 as a common supply pattern, not a universal limit. |
| Pipe preparation | Socket bore must match the pipe outside diameter. The insertion position follows the welding procedure. | Bevel, root face and root opening must suit the wall thickness and welding procedure. | Confirm actual pipe OD, schedule and end preparation before manufacture. |
| Strength and pressure | Rated socket-weld components can be used in high-pressure small-bore systems when the design permits. | A correctly made full-penetration joint can provide continuity close to the connected pipe. | No fixed strength ratio applies. Component rating, material, pipe wall, code and weld design govern. |
| Fatigue and vibration | The fillet and socket geometry can concentrate stress under vibration or thermal cycling. | An aligned full-penetration joint is generally preferred for fatigue-sensitive service. | Joint quality, pipe support and the number of operating cycles remain important. |
| Crevice and bore profile | An internal crevice remains between the pipe end and socket shoulder. | Correct alignment and root control can produce a continuous internal bore. | Butt weld is often preferred for high-purity, cleanable or crevice-sensitive service. |
| Non-destructive examination | Fillet geometry limits the use of volumetric examination. Visual and applicable surface methods are commonly considered. | Groove-weld geometry is more compatible with radiographic or ultrasonic examination when required. | The governing code and project examination plan must define the method and acceptance criteria. |
| Fabrication and lifecycle cost | Initial fit-up is usually simpler because pipe bevel preparation is not required. | Accurate alignment, bevel preparation and groove welding normally require more fabrication time. | Compare installation, examination, repair and valve-removal costs rather than weld labour alone. |
A socket weld is therefore a practical choice for many compact small-bore utility lines, including services with high pressure when the component rating and piping design permit it. Butt weld is usually the stronger candidate when bore continuity, volumetric examination, larger pipe size, cyclic loading or crevice control drives the specification.
The table is a screening guide rather than a substitute for the piping code, valve pressure-temperature rating, project specification or qualified welding procedure.
Pipe Size, Schedule and End Preparation
A nominal pipe size match does not confirm that a welded valve end will fit the pipe correctly. NPS is a size designation, while pipe schedule identifies wall thickness. For a given NPS, the outside diameter normally remains fixed and the inside diameter changes with the schedule.
A socket-weld end is bored to receive the pipe outside diameter. Schedule 40 and Schedule 80 pipe of the same NPS may therefore fit the same standard socket, but their different wall thicknesses produce different internal bores. The valve pressure rating, socket dimensions, pipe material and applicable component standard still need to match the piping specification.
Socket-weld valve ends are commonly supplied for small-bore piping, often through NPS 2. This is a common product pattern rather than a universal size limit. The permitted range depends on the valve design, fitting standard, pressure class and project requirements.
A butt-weld end must match the connected pipe wall more closely. A valve prepared for thin-wall pipe may leave a large internal mismatch when it is welded to heavy-wall pipe, even though both items have the same NPS and outside diameter. The mismatch can complicate root welding, examination and flow through the joint.
The required bevel, root face and transition for a butt-weld valve should be defined from the actual wall thickness and the applicable ASME B16.25 buttwelding-end requirements, together with the project drawing and qualified welding procedure. Corrosion allowance or a special transition bore should also be stated when it changes the finished end geometry.
A purchase description such as “2-inch welded-end valve” is incomplete. It should distinguish socket weld from butt weld and identify the pipe schedule or actual wall thickness, material and required end preparation. For a replacement valve, the end-to-end dimension and available pipe length must also be checked before the existing valve is cut from the line.
Strength, Fatigue, Crevice Corrosion and Flow
Pressure rating and fatigue resistance are separate design questions. A joint that contains static pressure successfully may still be unsuitable for repeated vibration, thermal cycling or a medium that collects inside a crevice.
Static Strength and Pressure Rating
Socket-weld valves and forged fittings are available for high-pressure small-bore piping. Their allowable service depends on the component pressure-temperature rating, material, pipe wall, weld design and governing piping code. Socket weld should therefore not be described as a low-pressure connection by default.
A correctly aligned, full-penetration butt weld can provide a load path close to that of the connected pipe. This does not mean every butt weld is automatically stronger. Lack of fusion, incomplete penetration, undercut or internal mismatch can reduce joint performance. Fixed claims that a socket weld has one-half or one-third of butt-weld strength ignore the component design and service conditions.
Fatigue, Vibration and Thermal Cycling
The fillet-weld toe, socket geometry and pipe end create local changes in stiffness. Repeated vibration or thermal movement can concentrate stress at these locations, especially when the line is poorly supported or the pipe is forced into alignment during installation.
An aligned butt weld with a controlled root profile is generally preferred for fatigue-sensitive piping because the load passes through a more continuous section. Weld quality still matters. Misalignment, abrupt wall transitions and weld defects can also become fatigue initiation points in a butt-weld joint.
Crevice Corrosion, Cleanliness and Flow
A socket-weld joint leaves an internal space between the pipe end and socket shoulder. Liquid, solids or cleaning residue can remain in this space after the main line has drained. The risk becomes more significant with corrosive, deposit-forming or contamination-sensitive media, but it depends on the material, chemistry, temperature and cleaning method.
Butt welding removes the designed socket crevice and can provide a smoother flow path. The result still depends on root penetration and alignment. Excess weld reinforcement, internal mismatch or an unfinished root can disturb flow and create another location for deposits.
For ordinary small-bore utility service, the minor bore disturbance of a socket-weld joint may have little practical effect. Butt weld becomes the stronger candidate when cleanability, product purity, solids transport, corrosion control or repeated cycling drives the connection decision.
Installation, Inspection and Valve Heat Protection
Welding an integral-end valve can damage soft seats, stem seals, packing or trim if excessive heat travels into the valve body. Correct fit-up, an approved welding procedure and suitable inspection are therefore as important as selecting the connection type.
Fit-Up and Welding Procedure
A socket weld connection generally requires less pipe-end preparation. The square-cut pipe is inserted into the valve socket, positioned as required by the approved welding procedure, and joined with a fillet weld. Although the socket helps with alignment, insertion position and fillet-weld dimensions must still comply with the applicable WPS and project specification.
A butt weld connection requires matched bevels, controlled root opening and accurate pipe-to-valve alignment. Poor preparation can cause root defects, uneven penetration or excessive internal mismatch. The joint should be completed using a qualified groove-welding procedure suited to the materials, wall thickness and service conditions.
Inspection Must Match the Joint Geometry
Socket welds can be visually inspected for fillet profile, surface defects and incomplete coverage. Applicable surface examination methods may also be specified. However, the socket and fillet geometry makes conventional volumetric examination of the complete joint difficult.
Full-penetration butt welds are generally more compatible with radiographic or ultrasonic examination when wall thickness, access and the qualified procedure permit. The governing piping code and project inspection plan determine the required method, examination extent and acceptance criteria.
Protect the Valve from Welding Heat
Soft seats and polymer seals can lose their sealing performance when exposed to excessive welding heat. Packing, coatings, lubricants and nearby trim may also be affected. This risk is especially relevant when the weld end forms an integral part of a compact valve body.
Valve position, permissible disassembly, welding sequence, cooling intervals and heat input should follow the valve manufacturer’s instructions and the approved WPS. Avoid applying a universal rule such as always welding the valve open or closed, because the correct position depends on the valve design and seat arrangement.
After the joint has cooled, clean and inspect the weld, operate the valve through its required travel, and complete any specified leakage or pressure testing before commissioning.
Plan for Removal Before Welding
An integral welded valve cannot be unbolted from the pipeline. Major repair or replacement may require in-line servicing or cutting the valve from the pipe, which adds shutdown time and affects the required replacement allowance.
Some three-piece ball valves allow the centre section to be removed while the socket-weld or butt-weld end pieces remain attached to the pipeline. This depends on the valve design, available clearance and piping flexibility, so the maintenance method should be confirmed before the valve is welded into place.
How to Choose the Welded Valve Connection
Use socket-weld valve ends mainly for compact small-bore piping where straightforward alignment and limited end preparation matter. Choose butt-weld ends when bore continuity, cyclic loading, volumetric examination or larger pipe sizes have greater influence on the design.
When Socket Weld Is the Practical Choice
Socket weld is commonly selected for small-bore utility, sampling, instrument and process lines. The socket supports pipe alignment during fit-up, and the square-cut pipe end avoids the bevel preparation required for a butt weld. These features can reduce installation effort where many small valves and fittings must be welded in confined areas.
Correctly rated socket-weld components can also be used in high-pressure small-bore systems when permitted by the piping code and project specification. Connection type alone does not establish the valve’s pressure-temperature rating; the valve design, material, pressure class, pipe schedule and applicable code must agree.
A socket weld ball valve is usually a practical option when compact construction and permanent leak-tight pipe attachment are required without the preparation of bevelled ends.
When Butt Weld Is the Better Fit
Butt-weld valve ends are generally preferred for larger piping and services where a smooth internal flow path matters. The absence of an internal socket recess makes this geometry more suitable for systems that require drainage, cleaning, pigging or reduced product retention.
Butt weld also deserves stronger consideration where the piping experiences frequent thermal cycles, vibration or fluctuating mechanical loads. A qualified full-penetration groove weld avoids the socket discontinuity, although actual fatigue performance still depends on alignment, weld profile, procedure control and the complete piping design.
Projects requiring radiographic or ultrasonic examination may favour butt-weld ends because the groove-weld geometry is more compatible with volumetric examination. Access, wall thickness and the approved inspection procedure still determine which method can be used.
A three-piece butt weld ball valve can combine a permanent welded connection with a removable centre section, provided the installed piping leaves enough clearance for disassembly.
Conditions That Should Change the Decision
Prefer butt weld for high-purity or crevice-sensitive service unless the approved design specifically accepts a socket joint. Media that can solidify, crystallise or collect in stagnant spaces also make the socket recess less attractive. Socket weld may remain the economical choice for compatible small-bore utility service with moderate cycling and no special bore-cleanliness requirement.
Before ordering, confirm the pipe NPS, outside diameter, schedule, valve-end bore, material, pressure class and required examination. A connection selected from nominal size alone can still arrive with the wrong wall match, bore transition or end preparation.
Standards That Control the Specification
No single ASME document fully specifies a socket-weld or butt-weld valve installation. Fitting dimensions, butt-weld end preparation, piping design, welding qualifications and inspection requirements come from different documents.
ASME B16.11 for Socket-Welding Fittings
ASME B16.11 socket-welding fitting requirements cover forged socket-welding and threaded fittings. The standard addresses matters such as dimensions, tolerances, ratings, materials and marking within its stated scope.
B16.11 should not automatically be treated as the complete product standard for a socket-weld valve. The valve specification must also identify the applicable valve design standard, pressure-temperature rating and manufacturer’s end dimensions. Pipe schedule and socket bore still need to be checked against the supplied valve.
ASME B16.25 for Butt-Welding Ends
ASME B16.25 buttwelding-end requirements define the preparation of butt-welding ends on piping components, including valves. They provide the dimensional basis for bevels, root faces and related end-preparation details.
B16.25 does not by itself qualify the welding procedure or determine the finished joint’s acceptance. Wall thickness, material, backing arrangement and any transition between the valve bore and pipe bore must be resolved in the approved fabrication documents.
ASME B31.3 for Process Piping
ASME B31.3 process piping requirements place the welded joint within the complete piping system. Its scope includes design, materials, fabrication, assembly, examination, inspection and testing for covered process-piping services.
The applicable piping code determines whether the selected joint is permitted for the service and how it must be fabricated and examined. The project specification may impose tighter restrictions for cyclic operation, vibration, hazardous media, cleanliness or examination coverage.
The Project Documents Complete the Requirement
The valve datasheet or purchase specification should state the design code, connection type, nominal size, pipe schedule or wall thickness, material, pressure class and required end preparation. The WPS, welding qualification requirements and inspection plan then control how the valve is installed and accepted.
Always confirm the contractually specified standard edition. A general statement such as “ASME socket weld” or “standard butt weld end” leaves too much room for a mismatch between the valve, pipe and fabrication procedure.
Specify the Weld End Around the Service
Release the valve order only after the NPS, pipe schedule, pressure class and supplied end dimensions have been matched. The final choice should also account for the medium, design temperature, thermal and vibration cycles, cleanliness requirement, NDE method, welding procedure, seat heat protection and future removal method. Use socket weld where compact small-bore installation and simpler fit-up justify the socket geometry; specify butt weld where full penetration, bore continuity, cyclic loading or volumetric examination carries more weight. If the drawing or datasheet leaves these relationships unresolved, ask MacoTango Valve to review the valve end connection before manufacture.
