Choosing the right check valve is critical for maintaining system performance, preventing backflow, avoiding costly water hammer, and minimizing maintenance. Among the most common options, swing check valves and lift check valves offer distinct advantages depending on your system’s needs. While swing check valves provide low flow resistance and are ideal for steady, large-diameter pipelines, lift check valves deliver fast closure and superior protection against water hammer, making them better suited for high-pressure, frequent-cycling, or vertical installations. Understanding the differences between swing check valves and lift check valves ensures you select the most reliable, efficient, and cost-effective solution for your specific application.

How Check Valves Work: The Core Function

At their heart, all check valves share a simple but critical purpose: they allow forward flow while automatically preventing reverse flow, also known as backflow.

• When fluid pressure builds in the forward direction, the valve’s internal component—whether a disc, ball, piston, or diaphragm—lifts or swings away from its seat, permitting flow.

• If the pressure reverses or drops below a certain threshold, that component returns to its seat—by gravity or a spring—blocking the reverse flow and protecting the system .

This two-step operation — open under forward pressure, close under reverse flow — safeguards equipment, prevents contamination, maintains system pressure, and avoids costly damage from issues like water hammer.

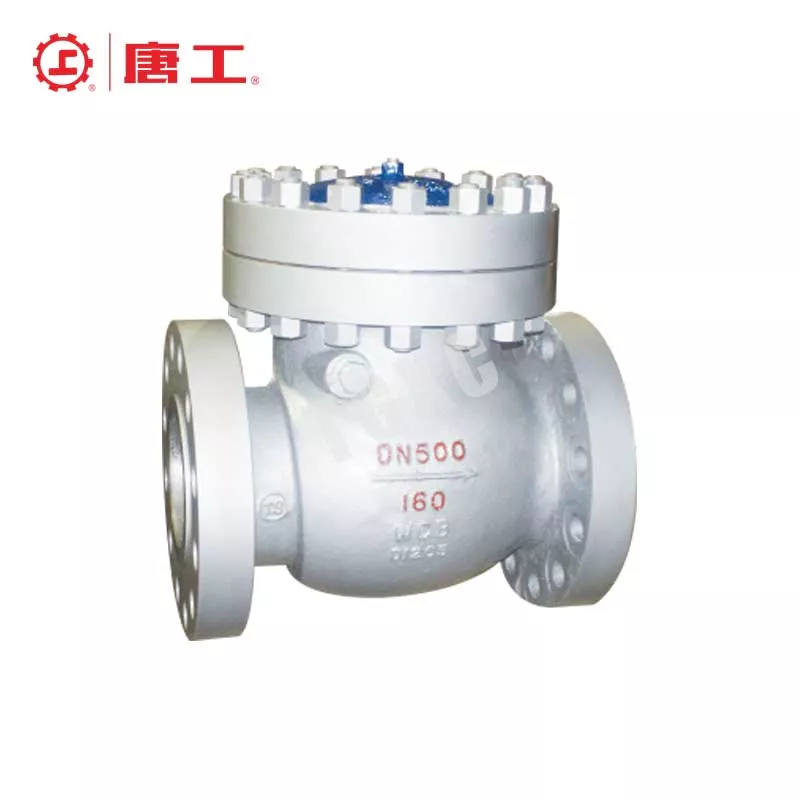

Inside the Swing Check Valve: The Flap Door Principle

Working Mechanism

A swing check valve relies on a hinged disc—much like a flap door—that pivots open when forward flow pushes against it. As flow stops or reverses, gravity and back-pressure swing the disc swiftly back onto its seat, effectively sealing the line.

Key Advantages

• Simple, Robust Construction
  Fewer parts, easy to service, and often with removable internals for maintenance.

• Low Flow Resistance / High Cv
  The open disc creates minimal obstruction, resulting in low head loss and excellent flow capacity—even in systems handling viscous or particulate-laden fluids.

• Suitable for Large Diameters
  Commonly used in big-bore pipelines where a large Cv (flow coefficient) is crucial.

• Ideal for Horizontal Piping (Primary Orientation)
  Designed primarily for horizontal lines where gravity can effectively close the disc; vertical use is possible only when flow is upward and velocity is sufficient.

Limitations & Considerations

• Slower Closing Speed (Risk of Water Hammer/Slam)
  The disc may not shut fast enough to prevent flow reversal; this lag can trigger water hammer and hammering noise when the disc slams shut.

• Installation Orientation Sensitivity
  Vertical installation only works effectively if the flow is upward and velocity is adequate; otherwise, performance suffers.

• Potential for Wear/Damage During Fast Reverse Flow
  Rapid backflow can slam the disc against the seat, which may cause wear, vibration, and noise over time.

Typical Swing Check Valve Applications

• Municipal water supply and distribution systems

• Cooling water circuits and HVAC loops

• Fire protection mains and sprinkler systems

• Large, low-flow-variation pipelines where steady flow and minimal pressure loss are paramount



Inside the Lift Check Valve: The Piston Action

Working Mechanism

In a lift check valve, the fluid flow forces a disc or piston vertically upward—usually guided by a spring or gravity—lifting it off its seat and allowing forward flow. When the flow stops or reverses, the disc rapidly drops back into place, aided by backflow pressure and gravity or spring force, ensuring a tight seal.

Key Advantages

• Very Fast Closing Action
  The vertical drop enables swift closure, significantly minimizing water hammer and preventing valve slam.

• Positive Sealing Capability
  The piston seats directly, offering a more reliable shutoff—ideal for high-pressure systems.

• Suitable for Vertical & Horizontal Piping
  Can be used in both orientations, provided the flow aligns with the valve design and disc movement.

• Excellent for Rapid Cycling
  Performs well under frequent start-stop conditions—found in boiler feeds, pump discharges, and compressed air systems.

Limitations & Considerations

• Higher Flow Resistance
  The guided piston creates more pressure drop compared to swing valves.

• Not Suitable for Dirty or Slurry Services
  Debris may clog the piston guide or seat, affecting function.

• Spring Maintenance Required
  Spring-loaded models need periodic inspection and potential replacement to maintain performance.

• Generally Smaller Sizes Favored
  Due to piston design and flow-through limitations, lift valves are commonly used in smaller diameter lines.

Typical Lift Check Valve Applications

• Boiler feed lines

• Compressed air systems

• Pump discharge lines (especially with frequent on/off cycles)

• Pressure sustaining systems

• Vertical up-flow applications



Head‑to‑Head Comparison: Swing Check vs Lift Check Valves



Key Selection Factors: Choosing Between Swing and Lift

When selecting between swing and lift check valves, engineers must consider several critical system criteria:

Flow Rate & Velocity

• Swing: Ideal for large, steady flows—thanks to minimal flow resistance and high Cv.

• Lift: Handles variable or fluctuating flows better, though at the cost of increased pressure drop.

System Pressure & Potential for Water Hammer

• Swing: Slower closure increases the risk of water hammer, especially in high-pressure or pulsatile systems.

• Lift: Fast vertical closure dramatically reduces surge and slam, making it superior for this criterion.

Installation Orientation

• Swing: Best suited for horizontal pipelines; can be used vertically only if upward flow and sufficient velocity are ensured.

• Lift: More flexible, suitable for horizontal or vertical up-flow, depending on design.

Media Characteristics

• Swing: Performs well with dirty or particulate-laden fluids—few internal obstructions.

• Lift: Susceptible to fouling—debris can block the piston guide and affect sealing.

Cycling Frequency

• Swing: Suitable for moderate-cycle systems; not ideal for frequent start–stop cycles.

• Lift: Excellent for rapid or frequent cycling, maintaining performance under higher switching rates.

Space & Maintenance Constraints

• Swing: Offers simpler design, lower maintenance, and typically lower cost.

• Lift: Requires more internal maintenance (spring and piston), more sensitive to environment, and tends to be more expensive.



FAQs

1.Can a swing check valve be installed vertically?

Yes — but only if installed in an upward flow orientation. The hinge must be horizontal, and gravity will close the disc when flow stops. Downward vertical installation is not recommended, as the disc will not close properly and may slam shut, risking damage and water hammer.

2.Which valve type is better for preventing water hammer?

Lift check valves excel here. Their fast-acting vertical closure—often spring-assisted—reduces surge and slam noise. Swing check valves, with their slower closure, are more prone to water hammer in high-pressure or pulsating flow systems .

3.Are lift check valves more expensive than swing check valves?

Generally, yes. Swing check valves have simpler designs and fewer parts, making them lower cost. Lift check valves feature springs, pistons, and tighter tolerances, which typically make them more expensive upfront.

4.Which type has a longer service life?

It depends on application conditions. Lift checks often outlast swing valves in high-pressure or frequent-cycling systems due to smoother operation. However, in large-bore, clean-water systems with low cycling, swing check valves can offer extended life with minimal maintenance.

5.Can lift check valves handle sewage or wastewater?

Yes—but they must be specific types with full-port or spring/nozzle design to accommodate solids. Standard lift checks with narrow passages may clog. Some lift check models are approved for clean wastewater applications, but for solids-laden flow, swing check valves or spring-loaded models with larger clearances are usually preferred.



Conclusion

Ultimately, selecting between swing check valves and lift check valves depends on matching their unique features to your system’s demands. Swing check valves are ideal for steady, large-bore horizontal flows due to their simple design, low resistance, and cost-effectiveness, while lift check valves excel in applications requiring fast closure, frequent cycling, vertical installation, and superior protection against water hammer. Always consult manufacturer specifications to ensure the chosen valve meets your system’s flow profile, pressure conditions, installation orientation, and media characteristics for optimal performance, reliability, and cost control.
