Tapping valves and gate valves are both essential components in fluid and pipeline management, offering distinct functionalities suited to specific applications. A tapping valve is designed primarily for tapping into existing pipelines to create new connections, often used in water distribution systems and in industries like oil and gas. These valves allow for the addition of new service lines or branches without disrupting the existing flow, making them ideal for live or “hot” tapping applications. On the other hand, a gate valve is a traditional valve used to control the flow of liquids or gases by either fully opening or closing a pipeline. Its mechanism involves a sliding gate that is raised or lowered to control flow, making it perfect for applications requiring complete shutoff of the fluid flow. Both valve types are crucial in ensuring system efficiency, safety, and ease of maintenance, but understanding the differences between them is key to selecting the right valve for a given application.
What is a Tapping Valve?
A tapping valve is specifically designed to enable the branching off of an existing pipeline, typically without disrupting the overall flow in the system. It is a key component in systems that require a new service line or connection to be added without shutting down or interrupting the current flow. The tapping valve is used in conjunction with a tapping sleeve, which secures the valve to the pipe. This allows for a hot tapping process, where a new branch line can be inserted while the main pipeline remains in service.
The tapping valve can be installed without needing to shut off the mainline, which is particularly useful in water and gas distribution systems where continuous service is essential. It is typically used in utilities like waterworks, gas lines, and steam lines, where maintaining flow during maintenance or expansion is important.
The primary function of a tapping valve is to provide an access point for attaching new pipelines, whether for regular branching or future expansion. It is often paired with an isolation valve, allowing for control over the new branch once it is connected. These valves are essential for systems that need to adapt to growing demands, such as the installation of additional sensors, meters, or valves, without interrupting ongoing operations.
Applications of Tapping Valves
- Pressure Control in Pipeline Systems: Tapping valves are used to safely tap into live pipelines for maintenance or testing without disrupting the overall flow of fluids.
- Water Distribution: Common in municipal water systems, tapping valves are used to create branch connections to distribute water to various areas without needing to shut down the entire system.
- Gas Distribution Systems: Tapping valves facilitate safe, controlled connections to active gas pipelines for service or monitoring without halting the gas flow.
- Wastewater Systems: In wastewater management, tapping valves allow for the addition of new connections without disrupting ongoing operations.
What is a Gate Valve?

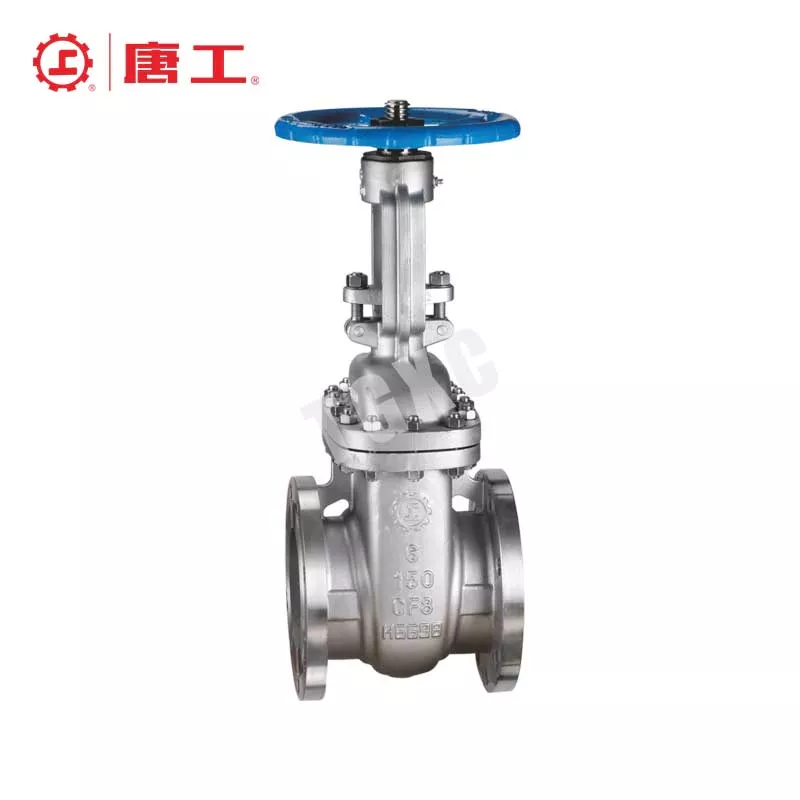

A Gate Valve is a linear isolation valve, commonly used to start or stop the flow of fluids in a pipeline. It operates by lifting or lowering a gate or wedge into the path of the flowing fluid. When fully opened, gate valves allow a full, unobstructed flow path, making them suitable for applications that require minimal pressure loss or where cleaning pigs need to pass through. Gate Valves are primarily used for isolation purposes and are most effective when used in fully open or closed positions.
Key Features of Gate Valves:
- Full bore design: Offers minimal pressure drop when open.
- Tight shutoff: Ensures leak-tight closure when closed.
- Slower operation: Reduces the likelihood of water hammer damage.
- Frequent maintenance: Requires regular maintenance due to wear and binding issues.
Applications of Gate Valves
- Shut-off Systems: Gate valves are primarily used for full shut-off of fluid flow, making them ideal for isolating sections of pipelines in water, gas, and chemical systems.
- Water Supply Systems: Commonly used in water treatment plants and distribution networks to control the flow of water and manage pressure.
- Gas and Oil Pipelines: Gate valves regulate the flow of oil and gas, ensuring safe transportation across pipelines, while also serving as emergency shut-off mechanisms.
- Power Plants: Gate valves control the flow of steam and water in power generation facilities, ensuring the efficient operation of turbines and cooling systems.
- Irrigation Systems: Used in agricultural applications to regulate the flow of water into irrigation systems, ensuring proper water distribution.
- Chemical Processing: In chemical manufacturing, gate valves are used to control and isolate corrosive or hazardous materials, maintaining system integrity and safety.
- Fire Protection Systems: Gate valves are employed to shut off water supply during maintenance or to direct water flow in fire suppression systems.
Tapping Valve vs Gate Valve: Key Differences
| Feature | Tapping Valve | Gate Valve |
|---|---|---|
| Design | Designed for tapping new connections into existing pipelines without interrupting flow. | Designed to control fluid flow by lifting a gate out of the flow path. |
| Operation | Used for creating branch lines or service connections while under pressure. | Controls full flow with a simple open/close mechanism. |
| Sealing Mechanism | Provides minimal sealing during tapping operations. Can handle pressure during installation. | Provides excellent sealing when closed, ensuring tight isolation. |
| Applications | Primarily used in water distribution systems, especially for adding connections to live pipelines. | Commonly used in oil & gas, water treatment, and chemical industries for flow control and isolation. |
| Maintenance | Requires less frequent maintenance due to simpler design. | Requires more frequent maintenance due to its more complex design and multiple moving parts. |
| Durability | Typically more durable in tapping operations, as it is built to withstand the pressure during installation. | Durable but subject to wear, especially in high-pressure and abrasive environments. |
| Flow Control | Not designed for full-flow control, mainly used for creating connections. | Best suited for controlling large volumes of flow in full open or closed positions. |
| Cost | Generally cost-effective due to simpler design and functionality. | Typically more expensive due to its robust design and sealing capabilities. |
| Risk of Corrosion | Less prone to corrosion, but depends on the material used. | Can be prone to corrosion, especially in aggressive environments, requiring material selection and maintenance. |
| Ideal for | Systems requiring minimal downtime and installation of new branches. | High-pressure systems and applications requiring reliable shut-off and flow isolation. |
Considerations for Choosing Between Tapping Valve Vs Gate Valve
When choosing between gate valves and tapping valves, several factors need to be taken into account to ensure the most effective and efficient operation within a fluid control system. Both valve types serve distinct functions, and understanding their capabilities and limitations will help engineers make an informed decision based on the specific requirements of their system.
Application Needs
The primary consideration when choosing between tapping valve vs gate valve is the application itself. If the goal is to control the flow of liquids or gases in large volumes, especially in a straightforward on/off manner, a gate valve is the ideal choice. These valves are highly effective in isolation applications, where a tight seal is required to shut off flow completely. In contrast, tapping valves are best suited for systems where new connections to an existing pipeline need to be made without shutting down the flow, such as in water distribution systems or during maintenance operations.
System Pressure
System pressure plays a significant role in determining which valve to choose. Gate valves excel in high-pressure systems due to their robust design, which provides a reliable seal under pressure. For systems that require tapping into live pipelines while maintaining pressure, tapping valves are designed to handle this scenario effectively. They are engineered to facilitate pressure maintenance during the installation of new connections, making them a good choice for low to medium-pressure systems where interruptions are minimal.
Maintenance Considerations
The maintenance requirements for both valve types can influence the choice between them. Gate valves, while durable, require regular inspection and maintenance to ensure proper function. Their seals can wear over time, particularly in high-pressure and abrasive environments. Tapping valves, with their simpler design, generally require less maintenance and are easier to manage in the long term, especially when installed in systems that don’t involve frequent operation of the valve.
Cost Efficiency
Cost is always an important consideration. While gate valves are generally more expensive due to their robust design and sealing capabilities, tapping valves are typically more affordable. However, the overall cost-efficiency will depend on the system requirements. In cases where new connections are frequently needed, investing in tapping valves may provide a more cost-effective solution in terms of installation and maintenance. For larger systems where reliable flow control and isolation are critical, gate valves may be worth the higher upfront cost.
Installation Complexity
The ease of installation also varies between these two valve types. Tapping valves are designed to be installed with minimal disruption, even while the pipeline is under pressure. This makes them highly suitable for retrofitting and adding connections to live systems. Gate valves, while typically easier to install in new systems, can require more extensive preparation and downtime in existing systems, especially if they need to be incorporated into an active pipeline.
Conclusion
Both Tapping Valves and Gate Valves play essential roles in fluid control systems, with distinct functions that cater to different operational needs. Understanding the unique characteristics and benefits of each type is essential for engineers and maintenance professionals when designing and maintaining pipeline systems. By considering the specific needs of your system—whether it is for isolation, live tapping, or branching—you can make an informed decision that will improve both the efficiency and longevity of your pipeline system.
