Ball valves are essential components in a wide range of industrial applications, controlling the flow of liquids, gases, or slurries through pipelines. Their simple design and reliability make them a popular choice in industries such as oil and gas, water treatment, and chemical processing. However, not all ball valves are created equal. There are three primary types of ball valves: one-piece, two-piece, and three-piece. Each type offers distinct advantages, and understanding these differences is critical to making an informed decision when selecting the right valve for a specific application.
In this article, we will explore the differences between one-piece, two-piece, and three-piece ball valves. You’ll learn how each design works, what sets them apart, and which type is best suited to specific applications, helping you choose the right valve with confidence.

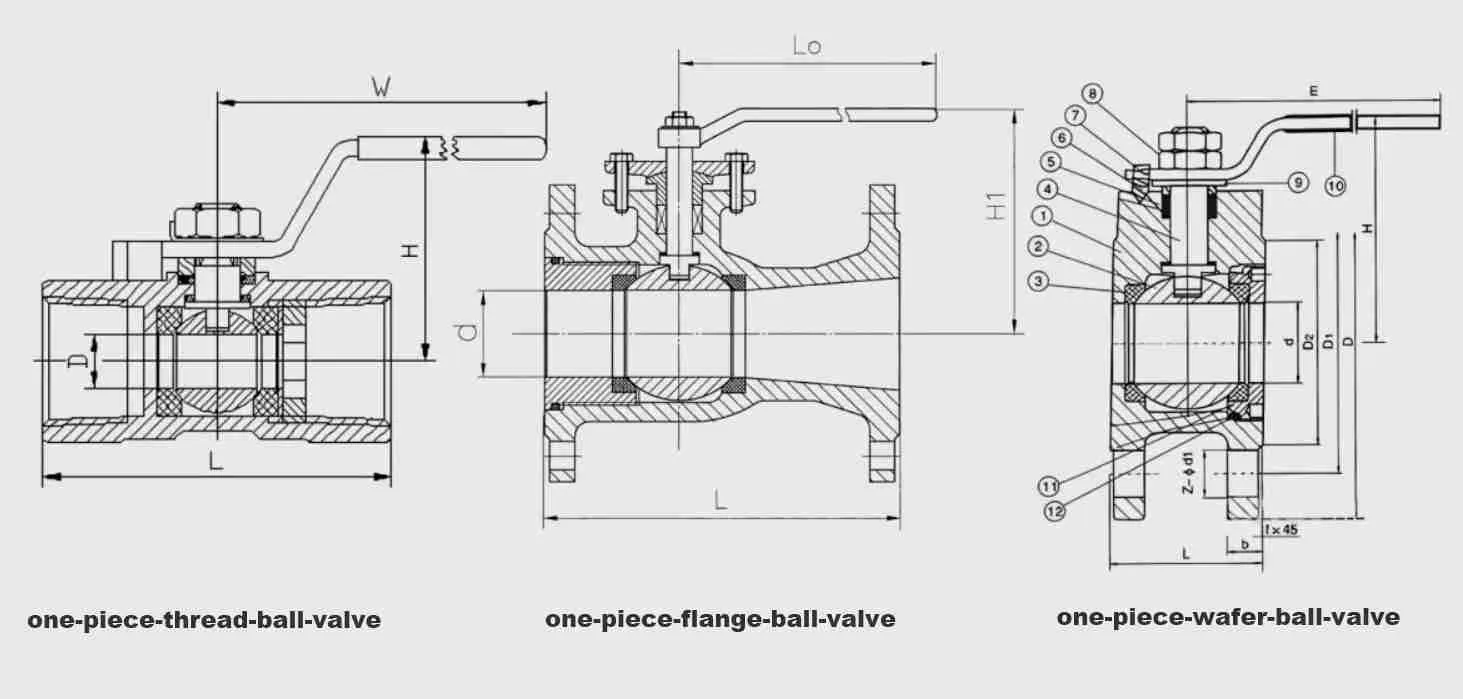

One-Piece Ball Valve Structure and Characteristics
A one-piece ball valve is built with an integral, single-piece body, giving it a compact and lightweight form that works well where installation space is limited. The ball, seat, and stem are assembled from one side of the body, which keeps the design simple and reduces potential leak paths. Because the flow passage is typically reduced rather than full bore, stainless steel ball valves in a one-piece configuration are best suited to low-pressure systems where maximum flow capacity is not critical.
One of the main reasons users choose a one-piece ball valve is its cost efficiency. Compared with two-piece or three-piece designs, it offers a more economical solution while still delivering reliable shut-off performance. Available with threaded, flanged, or wafer connections, this valve type provides enough flexibility for many general-purpose applications without adding unnecessary complexity or expense.
- Threaded Connection: The valve typically uses a 55° tapered pipe thread, which ensures a tight seal and prevents leakage.
- Flanged Connection: Flanged installation provides convenience and is common in industrial setups.
One-Piece High-Temperature-Flange-Ball-Valve

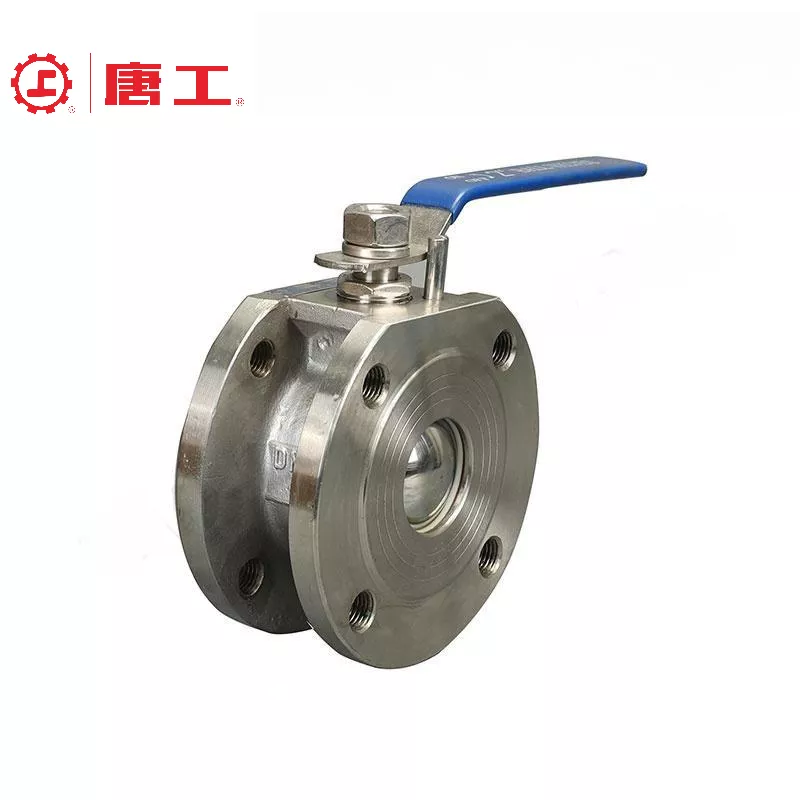

- Wafer Connection: With a shorter length, the wafer connection is ideal for compact piping systems where space is limited.
The one-piece ball valve is made from robust materials such as WCB cast steel and stainless steel alloys like CF8 and CF8M, offering corrosion resistance and ensuring durability in harsh environments. For applications involving high temperatures or steam, the valve body can be insulated to protect it from heat loss and prevent the valve from malfunctioning due to thermal expansion.
Another benefit of one-piece ball valves is their ability to prevent media leakage from the valve body, especially when used as high-temperature or thermal fluid valves. This feature reduces the risks of leakage between the valve components, which can occur in two-piece or three-piece ball valves. These valves are often employed in steam and heat transfer oil systems, as well as in applications where the flow media is prone to crystallization or solidification. By using insulation materials, the valve can maintain optimal performance when transporting such media.
In summary, the one-piece ball valve is a simple, reliable, and cost-effective solution for low-pressure piping systems. While it may not handle large flow rates or high-pressure applications, it offers a strong advantage in small, space-constrained environments. With various connection types and robust material options, it is an excellent choice for industries requiring reliable performance with minimal maintenance.
Two-Piece Ball Valve Structure and Characteristics
The two-piece ball valve consists of two main components: the primary valve body and the auxiliary valve body, which are connected by threads or bolts. This structure is commonly used in a variety of industrial applications. After the ball core, valve seat, and valve stem are assembled into the primary valve body, the auxiliary body is attached to it, creating a secure and durable valve assembly.
Key features of the two-piece ball valve include:
- Full-Bore Flow Passage: The ball core of a two-piece valve is designed with a full-bore flow path, meaning the internal diameter of the valve is the same as the pipe it connects to. This results in minimal flow resistance and greater flow capacity, making it ideal for applications where high flow rates are required.
- Connection Types: Two-piece ball valves are available with various types of connections, including internal threads, external threads, and a combination of both. Typically, the valve uses a 55° tapered pipe thread that ensures excellent sealing performance, minimizing the risk of leakage under pressure.
- Flanged Connections: Two-piece ball valves with flanged connections are particularly common and widely used across different industries. Flanged installations provide a solid, secure connection to the pipeline, making these valves reliable for various fluid control applications.
- Versatility and High Flow Capacity: Due to the full-bore design and versatile connection options, two-piece ball valves offer low-flow resistance and high flow capacity. This makes them ideal for both low-pressure and high-pressure systems.
Three-Piece Ball Valve: Structure and Characteristics
Three-Piece Threaded Ball Valve
The three-piece ball valve, as the name suggests, is made up of three primary components: the main valve body and two auxiliary valve bodies. This structure offers significant advantages in terms of ease of maintenance, operational efficiency, and versatility. Let’s explore its design and key features in detail.
Structure Overview
The three-piece ball valve consists of three integral parts:
- Main Valve Body: The central component of the valve that houses the ball core and valve stem. It is the primary body that manages the flow control within the system.
- Auxiliary Valve Bodies: These two bodies connect to the main valve body through bolts, forming the complete valve assembly. They play an essential role in attaching the valve to the pipeline and can be disassembled for maintenance without removing the entire valve from the line.
- Ball Core: The ball inside the valve controls the flow through the valve. It features a full-bore design, providing maximum flow capacity with minimal resistance.
- Seals and Seats: The sealing elements ensure a tight closure, preventing leakage even under high pressure or fluctuating temperatures.
Key Characteristics
Full-Bore Design: Like the two-piece ball valve, the three-piece ball valve also features a full-bore flow path, allowing for high flow rates and minimal pressure drop across the valve. This makes it ideal for systems that require efficient fluid handling.
Maintenance Convenience: One of the standout features of the three-piece ball valve is its maintenance-friendly design. The main body can be disassembled by loosening the bolts connecting the valve components. This allows for easy replacement of internal components such as the valve seat and seals without having to remove the entire valve from the pipeline.
Connection Flexibility: The three-piece ball valve supports various connection types:
- Threaded Connections: Inner or outer threaded connections, often featuring a 55° taper pipe thread for enhanced sealing.
Three-Piece-Butt-Weld-Ball-Valve
- Welded Connections: These valves can be welded into the pipeline, with options for butt-welding or socket-welding. This provides a robust, leak-free connection.
Three-Piece-Extended-Welding-Ball-Valve
- Extended Welding Connections: For high-temperature applications, extended welding connections help prevent thermal damage to the seals and valve stem during installation, reducing installation complexity.
Ease of Installation: The three-piece design allows for easy installation, especially when using welded or threaded connections. Extended welded joints help maintain integrity during high-heat installation processes, such as in steam or high-pressure systems.
Durability and Sealing Performance: Three-piece ball valves typically offer strong sealing capabilities and are suitable for handling a variety of fluids, including high-pressure, high-temperature, and corrosive substances. Their robust construction ensures long service life and reliable operation.
Applications: Due to their versatility, ease of maintenance, and adaptability, three-piece ball valves are widely used in industries such as chemical processing, oil and gas, water treatment, and food and beverage production. They are particularly valuable in systems where regular maintenance or inspection is required, or where high flow efficiency is crucial.
In summary, the three-piece ball valve is a highly efficient and service-friendly option for fluid control systems, providing strong sealing, easy maintenance, and versatile connectivity. Its full-bore design and easy disassembly make it a reliable and durable solution for a wide range of industrial applications.
Detailed Comparison of One-Piece, Two-Piece, and Three-Piece Ball Valves
Design and Construction
| Feature | One-Piece Ball Valve | Two-Piece Ball Valve | Three-Piece Ball Valve |
|---|---|---|---|
| Body Components | Single, solid body | Body + end cap | Body + 2 end caps |
| Ease of Maintenance | Non-repairable | Moderate maintenance ease | Easy disassembly for repairs |
| Cost | low | Moderate | High |
| Application Flexibility | Low | Moderate | High |
| Leak Points | None | Fewer, but possible at joints | Fewer, more secure joints |
Advantages and Disadvantages
| Valve Type | Advantages | Disadvantages |
|---|---|---|
| One-Piece Ball Valve | – Low cost- Simple, compact design- Fewer potential leak points due to solid construction | – Non-repairable; the entire valve must be replaced if damaged- Generally limited to lower-pressure applications |
| Two-Piece Ball Valve | – Easier maintenance compared to one-piece design- Can be disassembled for cleaning or minor repairs- Well suited for medium-pressure systems | – More complex construction than one-piece valves- Slightly higher cost |
| Three-Piece Ball Valve | – Easy to disassemble for maintenance, cleaning, or replacement of internal components- Highly versatile for high-pressure, high-temperature, and corrosive services- Reduces downtime as servicing can be done without removing the valve from the line | – Highest cost among the three types- Bulkier and more complex construction |
Best Use Cases
- One-Piece Ball Valve: Best suited for low-pressure applications such as residential plumbing or simple systems where the valve is not expected to undergo frequent maintenance. Examples include water flow control in non-critical systems.
- Two-Piece Ball Valve: Commonly used in industrial applications where moderate pressure is involved, such as HVAC systems or medium-sized process systems. It offers a good balance of cost and serviceability.
- Three-Piece Ball Valve: Perfect for high-pressure, high-temperature, or corrosive applications, such as in the oil and gas industry, chemical processing, or water treatment plants. Its ability to be serviced without interrupting the pipeline makes it ideal for critical systems.
Here is a guide video that explains the differences between one, two, and three-piece ball valves:
Source:DuraChoice
Choosing the Right Ball Valve for Your Application
Selecting the right ball valve depends on several factors, including the application’s pressure requirements, the need for maintenance, and the overall budget. Here’s a quick decision-making framework:
- If cost is a primary concern and you are dealing with low-pressure systems, the one-piece ball valve might be the best option.
- For medium-pressure systems where occasional maintenance is required, the two-piece ball valve offers a good balance.
- For high-demand, high-pressure applications where ease of maintenance is crucial, the three-piece ball valve is the most suitable choice.
Conlcusion
knowing how one-piece, two-piece, and three-piece ball valves differ makes it much easier to choose the right option for a given system. Each design is suited to different priorities, whether that is keeping costs low, simplifying maintenance, or handling demanding pressure and temperature conditions. One-piece ball valves are compact and economical, which makes them a practical choice for low-pressure applications where servicing is rarely required. Two-piece ball valves strike a balance between cost and flexibility, offering easier maintenance and dependable performance in most medium-pressure industrial systems. Three-piece ball valves, while more expensive and complex, deliver the highest level of versatility and serviceability, making them ideal for high-pressure, high-temperature, or corrosive environments. By weighing these factors carefully, engineers and buyers can select a ball valve that delivers the right combination of performance, reliability, and long-term value.
