The purpose of a bypass valve in industrial systems is to ensure operational flexibility, particularly during maintenance or unexpected equipment failures, but its use remains a topic of debate among engineers. While many view it as essential for maintaining flow continuity and avoiding costly downtime—especially in high-risk, continuous processes—others argue that in low-risk or small-scale systems, bypass valves may add unnecessary complexity, space demands, and potential failure points. Ultimately, deciding whether to include a bypass valve should depend on a clear assessment of the system’s operational needs, risk tolerance, and design strategy to ensure it delivers real value without introducing new problems.
What is a Bypass Valve? Core Functions Explained

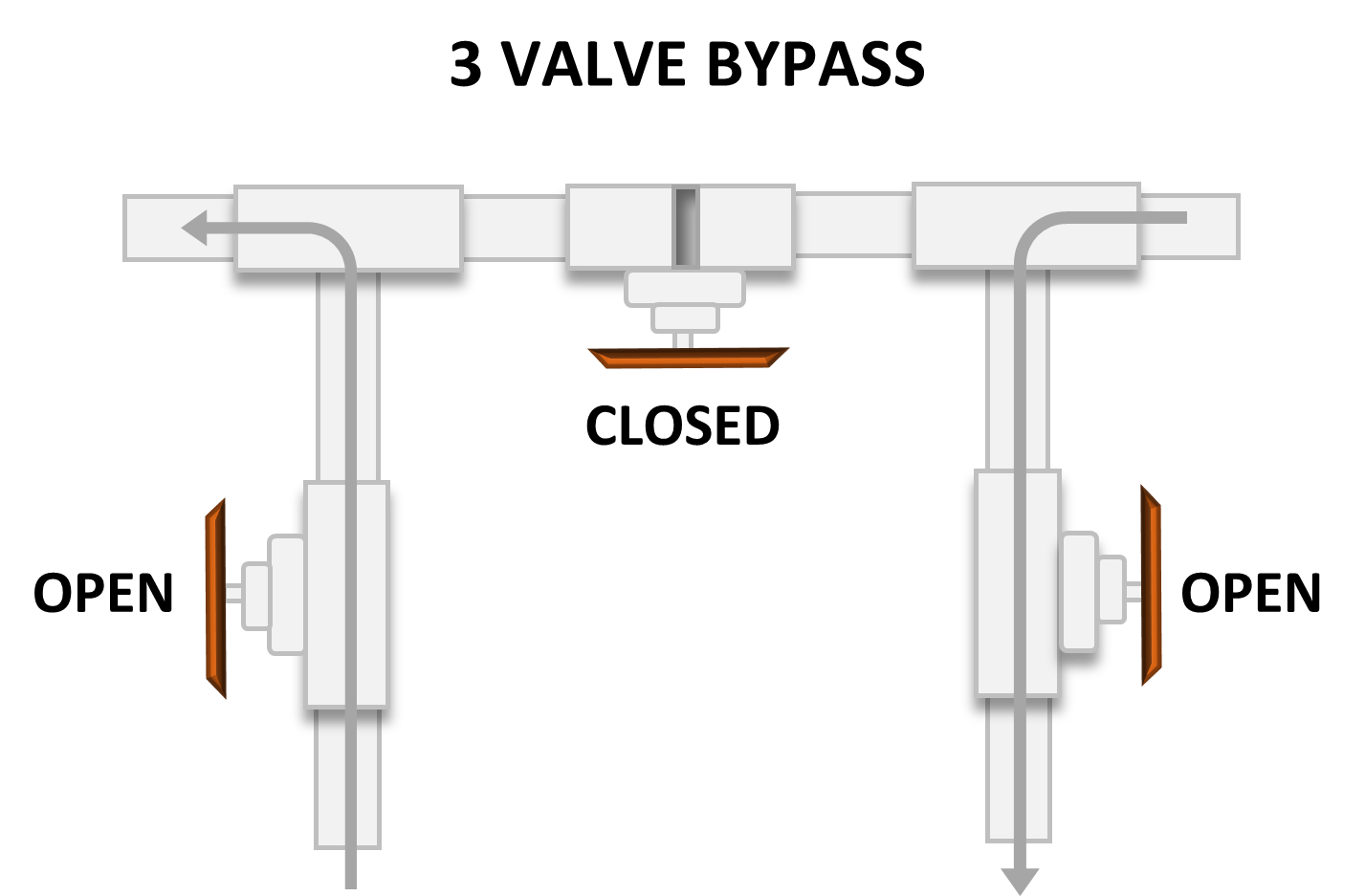

A bypass valve is a critical component in piping systems, designed to redirect fluid flow around specific equipment or sections of the system. This functionality ensures continuous operation, enhances safety, and provides emergency control capabilities.
Key Functions of a Bypass Valve
1. System Continuity: Preventing Shutdowns During Maintenance or Failures
Bypass valves allow for the isolation of primary components, such as control valves, enabling maintenance or repairs without halting the entire system. This is particularly vital in processes that require uninterrupted operation, like continuous manufacturing or critical utility services.
2. Safety and Risk Mitigation: Reducing Downtime in Critical Processes
In industries like HVAC and chemical production, maintaining consistent flow and pressure is essential. Bypass valves help manage system pressure by diverting excess flow, thereby protecting equipment from potential damage due to overpressure and ensuring operational safety.
3. Emergency Control: Acting as a Backup for Flow Regulation
In emergency situations, such as unexpected equipment failures, bypass valves can serve as an alternative pathway for fluid flow. This capability ensures that critical processes continue to operate, minimizing the risk of system downtime and associated losses.
When Are Bypass Valves Mandatory? 5 Critical Scenarios
Bypass valves are essential in various industrial applications, ensuring system reliability and safety. Here are five critical scenarios where their use is indispensable:
1. Continuous Process Systems
In industries like power generation and water treatment, operations run continuously. Any interruption can lead to significant downtime and financial loss. Bypass valves allow maintenance or replacement of primary components without halting the entire system, ensuring uninterrupted operation.
2. High-Pressure/High-Temperature Applications
Systems operating under extreme pressures and temperatures, such as steam turbines in thermal power plants, require robust safety measures. Bypass valves in these settings help manage pressure fluctuations and prevent equipment damage during load changes or emergencies.
3. Long Maintenance Cycles
Equipment that demands regular calibration or has extended maintenance intervals benefits from bypass valves. They allow technicians to service or calibrate components without shutting down the entire system, maintaining operational efficiency.
4. Precision-Dependent Processes
In industries where precision is paramount, like pharmaceutical manufacturing, maintaining exact flow rates and conditions is critical. Bypass valves provide an alternative pathway, ensuring that processes remain within specified parameters even if primary components require servicing.
5. Systems with Zero Tolerance for Downtime
Critical infrastructure systems, such as data centers or emergency services, cannot afford any downtime. Bypass valves offer redundancy, allowing for immediate rerouting of flows during component failures or maintenance, thus ensuring continuous operation.
When to Avoid Bypass Valves: Risks & Drawbacks
While bypass valves are invaluable in many industrial applications, there are scenarios where their inclusion may be unnecessary or even detrimental. Understanding these situations can help in making informed decisions about system design.
1. Low-Risk Systems:
In systems where flow rates are minimal and operational risks are low, such as residential water softeners or small-scale irrigation setups, the benefits of installing a bypass valve may not justify the added complexity. In these cases, managing occasional shutdowns for maintenance without a bypass valve is often more practical and cost-effective.
2. Space Constraints:
In environments where space is at a premium, adding a bypass valve can lead to inefficient layouts and complicate maintenance. For instance, in tight mechanical rooms or compact equipment assemblies, the additional piping and components required for a bypass can hinder accessibility and system performance.
3. Potential Interference:
Improperly designed or installed bypass valves can cause unintended flow paths, leading to issues like “phantom flow,” where fluid bypasses the main control valve unintentionally. This can result in inaccurate system performance, energy inefficiency, and increased wear on components.
4. Cost vs. Benefit:
In some scenarios, the financial investment required to install and maintain a bypass valve may not be justified by the operational benefits, especially in systems with infrequent maintenance needs or where downtime is acceptable. Evaluating the cost-benefit ratio is crucial to determine the necessity of a bypass valve in such cases.
Designing an Effective Bypass System: 4 Best Practices
Designing an effective bypass system is crucial for ensuring operational reliability, safety, and efficiency in industrial processes. Implementing best practices in bypass valve design helps prevent system failures and enhances maintainability. Here are four key guidelines to consider:
1. Size Matters:
To minimize interference with the main control valve’s operation, the bypass valve should have a diameter no greater than 50% of the main valve’s diameter. This sizing ensures that the bypass can handle necessary flow during maintenance or emergencies without compromising the system’s control dynamics. Proper sizing is essential to maintain system stability and prevent issues such as flow imbalance or pressure fluctuations.
2. Locking Mechanisms:
Incorporating manual or automated locking mechanisms on bypass valves is vital to prevent unintended operation. These locks ensure that the bypass valve remains in the desired position, reducing the risk of accidental flow diversion that could lead to system inefficiencies or safety hazards. Implementing such mechanisms enhances operational safety and compliance with standard operating procedures.
3. Interlocking Logic:
Establishing interlocking logic between the main control valve and the bypass valve ensures that only one valve operates at a time. This mutual exclusion prevents simultaneous flow paths, which could cause process instability or equipment damage. Interlocks can be mechanical, electrical, or software-based, and they play a critical role in maintaining process integrity and safety.
4. Automation Integration:
Integrating automation components such as limit switches and controllers with bypass valves enhances system responsiveness and monitoring capabilities. Limit switches provide real-time feedback on valve positions, enabling precise control and quick diagnostics. Controllers can automate valve operations based on process conditions, improving efficiency and reducing the likelihood of human error.
Common Bypass Valve Mistakes (And How to Fix Them)
Bypass valves are integral to maintaining operational flexibility and safety in industrial systems. However, improper design, installation, or operation can lead to inefficiencies and potential hazards. Here are common mistakes to avoid and strategies to rectify them:
1. Oversized Bypass Valves Disrupting Flow Stability
The Problem:
An oversized bypass valve can cause instability in flow control. When a valve is too large for its application, it may operate in a range that’s too narrow, leading to oscillations, hunting, or even water hammer effects. This not only affects system performance but also accelerates wear and tear on the valve components.
The Fix:
Ensure that bypass valves are appropriately sized for their specific application. Utilize flow modeling and system analysis during the design phase to select a valve with suitable characteristics. Regularly review system performance and adjust valve sizing as necessary to accommodate changes in operating conditions.
2. Poor Placement Leading to Unintended Pressure Drops
The Problem:
Incorrect placement of bypass valves can result in unintended pressure drops, leading to inefficient system operation. For instance, installing a bypass valve without considering the flow direction or system layout can cause pressure imbalances and reduced performance.
The Fix:
During system design, carefully plan the placement of bypass valves to ensure they complement the overall flow dynamics. Follow manufacturer guidelines and industry best practices for installation. Consider conducting a hydraulic analysis to identify optimal valve locations that minimize pressure losses and maintain system efficiency.
3. Lack of Operator Training Causing System Errors
The Problem:
Operators unfamiliar with bypass valve functions and controls may inadvertently cause system errors. This includes incorrect valve operation, failure to recognize malfunction indicators, or improper responses to system alarms. Such errors can lead to process disruptions, safety incidents, or equipment damage.
The Fix:
Implement comprehensive training programs for all personnel involved in system operation and maintenance. Training should cover the purpose, operation, and troubleshooting of bypass valves. Regular refresher courses and hands-on simulations can reinforce knowledge and ensure operators are prepared to handle real-world scenarios effectively.
FAQs About Bypass Valves
1.Can a bypass valve replace the main valve temporarily?
Yes, a bypass valve can temporarily redirect flow around the main valve during maintenance or emergencies, allowing the system to continue operating. However, bypass valves are not designed for long-term use as primary flow regulators. They typically lack the precise control and durability of main control valves, so prolonged use can lead to inefficiencies or system imbalances. Therefore, it’s advisable to use bypass valves only for short-term situations and restore the main valve to service as soon as possible.
2.How often should bypass valves be tested?
Regular testing of bypass valves is essential to ensure they function correctly when needed. It’s recommended to perform a functional test at least once a year, checking for proper operation, leaks, and wear. In critical systems or those with harsh operating conditions, more frequent inspections may be necessary. Adhering to a consistent maintenance schedule helps prevent unexpected failures and extends the lifespan of the valve.
3.Do automated systems still need manual bypass valves?
Yes, even in automated systems, manual bypass valves serve as a crucial backup. They provide a means to maintain flow during automated system failures or maintenance activities. Manual bypass valves offer an additional layer of safety and flexibility, ensuring that operations can continue uninterrupted in case of automation issues. Incorporating both automated and manual bypass options enhances system reliability and resilience.
Conclusion
In conclusion, the purpose of bypass valve installation is to support system continuity, enhance safety, and provide emergency flow control—but its effectiveness depends entirely on proper application. As this article outlines, bypass valves are vital in high-pressure, precision-driven, or continuously running systems, yet they can be counterproductive in low-risk or space-constrained environments. Missteps in sizing, placement, or operator training can undermine their benefits. That’s why decisions around bypass valves should never be one-size-fits-all; instead, they should be guided by a clear technical understanding of the system. Consulting experienced engineers is essential to ensure that the bypass valve serves its true purpose without introducing unnecessary risks or inefficiencies.
