An industrial angle control valve should not be confused with a manual angle globe valve, a compact angle-seat process valve or a domestic angle stop. The 90-degree body shape alone does not guarantee low pressure loss, precise control or severe-service suitability. Flow capacity and pressure recovery depend on the body and trim design, while control response and fail action depend on the actuator and positioner assembly.
How does an angle control valve work?

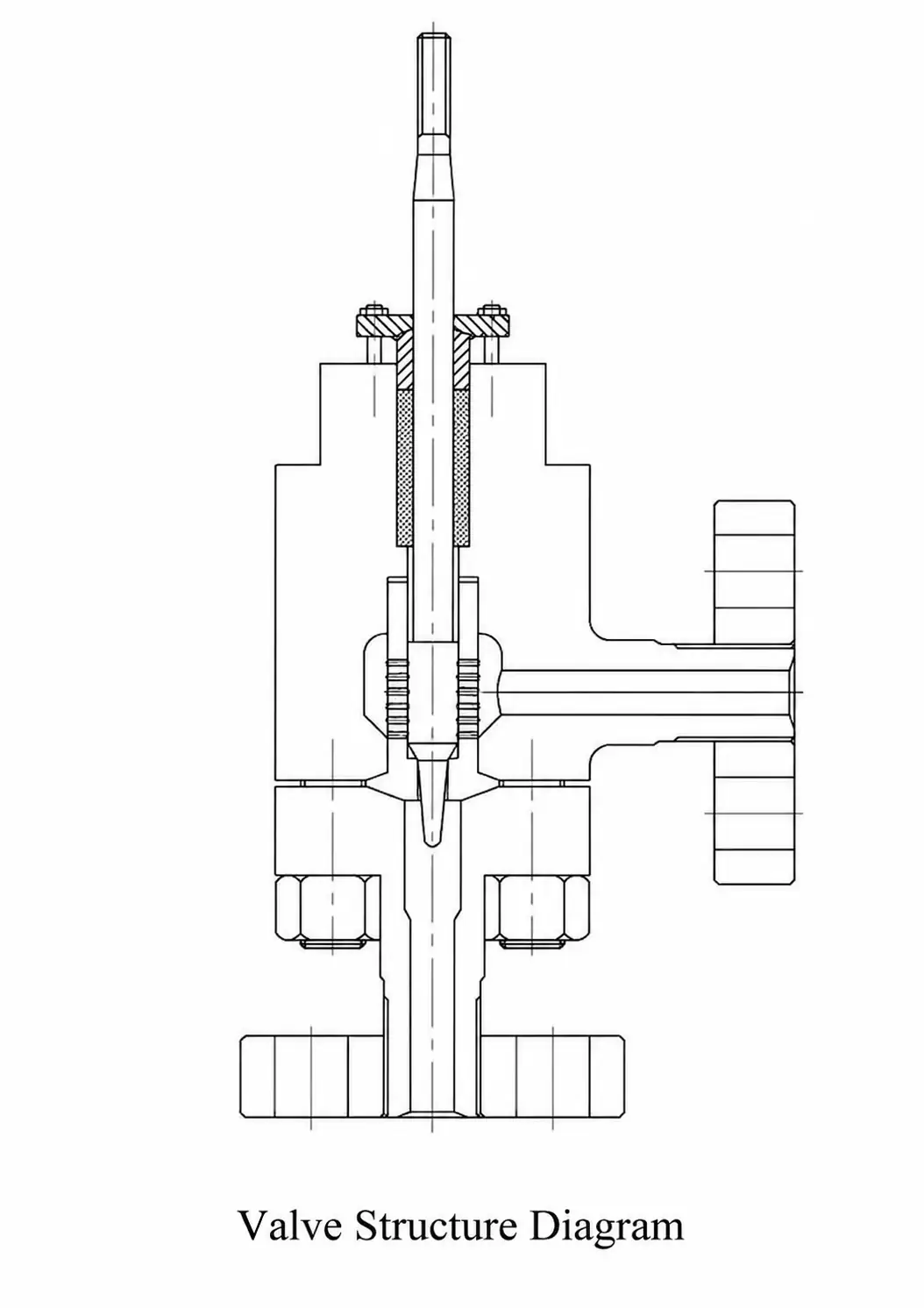

The 90-degree globe-style body
Fluid enters one port, passes through the restricted area between the plug and seat, and leaves through the perpendicular port. The change in direction occurs inside the pressure-containing body. Where the pipe already needs to turn, this arrangement may replace a separate elbow and its adjoining joints.
The body still contains the restriction associated with globe-style throttling. Removing an elbow can simplify the piping route, but it does not make the valve a full-bore device or prove that the complete installation has lower pressure loss. That comparison requires the selected valve data and the loss through the alternative valve-and-fitting arrangement.
Linear trim movement and the control assembly
The stem moves the plug towards or away from the seat, changing the available flow area. Plug contour, seat geometry and any cage or guide used by the selected design influence the inherent flow characteristic and trim stability. No single trim construction applies to every angle control valve.
For modulating service, the actuator moves the stem in response to the control system. A positioner compares the command signal with actual valve position and corrects the difference. Pneumatic, electric or hydraulic actuation may be used when the selected assembly can provide the required force, travel and response. The relationship between these components is covered in this guide to the control valve assembly.
When the plug reaches the seat, closure depends on the seat construction, differential pressure, temperature, wear and available actuator thrust. The angle body does not establish a leakage class or guarantee tight shut-off. Both the required leakage criterion and its test conditions must be defined for the selected valve.
Angle control valve, angle globe valve, angle-seat valve and angle stop
These names appear together in search results, but they do not identify the same valve construction or duty. The distinction matters because a 90-degree connection arrangement does not reveal how the closure member moves or whether the valve is intended for modulating control.

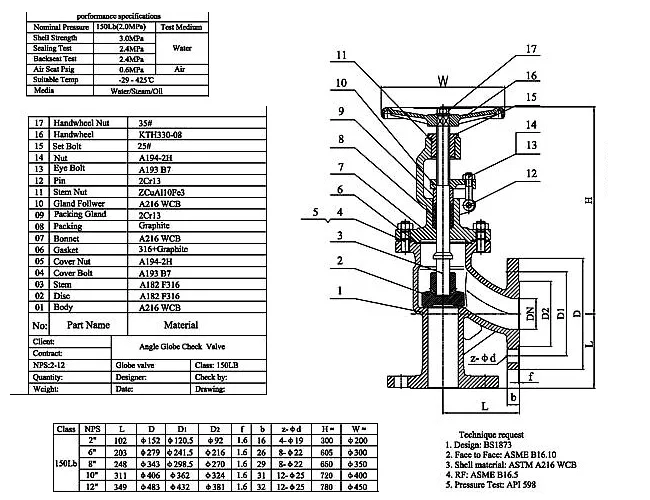

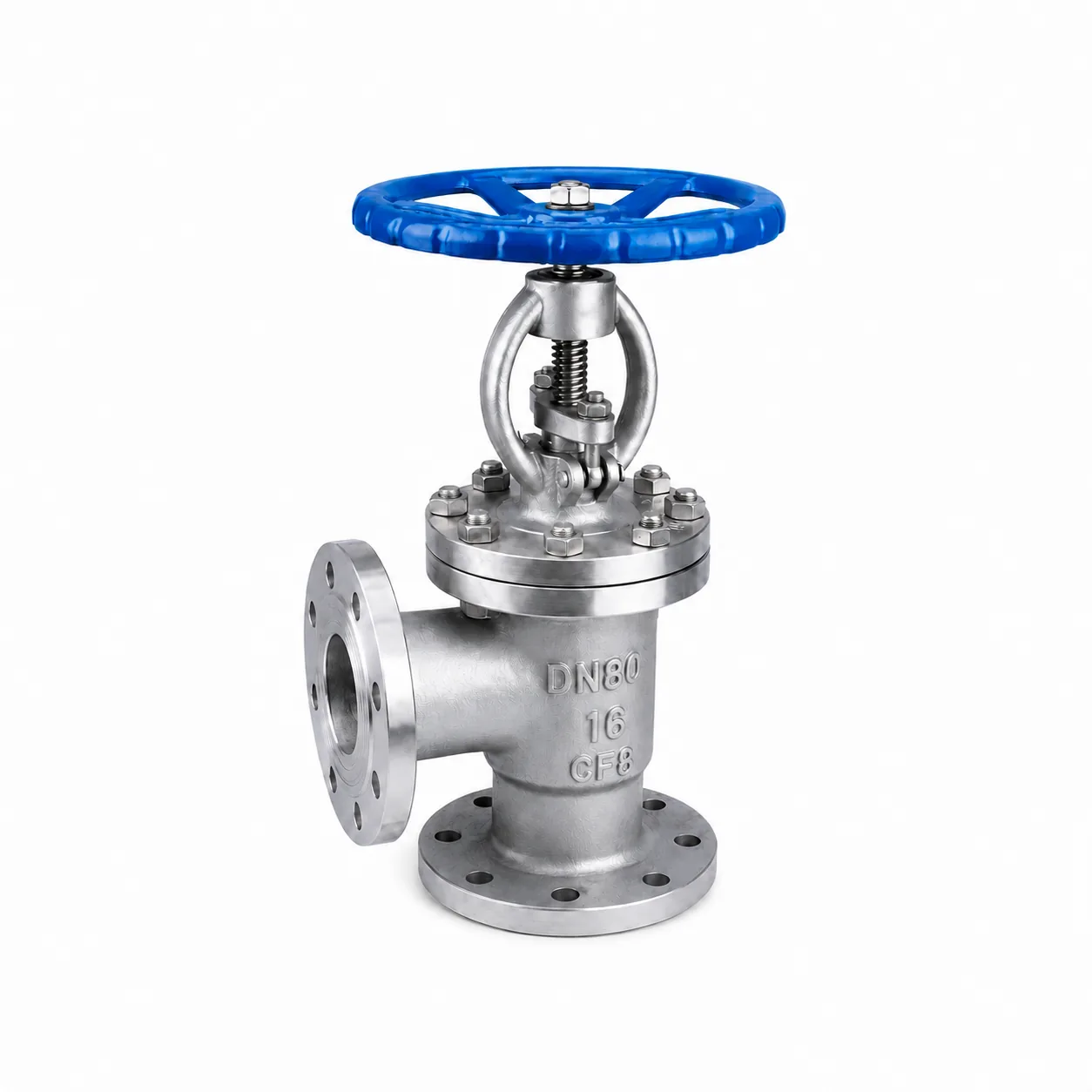

Angle Globe Valve
| Term | Defining feature | Typical duty | Selection boundary |
|---|---|---|---|
| Angle control valve | Automated angle-pattern valve with a modulating control assembly | Continuous regulation of process flow or pressure | Body, trim, actuator and positioner must be evaluated together |
| Angle globe valve | Globe-style plug and seat with perpendicular ports | Manual shut-off or throttling, or automated control | The name describes body geometry, not control performance |
| Angle-seat valve | Compact valve with an angled seat and piston-style actuator in many designs | Frequent cycling, on-off service or process regulation, depending on design | It is a separate product family from an angle-pattern globe control valve |
| Angle stop | Small manual plumbing valve with a right-angle outlet | Local isolation at a domestic fixture | It is not an industrial process control valve |
What does the angle body change in a piping system?
Space, fittings and the 90-degree line turn
An angle body is most useful when the pipeline must turn at the same point where throttling or shut-off is required. Replacing a straight-pattern valve and separate elbow may reduce the number of components and joints. The centre-to-face dimensions, actuator envelope, bonnet access and pipe supports must still suit the installation.
The complete layout determines whether space is actually saved. An angle body can create an unnecessary routing constraint in a straight line, while a straight-pattern valve may require extra fittings in an existing corner. General arrangement drawings provide a better comparison than body names or the number of visible bends.
Pressure loss and flow capacity remain model-dependent
Traditional globe-body comparisons often place an angle pattern between conventional T-pattern and Y-pattern bodies for internal restriction. An angle pattern may be less restrictive than a comparable T-pattern body but more restrictive than a Y-pattern body. This is a general construction tendency, not a Cv value or a guarantee for a particular model.
Actual flow capacity depends on the body passage, trim size, plug position and permitted flow direction. Pressure recovery also changes with the internal geometry and downstream arrangement. Compare the manufacturer’s Cv curve for the selected body and trim with the complete installed alternative, including any elbow and fittings that the angle valve would remove.
Flashing, cavitation and outlet geometry
High differential pressure can reduce the local liquid pressure below its vapour pressure. If pressure later recovers, collapsing vapour bubbles can produce cavitation. If the downstream pressure remains below the vapour pressure, flashing continues beyond the valve. The angle body does not prevent either condition.
Specialised trim, staged pressure reduction, hard-facing, an enlarged outlet or a selected flow direction may reduce velocity or move damaging energy away from vulnerable surfaces. These measures are configuration-specific and require the real pressure profile. The distinction between choked flow, cavitation and flashing should be resolved before the trim and outlet are selected.
Where an angle control valve fits, and where it does not
Strong fits for directional and severe liquid-service duties
The clearest fit is a process line that needs repeatable throttling at a 90-degree turn. Boiler feedwater, heater drain, equipment drain, let-down and vessel connection duties can use angle-pattern valves when the pressure boundary, trim, material system and actuator match the actual service.
In high-pressure angle valve applications, the body shape is useful because it can combine the piping turn with an engineered trim and outlet arrangement. Pressure class, temperature capability and resistance to erosion or cavitation do not come from the angle pattern itself. They must be verified for the offered design.
A congested installation may also benefit from fewer separate fittings. That advantage disappears when the actuator blocks access, the bonnet cannot be removed, or connected pipework transfers excessive load into the body. Maintainable clearance and structural support remain part of the layout decision.
Conditions that favour another valve arrangement
A straight pipeline does not normally benefit from a forced 90-degree connection. For low-loss isolation where the valve remains fully open for long periods, a full-bore isolation valve with a separate elbow may impose less operating loss. Rapid quarter-turn operation may also favour a rotary valve rather than a sliding-stem globe design.
Abrasive solids, fibres and deposits can erode seating surfaces, obstruct narrow trim passages or increase stem friction. Highly viscous fluids can reduce capacity relative to clean-water calculations. These services do not automatically exclude an angle body, but the passage size, trim style, materials and cleaning method must suit the fluid.
The body also fixes the relative positions of the two connections. Existing pipework may not accept the centre-to-face dimensions, flow arrow, stem orientation or actuator clearance. If the installed arrangement prevents safe packing access or trim removal, the apparent space saving becomes a maintenance constraint.
How to select an angle control valve
Match the body and trim to the fluid condition
Selection starts with the hydraulic condition that makes an angle body useful. A clean, single-phase liquid at moderate pressure drop presents a different trim problem from flashing liquid, cavitating service or a fluid containing solids. The body passage, plug, seat, guide or cage where used, outlet size and wear-resistant features should respond to that condition.
Material selection covers the pressure boundary and the moving or sealing parts. Body, bonnet, plug, stem, seat, hard-facing, packing and gaskets may face different temperatures, velocities and wear mechanisms. A material acceptable for the body is not automatically suitable for the seat or packing.
Flow direction is design-specific. It can affect trim stability, seating force, actuator load and the location of high velocity. Follow the selected manufacturer’s drawing and flow arrow rather than applying a universal rule for every angle control valve.
Check Cv across the operating range
Line size sets the pipe connection, not the required valve capacity. Calculate the required flow coefficient, or Cv, at minimum, normal and maximum operating conditions, then compare those values with the selected trim curve. A preliminary Cv and travel check helps show whether the valve will work in a controllable part of its stroke.
An oversized valve may operate close to the seat during normal flow. Small stem movements can then produce large flow changes, while concentrated velocity increases wear risk. Available rangeability on a catalogue sheet does not prove the installed operating range because system pressure drop changes as flow changes.
Cv alone is also insufficient for high pressure-drop service. Pressure recovery, cavitation, flashing, choked flow, outlet velocity and noise may limit the selected body or trim before nominal capacity is reached. The selected opening at each operating case should therefore be reviewed with the installed characteristic.
Treat the actuator, positioner and fail action as one assembly
The actuator must move the plug throughout its stroke and provide the required seating force at the highest relevant operating or shut-off load. Differential pressure, plug area, flow direction, packing friction, stem weight and dynamic forces can all change that demand. Actuator selection cannot be inferred from line size alone.
The positioner must match the control signal, actuator motion and required response. Fail action depends on the process consequence of losing air, power or signal, so there is no universal air-to-open or air-to-close choice for an angle valve. Stroke time, feedback and any hazardous-area requirement belong to the same assembly decision.
An angle control valve is justified when the piping turn and throttling point genuinely belong in the same location, and the selected trim remains suitable across the operating range. Once that condition is established, the available MacoTango angle globe valve configurations can be compared against the required body arrangement and control duty.
