Choosing between different types of industrial valves starts with a simple question: what must the valve do in the line? A valve used for tight shutoff is not always suitable for throttling, and a valve that handles clean water may fail quickly in slurry, steam cycling, corrosive media, or high differential pressure.
This guide compares 10 common types of industrial valves by function, application, strengths, and limits. It is written for engineers, purchasers, maintenance teams, and project managers who need to narrow the choice before checking size, material, pressure class, end connection, actuator type, and test requirements.
How Industrial Valves Are Classified
The same valve can be described in more than one way. A ball valve, for example, is a quarter-turn valve by motion, an isolation valve by function, and a manual, pneumatic, or electric valve by actuation. This is why industrial valve types should not be read as a fixed catalogue list only.
Before comparing gate, globe, ball, butterfly, check, relief, diaphragm, needle, plug, and pinch valves, it helps to separate the main classification methods:
- By function: shutoff, throttling, control, backflow prevention, pressure relief, diversion, or media isolation.
- By motion: linear motion, quarter-turn rotary motion, self-acting movement, or flexible sleeve/diaphragm movement.
- By actuation: manual handwheel or lever, pneumatic actuator, electric actuator, hydraulic actuator, or self-operated design.
- By working condition: vacuum, low pressure, high pressure, cryogenic service, high temperature, steam, slurry, corrosive media, or clean utility service.
- By material and sealing: cast steel, stainless steel, forged steel, lined body, soft seat, metal seat, graphite packing, PTFE lining, or special trim.
A good selection process starts with the duty, not the name. If the valve must stop flow with low pressure drop, the shortlist is different from a valve that must modulate flow, stop reverse flow, protect a pressure vessel, or handle abrasive solids.
Quick Comparison of 10 Industrial Valve Types
Most industrial valve types can be compared by what they control in the line: flow shutoff, flow regulation, reverse flow, pressure protection, or difficult media. The table below gives a first-pass view before checking the working pressure, temperature, material, end connection, actuator, and test documents.
| Valve type | Main function | Best use | Watch out for |
|---|---|---|---|
| Gate valve | Full open or full closed isolation | Large pipelines needing low pressure drop | Not suitable for normal throttling duty |
| Ball valve | Fast quarter-turn shutoff | Clean liquid or gas service needing tight closure | Seat wear in abrasive or dirty media |
| Globe valve | Throttling and flow regulation | Steam, cooling water, fuel oil, and control duty | Higher pressure drop than straight-through valves |
| Butterfly valve | Compact shutoff or simple control | Large pipe sizes, water systems, and low-space layouts | Disc remains in the flow path |
| Check valve | Backflow prevention | Pump discharge lines and one-way flow protection | Water hammer, chatter, and wrong cracking pressure |
| Pressure relief valve | Overpressure protection | Boilers, pressure vessels, pipelines, and protected systems | Sizing, set pressure, and testing must be verified |
| Diaphragm valve | Media isolation from moving parts | Corrosive, viscous, or clean-process media | Diaphragm temperature, pressure, and wear limits |
| Needle valve | Fine flow adjustment | Instrumentation, sampling, calibration, and small-flow lines | Not for high-flow rapid shutoff |
| Plug valve | Quarter-turn isolation or diversion | Chemical service, viscous fluids, and quick operation | Operating torque and lubrication needs |
| Pinch valve | Sleeve-based shutoff for solids-bearing media | Slurry, wastewater, powders, and abrasive media | Sleeve material and pressure limit |
Use this table as a shortlist, not a final specification. A valve that looks correct by function can still fail if the seat material, body material, pressure class, actuator torque, flow direction, or maintenance access does not match the actual line conditions.
Gate, Ball and Butterfly Valves for Isolation
Gate, ball, and butterfly valves are often chosen when the main job is to open or close a pipeline. They can all isolate flow, but they do it with different movement, pressure drop, sealing behaviour, and installation space.
The first question is whether the valve will normally stay fully open or fully closed, or whether it will be adjusted often. If the line needs regular throttling, these shutoff valves may not be the best first choice.
Gate valves: low pressure drop in full-open service
A gate valve uses a gate or wedge that moves up and down across the flow path. When it is fully open, the flow path is nearly straight, so pressure loss is low compared with many throttling valves.
This makes a gate valve series useful for larger pipelines, water lines, oil and gas service, and other duties where the valve is not adjusted every hour. The caution is simple: a partly open gate valve can vibrate, erode the seat, and give poor flow control.
Ball valves: fast quarter-turn shutoff
A ball valve uses a drilled ball that turns 90 degrees between open and closed positions. The movement is quick, the operating handle is easy to read, and soft-seat designs can give tight shutoff in clean liquid or gas service.
The ball valve series is often considered for fuel gas, water, compressed air, chemical lines, and isolation around equipment. For abrasive slurry or dirty media, seat wear and trapped particles should be checked before using a standard soft-seat ball valve.
Butterfly valves: compact shutoff for larger pipe sizes
A butterfly valve uses a disc that rotates inside the flow path. It is lighter and shorter face-to-face than many gate or globe valves, which helps when the pipe size is large or the installation space is tight.
The butterfly valve series is commonly used in water treatment, cooling water, HVAC, utility lines, and some process services. Because the disc stays in the flow stream, buyers should check pressure drop, seat material, shutoff class, and whether the valve will be used for simple isolation or modulating duty.
Globe and Control Valves for Regulation
When the valve must adjust flow instead of only opening or closing, the internal flow path becomes more important. The valve needs stable movement, a suitable trim design, and enough pressure drop control to avoid noise, cavitation, flashing, or poor loop response.
Globe valves and control valves are often discussed together, but they are not exactly the same thing. A globe valve is a valve body type. A control valve is a control package that may include the body, trim, actuator, positioner, accessories, and sizing data.

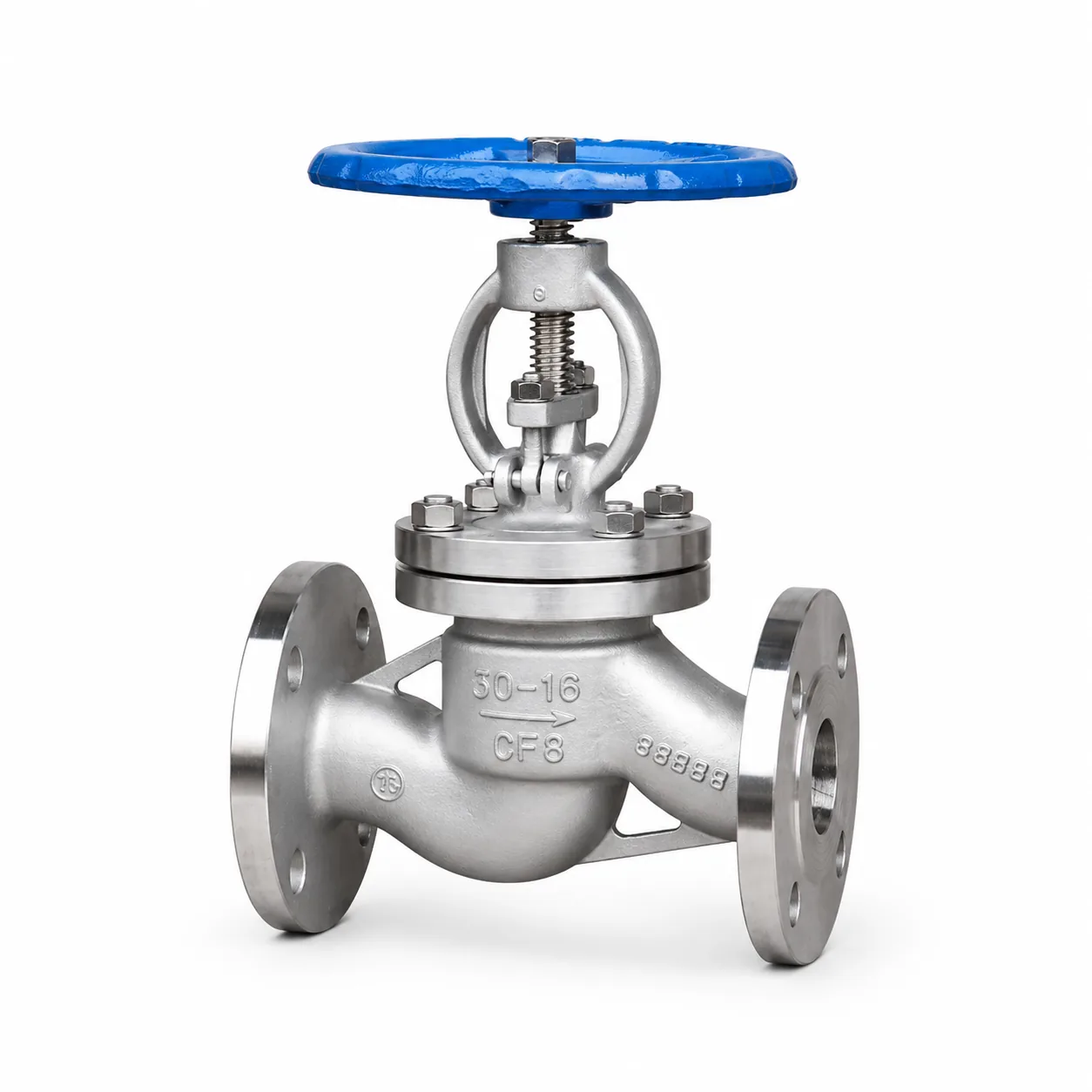

Globe valves: better for throttling than simple shutoff valves
A globe valve uses a disc or plug that moves against a seat in a shaped flow path. This gives better throttling behaviour than many gate or ball valves, especially when the line needs frequent adjustment instead of simple isolation.
The trade-off is pressure drop. A globe valve series is a strong option for steam, cooling water, fuel oil, and process regulation, but buyers should check pressure loss, trim material, seat leakage, and maintenance access before using it on a large pipeline.

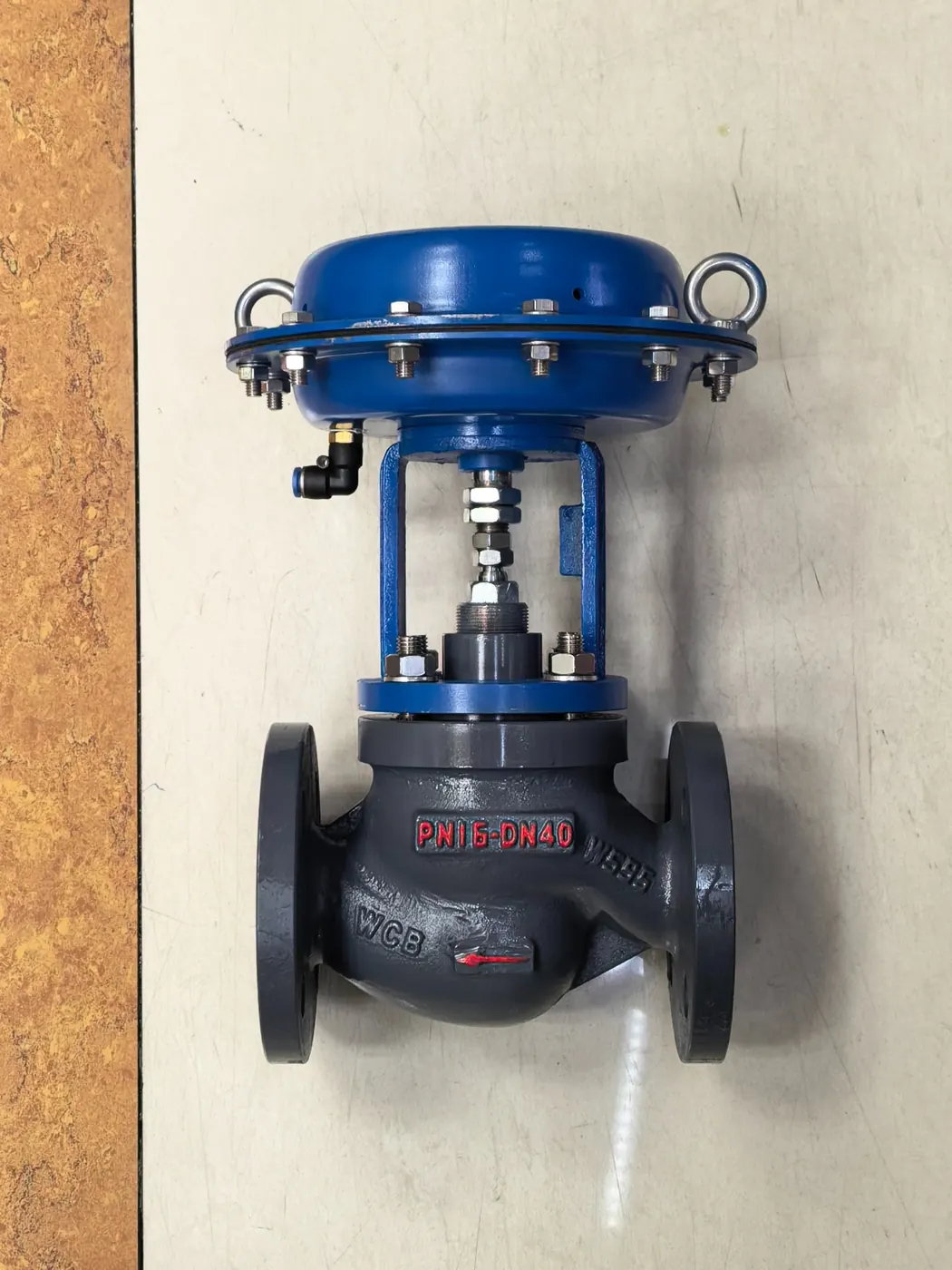

Control valves: body, trim, actuator and signal working together
A control valve is selected around the control duty, not only the valve body name. The same process may need a globe control valve, angle control valve, V-port ball control valve, butterfly control valve, or self-operated pressure control valve depending on Cv, pressure drop, medium, temperature, leakage class, and fail position.
MacoTango’s industrial control valves are relevant when the valve must respond to a signal from a process loop. For severe pressure drop, steam, slurry, corrosive media, or high temperature, the trim, actuator thrust or torque, and anti-cavitation or noise-control design can matter more than the basic valve name.
Check Valves for Backflow Prevention
A check valve is used when flow must move in one direction only. It opens when forward flow is strong enough, then closes when flow stops or tries to reverse. This helps protect pumps, compressors, meters, filters, and process equipment from reverse flow.
The main check valve types include swing check, lift check, spring-loaded check, dual plate check, axial flow check, and wafer check valves. Each design closes in a different way, so the right choice depends on flow rate, installation position, pressure drop, closing speed, and the risk of water hammer.
A swing check valve can work well in steady flow, but it may close slowly in some systems. A spring-loaded or dual plate design can close faster and fit compact pipe layouts, but the cracking pressure and pressure drop must be checked. In pump discharge lines, this detail matters because a badly matched check valve can chatter, slam, or wear early.
MacoTango’s check valve series supports backflow prevention in water, steam, oil, gas, and process piping. Before selecting one, confirm the flow direction, minimum flow, line orientation, connection type, body material, and whether fast closing is needed to reduce surge risk.
Pressure Relief and Safety Valves for Overpressure Protection
Pressure relief valves and safety valves are used when a system needs automatic protection against overpressure. They stay closed during normal operation, then open when the pressure reaches a set value. After the pressure falls, the valve should close again within its designed operating range.
The terms are sometimes used together, but the duty must be clear. Safety valves are often associated with steam, gas, or vapour service where fast opening is needed. Relief valves are often used for liquid service or proportional pressure relief. The final wording on a datasheet should match the applicable code, medium, set pressure, capacity, and inspection requirement.
These valves are not selected like ordinary isolation valves. The buyer must confirm the set pressure, allowable overpressure, relieving capacity, inlet and outlet pressure loss, temperature, material, connection, and test requirements. A valve that is too small may not relieve enough flow; a valve that is badly installed can chatter, leak, or fail to reseat cleanly.
For industrial valve selection, pressure protection should be reviewed early in the design, not added as an afterthought. It affects pipe layout, discharge routing, maintenance access, testing schedule, and the documents that must be kept with the equipment.
Diaphragm, Pinch and Plug Valves for Difficult Media
Some industrial valve types are chosen because the medium is not clean, dry, or easy to seal. Corrosive liquid, slurry, wastewater, powder, pulp, viscous fluid, and crystallising media can damage seats, block cavities, or wear moving parts.
For these duties, the valve design must reduce contact between the medium and sensitive parts, avoid dead spaces where solids collect, or use a replaceable wear part that can be inspected during maintenance.
Diaphragm valves: separating the medium from the moving parts
A diaphragm valve uses a flexible diaphragm to close against a weir or seat area. The medium is kept away from many moving parts, which can help in corrosive, dirty, or clean-process service.
The main checks are diaphragm material, pressure rating, temperature limit, and cycling frequency. A diaphragm that works well with one chemical or temperature may not be suitable for another, so compatibility should be checked against the actual medium rather than the valve name alone.
Plug valves: simple quarter-turn isolation or diversion
A plug valve uses a cylindrical or tapered plug with a flow port through it. A quarter-turn opens, closes, or diverts the flow. This simple movement can be useful for chemical service, viscous fluids, and duties where quick operation is needed.
The buyer should check whether the design is lubricated or sleeved, how much operating torque is expected, and whether the plug material or lining is suitable for the medium. In larger sizes or higher pressure classes, torque can become a serious actuator selection issue.
Pinch valves: sleeve contact for slurry and solids
A pinch valve closes by compressing a flexible sleeve. The medium mainly contacts the sleeve, not a metal seat or narrow trim passage. This can help with slurry, wastewater, powders, and abrasive media where clogging or seat wear is a concern.
The sleeve is also the part that needs the closest attention. Material compatibility, pressure limit, temperature, cycle rate, and abrasive content decide whether a pinch valve is a practical choice or only a short-term fix.

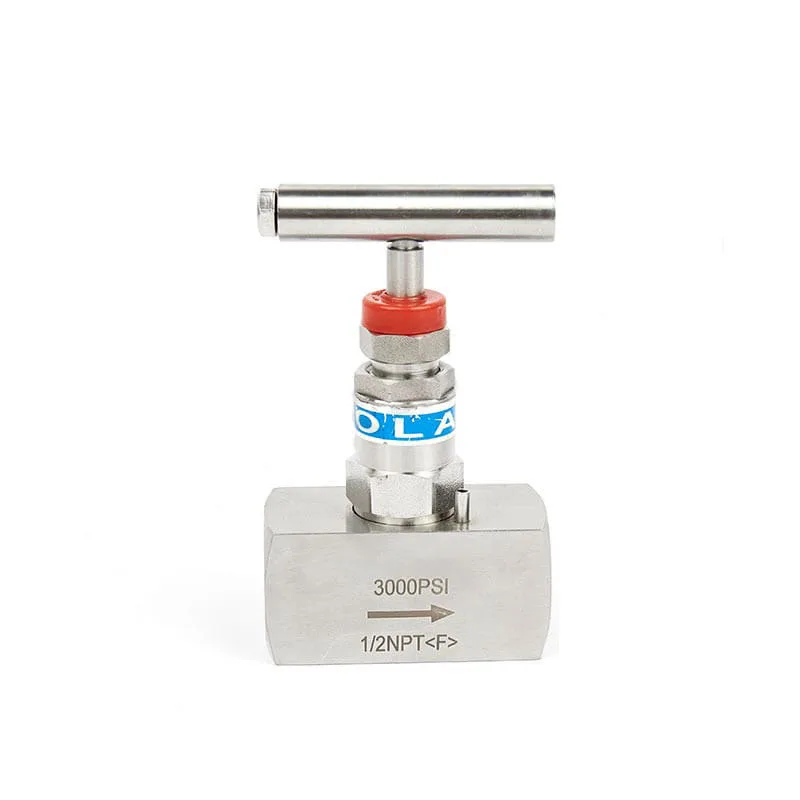

Needle Valves for Fine Flow Adjustment
A needle valve is used when the flow must be adjusted slowly and in small amounts. It has a tapered needle-like stem that moves into a small seat opening, so each turn changes the flow more gradually than a normal shutoff valve.
Needle valves are common in instrumentation lines, sampling systems, calibration equipment, small gas lines, and low-flow liquid service. They are useful when the operator needs fine manual adjustment rather than fast open-close movement.
The limitation is flow capacity. A needle valve is not the first choice for a large process pipeline, emergency shutoff point, or dirty medium with solids. Buyers should check the port size, pressure rating, connection type, stem packing, material, and whether the valve needs panel mounting or frequent manual operation.
How to Choose the Right Industrial Valve Type
A valve that works well for full open and full close service may be a poor choice for throttling. A valve that gives compact shutoff on a water line may not suit slurry, steam cycling, corrosive media, or a high shut-off pressure.
The table below gives a practical way to shortlist types of industrial valves before checking the final size, material, pressure class, seat design, end connection, and actuator. For deeper material and sizing topics, see MacoTango’s valve selection guides.
| Selection factor | What to check | Valve direction |
|---|---|---|
| Main duty | Shutoff, control, backflow prevention, pressure relief, diversion or fine adjustment | Match the valve type to the function first |
| Media | Clean liquid, steam, gas, slurry, powder, viscous fluid or corrosive fluid | Use material, seat and trim that can handle the medium |
| Pressure and temperature | Design pressure, working temperature, pressure drop and thermal cycling | Confirm body rating, seat type, packing and bonnet design |
| Shutoff need | How much leakage can the line accept when closed? | Consider soft seat, metal seat, wedge, ball or special trim design |
| Pressure loss | Allowed flow resistance when the valve is open | Gate, ball and some butterfly valves often suit low pressure drop duty |
| Operation | Manual, electric, pneumatic or hydraulic actuation; fast or slow cycling | Check torque, stroke, fail position and site power or air supply |
| Standards and documents | Pressure-temperature rating, materials, testing, marking and certificates | Confirm the standard scope before purchase or project approval |
For many industrial valves, standards are not just paperwork. They affect pressure rating, material choice, marking and test expectations. For example, ASME B16.34 is often checked for flanged, threaded and welding-end valves in pressure piping projects.
Once the duty and working conditions are clear, the choice becomes much simpler. A buyer can rule out valve types that create too much pressure loss, cannot throttle safely, may clog in dirty media, or cannot meet the required pressure class and document scope.
Need Help Selecting an Industrial Valve Type?
The best valve type is the one that matches the real duty: shutoff, control, backflow prevention, pressure relief, slurry handling, corrosion resistance, fine adjustment or fast operation. After that, the final choice depends on pressure class, temperature, media, leakage requirement, connection type, actuator method and the documents your project needs.
MacoTango can help review these conditions and suggest a practical valve direction before you move to detailed sizing or purchase approval. If you are comparing several types of industrial valves for the same line, contact MacoTango engineers with the working medium, pressure, temperature, pipe size, connection standard and control requirement.
