A control valve for the chemical industry is selected by the process variable it must regulate and the full range of conditions it must survive. The industry name and nominal line size do not define the required flow range, pressure drop, material compatibility, shut-off duty or failure position.
This separates a chemical control valve from gate valves used for isolation, check valves that prevent reverse flow and relief devices that protect against overpressure. A control valve changes its flow restriction in response to a control signal, allowing the process to regulate flow, pressure, temperature or liquid level.
A workable selection sequence starts with the control duty and the minimum, normal, maximum, transient and failure cases. Valve design, wetted materials, trim, Cv, actuator force, positioner and fail action can then be assessed against the same service envelope. Without those inputs, a valve-type list cannot determine whether a globe, segmented ball, characterised butterfly or lined configuration will provide suitable installed control.
What control valves do in chemical processing
Chemical process control valves are installed where adjusting a fluid flow can correct another process condition. That condition may be reagent flow, reactor temperature, vessel pressure or liquid level. The required valve response depends on the behaviour of the complete control loop, including process delay, pressure variation and operating range.
Dosing and blending
Dosing loops regulate the addition of acids, alkalis, catalysts, solvents or other process ingredients. The valve may need to make small, repeatable flow changes while the pressure at the injection point varies with vessel level, pump operation or reaction conditions.
A valve selected only for the maximum flow can be too large for normal dosing duty. It may then operate close to its seat, where limited travel and friction can produce an uneven response. Minimum controllable flow, normal flow, maximum flow and available pressure drop should therefore be considered together. Services that can crystallise, polymerise or carry suspended solids also require attention to internal clearances and stagnant areas.
Reactor and heat exchanger temperature control
A temperature loop commonly adjusts the flow of steam, thermal oil, cooling water or another utility through a jacket or heat exchanger. The valve does not measure or control temperature directly. It changes utility flow in response to the controller, while the thermal mass of the equipment and process fluid determines how quickly the temperature changes.
Startup, batch transitions and steady production can place different demands on the valve. A valve that passes enough utility at startup may provide coarse control once the process approaches its target temperature. Selection therefore needs to account for the expected load range, available pressure drop and the response of the actuator and positioner.
Pressure and level control
Pressure control valves may regulate a vessel inlet, a gas outlet or a liquid pressure reduction point. Large pressure reductions can change fluid velocity, noise and phase behaviour, so pressure letdown duty must be checked against the actual fluid state rather than treated as ordinary throttling.
Level control usually adjusts the inlet or outlet flow of a tank, separator or reactor. The available pressure can change as the liquid head rises, while transfer pumps and downstream restrictions introduce further variation. These conditions affect valve travel and the flow delivered for a given opening.
These control points belong to a wider range of industrial valve applications, but each loop requires its own operating and failure cases. A pressure valve does not always need to fail closed, and a cooling valve does not always need to fail open. The appropriate failure position follows from the safer process state.
Start with the control duty and complete service envelope
Normal flow, pressure and temperature describe only one point in a control valve’s operating cycle. The valve may spend most of its time at reduced flow, experience a higher differential pressure during startup or close against a pressure that never occurs during normal modulation.
Define separate operating cases before selecting the valve design. The required inputs include:
- Process fluid: chemical composition, concentration, phase, density, viscosity and the presence of solids, fibres, crystals or entrained gas.
- Flow and pressure: minimum, normal and maximum flow, with valve inlet pressure P1 and outlet pressure P2 recorded for each case.
- Temperature: minimum, normal and maximum process temperatures, plus startup, shutdown and other credible transients.
- Shut-off and operation: differential pressure at closure, permitted seat leakage, operating frequency and expected time spent near either end of the valve travel.
- Cleaning exposure: flushing chemicals, steam, wash water and cleaning temperatures that may contact the body, trim or sealing system.
- Failure conditions: the process consequence of losing instrument air, electrical power or the control signal, including the safer valve position for each event.
These values should remain paired by operating case. Maximum flow often occurs when the available valve pressure drop is relatively low, while the highest differential pressure may occur near shut-off or during a different process stage. Combining unrelated maximum values can create an artificial condition and conceal the case that actually governs selection.
The duty description also needs to distinguish steady throttling from batch changes, frequent cycling and emergency movement. Each pattern places a different demand on valve response, seat contact, packing friction and actuator movement.
Until the operating and failure cases are defined, any recommendation remains a preliminary direction. The available data do not support an exact valve design, material system, Cv, size or fail position.
Which control valve design fits the duty?
Valve family should follow the required flow behaviour and mechanical exposure, rather than the chemical industry label. Rangeability, differential pressure, solids, shut-off duty and maintenance access change which design deserves detailed sizing.

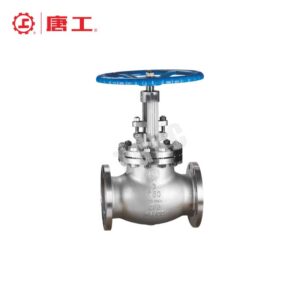

| Design direction | Reason to consider it | Checks that may change the choice |
|---|---|---|
| Single-seat or cage-guided globe valve | Throttling duty that needs controlled stem travel and a selectable trim characteristic | Solids, fouling, required capacity, pressure-drop energy, actuator thrust and trim access |
| Segmented or V-port ball valve | Rotary control where capacity, compact flow path or tolerance of some suspended solids supports the duty | Seat leakage, operating torque, erosion, cavity behaviour and control near the travel limits |
| Characterised butterfly valve | Large line sizes or high flow capacity where a rotary valve suits the available pressure drop | Low-opening control, disc and shaft exposure, shut-off requirement, dynamic torque and velocity |
| Lined, diaphragm or plug configuration | Service where corrosion exposure, fluid containment or internal geometry requires a specialised construction | Lining feasibility, temperature, vacuum, permeation, solids, pressure rating and replaceable-part access |
How to narrow the shortlist
A globe design often enters the shortlist when the duty requires controlled throttling across a meaningful pressure drop. A segmented ball or characterised butterfly valve may be considered when rotary operation, higher capacity or larger line size better matches the service. Corrosive exposure can redirect the review towards a lined or otherwise isolated wetted construction.
These are candidate directions, not final selections. The same valve family can behave differently with another trim, seat, flow characteristic or actuator. A detailed control valve design comparison should be read alongside the actual operating cases, particularly when pressure drop, solids or required rangeability governs the decision.
Check chemical compatibility across the whole valve assembly
A body material designation does not describe the complete material system exposed in chemical service. The pressure boundary may remain acceptable while the trim, seat, packing or gasket deteriorates and changes valve performance.
The body and bonnet must suit the internal fluid and the design pressure and temperature. Depending on the valve construction, the process may also contact the plug, cage, ball or disc, stem or shaft, seat ring and internal fasteners. Local velocity and throttling at the restriction can make trim exposure different from the conditions at the body wall.
Soft seats, diaphragms, packing sets and gaskets require a separate compatibility review. Temperature, chemical concentration and contaminants can alter swelling, hardening, permeation and mechanical strength. A material listed as compatible with a pure chemical at room temperature may respond differently to a hot mixture or a changing batch composition.
The stem sealing arrangement also affects containment and actuator demand. Packing must control external leakage while allowing repeatable stem or shaft movement. Additional packing load can increase friction, and a bellows seal introduces its own pressure, temperature, stroke and fatigue limits. Neither arrangement should be specified from the fluid name alone.
External exposure belongs in the same review. Chemical vapour, washdown liquid, condensation beneath insulation and the surrounding atmosphere may reach bolting, actuator housings, tubing, positioners and limit switches even when those parts are outside the pressure boundary.
Final material selection needs the chemical composition, concentration, temperature range, phase, contaminants and credible cleaning exposure. The detailed review of linings, wetted parts and sealing options belongs in the guide to chemical and corrosive service control valves. Without those service details, an exact alloy, lining, seat or packing recommendation remains unsupported.
Size for installed performance and severe-service risk
Cv is a system calculation, not a pipe-size label. The required capacity depends on the fluid, flow rate and pressure available across the valve at each operating point.
Check the complete operating range
Calculate the required Cv at minimum, normal and maximum flow using the corresponding inlet and outlet pressures. The highest flow does not always produce the largest required Cv, particularly when pump head, vessel pressure or downstream resistance changes during operation.
The selected valve should then be checked at its predicted opening for every case. An oversized valve may spend normal operation close to the seat, where a small movement causes a comparatively large flow change. A valve with insufficient capacity may approach full travel before the process reaches maximum demand.
Installed behaviour also depends on the pressure consumed by the rest of the piping system. Pumps, control equipment, reducers, elbows and other restrictions change the pressure available to the valve as flow changes. The inherent valve characteristic therefore does not, by itself, describe the flow response after installation.
Use the correct fluid calculation branch
Liquid, gas and steam sizing require different fluid properties and flow checks. Liquid calculations may need density, viscosity and vapour pressure. Compressible-fluid calculations use absolute pressures, temperature and the relevant gas or steam properties. Mixing data from different operating cases or applying a liquid method to a gas service invalidates the result.
A control valve Cv calculator can provide a first estimate when the input data and fluid branch are known. Project sizing still requires the current calculation method, the selected valve geometry and the manufacturer’s applicable coefficients.
Screen pressure-drop energy and phase change
For liquid service, local pressure inside the valve may fall below the fluid vapour pressure. Cavitation is possible when vapour bubbles form and then collapse as pressure recovers. If downstream pressure remains below the vapour pressure, part of the liquid can remain as vapour and the service enters flashing conditions.
Gas, steam and liquid flows can also reach a choked condition in which additional downstream pressure reduction does not produce the expected increase in flow. Noise, outlet velocity, vibration and erosion risk must be reviewed with the valve recovery factors, trim geometry and adjacent piping. Cv alone cannot establish whether a candidate valve will tolerate that energy.
Select the actuator, positioner and fail action as one assembly
The actuator is governed by the highest credible force or torque anywhere in the valve stroke. Normal throttling pressure drop may be lower than the load at startup, shut-off or another abnormal but credible process condition.
Calculate the full-stroke actuator demand
Linear valves require sufficient thrust to overcome fluid forces, seat load, stem friction and packing friction. Rotary valves require torque calculations that account for pressure differential, seat friction and changes in dynamic torque as the disc, ball or plug moves.
The calculation should use the minimum available air or hydraulic supply rather than the normal header value. For electric actuators, the review must include available power, required output torque or thrust and the duty cycle. The selected actuator also needs adequate output at intermediate travel, where the maximum load may occur.
An actuator cannot be sized independently of the final valve model, trim, seat, packing arrangement and shut-off differential pressure. A change to any of these items can alter the required output and invalidate an earlier actuator selection.
Match the positioner and accessories to the response requirement
The positioner converts the control signal into valve-stem or shaft movement and corrects position error. Its signal type, travel range, feedback method and pneumatic capacity must suit the actuator and the required response.
Solenoid valves, boosters, air sets, volume tanks, limit switches and position transmitters alter how the assembly moves or responds to a fault. Their flow capacity and switching logic should be reviewed as part of the same signal chain. Ambient corrosion, washdown, temperature and hazardous-area requirements may also change the enclosure and accessory selection.
Required stroke time must follow the process dynamics and protective function. Faster movement is not automatically safer because an abrupt flow change can disturb pressure, level or reaction conditions.
Derive the fail position from the process consequence
Loss of control signal, instrument air and electrical power are separate failure cases. Each case should identify whether the valve moves open, moves closed, remains in position or follows another defined action.
Air-to-open and air-to-close describe actuator action, but they do not by themselves establish the safer process state. The required fail position depends on what happens to reactant flow, heating or cooling, vessel pressure and downstream equipment when movement is lost.
No actuator size, stroke time or fail position can be finalised without the selected valve load data and the project’s process hazard decision.
Turn process data into a control-valve specification
A usable control-valve specification keeps assumptions visible and connects every selection decision to a defined service case. The sequence matters because a later valve, material or actuator change can invalidate earlier calculations.
- Define the control duty. Identify the controlled variable, manipulated flow, required response, shut-off duty and consequence of losing control.
- Separate the operating cases. Record minimum, normal, maximum, startup, shutdown, cleaning and credible failure conditions as distinct cases. Keep each flow rate paired with its corresponding pressures, temperature and fluid state.
- Shortlist suitable valve constructions. Compare the candidate designs against required rangeability, pressure drop, solids, shut-off performance, installation space and maintenance access.
- Specify the complete material and sealing system. Define the body, bonnet, trim, seat, stem or shaft, packing, gaskets, bolting and external environmental requirements. Mark any compatibility assumption that still needs confirmation.
- Complete the sizing and installed-performance review. Check required Cv and predicted opening across the operating range. Include piping effects, velocity, noise and any cavitation, flashing or choked-flow assessment required by the service.
- Match the actuator and control accessories. Use the final valve load, minimum available supply, response requirement and process failure decision to specify the actuator, positioner, solenoid and other necessary accessories.
- State the document, inspection and test requirements. Identify the calculations, drawings, material records, inspection points and acceptance evidence required by the project. When a standard or test method applies, record its current edition, scope and acceptance criteria rather than using a generic compliance statement.
Once these decisions are controlled, the available control valve series can be reviewed against a traceable technical basis. Any supplier deviation should identify the affected service case and the calculation or specification field that changes.
Corrosion Mechanism Comes Before the Material Name
A material that survives one acid concentration can fail in the same chemical at another temperature. A corrosive service control valve should therefore be selected from the corrosion mechanism, not from a short material label such as stainless steel, PTFE-lined, Hastelloy, or alloy trim.
Concentration is often the first hidden variable. Dilute and concentrated media can attack metal in different ways, and some chemicals change behaviour when water content, oxygen, or contaminants enter the process. A valve body that looks suitable on a generic compatibility chart may still be exposed to local attack at the seat, plug guide, bonnet joint, or packing area.
Temperature changes the selection again. Higher temperature can increase corrosion rate, soften some polymer seats or linings, reduce allowable pressure for lined constructions, and change packing behaviour. If the medium can vapourise, condense, crystallise, or release gas across the pressure drop, the valve must be reviewed as a control element with pressure, phase and trim behaviour checked together.
Chlorides, oxidising agents and reducing conditions can also change the answer. A stainless material may be acceptable in one clean chemical stream and unsuitable in another stream that contains chlorides, oxidisers, or acidic contaminants. For a corrosion resistant control valve, the supplier needs to know the actual fluid chemistry and the parts exposed to that chemistry, including trim, seat, stem, gaskets and packing.
Solids and velocity add a mechanical path to the chemical problem. Fast flow through a throttling restriction can remove protective films from metal surfaces, expose fresh material, and turn mild corrosion into erosion-corrosion. A lined valve may protect the body from chemical attack, but the trim, seat edge, outlet and downstream pipe still need checking when pressure drop, slurry, flashing, or cavitation is present.
The safer material discussion starts with the medium condition: name, concentration, temperature, phase, contaminants, solids, velocity and pressure drop. Once these are clear, material selection can move from a generic chemical label to a valve construction that protects the parts that actually touch, throttle and seal the process fluid.
Leakage, Bellows, Accessories and Site Environment
Toxic or corrosive service can make stem sealing and accessory material a design item alongside the wetted body. Internal corrosion is only one failure path; leakage past the packing, gasket attack, bonnet corrosion, actuator exposure and instrument enclosure damage can all change the valve package.
Packing should be selected for the medium, temperature, stem movement, friction limit and external leakage requirement. PTFE packing may suit many chemical duties because it has low friction and good chemical resistance, while graphite packing is often considered where temperature is higher. The final choice still depends on the full service condition, the actuator force available and the leakage limit written into the project specification.
A bellows seal may be considered when the medium is toxic, highly corrosive, volatile, or difficult to contain through normal packing alone. The bellows material then becomes part of the pressure and corrosion review. Cycle life, stroke, temperature and pressure should be checked because a bellows is a mechanical part, not a universal leakage cure.
Gaskets, bonnet joints and bolting also need attention. A valve can have a lined flow passage and still expose gasket edges, bonnet cavities, fasteners, or packing-box surfaces to vapour, condensate, washdown water, or chemical splash. If the line is cleaned with a different chemical from the process medium, that cleaning condition should be reviewed as part of the valve specification.
The site environment can affect parts outside the pressure boundary. Positioners, limit switches, solenoid valves, air tubing, brackets and actuator housings may need corrosion-resistant materials or suitable enclosures when the valve is installed near acid vapour, salt air, outdoor weather, chemical washdown, or a wet trench. A control valve that survives internally can still become unreliable if the actuator or position feedback cannot work in the surrounding atmosphere.
Fail action belongs in the same review. For a chemical dosing line, pressure letdown station, reactor feed, or toxic medium service, the safe position after air failure or signal loss must match the process hazard. Material compatibility, leakage control and actuator behaviour should be checked together before the valve is released for purchase.
Confirm the complete control package
The unresolved project decision is whether one valve, material system and actuator assembly can meet every defined operating and failure case. A chemical name and nominal line size do not provide enough information to answer that question.
Engineering review requires the fluid composition, concentration, phase and solids content; minimum, normal and maximum flow with the corresponding P1, P2 and temperature; shut-off differential pressure and permitted leakage; cleaning exposure and cycling frequency; minimum actuator supply; and the approved response to loss of signal, air or power.
