Water shut-off valves play a vital role in any fluid system, providing control, safety, and maintenance access—but not all valves are created equal. Choosing the right type isn’t just about stopping flow; it’s about matching the valve to your pipe size, operating conditions, media, and performance needs. From ball valves for tight shut-off in small lines, to globe valves for precise throttling, butterfly valves for cost-effective large-bore control, and gate valves for reliable full-flow isolation, each has distinct strengths and trade-offs. This article breaks down how to compare, select, and apply each valve type to ensure your system runs efficiently, safely, and cost-effectively.

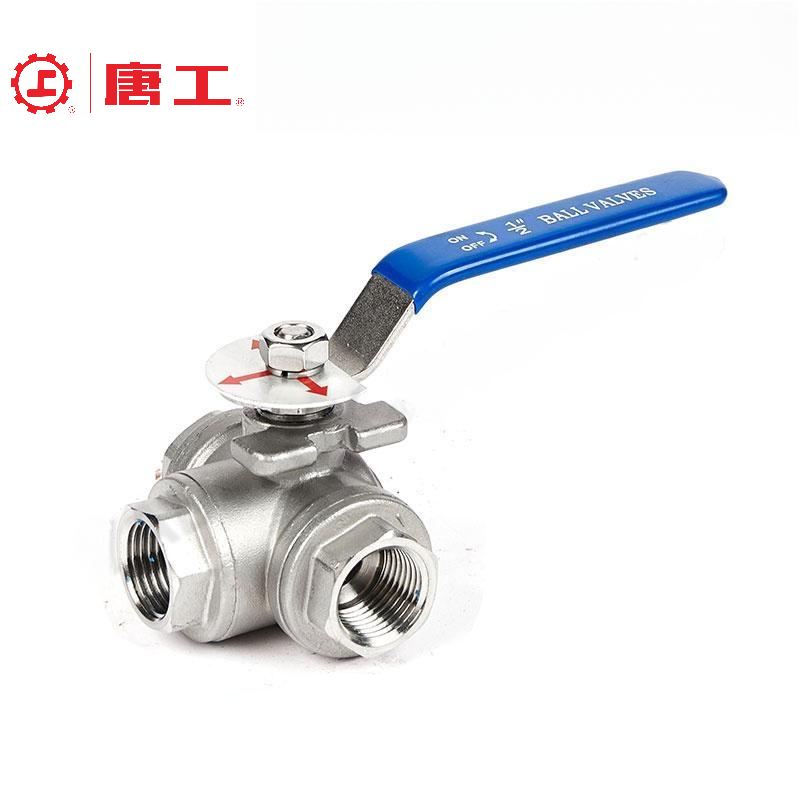

Ball Valves: Precision Shut‑off for Smaller Lines
How Ball Valves Work & Key Design Features
Ball valves use a hollow, perforated ball inside the valve body that rotates 90° to open or close the flow path. When aligned with the pipe, fluid flows freely; when turned perpendicular, flow stops completely. This quarter-turn mechanism allows quick operation, with a clear visual indicator of open vs. closed position.
Ideal Applications & Strengths
Quick operation — 90° turn enables fast shut-off, critical in emergency or frequent-use settings
Excellent seal — soft seats (like PTFE) deliver near-zero leakage and strong shut-off integrity
Low flow resistance — full-bore designs ensure minimal pressure drop and straight-through fluid flow
Suitable for frequent cycling — robust design withstands thousands of open/close cycles
Perfect for zero-leak systems — ideal in applications where sealing integrity is non-negotiable
Optimized for smaller sizes (DN15–DN100) — compact, light, and cost-effective in this range
Limitations & Considerations
Cost and complexity rise sharply above DN200 — large, full-bore ball valves (e.g., trunnion-mounted DN200+) are heavier, pricier, and more difficult to machine
Limited throttling capability — standard ball valves don’t regulate flow smoothly and may cause seat wear; V-port variants exist but are less common
High-pressure large-bore challenges — floating-ball designs may struggle under high pressure; trunnion mounting helps but adds complexity
Best Use Cases
Residential plumbing — compact, reliable shut-off for water supply lines
Instrumentation and control lines — ensures fast isolation and leak-tight integrity
Critical shut-off points — ideal for emergency isolation or safety systems requiring quick action
Oil, gas, and chemical sectors — used extensively where secure sealing and quick operation are essential

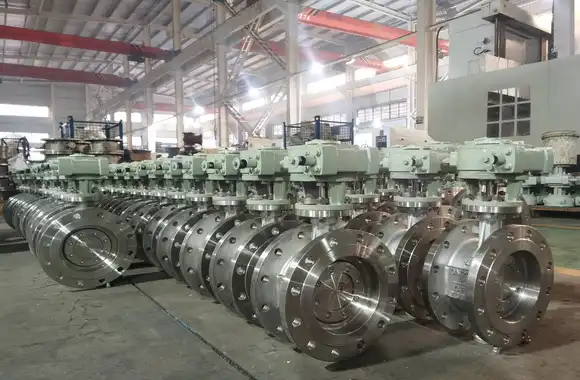

Butterfly Valves: Economical Flow Control for Large Diameters
How Butterfly Valves Work & Key Design Features
Butterfly valves regulate flow via a quarter-turn disc mounted on a central shaft. When the disc is parallel to the flow, the valve is open; when perpendicular, flow stops. Their compact, wafer or lug-body design offers fast operation and adaptable actuation—manual, electric, or pneumatic.
Ideal Applications & Strengths
Cost-effective for large diameters: simpler, less material-intensive designs make them cheaper than ball valves at size.
Compact and lightweight: wafer-style bodies save space and require less structural support .
Fast installation & operation: quick 90° turn and minimal torque needed, supported by gearboxes on large valves.
Sweet spot in DN200–DN600+: the go-to choice for large pipes in HVAC, water, and fire systems.
Limitations & Considerations
Sealing isn’t top-tier: less tight than ball or globe valves; rubber or soft seats can deform under pressure.
Disc causes pressure drop: the disc stays in the flow path, leading to higher resistance than full-bore designs.
Not ideal for high-pressure high-integrity shut-off: performance drops under high system pressure; some industrial systems need bypass valves.
Best Use Cases
Large water mains & municipal supply: ideal where flow rate trumps absolute sealing.
HVAC and chilled water systems: lightweight and efficient in large piping networks.
Fire protection lines: reliable and quick to isolate jurisdictional zones.
Bulk fluid handling: in industries where minor leakage and moderate pressure drop are acceptable.
Gate Valves: Reliable Isolation for Mid to Large Lines
How Gate Valves Work & Key Design Features
Gate valves employ a rising or wedge-shaped gate that slides perpendicular to the flow to either block or allow fluid passage. When fully open, the valve offers a straight-through path—with no obstruction in the line—resulting in minimal pressure drop. They operate via multiple turns of a handwheel or actuator, raising or lowering the gate until it seats tightly. Available in rising-stem and non-rising-stem designs, they serve a wide range of pressure ratings, from low to high-pressure systems.
Ideal Applications & Strengths
Simple, robust design: With relatively few components and a straightforward mechanism, gate valves are easy to manufacture and maintain.
Good sealing (especially resilient seated): Certain models, like EPDM-lined valves, deliver tight shutoff suitable for clean fluids.
Low pressure drop when fully open: Their full-bore design allows maximum flow with minimal head loss.
Cost-effective for mid–large bores: They are economically favorable in DN150–DN600 ranges compared to quarter-turn valves.
Limitations & Considerations
Slow operation: Gate valves require many turns to open or close, making them unsuitable for fast shutoff.
Not for throttling: Partial opening can cause vibration, uneven seating, and damage due to high-velocity flow.
Bulky design: Rising-stem types need vertical clearance; even compact versions remain bulky, especially in smaller diameters.
Potential seat wear and corrosion: Metal seats may erode over time, especially in aggressive media; resilient-seated variants help but have environmental limits.
Best Use Cases
Main water line isolation: Ideal for shutting off entire sections of municipal water systems.
Oil & gas pipelines (clean media): Commonly used where full-bore flow and occasional shutoff are needed.
Applications requiring infrequent full flow: Situations where isolation, not control, is the priority—such as in treatment plants or bulk transport systems.
Globe Valves: Precision Flow Regulation for Smaller Systems
How Globe Valves Work & Key Design Features
Globe valves use a movable disc (or plug) pressed against a stationary ring seat within a spherical or angular body. Turning the handwheel lifts or lowers the disc, allowing for precise flow control and tight shutoff.
Ideal Applications & Strengths
Excellent flow throttling/regulation: Disc-to-seat movement allows smooth modulation of flow rates.
Good sealing capability: The matched seating surfaces ensure reliable shutoff.
Precise control: Available in T-, Y-, or angle-style bodies to match control needs.
Ideal for smaller diameters: Compact enough for DN up to ~150, where precise control outweighs pressure drop drawbacks.
Limitations & Considerations
High pressure drop across valve: The flow path change causes significant head loss.
Higher cost and complexity vs. ball or gate valves in small sizes.
Bulkier than ball valves and slower to operate due to multi-turn handwheel.
Impractical and expensive for larger sizes (DN150+): Heavier and with severe pressure losses, making them unsuitable for larger pipelines.
Best Use Cases
Steam systems: Precise throttling and reliable sealing under high temperatures.
Compressed air lines: Accurate pressure and flow control in pneumatic systems.
Cooling/heating systems requiring regulation: Ideal for HVAC where flow modulation is key.
Feedwater control in boilers and turbine trim services where varying flow rates are necessary.
High-pressure small-bore applications: Suited for high-pressure scenarios needing tight shutoff and control.
Water Shut-Off Valves Type Comparison
Direct Feature Comparison Table of Water Shut-Off Valves
| Feature | Ball Valve | Butterfly Valve | Gate Valve | Globe Valve |
|---|---|---|---|---|
| Size Range | DN15–DN100 (small to moderate); up to 1200 mm but large sizes are costly | DN200–DN600+ ideal; handles very large pipes | DN150–DN600; broader range, easy to scale | Best ≤ DN150; larger sizes are bulky & inefficient |
| Sealing | Excellent; soft seats offer near-zero leak | Fair; resilient seats, less tight than ball/globe | Good; especially with resilient seats | High; precision seat and plug match ensures tight shutoff |
| Throttling | Poor (unless using special V-port) | Moderate; okay for coarse control | Poor; not designed for flow control | Excellent; smooth, precise regulation |
| Speed | Fast (quarter-turn) | Fast (quarter-turn); gearboxes for larger units | Slow (multi-turn) | Slow (multi-turn); almost like gate in actuation speed |
| Cost | Moderate (costly at diameter > DN200) | Low to moderate for large bore; very economical | Low to moderate; cost-effective mid-large | Higher; complex internals and materials |
| Space/Weight | Compact; light in small sizes | Lightweight; compact wafer/lug style | Bulky; rising stem requires vertical clearance | Bulky; heavier than ball, especially with bonnet and cage |
| Pressure Drop | Very low when open | Moderate; disc causes some head loss | Minimal when fully open | High; tortuous flow path |
| Best Media | Water, oil, gas, chemicals—especially clean or critical | Water supply, HVAC, fire protection, low-pressure systems | Clean water, oil, gas pipelines where full bore is needed | Steam, compressed air, feedwater, heating/cooling systems |
Additional Selection Considerations of Water Shut-Off Valves
Beyond valve type, the nuances of material, connections, actuation, and standards can make or break your system’s longevity and compliance.
Material Compatibility
Body material impacts strength, corrosion resistance, and longevity. Common options: cast iron (economical), carbon steel (structural strength), stainless steel (corrosion-resistant), bronze/brass (good in potable water), and plastics like PVC or PTFE (for low-temp/low-pressure systems).
Trim and seat materials vary based on media: e.g., nickel alloys resist caustics, Nitronic 60 resists wear, PTFE offers chemical resistance, EPDM or Viton for elastomer seating.
Connection Types
The connection dictates installation ease, maintenance, and compatibility:
Threaded (NPT/BSP): common for small valves; easy installation but not ideal for high-pressure or larger lines.
Flanged (ANSI/ASME B16.5 etc.): sturdy and sealable; choices include slip-on, socket-weld, weld-neck, lug, wafer—each suited to specific use cases.
Wafer and lug butterfly connections: wafer is lightweight and sandwiched between flanges, while lug-style bolts directly and allows dead-end isolation.
Actuation Methods
Manual (lever/handwheel): simple and economical for on/off control.
Gear operators: reduce torque for larger valves.
Electric or pneumatic actuators: enable remote or automated control, ideal for large or hard-to-reach valves.
Standards & Certifications
Compliance ensures safety, reliability, and regulatory acceptance. Standards to look for:
ANSI/ASME, API, ISO for dimensional and pressure classes
AWWA for potable water applications
Fire-safe certifications for valves in fire protection lines
Potable-water approvals (e.g., NSF/ANSI 61) where human consumption is involved
Conclusion
Choosing the right Water Shut-Off Valves is essential to ensuring system efficiency, operational safety, and long-term cost savings. While the general rule of thumb—ball or globe valves for small bore, butterfly or gate valves for large bore—provides a solid starting point, every application requires careful consideration of sealing needs, pressure ratings, media type, and usage frequency. As a global valve manufacturer, we not only offer a full lineup of Water Shut-Off Valves for various industries but also provide expert support to help you select the best solution for your specific requirements. Contact us for customized guidance or product recommendations.
