Gate valves are an essential type of valve used in various industrial applications for controlling the flow of fluids. They are primarily designed for on/off flow control and are widely recognized for their simple yet effective operation. A gate valve operates by lifting or lowering a gate (or disc) within the valve body, which either blocks or allows fluid flow through the valve. When open, the gate valve offers a full, unrestricted flow, making it suitable for applications that require minimal pressure drop.
A gate valve consists of several key components, including the valve body, gate, seat, stem, bonnet, and actuator. Each of these parts plays a crucial role in the valve’s function, contributing to its ability to provide tight shutoff, bi-directional sealing, and minimal pressure loss when open. Understanding the individual parts of a gate valve is essential for proper valve selection, installation, maintenance, and repair. By familiarizing oneself with these components, engineers and technicians can ensure optimal performance and longevity in various industrial systems.
What Are Gate Valves and Why Are Their Parts Important?
Gate valves are widely used shut-off valves designed to either stop or start the flow of fluid through a pipeline. Unlike other types of valves, gate valves are designed for fully open or fully closed operations, making them ideal for situations where a clear, uninterrupted flow is needed. The key parts of a gate valve—such as the body, gate, stem, bonnet, and actuator—work together to provide precise control over the flow of liquids or gases.
The body of a gate valve houses the internal components and connects to the piping system. It is typically made of durable materials like cast iron, stainless steel, or carbon steel, which offer strength and corrosion resistance. The gate itself is a wedge-shaped component that slides between two seats to either permit or block flow. Its precise alignment with the seats is critical to ensuring a tight seal, preventing leakage when the valve is closed.
The stem, which connects the actuator (such as a handwheel or motor) to the gate, allows for the movement of the gate. The bonnet covers the top of the valve body and serves as a protective casing for the stem and other internal components. This design helps to prevent leakage and provides access for maintenance and repair.
Key Components of a Gate Valve
Gate valves are essential in regulating fluid flow within industrial systems, and understanding their key components is crucial to ensuring optimal performance, longevity, and proper maintenance. A gate valve’s design is centered around several core components that work together to control fluid movement efficiently and effectively. Here is a breakdown of the main elements that make up a typical gate valve.

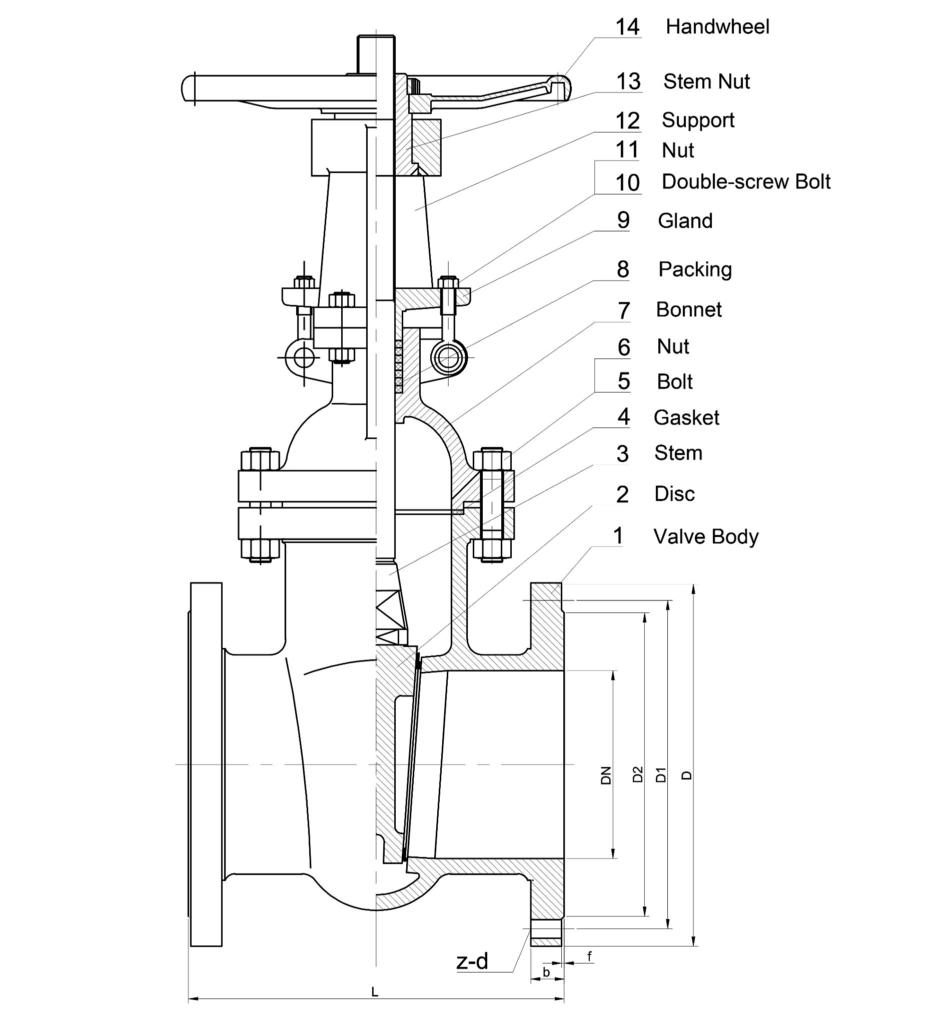

Gate Valve Diagram
Valve Body
The body of a gate valve is its main structural component, providing the casing that houses the internal parts. It is designed to withstand high pressures and is often made from materials like cast iron, stainless steel, or brass, depending on the fluid medium and application. The body serves as the foundation for the valve, ensuring that all internal parts are securely housed and function properly.
Stem
The stem is a threaded rod that connects the actuator (whether manual, pneumatic, or electric) to the gate. It is responsible for transmitting the operator’s movement to the gate, raising or lowering it as needed. The stem can either be a rising or non-rising type. In a rising stem valve, the stem moves upward when the valve is opened, providing a visual indicator of the valve’s status. Non-rising stems are often used in applications where space is limited.
Bonnet
The bonnet is the cover that seals the valve body and houses the stem. It plays an essential role in preventing leakage and allowing easy maintenance. The bonnet is usually bolted or threaded onto the body and is removable for repairs or replacements. The material of the bonnet is typically the same as that of the body to maintain uniformity in terms of strength and compatibility with the fluid being controlled.
Seat
The valve seat is the sealing surface where the gate meets to shut off the flow. It is designed to form a tight seal to prevent any leakage when the valve is closed. Seats can be made of materials such as rubber, metal, or elastomers like PTFE, chosen based on the operational environment and the type of fluid being handled. The seat’s quality is vital to ensuring a leak-free shutoff and long-term functionality.
Wedge (Optional)
Some gate valves feature a wedge-shaped gate, which can be solid or flexible. The wedge design allows the gate to adjust and conform to the seat surface, providing a better seal, especially in valves subjected to irregular or high-pressure conditions. A flexible wedge allows for some movement to accommodate imperfections or misalignments in the seat, whereas a solid wedge provides a more rigid seal but may require greater effort to operate.
Stem Packing
The stem packing is the material that seals around the stem to prevent leaks along the stem’s movement. It typically consists of layers of packing material like PTFE, graphite, or other resilient substances. Regular inspection and maintenance of the stem packing are essential to ensure a tight seal and avoid leaks that could compromise the valve’s performance.
Gland Flange
The gland flange is a component that secures the stem packing in place. It is typically bolted onto the bonnet and can be adjusted to apply pressure to the packing, ensuring a proper seal. It is crucial in preventing leakage from the stem area and maintaining the integrity of the valve’s operation.
Backseat
The backseat is a feature found in many gate valves that helps facilitate maintenance without requiring system depressurization. It provides a secondary sealing surface, often used to prevent leakage when the valve is open, allowing for the replacement of stem packing while the valve is still in operation. This feature helps in reducing downtime for valve servicing and ensures more efficient operations.
Actuator (Handwheel or Motorized)
The actuator is the external mechanism that controls the opening and closing of the valve. In smaller valves, a handwheel is often used, while larger valves may employ electric, pneumatic, or hydraulic actuators. These devices provide the necessary force to move the gate via the stem, either manually or automatically, depending on the application requirements.
Stem Configurations: Rising vs. Non-Rising
Gate valves come in two primary stem configurations: rising stem and non-rising stem. These configurations influence the operation, maintenance, and suitability of the valve for various applications.
Rising Stem Gate Valves
In a rising stem gate valve, the stem moves vertically along with the gate as the valve opens and closes. This design offers a clear visual indicator of the valve’s position because the stem rises when the valve is opened and lowers when it is closed. The stem is positioned outside the valve body, which helps prevent contact with the fluid, protecting the stem from potential corrosion or wear, especially in harsh or corrosive environments. This type is often referred to as an “Outside Stem and Yoke” (OS&Y) valve.
The main advantage of a rising stem design is that it provides a straightforward visual cue for operators to quickly determine whether the valve is open or closed. Additionally, the external stem thread design makes it easier to maintain and inspect, reducing the risk of contamination or damage from the medium flowing through the valve. Rising stem gate valves are ideal for applications where monitoring the valve’s status is essential, such as in water treatment plants, power stations, and critical industrial processes.
Non-Rising Stem Gate Valves
In contrast, non-rising stem gate valves have a stem that remains fixed in position while the valve gate moves up and down along the threads of the stem. The gate is attached to the stem, and as the valve opens or closes, the stem itself does not rise. Instead, the threaded nut, located inside the valve body, moves up or down to control the gate’s position.
Non-rising stem gate valves are more compact than rising stem valves, as they do not require additional vertical space for the stem to rise. This design makes them ideal for installations where space is limited, such as underground pipelines, areas with low headroom, or systems with tight space constraints. Moreover, the lack of stem movement outside the valve body means the valve has fewer exposed parts, reducing the risk of damage and corrosion. Non-rising stem valves are commonly used in applications involving moderate pressures and where space efficiency is critical.
Key Differences between Rising Stem and Non-Rising Stem Gate Valves
The primary differences between rising and non-rising stem gate valves include their visual indication of position, space requirements, and suitability for specific environments. Rising stem valves provide clear visual feedback and are better suited for environments where corrosion is a concern, while non-rising stem valves are ideal for compact installations and areas where space is restricted.
Bonnet Designs and Their Applications
Standard Bonnet
The standard bonnet is the most commonly used design. It provides basic functionality for general-purpose applications. Typically, it is attached to the valve body via bolted or threaded connections. This simple design makes it easy to maintain, repair, or replace components without excessive disassembly. It is most suitable for low to medium-pressure environments.
Extended Bonnet
Extended bonnets are designed to provide additional length to the valve’s stem assembly. This extension is particularly useful in applications with higher operating temperatures, as it helps keep the valve’s sealing areas cool by maintaining a temperature differential between the valve body and the stem. Extended bonnets are often used in cryogenic systems or in applications where insulation or cooling is required for the valve’s operation.
Cryogenic Bonnet
Cryogenic bonnets are designed specifically for extremely low-temperature applications, such as those found in the liquefied natural gas (LNG) and liquefied petroleum gas (LPG) industries. These bonnets are equipped with features to ensure the valve maintains its sealing integrity in freezing conditions. The construction of cryogenic bonnets typically involves special materials that prevent brittle failure under extreme cold, while also ensuring the valve’s stem is adequately protected from the external environment.
Bellows Seal Bonnet
The bellows seal bonnet design utilizes a flexible bellows to prevent leakage along the valve stem. This design is often chosen for applications where leakage prevention is a critical concern, particularly in hazardous or toxic environments. Bellows seals provide a reliable barrier against leakage, ensuring the fluid or gas inside the valve remains contained. These bonnets are commonly used in chemical processing and pharmaceutical industries where preventing contamination is paramount.
Pressure Seal Bonnet
Pressure seal bonnets are designed for high-pressure applications, where the sealing force is enhanced by the pressure of the system. This design allows the bonnet to seal tightly against the valve body as pressure increases, offering excellent leakage resistance under intense pressure conditions. Pressure seal bonnets are commonly found in industries like power generation, oil and gas, and petrochemicals, where maintaining pressure integrity is vital for safety and performance.
Seat Materials and Sealing Mechanisms
The seat in a gate valve is a critical component that plays an essential role in providing a secure sealing surface when the valve is in the closed position. This seat material must be carefully selected based on factors like pressure, temperature, and the type of fluid being handled to ensure effective sealing and prolonged valve life.
Materials Used for Valve Seats
Various materials are used for gate valve seats, each offering distinct advantages based on application requirements. Common materials include metals such as stainless steel, bronze, and nickel alloys, which are chosen for their durability, resistance to high temperatures, and corrosion resistance. Metal seats are especially useful in high-pressure and high-temperature applications, as they can withstand harsh conditions without compromising the sealing efficiency.
In contrast, softer materials, such as elastomers (e.g., rubber or polymers), are used for resilient-seated gate valves. These materials deform under pressure to create a tight seal, making them suitable for applications where tight shutoff is crucial. Rubber seats, often made from compounds like EPDM or Nitrile, are favored for their flexibility and ability to absorb impurities, which reduces wear over time.
Sealing Mechanisms
Sealing mechanisms within gate valves can vary depending on the seat and overall valve design. The primary mechanism in metal-seated valves is achieved by the precise contact between the gate and the seat. This contact is maintained under the pressure of the fluid, with the gate compressing the seat to ensure no leakage. Metal seats are ideal for applications that involve high temperatures or aggressive fluids because of their resistance to thermal expansion and abrasion.
In contrast, soft-seated valves rely on the elastic deformation of materials like rubber or PTFE. These seats are more efficient in providing a leak-proof seal under lower pressures and moderate temperatures. The flexibility of these materials allows them to conform more readily to imperfections on the sealing surfaces, which enhances their sealing properties in conditions where hard-seating materials would fail.
Rotating and Non-Rotating Seats
In some gate valve designs, particularly those with metal seats, the valve seats may rotate during operation. This rotation helps to distribute wear more evenly across the sealing surface, which can significantly extend the service life of the valve. These rotating seats are typically found in valves designed to handle abrasive fluids or high flow rates, as the uniform wear prevents localized damage and maintains a tight seal.
On the other hand, non-rotating seats, typically used in resilient-seated designs, maintain a fixed position during valve operation. While these seats do not benefit from the wear-distribution feature of rotating seats, they are ideal for applications where seal integrity under pressure is the most important factor. The static nature of these seats ensures that the valve is always sealed when in the closed position.
Maintenance and Troubleshooting of Gate Valves
Gate valves are integral components in controlling the flow of liquids and gases in various systems. However, like any mechanical device, they may experience issues over time due to wear, corrosion, or operational misuse. Regular maintenance and timely troubleshooting are essential to ensure optimal performance and prevent costly repairs or replacements.
Common Gate Valve Problems
- Failure to Seal Properly: Over time, seals and seats may wear out, causing improper sealing when the valve is in the closed position. This is often due to corrosion, sediment buildup, or general wear. If a valve does not fully close, it may allow fluid to pass through even when the valve is intended to stop the flow.
- Difficulty in Turning: If a gate valve becomes difficult to operate, it is usually due to wear or corrosion in the stem or threads. This can lead to sticking or binding, making the valve hard to open or close. Regular lubrication and checking the stem alignment can alleviate this issue.
- Leaking from the Stem: Worn or damaged stem seals are a common cause of leakage around the stem. This can occur due to excessive pressure or the degradation of the seal material. Tightening the packing nut may temporarily resolve the problem, but replacing the stem packing is often necessary for a permanent fix.
Steps for Gate Valve Maintenance
- Regular Inspections: Gate valves should be regularly inspected for external and internal damage. Inspect seals, packing, and the valve body for signs of wear, corrosion, or cracking. Keeping the valve clean from debris and buildup ensures smooth operation.
- Lubrication: Apply appropriate lubricants to the valve stem and packing. This reduces friction, preventing binding or difficulty in operation, and extends the lifespan of these parts.
- Seal and Packing Replacement: If leaks are present or the valve is difficult to operate, replacing worn seals and packing is necessary. Always use the correct materials as per manufacturer specifications to ensure proper fit and sealing.
- Addressing Pressure and Temperature Fluctuations: Gate valves often face variable operating conditions. Ensure the valve is suited for the pressure and temperature requirements of the system. Regular adjustments to the packing and stem may be required in systems with significant pressure or temperature changes.
Troubleshooting Gate Valve Issues
- Inspection for Sticking or Jamming: If a valve sticks, check for debris inside the valve body or on the stem. Clean the components thoroughly and lubricate the moving parts.
- Addressing Leaks: If leakage is found at the valve’s seat or stem, inspect the components for wear. Clean and replace seals or seats as necessary. If the leakage persists, further inspection of the valve body might reveal more serious issues.
- Using the Fishbone Diagram for Root Cause Analysis: For persistent problems, such as malfunctioning valves, a fishbone diagram can be a useful tool for identifying the root causes. This involves categorizing potential causes such as wear, improper installation, or poor maintenance, and systematically addressing each factor to pinpoint the problem.
Preventive Measures
- Exercise the Valve Regularly: Gate valves should be exercised periodically by opening and closing them fully to prevent sediment buildup and keep internal parts from becoming stuck.
- Adhering to Maintenance Schedules: Follow a regular maintenance schedule based on the valve’s operating environment. This includes routine checks, lubrication, and component replacements, which can help prevent major failures.
Advantages and Limitations of Gate Valves
Gate valves offer several advantages that make them widely used in various industries, but they also come with certain limitations that need to be considered for optimal application.
| Advantages of Gate Valves | Limitations of Gate Valves |
| Minimal Fluid Resistance: Gate valves provide low fluid resistance when fully open, thanks to their straight-through body design. This makes them ideal for systems where minimal pressure drop is important. | Slow Operation: The gate must travel a long distance to fully open or close, leading to slower response times, making them unsuitable for applications requiring rapid valve action. |
| Superior Sealing Performance: The precise design of sealing surfaces ensures a tight seal when fully closed, even under challenging operational conditions, improving system safety and reliability. | Prone to Wear and Damage: The continuous friction between the gate and sealing surfaces can cause wear and scratches, potentially compromising sealing performance and reducing the valve’s lifespan. |
| Versatility: Gate valves can handle a wide range of fluids, including steam, oil, slurries, and high-viscosity materials, making them versatile in industries such as petrochemical, water treatment, and power generation. | Inappropriate for Throttling: Gate valves are not designed for regulating flow. They are ideal for full open or full closed positions, and using them for throttling can lead to erosion and poor flow control. |
| Bidirectional Flow: These valves allow fluid flow in both directions, which makes them easier to install and more versatile, particularly in systems where the flow direction may change. | Space Requirements: Some gate valve types, especially those with rising stems, require additional vertical space for operation, which can be a challenge in space-constrained installations. |
| Higher Cost: Gate valves are generally more expensive to manufacture than other types like ball or butterfly valves due to their complex design, material requirements, and manufacturing precision. |
Conclusion
Gate valves are crucial components in fluid control, known for their simple operation and efficiency in on/off applications. Understanding the key gate valve parts, such as the valve body, gate, stem, bonnet, and actuator, is essential for ensuring optimal performance and longevity. While gate valves offer advantages like minimal fluid resistance, superior sealing, and versatility, they also have limitations, including slow operation and unsuitability for throttling. Regular maintenance, including inspecting and replacing gate valve parts like seals and packing, is necessary to avoid common issues like leaks or difficulty in operation. Overall, gate valves provide reliable performance when properly maintained, but their limitations must be considered for effective application.
