A pneumatic actuated ball valve combines a quarter-turn ball valve with a rotary actuator powered by compressed air. Air pressure creates actuator torque, which turns the valve stem and rotates the ball approximately 90 degrees between the open and closed positions.
The actuator may use air for both directions, known as double-acting operation, or use air in one direction and spring force for the return stroke. This difference affects the response to loss of air, but it does not determine fail-open or fail-closed performance by itself. The spring arrangement, valve orientation, process consequence and complete package configuration must also be considered.
What Is a Pneumatic Actuated Ball Valve?

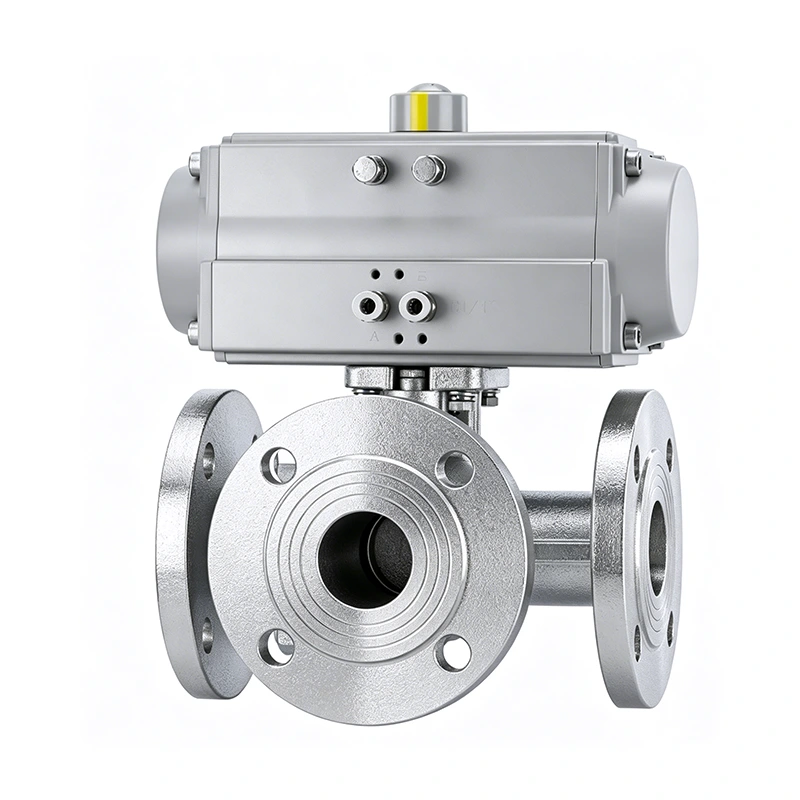

A pneumatic actuated ball valve is an automated quarter-turn assembly consisting of a ball valve and a rotary actuator powered by compressed air. The actuator replaces the manual lever and applies torque to the valve stem. When the ball bore aligns with the pipeline, fluid can pass through. Rotating the ball across the flow path shuts off the line.
The term describes the complete operating assembly rather than the pneumatic actuator alone. A usable package also needs a suitable mounting bracket and coupling, while the installed system may include air preparation, a solenoid valve and position-feedback devices. These components must work together without excessive lost motion or mechanical misalignment.
Standard round-port ball valves are commonly used for on-off isolation. Holding one at an intermediate angle does not automatically provide stable or predictable flow control. Modulating service requires suitable ball and seat geometry, controlled actuator movement and position feedback. A characterised V-port ball valve may be used when the process requires a defined relationship between valve travel and flow.
How a Pneumatic Actuated Ball Valve Works
The valve moves when the control system changes the air pressure applied to the actuator. The exact signal chain depends on the package, but the operating principle remains the same: controlled airflow moves the actuator, the actuator produces rotary torque, and that torque changes the position of the ball.
The air and control-signal path
A programmable logic controller, distributed control system or local switch may send an electrical command to a solenoid valve. The solenoid then directs instrument air to the required actuator chamber while allowing air from the opposite chamber to exhaust. Pneumatic pilot signals and other control arrangements can perform the same routing function.
In a double-acting actuator, reversing the air path drives the pistons in the opposite direction. In a spring-return actuator, air pressure drives the working stroke and compresses the springs. Venting that chamber allows the stored spring force to move the actuator towards its configured return position. An air filter and regulator may be installed upstream to control supply pressure and reduce contamination entering the pneumatic components.
How the actuator turns the ball
The actuator converts piston movement into rotary shaft movement. In a rack-and-pinion design, piston racks engage a central pinion. A scotch-yoke design transfers piston force through a yoke mechanism instead. The output shaft connects to the valve stem through a coupling, rotating the ball between its open and closed positions.
Mechanical travel stops normally limit the end positions, but reaching the stop is not enough to prove correct actuator selection. The available output torque must overcome the valve’s controlling torque throughout the required stroke. More detail on the conversion mechanisms is available in the guide to pneumatic actuator working principles.
How the system confirms valve position
A visual indicator shows the local actuator position. Limit switches can send separate open and closed signals to the control system, while a position transmitter or positioner can provide continuous travel information when the application requires it.
Position feedback confirms the measured position of the actuator or shaft. It does not by itself prove that the valve has achieved tight shut-off or that flow has stopped. Seat condition, trapped material, stem or coupling damage and insufficient closing torque can prevent isolation even when the closed-position switch is active.
Double-Acting vs Spring-Return Pneumatic Actuators
Double-acting and spring-return describe how the actuator produces movement. They do not, by themselves, define which valve position is required after a loss of air, electrical power or control signal.
A double-acting actuator uses controlled air pressure for both travel directions. A spring-return actuator, also called a single-acting actuator, uses air pressure for one direction and stored spring force for the return stroke. The spring is compressed during the air-powered stroke and moves the actuator towards its configured return position when the working chamber is vented.
| Comparison | Double acting | Spring return |
|---|---|---|
| Driving force | Air pressure drives both directions | Air drives one direction; springs drive the return |
| Loss of air | No internal spring defines the next movement | Springs move the actuator towards the configured return position |
| Air-control arrangement | Controlled air is routed to either actuator chamber | Air powers the working stroke and is exhausted for spring return |
| Torque check | Air torque must cover the valve load in both directions | Air and spring torque must each cover their respective loads |
| Typical decision | Powered movement in both directions is acceptable | A defined return direction is required for a specified loss event |
A spring-return actuator is not automatically fail closed. The springs can be configured to move the valve towards the open or closed position, subject to the valve orientation and available spring torque. The required position should follow the process consequence of losing air, power or signal. The distinction is examined further in the guide to fail-close and fail-open valve action.
Actuator action also changes the sizing check. Double-acting air-torque curves must cover the controlling valve torque in both directions at the minimum available air pressure. For spring-return units, the air-stroke and spring-stroke torque curves must each be checked against the load encountered during that part of the travel. A detailed comparison of these arrangements is available in the guide to single-acting and double-acting pneumatic actuators.
What Makes Up a Complete Pneumatic Ball Valve Package?
The actuator alone is not the complete automated valve package. Reliable operation depends on the ball valve, actuator, mechanical connection, air-control components and position-feedback devices functioning as one assembly.
The valve body forms the pressure boundary, while the ball and seats control the flow path and shut-off. The stem transfers actuator torque to the ball. Valve construction, seat material, differential pressure, temperature and medium can all change the torque required to start, move and fully seat the valve.
The rotary actuator supplies this torque through a mounting bracket and stem coupling. The bracket must maintain alignment under load, and the coupling must match the valve stem and actuator output drive. Excessive clearance can create lost motion, while misalignment can increase operating load, accelerate wear or prevent the valve from reaching its intended end position.
The pneumatic control chain commonly includes an air filter and regulator together with a solenoid valve. The filter helps reduce contamination entering the actuator and pilot components, while the regulator controls the delivered air pressure. The solenoid directs air to the appropriate actuator chamber. Its port arrangement and flow capacity must suit the actuator action and the required operating speed.
Limit switches can report the open and closed positions to the control system. A position transmitter may provide continuous travel feedback, while a positioner can control intermediate actuator movement in a modulating package. A positioner is normally unnecessary when the valve only moves between fully open and fully closed positions.
ISO 5115:2023 addresses part-turn actuated valves at assembly level, including responsibilities for design, sizing and selection. This package-level approach matters because compatible individual components can still produce an unsuitable assembly if their torque, interfaces, air requirements or control functions are not coordinated.
What Determines the Correct Actuator and Valve Package?
Nominal valve size and actuator model do not establish whether a pneumatic package can operate the valve under service conditions. The selection must connect the required valve action with the controlling torque, available air pressure, flow-control duty and mechanical interfaces.
Duty and required failure position
The process consequence of an unintended open or closed valve determines the required response. Closing may be preferred where continued flow could release hazardous material or overfill equipment. Opening may be required where uninterrupted cooling or pressure relief through the controlled path is more important. Neither position is universally safer.
The specified failure response should name the event being considered. Loss of instrument air, electrical power and control signal can affect different parts of the package. The actuator action, spring orientation, solenoid arrangement and valve mounting must produce the intended result for that event.
Controlling torque at minimum air supply
Ball-valve torque changes through the stroke. The highest demand may occur when the ball breaks away from the seats, moves under differential pressure or returns to the fully seated position. Seat material, temperature, pressure, deposits and operating history can alter that demand, so nominal pipe size is not a substitute for valve torque data.
Actuator output must be checked at the minimum pressure expected at the actuator inlet, not only at the nominal compressor or header pressure. Pressure losses through regulators, solenoid valves and tubing can reduce the available torque. Double-acting output must cover the controlling load in both directions. A spring-return unit requires separate checks of its air-stroke and spring-stroke torque curves. The applicable engineering margin must follow the valve, actuator and project requirements rather than a universal percentage.
On-off ball valve or modulating V-port design
A standard round-port ball valve is usually selected for isolation between fully open and fully closed positions. Its shaft angle does not normally correspond to the same percentage of flow, and small movements near the seat can create large changes in restriction. Adding a positioner does not correct unsuitable ball geometry or seat behaviour.
A characterised V-port ball valve can provide a more useful relationship between travel and flow for modulating duty. The complete package must still be evaluated for required flow coefficient, installed pressure-drop behaviour, controllable range, actuator resolution, backlash and seat loading. A suitable valve characteristic supports control, but actual installed performance also depends on the surrounding piping system.
Mounting interface and accessory compatibility
ISO 5211:2026 specifies attachment interfaces for part-turn actuators. A matching interface helps connect the valve and actuator, but it does not prove that the actuator can produce the required torque or that the stem, coupling, bracket and fasteners are suitable for the load.
The control accessories must also match the package. Solenoid porting must suit double-acting or spring-return operation, its flow capacity affects actuator speed, and its electrical characteristics must match the control circuit. Limit switches, transmitters and positioners require compatible travel, signals and environmental ratings. These checks determine whether the assembled components can perform the intended function, rather than merely fit together.
Common Specification Mistakes
Selecting the actuator from nominal valve size alone. Two ball valves with the same nominal size can have different seat designs, pressure ratings and operating torques. Actuator output must be compared with the exact valve torque requirements at the relevant differential pressure, temperature and minimum air supply.
Confusing normal position with failure position. A valve described as normally open is not necessarily configured to open after loss of instrument air. The specification must identify the loss event and the position required after the actuator, solenoid and valve respond to it.
Treating a matching ISO 5211 interface as proof of compatibility. The interface establishes standardised attachment dimensions, but it does not verify actuator torque, coupling geometry, bracket strength, stem loading or travel alignment. These mechanical checks remain part of the complete assembly review.
Expecting precise modulation from a standard round-port ball valve. A positioner can control actuator travel, but it cannot give an unsuitable ball and seat assembly a characterised flow response. Modulating duty requires a valve design, actuator and feedback arrangement selected for intermediate-position operation.
Assuming pneumatic operation makes the package intrinsically safe. A pneumatic actuator may still be fitted with an electrically operated solenoid, switch box, transmitter or positioner. Under OSHA 29 CFR 1910.307, equipment and wiring used in a hazardous location must be intrinsically safe, approved for the location or otherwise demonstrated to be safe for that classified area. Compressed-air power alone does not establish this suitability.
Conclusion
Specifying a pneumatic actuated ball valve as one assembly keeps the main decisions connected: valve torque defines the required actuator output, process consequence defines the failure response, and the mounting and control components determine whether the commanded movement reaches the ball. The MacoTango actuated ball valve range shows relevant package configurations, although final suitability still depends on the service duty and verified valve and actuator data.
