Butterfly valves are a staple in industries like water treatment, oil and gas, HVAC, and chemical processing. These valves regulate flow in pipelines and systems, playing a critical role in ensuring smooth, efficient operations. However, achieving optimal performance and safety with butterfly valves goes beyond selecting the right valve — it also requires precise attention to the installation process, specifically the bolts used to secure the valve. This is where the Butterfly Valve Bolt Chart becomes essential.

In this article, we’ll break down the significance of the Butterfly Valve Bolt Chart, its role in valve performance, and how proper bolt selection and installation can enhance the durability and safety of butterfly valves. Engineers, maintenance professionals, and other valve industry practitioners will find this information valuable when choosing the correct bolt sizes, torque specifications, and installation methods.

Why the Butterfly Valve Bolt Chart Matters for Safe Installation

Consequences of incorrect bolt sizing

Using bolts that are the wrong size — whether too small in diameter, too short in length, or the incorrect thread type — can seriously undermine the integrity of a butterfly valve installation. The bolt chart exists precisely to prevent those errors: it matches bolt specifications to the valve size, flange standard and system pressure so that the bolts will properly engage both the valve body and the mating pipe flanges.

If installers ignore or substitute bolt specifications, the bolt load distribution becomes uneven. That can lead to over-stressing some bolts, leaving others under-loaded. Over-loaded bolts may shear or deform; under-loaded bolts may loosen under vibration or pressure cycling. This undermines joint strength — which in turn threatens sealing and structural safety.

Further, incorrect bolt sizing increases the risk of damage to the valve or flange itself. For example, mis-sized bolts may force flange faces together unevenly or require excessive torque to draw the joint tight. That may crack, warp or distort the flange or even the valve body — especially in vulnerable materials such as cast iron or ductile iron.

Because of these serious risks, referring to a correct bolt chart is not optional — it is essential for safe, reliable installation.

Impact on leakage, flange damage, and unplanned shutdowns

One of the most immediate consequences of incorrect bolting is leakage. If bolts are mismatched, the flange faces may not compress the sealing surfaces or gasket evenly, creating micro-gaps or stress concentrations. Under pressure or vibration, those gaps can allow fluids to seep or even leak rapidly.

Leakage is more than just a maintenance headache. In systems carrying hazardous fluids, chemicals, steam or high-pressure media, a leak can quickly escalate into safety hazards — potentially causing environmental damage, equipment corrosion, or even personal injury.

Besides leakage, incorrect bolting can lead to flange or valve damage over time. Continuous stress, bending or misalignment may warp flange faces or fatigue bolt holes, reducing the structural integrity of the joint. That increases the likelihood of mechanical failure under pressure or when the system is re-pressurised.

Finally, such failures cause unplanned shutdowns — often at the worst possible time. Repairing a flange junction, replacing bolts or valves, and re-sealing the joint can be time-consuming and costly. For industrial operations, those shutdowns translate into downtime, lost production, and higher maintenance costs.

In short, when you ignore the bolt chart, you’re not just risking a minor maintenance issue. You could compromise system integrity, safety, and reliability — and potentially trigger expensive unplanned shutdowns.

Key Parameters You’ll See in a Butterfly Valve Bolt Chart

When you open a bolt chart for a butterfly valve, you’ll notice it’s more than just a list of numbers. These parameters are carefully selected to ensure the valve, flange and piping work together safely and reliably. Here are the main items you’ll typically see — and why they matter.

Valve size (NPS / DN) and pressure rating (Class 150/300, PN10/16)

First and foremost, bolt charts reference the nominal valve size and the system’s pressure rating. Valve size is usually given as Nominal Pipe Size (NPS, inches) or Diameter Nominal (DN, millimetres). The pressure rating reflects the piping or flange standard — for example Class 150 or 300 in ASME/ANSI systems, or PN10 / PN16 in European (EN / DIN) systems.

These two parameters are fundamental because they determine the overall mechanical loads on the system. Larger or higher-pressure valves require stronger and/or more bolts to maintain safety and sealing integrity. That is why a bolt chart always begins with valve size and pressure class — everything else depends on them.

Flange standard (ASME B16.5, EN 1092-1, etc.)

Bolt requirements also depend on the flange drilling and flange standard used. Different standards specify different bolt hole patterns, bolt-circle diameters, hole sizes and bolt counts. For example, a flange conforming to ASME B16.5 (or related ASME/ANSI standards) will have different bolt-hole geometry than a flange built to EN 1092-1 (European) standards.

Matching the bolt chart to the correct flange standard ensures that the bolt holes in the valve and the flanges align properly. If you mix mismatched standards (for example using bolts specified for EN flanges with ASME flange holes), the bolts may not fit — jeopardising installation safety, alignment, and sealing.

Bolt diameter, length, and quantity per flange

Once valve size and flange standard are defined, the bolt chart lists detailed bolt specifications:

• Bolt diameter – the thickness of each bolt. This determines the load capacity and ensures the bolt fits the flange holes. Typical ANSI/ASME bolt diameters might be 5/8″, 3/4″, or 1″, while EN–style bolts might be M16, M20, or M24.

• Bolt length – must be long enough to pass through the flange(s), valve body (if wafer-type), gasket (if any), and allow for full nut engagement (with some threads visible beyond the nut).

• Bolt quantity – the number of bolts needed per flange (or per flange pair). This depends on flange drilling pattern and whether the valve is wafer-style (through-bolts) or lug-style (cap screws on each flange). For example, a lug-type installation often requires twice the number of bolts compared with a wafer-type.

These details ensure both structural strength and proper sealing pressure distribution around the flange.

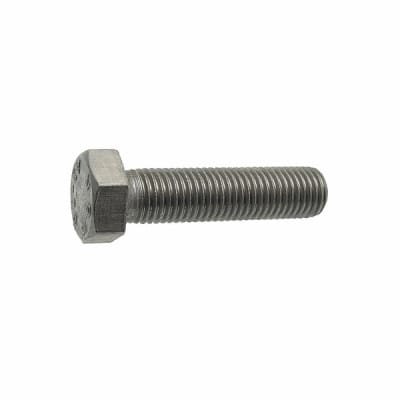

Bolt material, grade, and coating

Bolt charts may also indicate the recommended bolt material (such as carbon steel or stainless steel), grade (e.g. tensile or strength class), and any protective coating or surface treatment.

The choice of bolt material is critical. For example, in corrosive or chemical service environments, stainless steel bolts or corrosion-resistant alloys help prevent bolt degradation. In general industrial or high-pressure systems, carbon steel bolts (often high-strength, heat-treated) may be preferred for mechanical strength.

Using the correct material and grade helps ensure bolts maintain integrity over time under pressure, temperature variation, and exposure to aggressive media. Coatings or galvanising may also be specified for improved corrosion resistance, especially for outdoor or marine applications.

Recommended torque range and units

Finally, many bolt charts provide recommended torque values (or tightening guidelines) for installation. Proper torque ensures the bolts generate enough clamping force to seal the flange joint, without over-stressing the flange or crushing the valve body.

Torque values are often given in standard units appropriate to the region (for example lb-ft or N·m). Installers should also consider bolt size, material, and gasket type when applying torque. Over-torquing can damage components; under-torquing can lead to leaks or bolt loosening.

Class 150 Butterfly Valve Bolt Chart

How to Read a Butterfly Valve Bolt Chart Step by Step

Interpreting a bolt chart might seem a little daunting at first, but once you follow a clear sequence — checking body type, size, bolts, and torque — the process becomes straightforward. Below is a step-by-step guide to make sure you get it right.

Step 1 – Confirm valve body type and flange standard

Before you even open the bolt chart, check what kind of butterfly valve you have (for example wafer-style or lug-style) and determine the flange standard of the mating flanges. Different valve body types and flange standards can require different bolt patterns or quantities. For instance, a lug-type valve typically uses separate cap screws for each flange, while a wafer-type uses longer through-bolts clamping the whole assembly.

Also verify whether the flanges follow a standard such as ASME B16.5 / ANSI or a European/ISO/EN-type flange. The flange standard defines bolt-hole patterns, bolt-circle diameter and hole sizing — so selecting a bolt chart that matches your flange standard is the most crucial first step.

Step 2 – Locate valve size and pressure class in the chart

With the correct chart selected, next find your valve size and the pressure (or class) rating on the chart. Valve size may be expressed as NPS (inches) or DN (millimetres), depending on the chart format. The pressure class might appear as an ASME “Class” (e.g. Class 150, Class 300) or a European designation such as PN10/PN16, depending on flange standard.

This combination of valve size + pressure/standard determines the baseline mechanical loads and the flange bolt-hole pattern — everything else (bolt size, number, torque) follows from this.

Step 3 – Select bolt diameter, length, and quantity

Once you’ve located the correct row (or intersection) on the chart for your valve size and pressure class, read off the bolt specifications:

• The bolt diameter (for example 5/8″, 3/4″, or metric equivalents) which ensures bolts fit the flange holes and handle the mechanical load.

• The number of bolts required — for wafer-style this is equal to the flange’s bolt-hole count, for lug-style it may be double (one set per flange).

• The bolt length — although many charts specify diameter and quantity, some do not include length. In those cases, you need to calculate or confirm bolt length based on flange thickness, valve body thickness, gasket (if any), nut height and required thread engagement.

Selecting the correct bolt diameter, quantity and length ensures structural integrity, compatibility, and proper clamping across the flange joint.

Step 4 – Apply the correct torque range in tightening sequence

After bolts are selected and installed, the next critical step is tightening. The bolt chart often provides a recommended torque range (or tightening guideline) appropriate for the bolt size and valve size.

Use a calibrated torque wrench. Always follow a cross-tightening (criss-cross or star) pattern rather than tightening bolts sequentially around the flange — this ensures even pressure distribution and avoids flange or valve distortion.

Also ramp up torque gradually: many installation guidelines suggest an initial pass at a lower percentage of final torque (for example 20-30%), followed by successive passes until reaching the full torque value. For larger bolt counts, additional passes may be needed to ensure uniform compression.

Once bolts are torqued correctly, give the assembly a final inspection — ensure flange faces are flush, the valve seats properly, and there’s no visible misalignment or gaps.

Common Mistakes When Selecting or Tightening Butterfly Valve Bolts

Even with a bolt chart in hand, it is still possible to go wrong. Below are some of the most common mistakes — and how they undermine safety, reliability, and long-term performance.

Mixing metric and imperial bolt sizes

One frequent error is combining bolts from different measurement systems (metric vs imperial). Bolt charts are drawn up based on specific flange standards and bolt-hole patterns. If you mis-interpret a chart or ignore the specified measurement system, you might end up using bolts that physically do not match the flange — for example, metric bolts in an imperial-pattern flange or vice versa. That mismatch can mean bolts do not seat properly, threads may strip, or bolt holes may not align.

Confusing measurement systems also makes maintenance or future bolt replacement risky. A replacement bolt with slightly different thread pitch or diameter could compromise joint integrity, even if it seems close enough by rough inspection.

Over-torque, under-torque, and dry vs lubricated threads

Another common mistake is incorrect torque application. Some assume “tighter is better,” applying excessive torque in the belief it will guarantee a perfect seal — but over-tightening can deform or crack the valve body, especially if it is cast or ductile iron. It can also crush or damage soft seats or gaskets, preventing proper operation or causing leaks.

On the other hand, under-torquing (not tightening enough) leaves the joint weak: bolts may loosen over time under vibration or pressure cycles, leading to leaks or flange separation.

Proper torque alone is not enough. Thread condition — whether threads are dry or lubricated — also matters. Lubricated threads can reduce friction and lead to more accurate bolt preload with the same torque; dry threads may require more torque to achieve the same clamping force, but too much torque risks damaging components. Many bolt charts assume a certain thread condition, so deviating without adjustment can lead to incorrect bolt preload.

Ignoring temperature, corrosion, and material strength limits

Finally, a serious mistake is neglecting environmental and material conditions when selecting bolts. Bolt charts may specify material type or grade suitable for standard conditions, but real-world service can involve corrosive media, high or low temperatures, or cyclic loading. Using standard carbon-steel bolts in a corrosive or high-temperature environment may lead to premature corrosion, loss of strength, or stress-corrosion cracking.

Similarly, if temperature or chemical exposure is ignored, bolt and flange materials may react differently over time — causing differential expansion, weakening, or degradation. That can compromise the seal, lead to leak paths, or cause mechanical failure during service.

How to Choose the Right Bolts for Your Butterfly Valve Application

Selecting the correct bolts for a butterfly valve isn’t just about matching a chart — it’s about ensuring long-term safety, performance and reliability given the service conditions. Here’s how to choose wisely.

Matching bolt material to medium and temperature

When deciding on bolt material, the nature of the fluid (or gas) flowing through the pipeline and the operating temperature are key. For many standard applications — water, steam, or non-corrosive media — bolts made from standard carbon steel or common stainless grades offer acceptable strength and durability. However, if you expect exposure to corrosive chemicals, chlorides (such as in seawater), or fluctuating temperatures, then more resistant materials such as 316/316L stainless steel, duplex stainless steel or appropriate alloys are better suited.

Using the right material helps avoid problems such as corrosion, stress corrosion cracking, or reduced mechanical strength under temperature extremes. That means the bolts remain reliable over the valve’s lifespan, reducing risk of leaks or failure.

Corrosion protection, coatings, and surface treatments

In many real-world installations, environmental factors beyond the fluid itself — such as ambient humidity, salt content (in coastal or marine settings), or exposure to chemicals — demand extra protection for bolts. Bolt charts or manufacturer recommendations may prescribe coatings or surface treatments to enhance resistance against corrosion.

For example, stainless-steel bolts are often preferred in corrosive or marine environments thanks to their inherent corrosion resistance. In more aggressive settings (e.g. seawater, acidic or alkaline fluids), special alloys or coated fasteners may be needed; this helps prevent galvanic corrosion, pitting or rapid material degradation.

Applying these protective measures ensures that bolt integrity — and therefore the seal and structural performance of the valve-flange assembly — remains intact over time, even in harsh service conditions.

Service-specific considerations (steam, seawater, chemicals)

Different applications impose unique demands on bolt selection. For instance:

• Steam or high-temperature service: High temperatures can affect material strength and bolt preload retention. In such cases, bolts with higher heat resistance and stable mechanical properties at elevated temperature (e.g. certain alloy or stainless steels) will perform better.

• Seawater or marine service: Saltwater is highly corrosive — stainless steels (especially those enhanced with molybdenum, like 316/316L) or even specialised marine alloys are often required. In some situations, nickel-copper alloys (or other corrosion-resistant alloys) may be preferred for long-term durability.

• Chemical or aggressive fluid service: If the valve handles acidic, alkaline or otherwise aggressive chemicals, bolt material must resist corrosion, chemical attack, and possible erosion. The valve body, disc, seat and bolts must all be compatible with the media.

Moreover, outside of material selection, you must consider how coatings, surface treatments or passivation (for stainless steel) impact chemical resilience — especially when multiple metals are used (to avoid galvanic corrosion).

Conclusion

Understanding the Butterfly Valve Bolt Chart is crucial for ensuring proper valve installation, performance, and safety. Key considerations include selecting the correct bolt size, material, and torque values based on the specific valve and system requirements. By adhering to industry standards, such as ASME, API, and ASTM guidelines, professionals can avoid common mistakes like incorrect bolt sizes, improper torque, and material incompatibility. Accurate bolt installation not only optimizes valve performance but also extends its lifespan and ensures safe operation. Always consult the butterfly valve bolt chart for precise specifications to achieve optimal results in every installation.
