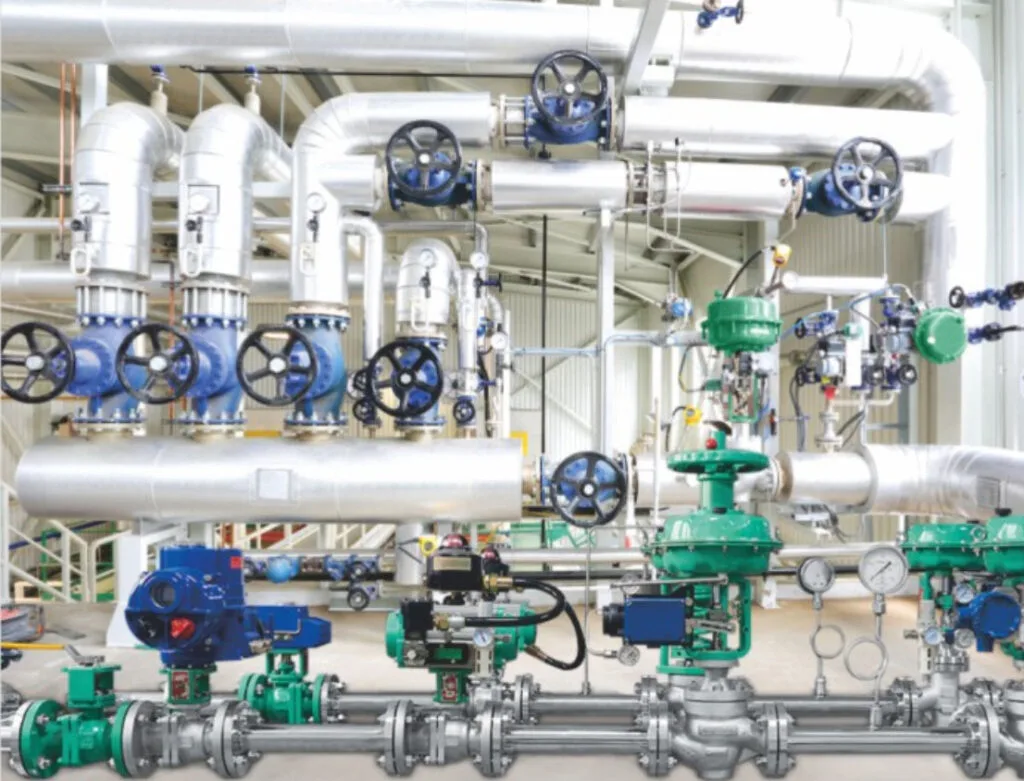

Piping and Instrumentation Diagrams (P&IDs) are a cornerstone of engineering and process industries, providing a detailed representation of the piping systems, instruments, and control equipment used in various processes. Among the many elements of a P&ID, valve symbols are some of the most crucial components, as they represent the flow control points of a system. For students and new professionals, learning to interpret these symbols can be a daunting task, but it is essential for anyone involved in the design, operation, or maintenance of process systems.

What Is a P&ID and Why Are Valve Symbols in P&ID Important?

A P&ID (Piping & Instrumentation Diagram) is a schematic drawing that shows how equipment, piping, instrumentation and control devices are connected within a process system. It acts as a technical reference for how the system is designed to operate, from normal flow conditions to safety and control functions.

Within these diagrams, valve symbols in P&ID play a critical role. They represent the different types of valves used to control, isolate or regulate the flow of liquids, gases or slurries throughout the system. Each symbol conveys specific information, such as valve type, actuation method and special operating features. Understanding these symbols is essential for accurate system design, safe operation and effective maintenance. Misreading a valve symbol can lead to incorrect installation, operational errors, safety risks and unnecessary costs.

Valve symbols are simplified visual representations of real, physical valves. When engineers and technicians can quickly recognise and interpret valve symbols in P&ID, they can plan installations more efficiently, identify potential issues earlier, and communicate design intent clearly across engineering, operations and maintenance teams.

Common Valve Symbols and Their Meanings

In Piping & Instrumentation Diagrams (P&IDs), valve symbols in P&ID act as the visual language that shows how fluid flows, stops, or is controlled throughout a plant. These symbols aren’t just generic shapes on a line. Each one carries specific meaning about a valve’s function and how it operates. Using standardised symbol libraries helps engineers, CAD designers and technicians interpret design intent consistently across drawings, systems and project documentation.

Gate Valves: Symbols for Wedge, Slab and Knife Gates

Symbol	Valve Type	Meaning
	Gate Valve	A gate valve is used primarily for on/off control of fluid flow, rather than regulation. In P&IDs, the symbol for a gate valve often consists of a straight line intersected by a gate symbol, resembling an open gate. These valves are usually represented as two triangles with their apexes meeting in the middle of the line, symbolizing the shut-off mechanism.

Gate valves are primarily isolating devices used to start or stop flow with minimal pressure loss when fully open. In P&IDs, their symbol typically shows two opposing triangles with a vertical line between them, indicating the gate mechanism that moves up and down to block flow. Variants such as wedge, slab and knife gate all perform this basic function, but are used in different service conditions (e.g. slurries for knife gates). The shape and notation in the symbol can differentiate these types, ensuring that the diagram conveys whether a straight-through wedge or special knife gate is specified.

Globe Valves: Standard vs. Angle Patterns

Symbol	Valve Type	Meaning
	Globe Valve	Globe valves are used for throttling purposes, controlling the flow rate with precision. The P&ID symbol for a globe valve typically involves a series of arcs intersecting a straight line, indicating its internal flow path that allows for better throttling characteristics.
	Angle Valve	Angle valves are used for controlling flow at a 90-degree angle. They are symbolized with a representation of the flow path turning at a right angle, typically with an indication of manual or other actuation methods.

Globe valves are a go-to choice when you need flow regulation as well as shut-off. They are throttling valves by design, due to their internal plug and seat arrangement, so their P&ID symbol often includes an internal shape that suggests the flow path through the body. An angle pattern globe valve — where inlet and outlet ports meet at a right angle — will be shown with the same core symbol adapted to reflect that geometry. Understanding this visual clue helps teams distinguish a straightforward straight-through globe from its angle counterpart without having to read extensive notes.

Ball & Butterfly Valves: Floating/Trunnion and High-Performance Offsets

Symbol	Valve Type	Meaning
	Ball Valve	Ball valves are used for quick shutoff. They are often represented in P&IDs with a symbol showing a circle within the valve body, symbolizing the rotating ball used to block flow. Variations may exist for manual, pneumatic, or electric actuated ball valves, which are indicated with different actuator symbols above the valve.
	Butterfly Valve	Butterfly valves, often used for regulating flow, are symbolized by a single line with a centered disc, representing the rotating disc that controls flow. They are popular for their simplicity and light weight, making them suitable for low-pressure applications.

Ball and butterfly valves are quarter-turn devices used for rapid isolation or modulation. In P&IDs, ball valves are usually shown as a circle with a central bore inside the basic valve representation, symbolising the rotating ball. Variants such as floating and trunnion-mounted balls are often indicated with tag details or specific centre markings to show different support and operational characteristics. Butterfly valves, on the other hand, are depicted with a centred disc across the pipeline, implying the pivoting mechanism that regulates flow. High-performance butterfly valves — which offer better sealing and control than basic wafer types — might be annotated differently or referenced in the legend to clarify intent.

Plug & Needle Valves: Symbols for Precision Flow Control

Symbol	Valve Type	Meaning
	Plug Valve	Plug valves are used for on/off control of fluid flow and are characterized by a cylindrical or tapered plug that can be rotated to block or allow flow. They are represented by a symbol with a diamond shape, indicating the plug within the valve body.
	Needle Valve	Needle valves are used for precise flow control and are symbolized by a tapered needle indicating the fine control mechanism.

For precision control at lower flow rates, plug and needle valves are common. In diagrams, a plug valve may be shown as a diamond shape inside the valve symbol, distinguishing it from spheres or discs. Needle valves — designed for fine throttling — often include a tapered or needle-like element in their symbol, indicating their capability for small, incremental flow adjustments. These graphical cues help designers and operators see not just that there’s a valve, but what level of control it offers in context.

Check Valves: Swing, Lift and Dual-Plate Symbols

Symbol	Valve Type	Meaning
	Check Valve	A check valve allows fluid to flow in one direction only and automatically prevents backflow in a piping system. In P&IDs, the check valve symbol indicates one-way flow protection without manual or external actuation.
	Check Stop Valve	Check stop valves combine the function of a stop valve and a check valve, allowing for flow control and preventing backflow. They are represented by a combination of symbols, indicating both the stop and check functions.

Check valves, often called non-return valves, allow fluid to flow in one direction only, preventing backflow that can damage pumps, upset control loops or create unsafe conditions. The basic check valve symbol on a P&ID typically shows a closure element within the line that points in the permitted flow direction.

• Swing check valves are illustrated with a hinged disc that swings open with forward flow and closes under reverse pressure. The P&ID symbol usually includes a diagonal line or arc that represents this swinging motion.

• Lift check valves use a disc that lifts directly off its seat; their symbols reflect a straight-line lift design and often include a lifted element inside the body.

• Dual-plate (or double-door) checks are compact designs with two spring-loaded plates that pivot to allow flow. Their P&ID symbols commonly show two opposing leaf-shaped elements within the valve body, signalling the paired plates.

Clear representation of these variations matters. Even though all are check valves, their dynamics and installation requirements differ – an oversight here can lead to incorrect specification or performance shortfalls in the field.

Pressure Safety Valves (PSV) & Relief Valves (PRV)

Symbol	Valve Type	Meaning
	Relief Valve	Relief valves are safety devices designed to protect piping systems from overpressure. The symbol usually includes an arrow indicating the direction of flow and a spring mechanism that represents the pressure relief function.
	Safety Valve	Safety valves, similar to relief valves, are designed to automatically release pressure when it exceeds a certain limit. These valves are represented with a similar symbol to relief valves, often including an additional actuator symbol.

Pressure safety devices are essential where overpressure could harm equipment or personnel. On a P&ID, these are shown as distinct symbols so that design intent and safety strategies are unmistakable:

• Pressure Safety Valves (PSVs) are typically spring-loaded devices that open automatically at a set pressure to protect a system from overpressure. Their symbol often includes a spring element above the valve body, indicating the spring mechanism.

• Pressure Relief Valves (PRVs) may be similar in appearance but can have pilot-operated mechanisms where a secondary line and pilot control element feed pressure information back to the main valve. This is reflected in the P&ID with additional linework or a distinct pilot control graphic connected to the relief element.

Other Common Valve Symbols in P&ID

Beyond the core isolation and throttling valves, P&IDs also include a wide range of specialised valve symbols used for safety, control, direction change and specific process functions. These symbols represent valves designed for particular operating conditions, such as backflow prevention, pressure protection, fine flow adjustment or level control.

Understanding these additional valve symbols helps ensure accurate interpretation of process intent and reduces the risk of misapplication during design, procurement and operation.

Symbol	Valve Type	Meaning
	Solenoid Valve	A solenoid valve is an electromechanically operated valve used to control the flow of liquids or gases. The operation of a solenoid valve is driven by an electric current through a coil, which generates a magnetic field to actuate the valve mechanism, either opening or closing it.
	Diaphragm Valve	Diaphragm valves are used for throttling and shut-off of fluids, particularly in corrosive applications. The symbol often includes a line representing the diaphragm, along with arcs showing its movement.
	Bleed Valve	Bleed valves are used to release small amounts of fluid from a system. The symbol often includes a small arrow or vent indication to represent the bleeding function.
	Block & Bleed Valve	Block & bleed valves are used to isolate a section of piping and bleed off any residual fluid. They are symbolized by a combination of a block valve and a smaller bleed valve symbol.
	Knife Gate Valve	Knife gate valves are used to control flow of thick or slurry-like fluids. They are represented with a gate symbol that includes a sharp blade, indicating their function for cutting through solid-laden flows.
	Piston-Operated Valve	Piston-operated valves use a piston mechanism to control flow. The symbol often includes a representation of the piston, indicating its movement to regulate flow.
	Float-Operated Valve	Float-operated valves are used in systems where the fluid level is controlled by a float mechanism. The symbol typically includes a float element, indicating its operation based on fluid level.
	Pinch Valve	Pinch valves are used to control flow by pinching a flexible tube. The symbol usually includes a depiction of the pinching mechanism, indicating its function to restrict flow by compressing the tubing.

Valve State Symbols

Valve state symbols in P&IDs show the position a valve is in under normal conditions, when no power, pressure or manual input is applied. Put simply, they tell you what the valve is doing by default. Whether it’s normally open, normally closed, or designed for a specific duty, this information is vital for understanding how the process behaves, how safety is managed, and how control logic is intended to work.

The symbols below are commonly used to describe valve state and function. When they’re read correctly and used consistently, they help turn a P&ID from a static drawing into a practical reference for real-world operation.

Symbol	Valve Type	Meaning
	Special Purpose Valve	Special purpose valves are designed for unique or specialized applications, such as mixing, diverting, or controlling hazardous fluids. The symbol varies depending on the specific application but often includes additional features like multiple arrows or unique shapes to indicate the valve’s specialized use.
	Normally Open (NO) Valve	Normally open valves are valves that remain open when not actuated and are symbolized by an open path in the valve symbol. These valves are used in applications where flow must be maintained by default and only stopped during specific operational scenarios.
	Normally Closed (NC) Valve	Normally closed valves remain closed when not actuated and are symbolized by a closed path in the valve symbol. These valves are used in applications where flow should be stopped by default and only allowed during specific conditions.

Actuator Type Symbols

Actuation and automation symbols show whether a valve is moved by hand, powered remotely, or designed to respond automatically to changes in the process. This section explains the most common actuation methods and how fail-safe logic is represented, helping your readers decode diagrams with confidence.

Manual Operators: Handwheels, Levers and Chain-Wheels

Symbol	Actuator Type	Meaning
	Hand Operated (Manual)	Hand operated valves are manually controlled using a lever or handwheel. The symbol typically includes a handwheel or lever icon, indicating manual operation. These are commonly used in applications where automated control is not necessary.
	Hand Wheel Actuator	A hand wheel actuator allows a valve to be operated manually by turning a wheel, providing simple and reliable control without the need for power or automation.

Some valves are intended to be operated manually. In P&IDs, manual actuation is typically shown by a simple symbol above the valve body, such as a handwheel, a lever, or occasionally a chain-wheel for valves located at height. These symbols tell operators that a person must physically turn or pull the mechanism to open or close the valve. Manual operation is common for small isolating valves or equipment that doesn’t require frequent adjustment.

Using clear manual-operator symbols is important because it informs maintenance and operations staff what action is required at each valve, and where manual access must be planned during plant layout and installation.

Power Actuators: Diaphragm (Pneumatic), Piston, Motor (Electric) and Solenoid Symbols

When valves are part of an automated or remote-controlled system, power actuators come into play. In a P&ID, these are shown by distinct symbols on a line extending from the centre of the valve symbol, indicating the type of drive:

• Pneumatic diaphragm actuators use compressed air to flex a diaphragm and move the valve. These are common where rapid, reliable operation is needed and where air supply is available.

• Piston actuators use air or hydraulic pressure on a piston to give higher force or longer travel range than diaphragm types, suitable for larger valves or higher pressure applications.

• Electric motor actuators attach to the valve stem and use a motor to turn or slide the valve. They are ideal where electrical control and feedback are integrated into a control system.

• Solenoid actuators are compact electro-magnetic devices that switch quickly between open and closed states, useful for on/off control in smaller valves.

Above the valve symbol, simple identifiers such as letter codes or mini-symbols show which type of actuator is fitted. Knowing these at a glance helps process engineers and automation specialists understand how a valve will behave under control system commands.

Symbol	Acutator Type	Meaning
	Pneumatic (Diaphragm)	Pneumatic diaphragm actuators use compressed air to move a diaphragm, which in turn actuates the valve. The symbol usually includes a diaphragm icon or spring to indicate pneumatic actuation.
	Motor	Motor actuators are electrically driven, allowing for precise and remote control of valve positions. The symbol often includes a lightning bolt or motor icon to represent electric motor actuation.
	Hydraulic	Hydraulic actuators use pressurized fluid to drive a piston or diaphragm, controlling the valve. The symbol often includes a piston or fluid element, indicating the use of hydraulic force.
	Pneumatic (Rotary Piston)	Pneumatic actuators use compressed air to control valve movement. They are similar to diaphragm actuators but may not include a diaphragm specifically. The symbol often features an air pressure element.
	Balance Diaphragm	Balance diaphragm actuators are used to maintain balanced pressure within the valve. The symbol often includes a double diaphragm or balance element to indicate this functionality.

End Connections

In Valve Symbols in P&ID, how a valve connects to the piping system is just as important as what the valve does. End-connection symbols communicate these details clearly and consistently. While they may seem minor on a drawing, they have real-world implications for installation, maintenance, cost and long-term reliability. Getting these symbols right helps ensure the valve specified on paper is the one that fits correctly and performs as intended on site.

Symbol	End Connection Type	Meaning
	Flange Connection	Flange connections are used to join two pieces of pipe or equipment with bolted flanges and gaskets to create a seal. The symbol typically includes two parallel lines with bolts, indicating the flanged joint.

Flanged connections are commonly represented by small parallel lines at the pipe ends. They indicate a bolted joint, allowing easy removal for inspection or replacement. Seeing flanged ends on a P&ID immediately tells engineers and maintenance teams to expect gaskets, bolt loads and flange ratings to be part of the specification.

Symbol	End Connection Type	Meaning
	Weld Connection	Weld connections are used to permanently join two pieces of pipe or fittings by welding. The symbol often includes a weld line or notation indicating the type of weld used, such as butt weld or fillet weld.

Butt-weld ends are shown with a clean, uninterrupted transition between valve and pipe, sometimes annotated to clarify the weld type. This symbol implies a permanent joint, typically used in high-pressure or high-temperature services where leak integrity is critical.

Symbol	End Connection Type	Meaning
	Socket Weld Connection	Socket weld connections involve fitting one pipe into a recessed area of another pipe or fitting, then welding it. The symbol typically includes a socket representation, indicating the overlap and weld point of the connection.

Socket-weld connections are often identified with a stepped or recessed detail, reflecting how the pipe fits into the valve body before welding. These are common in smaller-bore, high-pressure systems and the symbol helps distinguish them from full butt-weld joints.

Symbol	End Connection Type	Meaning
	Threaded Connection	Threaded connections are used to connect pipes or fittings by screwing them together. The symbol usually includes a thread pattern or indicates the use of screw threads for joining.

Threaded ends are usually indicated by short angled or serrated markings. They signal a screwed connection, typical for small lines, utilities or temporary services. On a P&ID, this detail alerts designers to potential limitations around pressure, vibration and maintenance frequency.

Process Lines

Process lines are the foundation of any P&ID. They show how fluids move through the system and provide essential context for how equipment, instruments and valve symbols in P&ID interact with the process. While many lines look similar at first glance, small visual differences indicate insulation, temperature control, flexibility or whether lines are actually connected. Reading these symbols correctly helps engineers and designers understand process intent quickly and avoid incorrect assumptions during design, installation or maintenance.

Symbol	Process Lines Type	Meaning
	Standard Pipe	Standard pipes are the basic type of process line used for fluid transfer in a system. The symbol typically consists of a simple, straight line representing the basic pipe connection without any additional insulation or protection.
	Insulated Pipe	Insulated pipes are used to maintain fluid temperature, either hot or cold, by adding insulation. The symbol often includes an additional line or zig-zag pattern to indicate the presence of insulation.
	Jacketed Pipe	Jacketed pipes have an outer jacket through which a heating or cooling medium flows to regulate the temperature of the fluid inside. The symbol typically includes two parallel lines, one indicating the primary pipe and one the jacket.
	Cooling or Heating Pipe	Cooling or heating pipes are used to either cool down or heat up the fluid flowing through the system. These pipes are often symbolized by an added element, such as arrows or temperature indicators, to denote their thermal function.
	Flexible Pipe	Flexible pipes are used where movement or vibration is expected, allowing the pipe to bend as needed. The symbol usually includes a wavy or curved line to represent flexibility.
	Pipes Cross But Are Not Connected	Pipes that cross but are not connected are depicted with two crossing lines, one of which has a gap or a bridge symbol to indicate that the pipes do not intersect or share flow at the crossing point.

Signal Lines

In a P&ID, signal lines explain how information moves around the plant, not how fluids flow. They show how valves, instruments and control systems communicate, making them essential for understanding automation and control logic. When reading valve symbols in P&ID, signal lines provide the context that explains why a valve moves, what triggers it, and how it responds. Clear, standardised signal line symbols help engineers, technicians and operators quickly distinguish between pneumatic, electrical, hydraulic and data-based controls, reducing misinterpretation during design, commissioning and maintenance.

Symbol	Signal Lines Type	Meaning
	Pneumatic Signal	Pneumatic signal lines are used to transmit signals using compressed air. The symbol is often represented by a dashed line to indicate the presence of pneumatic control.
	Guided Electromagnetic, Sonic, or Fiberoptic Signal	These signals are transmitted through guided mediums like cables or fibers. The symbol typically includes a dashed line with markers indicating the guided nature of the signal.
	Unguided Electromagnetic, Sonic, or Fiberoptic Signal	Unguided signals are those that travel through open space without a physical guiding medium. The symbol usually features a wavy line or other distinguishing markers to indicate the unguided transmission.
	Electric or Electronic Signal	Electric or electronic signals are used to control or monitor systems. The symbol often includes a dashed line with small circles or markers, representing the flow of electric current or electronic communication.
	Hydraulic Signal	Hydraulic signal lines use pressurized fluid to transmit control signals. The symbol is represented by a line with specific markers indicating the hydraulic pressure used to control system components.
	Various Data Communication Signals	Data communication signals represent digital or analog information transmission, often between control systems. The symbol typically features a dashed line with markers such as arrows to indicate bidirectional or unidirectional data flow.

Vessels

In P&IDs, vessels represent where fluids are stored, mixed, heated or held under pressure, making them central to how a process actually works.

Symbol	Type	Description	Application
	Jacketed Mixing Vessel (Autoclave)	This vessel has an outer jacket layer for heating or cooling, allowing temperature regulation of the contents inside. Includes a mixing mechanism for temperature-sensitive reactions.	Frequently used in pharmaceutical, chemical, and food industries for temperature-controlled reactions.
	Half Pipe Mixing Vessel	A vessel with half-pipe coils on its outer surface, allowing fluids to circulate for heating or cooling. Includes a mixing mechanism for thorough mixing.	Common in chemical production and process engineering, where temperature control and continuous mixing are needed.
	Pressurized Vessel (Vertical)	A vertically oriented pressurized container, designed to store materials under high pressure without a mixing mechanism.	Utilized in industries like chemical, petrochemical, and energy for storing or processing pressurized materials.
	Pressurized Vessel (Horizontal)	Similar to the vertical pressurized vessel but oriented horizontally, often chosen for space efficiency.	Used in storage facilities or transport applications in oil and gas for large volumes of pressurized materials.
	Gas Bottle	A small, portable pressurized container for storing compressed gases, such as oxygen or nitrogen.	Commonly found in laboratories, industrial settings, and healthcare for storing gases in a mobile format.
	Bag	A flexible, non-rigid container, often with a triangular opening, used for bulk materials or liquids.	Used in food, agricultural, and pharmaceutical industries for temporary storage or transport of bulk materials.

Pumps, Fans, & Compressors

In P&IDs, pumps, fans and compressors show how energy is added to a system to move liquids or gases. Their symbols don’t just indicate equipment presence; they communicate operating principles, flow behaviour and application intent at a glance. Just like valve symbols in P&ID, these symbols form part of a shared technical language that allows engineers, designers and operators to understand how the process actually works without lengthy notes. Recognising the differences between centrifugal, positive displacement, and air-handling equipment helps ensure the right assumptions are made during design, procurement and troubleshooting.

Symbol	Type	Description	Application
	General Pump	A basic symbol representing a pump without specifying the type.	Used when the specific pump type is not critical to the diagram.
	Centrifugal Pump	Depicted as a circle with an internal radial pattern, indicating a pump that uses rotational energy to move fluids.	Common in water distribution, HVAC systems, and chemical processing.
	Gear Pump	Shown as a circle with two interlocking smaller circles inside, representing a positive displacement pump using gears.	Suitable for handling viscous fluids in chemical dosing and lubrication systems.
	Positive Displacement Pump	Illustrated by a circle with a square inside, indicating a pump that moves a fixed volume of fluid per cycle.	Ideal for applications requiring consistent flow, such as in hydraulic systems.
	Helical Rotor Pump	Depicted as a circle with a wavy line inside, symbolizing a pump that uses a helical screw mechanism.	Used for pumping viscous fluids and slurries in wastewater treatment and food processing.
	Screw Pump	Represented by a circle containing a screw-like arrow, indicating a pump that uses a screw mechanism.	Applied in scenarios involving high-viscosity fluids or when a smooth, continuous flow is needed.
	Vacuum Pump or Compressor	A circle with a triangle and additional lines indicating compression, representing a device that creates negative pressure.	Common in air handling, vacuum generation, and gas compression applications.
	Fan	A general fan symbol with a simple propeller shape inside a circle, representing a generic fan.	Typically found in ventilation, cooling, and air circulation systems.
	Axial Fan	A circle with a propeller-like symbol that represents airflow parallel to the fan’s axis.	Ideal for applications requiring large volumes of air at low pressure, such as in HVAC systems.
	Radial Fan	A circle with a radial line inside, symbolizing a fan with a radial flow direction (perpendicular to the axis).	Used in high-pressure applications like dust collection and fume extraction.

Tag Numbers

In Piping and Instrumentation Diagrams (P&IDs), tag numbers serve as unique identifiers for equipment, instruments, and control devices within a process system. These identifiers facilitate clear communication among engineers, operators, and maintenance personnel.

Structure of Tag Numbers:

Tag numbers typically consist of a combination of letters and numbers, structured as follows:

1. Functional Identifier (Letters):
   • The initial letters denote the function or measured variable of the instrument. For example:
     • F: Flow
     • T: Temperature
     • P: Pressure
     • L: Level
   • Additional letters may specify the type of device or its function, such as:
     • I: Indicator
     • C: Controller
     • T: Transmitter
   • For instance, FT represents a Flow Transmitter, and PIC denotes a Pressure Indicator Controller.
2. Loop or Sequence Number (Numbers):
   • Following the letters, a numerical sequence identifies the specific loop or instrument. This number is unique within the context of the measured variable and device type. For example, FT-101 would be the first flow transmitter in the system.

Example:

Consider the tag number LT-202:

• L: Level (measured variable)
• T: Transmitter (device type)
• 202: Loop or instrument number

This tag identifies the second level transmitter in the system.

Standards and Practices:

The ANSI/ISA-5.1-2009 standard provides guidelines for instrumentation symbols and identification, including tag numbering conventions. Adhering to such standards ensures consistency and clarity across engineering documentation.

Importance of Tag Numbers:

• Clarity: They eliminate ambiguity by uniquely identifying each instrument or device.
• Maintenance: Facilitate efficient troubleshooting and maintenance by providing clear references.
• Documentation: Ensure consistency across various engineering documents, such as P&IDs, datasheets, and control narratives.

By following standardized tag numbering conventions, professionals can effectively communicate complex process information, thereby enhancing the safety and efficiency of industrial operations.

Practical Tips for Interpreting Valve Symbols in P&ID

1. Refer to the Legend: Most P&IDs include a legend that describes the symbols used, including valves. This is a great starting point if you’re unsure about a symbol.
2. Look for Actuation Symbols: Identifying how a valve is actuated can give important information about its role in the system.
3. Cross-Reference with Equipment Tags: P&IDs typically include tags for each valve, such as numbers or letters that correspond to a list of components. These tags can help clarify the exact type of valve and its specifications.
4. Understand the Process Flow: Take note of the upstream and downstream connections to understand the valve’s function in the process.

Common Mistakes in Reading P&IDs

Interpreting P&IDs can be challenging, especially for those new to process industries. Here are some common mistakes to watch out for:

1. Misidentifying Symbols and Connections: Confusing different valve symbols, such as gate valves and globe valves, or misreading process flow paths can lead to incorrect assumptions about the system. Carefully examine the specific shape, details of the symbols, and whether pipes cross or connect.
2. Ignoring Actuator and Signal Types: Failing to recognize actuator symbols or different signal lines (pneumatic, electric, hydraulic) can lead to incorrect interpretations of how components operate and interact within the system.
3. Overlooking the Legend and Standards: Each P&ID may use slightly different symbols depending on the industry or company standards. Not consulting the legend can result in misinterpretation of symbols, especially for unique or specialized components.

Conclusion

Interpreting valve symbols in P&IDs is crucial for ensuring the safe and effective operation of process systems. By understanding symbols for various valves, such as gate, globe, check, and ball valves, as well as their associated actuators and connections, engineers and technicians can design, maintain, and troubleshoot complex systems with confidence. MacoTango Valve is here to support you—reach out to us for further guidance or clarification on valve symbols and P&IDs.
