A V-port ball valve is a quarter-turn control valve with a shaped opening that changes the effective flow area as the ball rotates. The shape can make capacity change more progressively than it does through a conventional round-port ball valve, but the notch angle alone does not define the flow characteristic.
A sound selection matches the port geometry and rated Cv curve to the minimum, normal, and maximum flow cases. The available pressure drop, seat and material limits, actuator torque, position feedback, and required fail action must also suit the installed service.
What Makes a V-Port Ball Valve Different?
A conventional ball valve normally uses a round bore and is designed mainly for isolation. A V-port control ball valve uses a shaped ball or control opening so the exposed area changes in a planned way through its rotary travel.
Full port and reduced port describe the bore size in relation to the pipe. V-port describes the shape used to control flow. These terms refer to different design features, so a V-port valve should not be treated as the direct opposite of a full-port valve.
The edge of the V opening may also shear some fibres, pulp, or soft solids as it moves past the seat. That action can lower blockage risk in a suitable design, but it does not prove that the valve is non-clogging or wear-resistant. Particle size, solids loading, hardness, velocity, seat exposure, and cleaning access still control whether the valve fits the service.
Repeatable modulation also needs an actuator and a positioner or integrated position controller. A standard on-off actuator can rotate the ball, but it does not by itself provide the feedback and positioning needed for stable intermediate travel. The broader difference is explained in ball valve control service.
Choose the V-Port Geometry and Flow Characteristic
The small end of the V opening is exposed first as the ball begins to rotate. Further travel exposes a wider part of the opening. This geometry can spread useful control over more shaft travel than a round bore, provided the selected profile and valve size match the required capacity.
What the notch angle can and cannot tell you
Within one valve design, a narrower V opening may expose a smaller area near the closed position and give finer capacity steps at low travel. A wider opening may provide more maximum capacity. The result still changes with the machined profile, ball or segment shape, seat geometry, body passage, and valve size.
A label such as 15 degrees, 30 degrees, or 60 degrees is therefore a starting point, not a control guarantee. Do not assume that the same nominal angle from two manufacturers has the same Cv, rangeability, low-flow response, or shut-off behaviour.
Verify rated Cv versus travel
Maximum rated Cv shows the capacity at a stated full-open condition. For modulation, the more useful document is the model-specific Cv-versus-travel curve. It shows where the required Cv for each operating case falls within the available rotary travel.
The published curve is an inherent characteristic measured with a constant pressure drop across the valve. Pressure drop normally shifts between the valve and the rest of the system as flow changes, so the installed characteristic may be different. A design described as linear, equal-percentage, or modified must be checked against its current capacity data and the installed system. See linear and equal-percentage control valve characteristics for this distinction.
Check Cv, Pressure Drop and Usable Travel
Required Cv must be calculated for the operating cases that can control the selection. Pipe size alone does not show how much capacity the valve needs or where it will operate through its travel.
The sizing model should account for the following effects:
- Minimum, normal, and maximum flow: each case can produce a different required Cv and valve position.
- Inlet and outlet pressure: the pressure drop available across the valve changes its required capacity and installed gain.
- Fluid state and properties: density, temperature, vapour pressure, viscosity, and compressibility determine the sizing method and correction factors.
- Pipe geometry: reducers, expanders, and nearby fittings can change the effective flow coefficient and inlet conditions.
- Severe-service limits: cavitation, flashing, choking, noise, vibration, and high outlet velocity may reject a valve that passes a basic Cv check.
IEC 60534-2-1 provides sizing equations for compressible and incompressible flow under installed conditions. Its stated scope also matters: a simple incompressible-liquid calculation should not be carried over to non-Newtonian fluids, slurries, or liquid-solid transport without a suitable method.
An oversized V-port valve may spend normal operation close to the seat, where a small shaft movement can cause a large flow change. An undersized valve may run near full travel, consume too much pressure drop, or fail to pass peak flow. The selected size may be smaller than the line after full sizing and piping checks, but that is an outcome of the calculation rather than a default rule.
The MacoTango Cv calculator can support a preliminary liquid, gas, or steam capacity check. Final selection still needs current valve-specific coefficients and a review of the full operating range.
Match the Seat and Wetted Materials to the Medium
The body pressure rating does not define the service limit of the complete valve. The ball, seat, stem, packing, gasket, bearings, coatings, and fasteners can each introduce a lower temperature, pressure, chemical, or wear limit.
| Service condition | Design check | Main risk |
|---|---|---|
| Clean liquid or gas | Seat leakage, pressure, temperature, and chemical fit | A soft seat may exceed its service limit |
| Viscous or sticky medium | Deposits, breakaway torque, seat wiping, and cleaning | Build-up can impair travel and shut-off |
| Fibres or soft particles | Port path, particle size, seat exposure, and shearing action | Not every solid can pass or be sheared |
| Abrasive slurry | Velocity, impact path, hardness, coating, and seat design | Erosion can increase leakage and torque |
| Corrosive fluid | All wetted parts, concentration, contaminants, and temperature | One incompatible part can become the failure point |
| High temperature | Seat, packing, gasket, coating, bearing, and actuator limits | The lowest component limit controls the assembly |
A soft seat can support tight shut-off when the pressure, temperature, medium, and cycling are within its limits. A metal seat may suit higher temperature, dirty service, or abrasive duty, but it can change leakage performance, friction, required torque, and maintenance needs. Neither seat type is the automatic severe-service choice.
MacoTango lists soft-seat and metal-seat directions for its V-port valve range. These are configuration options, not proof that every seat or material covers the full published size and pressure range.
Select the Actuator, Positioner and Fail Action as One Package
Valve torque changes through the rotary stroke. Differential pressure, seat friction, bearing load, temperature, deposits, and the force needed to unseat or close the ball can make the worst case different from normal modulation.
Pneumatic actuation can suit plants with instrument air, frequent movement, and a spring-return fail action. Electric actuation can suit sites with electrical power, integrated position control, or limited air infrastructure. Required speed, duty cycle, enclosure, ambient conditions, available output, and the effect of losing power or air decide which option fits.
The complete package should be checked for four linked functions:
- Available output: the actuator must move and hold the ball under the most adverse credible load and minimum utility supply.
- Position control: the positioner or integrated controller must match the command signal and provide suitable feedback, resolution, and deadband.
- Failure behaviour: fail open, fail closed, or fail in place must follow the process consequence, not a default actuator label.
- Accessory chain: solenoid valves, air filter regulators, limit switches, boosters, and manual overrides must support the same operating and failure logic.

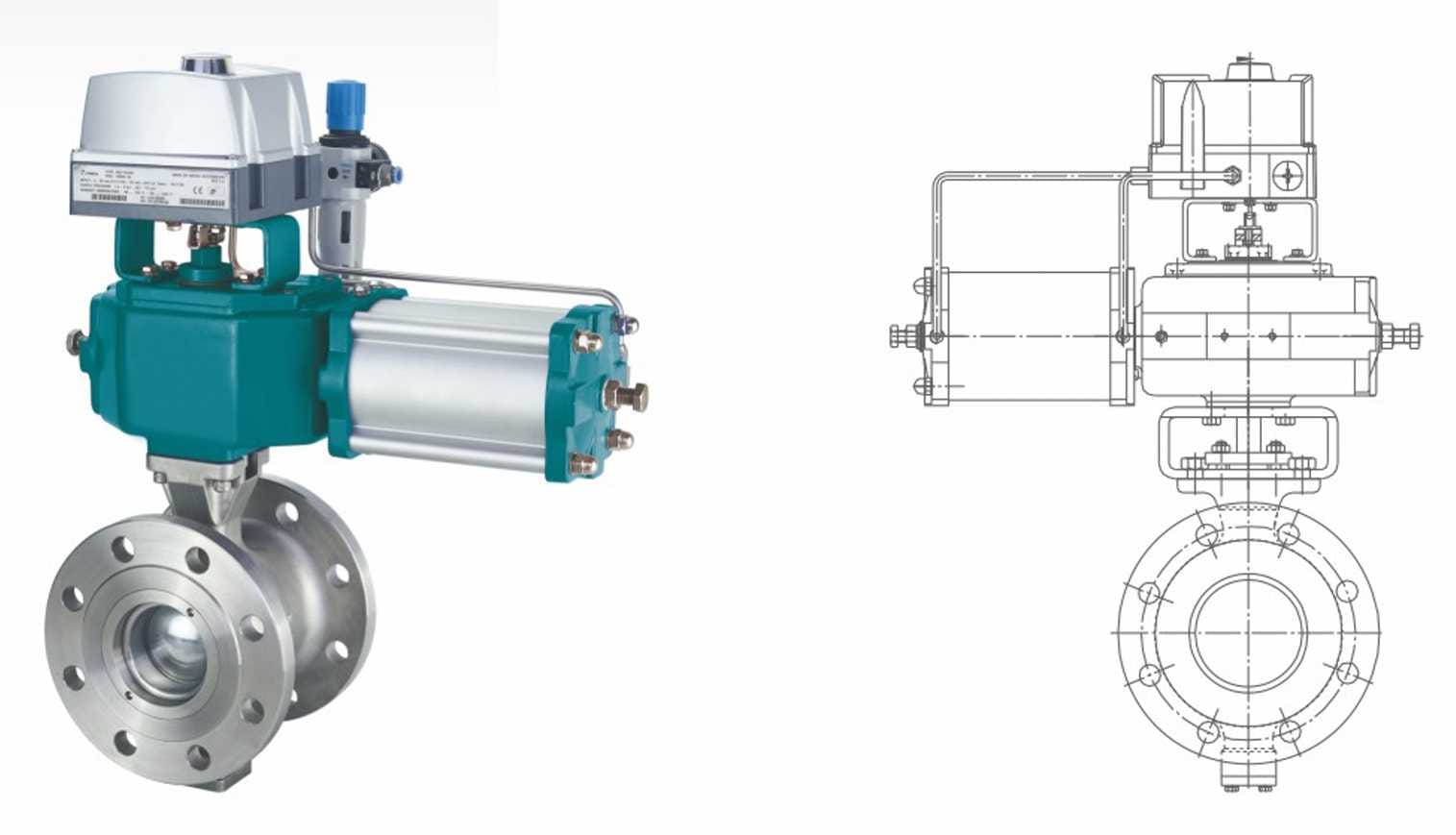

The selected actuator and positioner still need to be checked as an assembled package. This MacoTango video shows a V-port control ball valve during adjustment and functional testing.
V-port control ball valve commissioning test.
A positioner can correct some position error caused by changing load or friction. It cannot correct an oversized valve, an unsuitable notch profile, poor installed gain, or a process that is unstable before the valve moves.
Where a V-Port Ball Valve Fits and Where It May Not
A V-port ball valve is a useful starting option when continuous modulation needs a compact rotary assembly and relatively high capacity. Selected designs may also suit viscous liquids, pulp, fibres, or limited suspended solids when the port, seat, materials, velocity, and actuator load have been checked together.
Another valve family should be reviewed when the duty needs very low-flow control, staged pressure reduction, specialised anti-cavitation or low-noise trim, or a flow path better suited to large, hard, settling, or highly abrasive solids. A globe control valve, eccentric plug valve, butterfly control valve, or another service-specific design may then offer a better match. For large-line rotary duties, the V-port ball valve and butterfly control valve comparison explains the main trade-offs.
The current MacoTango product page lists nominal sizes from DN15 to DN400, pressure classes from PN16 to PN64 and ASME Class 150 to 600, plus soft-seat and metal-seat directions. The offered configuration still has to be checked against its current datasheet, Cv curve, pressure-temperature limits, shut-off requirement, and actuator selection.
A defensible V-port ball valve choice is the configuration whose capacity curve uses a stable part of the travel at normal flow while its seat, materials, and actuator cover the full service envelope. The MacoTango V-port control ball valve page provides the product directions to compare with that engineering result.
