Standard Valve Combinations & Arrangements
Standard valve combinations exist for a reason. They reflect decades of operating experience across HVAC, industrial processing, utilities and energy systems. When applied correctly, these arrangements reduce downtime, improve safety and make systems far easier to operate and maintain. Below are the most widely used configurations, explained in practical terms.

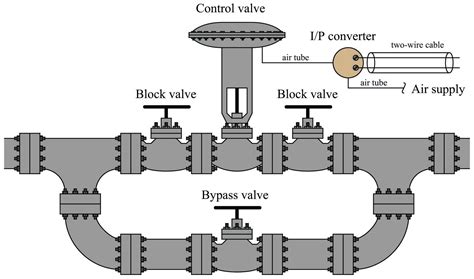

1.The Three-Valve Control Station (Block Valve + Control Valve + Bypass)
The three-valve control station is a staple in systems that must stay online, such as HVAC networks, chilled water loops and continuous process lines. It allows the control valve to be serviced or replaced without shutting down the entire system.
This arrangement is especially common where temperature, pressure or flow must be regulated continuously, even during maintenance activities.
A typical layout includes:
An upstream block valve for isolation
A control valve in the main line
A manual bypass valve around the control valve
The bypass should be sized to carry enough flow to keep the system stable during control valve isolation. Straight pipe lengths upstream and downstream of the control valve help ensure stable control and reduce noise or vibration.
The main advantage is operational flexibility. Maintenance can be planned rather than reactive, and temporary manual control through the bypass keeps critical systems running. Over time, this reduces both downtime and wear on the control valve.
2.Air Release Valve with Isolation Ball or Gate Valve
3.Check Valve + Isolation Valve (Double-Protection Strategy)
4.Safety Valve + Sealed Isolation Valve + Drain Arrangement
5.Pressure Gauge Protection: Needle Valve + Isolation + Snubber
6.Filter Arrangement: Pre-Filter + Post-Filter Isolation Valves
Engineering Principles for Valve Arrangement
In any robust piping system, thoughtful engineering design isn’t optional – it’s essential for safety, reliability and long-term performance. Below are key design principles that most experienced engineers follow when laying out pipework and specifying valves and fittings. These ideas help reduce unexpected pressure losses, simplify maintenance and ensure components behave as intended.
1.Spacing and Straight Pipe Requirements
5–10 Nominal Pipe Sizes (NPS) Principle
One common rule in piping design is to allow a length of straight pipe equal to five to ten times the nominal pipe size (NPS) upstream and downstream of valves and flow meters. This straight run gives the fluid a chance to develop a more uniform flow profile before and after disturbances such as bends or fittings, which improves measurement accuracy and valve performance. These kinds of “rules of thumb” are widely taught in piping engineering and evident in practical standards and manuals.
Turbulence Impact on Valve Performance
When fluid flow is turbulent, energy losses rise and a valve’s ability to control flow becomes less predictable. Turbulence can cause vibration and increased wear on internal parts of control valves and gauges, making them less accurate and shortening their service life. Installing valves where the flow is more stable – ideally after straight pipe sections – reduces these effects and helps maintain consistent performance.
Eccentric vs. Concentric Reducer Placement
Reducers change pipe diameter, and their orientation matters. Eccentric reducers are often used on horizontal lines to avoid trapping air at the crown of the pipe or liquid at the bottom, depending on the direction of flow. For horizontal liquid runs, the flat side of an eccentric reducer is commonly placed on top so air cannot accumulate, while vertical lines may use concentric reducers where air and liquid handling concerns differ. The correct choice helps prevent flow disruption and cavitation, particularly ahead of pumps.
2.Pressure Drop Calculation and Valve Sizing
Estimating Cumulative Pressure Loss
As fluid travels through pipework, pressure falls due to friction and turbulence created by fittings, changes in direction and velocity, and friction along the pipe walls. This pressure drop is a key design consideration because it affects pump sizing and energy consumption. It’s influenced by pipe diameter, length, flow speed and fluid properties. Many engineers use established equations such as Darcy-Weisbach and Hazen–Williams to estimate these losses and size system components appropriately.
Oversizing and Undersizing Consequences
Getting valve and pipe sizes right matters. Undersized piping or valves constrict flow and increase pressure drop, forcing pumps to work harder and potentially causing noise or vibration. On the other hand, oversizing can lead to poor control resolution, higher cost and unnecessary space use. Balancing economic and operational factors – with accurate flow and load estimates – is central to good design.
Flow Velocity and Material Selection Impact
Flow velocity affects more than pressure drop. High velocities can accelerate corrosion or erosion of pipe walls and fittings, especially with abrasive or corrosive fluids. Choosing materials that resist wear, and setting velocities within acceptable ranges, helps extend system life and reduce maintenance. For example, in oxygen or reactive service, designers limit velocity to avoid damage or ignition risks.
3.Piping Layout Optimisation for Valve Arrangement
Horizontal vs. Vertical Valve Positioning
The orientation of valves influences access, drainage and maintenance. Horizontal mounting often makes hand-wheel operation easier and helps with gravity drainage, while vertical valves are useful where flow direction or layout constraints demand it. A balanced layout minimises awkward positions that could hinder operators or trap fluid.
Drainage Prevention in Horizontal Runs
Piping runs should be sloped or arranged so that liquid does not collect in low spots. Where drainage is unavoidable, designers provide drain valves or vents so fluids can be safely removed during maintenance. These drains should be easy to access and sized for the volumes expected in a worst-case scenario.
Operator Accessibility and Safety Clearances
Valves, instruments and isolation points must be placed where operators can reach them without risk. Adequate clearances around equipment support safe maintenance and reduce the chance of errors or injuries. Planning for clear access during the design stage avoids costly rework later.
4.Material Compatibility and Corrosion Considerations
Valve Seat and Body Material Selection
Selecting compatible materials for valve bodies and seats is crucial because incompatible metals can corrode rapidly, leading to leaks or failures. Engineers consider the fluid’s chemical properties, temperature and operating pressure when choosing alloys or coatings. Materials like stainless steel or specialised alloys are common for corrosive services.
Threaded vs. Flanged Connection Trade-offs
Threaded connections are cost-effective and quick to install for smaller pipes, but they may be difficult to tighten uniformly and can leak under thermal cycling. Flanged connections, though more expensive and space-consuming, provide better sealing performance and are easier to dismantle for maintenance, making them suitable for larger or critical lines.
Welded vs. Bolted Assembly Decisions
The choice between welded and bolted assemblies comes down to service conditions and maintainability. Welded joints are strong and leak-free when done correctly, with minimal obstruction to flow, but they require skilled labour and are harder to modify. Bolted flanges allow easier disassembly but add sealing surfaces that must be carefully maintained.
Application Case Studies
Real-world applications are where engineering principles are tested and refined. The following case-style examples show how valve arrangement, isolation strategy and pressure control are applied across different industries. Each highlights practical decisions engineers make to balance performance, safety and long-term reliability.
1.HVAC and Chiller Systems
Modern HVAC and chiller systems often operate with variable flow to improve energy efficiency, while still needing constant circulation through critical equipment. This is typically achieved using a combination of two-way control valves on air handling units and a bypass or decoupler line near the chiller.
In practice, engineers arrange isolation valves around pumps and chillers so maintenance can be carried out without draining the entire system. Differential pressure sensors and control valves help stabilise flow as loads change throughout the day. The result is a system that adapts to demand, protects equipment from low-flow conditions and keeps operating costs down.
2.Boiler and Pressure Vessel Protection
Boilers and pressure vessels operate under tightly controlled conditions, so overpressure protection is non-negotiable. A common strategy is to install primary safety relief valves sized for worst-case scenarios, backed up by secondary or redundant devices where required by codes or risk assessments.
Isolation valves upstream of safety valves are usually restricted or locked open to prevent accidental closure. Downstream discharge piping is routed to a safe location, with consideration given to backpressure effects. This layered approach ensures that if one protective device fails or is out of service, another is available to prevent a dangerous pressure rise.
3.Water Treatment Facilities
Water treatment plants are designed for continuous operation, often with limited shutdown windows. To support this, engineers use multi-point isolation strategies that allow individual pumps, filters or chemical dosing units to be isolated without interrupting the whole process.
Valves are grouped logically around equipment, with clear labelling and access for operators. Drains and vents are placed to allow safe dewatering before maintenance. This approach improves reliability, reduces downtime and makes fault-finding far more straightforward in complex treatment networks.
4.Industrial Process Lines
In industrial process lines handling hazardous or toxic materials, containment drives every design decision. Valve arrangements often include double isolation, sometimes combined with a bleed or drain point between valves to verify tight shut-off before maintenance begins.
Materials are selected for chemical compatibility, and sealing systems are chosen to minimise leakage risk over time. Drain and vent connections are routed to closed systems or recovery units rather than open discharge. These measures work together to protect personnel, the environment and the plant itself.
5.Power Generation
In power generation, main steam lines operate at high temperature and pressure, making isolation and control especially critical. Main steam isolation valves are positioned close to boilers or turbines so sections of the system can be shut down rapidly in an emergency.
Pressure control valves manage load changes and protect downstream equipment from sudden pressure spikes. Straight pipe lengths, robust supports and careful material selection all contribute to stable operation. The overall goal is simple: maintain precise control under normal operation while ensuring fast, reliable isolation when conditions deviate from the norm.
Common Mistakes in Valve Arrangement
Even well-designed systems can suffer if valve arrangements are poorly thought through. Many recurring issues don’t come from complex calculations, but from small oversights during layout and detailing. Over time, these mistakes can lead to unplanned downtime, safety incidents and higher operating costs. Below are some of the most common problems engineers encounter in real installations, along with why they matter.
Missing Isolation Before Control Valves
One of the most frequent design oversights is failing to install isolation valves upstream and downstream of control valves. Without proper isolation, routine maintenance or actuator replacement can require shutting down large sections of the plant.
From an operational point of view, this increases downtime. From a safety perspective, it exposes operators to unnecessary risk during live interventions. A simple pair of isolation valves can turn a major outage into a short, planned maintenance task.
Inadequate Bypass Capacity
Bypasses are often included with good intentions but poorly sized. An undersized bypass may not provide enough flow during start-up, commissioning or control valve maintenance, which can limit production or stress equipment.
In some cases, the bypass valve itself becomes a bottleneck, forcing operators to run equipment outside its preferred operating range. Designing bypasses with realistic operating scenarios in mind helps maintain flexibility without compromising performance.
Poor Strainer Location (Undersized or Misaligned)
Strainers protect control valves, pumps and instruments, but only when they are correctly specified and positioned. A common mistake is installing an undersized strainer or placing it where access for cleaning is difficult.
Equally problematic is misalignment, where debris collects unevenly and restricts flow faster than expected. Over time, this can cause pressure drop issues, inaccurate control and premature wear of downstream components.
Insufficient Spacing Between Valve Components
Crowded valve arrangements may look efficient on paper, but they often cause problems in practice. Insufficient straight pipe between valves, reducers and instruments increases turbulence, which affects control accuracy and accelerates internal wear.
Tight spacing also makes maintenance harder. If tools can’t be safely applied or actuators can’t be removed without dismantling adjacent pipework, maintenance time and risk both increase. Allowing adequate spacing upfront avoids these issues later.
Overlooking Drainage Points in Low Zones
Low points in piping systems naturally collect liquids, condensate or debris. When designers overlook the need for drains in these areas, fluids can remain trapped during shutdown or maintenance.
This can lead to corrosion, contamination or unsafe conditions when systems are opened. Well-placed drain valves at low zones allow controlled removal of fluids, improving both safety and long-term system health.
Conclusion
In well-designed piping systems, valve arrangement is not just a detail but a key factor that influences safety, efficiency and long-term reliability. By applying proven engineering principles, using standard valve combinations, and avoiding common layout mistakes, engineers can reduce downtime, protect equipment and simplify maintenance. Thoughtful spacing, correct valve sizing, proper isolation and material compatibility all work together to ensure stable flow and predictable operation across different applications. Whether in HVAC, industrial processing or power generation, getting valve arrangements right from the design stage leads to safer systems, better performance and lower lifecycle costs, which is exactly what well-engineered infrastructure should deliver.
