What Are Valve Markings?
Valve markings are the standardized alphanumeric codes, symbols, and labels permanently embossed, stamped, or tagged onto a valve’s body or nameplate. They serve as a compact, reliable shorthand—delivering key specifications at a glance.
These markings can include details like pressure and temperature ratings, body materials, valve size, certification standards, and country of origin.
By embedding these critical data points directly onto the valve, markings deliver clarity in complex systems—eliminating guesswork when identifying a component’s capabilities and appropriate use.
Purpose of Valve Markings for Safety, Identification, and Compliance
Safety First
Valve markings are often the first line of defense—displaying maximum pressure and temperature thresholds, body material, and media compatibility. This ensures proper valve selection and safe operation under demanding conditions, reducing the risk of failure or accidents.Clear Identification and Traceability
In sprawling industrial setups with hundreds or thousands of valves, markings simplify identification—supporting maintenance, logistics, and asset tracking. Details like model numbers, manufacturer name, casting codes, and lead-free indicators help teams act swiftly and accurately.Regulatory Compliance and Quality Assurance
Standardized markings reflect conformity with major codes and regulations—including ISO, ANSI/ASME, and API—assuring users the valve meets recognized safety and performance benchmarks. Certifications like UL or CSA further instill confidence.
Common Types of Valve Markings
Valve markings serve as compact passports—imprinting essential specs directly on the valve for quick, reliable reference. Here are the most common marking types you’ll encounter:
1. Pressure Ratings
PSI, PN, Class – Designers often stamp valves with maximum allowable pressure. Common notations include PSI (pounds per square inch), PN (Pressure Nominal in bar), or class ratings like “Class 150” or “Class 300,” which align with ANSI/ASME standards.
Service-Based Ratings – Labels such as CWP (Cold Working Pressure), WOG (Water–Oil–Gas), and WSP/SWP (Working Steam Pressure) indicate the pressure limits within specific temperature or media conditions.
Temperature Dependency – Pressure ratings are often reduced (de‑rated) at higher temperatures. This interplay between pressure and temperature is critical to safe operations.
2. Temperature Ratings
Though less commonly prominent, some valves include explicit temperature limits—either in tandem with pressure or noted separately—to clarify safe operating ranges under heat stress.
3. Flow Direction Indicators
Many valves feature an engraved or cast arrow to show fluid flow direction, ensuring correct installation and preventing operational errors.
4. Material Codes
Metal Codes – Materials are identified using standardized abbreviations. For example, CF8 corresponds to Type 304 stainless steel, and CF8M to Type 316—in line with ASTM designations.
Plastic Codes – Synthetic materials like PVC, CPVC, ABS, PP, PTFE, and HDPE are also marked with their usual acronyms to clarify chemical compatibility and temperature tolerances.
5. Manufacturer Identification
Valves usually display the manufacturer’s name or logo, along with the model or casting number—helping with traceability, warranty claims, and part matching.
6. Size and Nominal Diameter
Inches or DN – The nominal size is typically stamped as either an inch value (e.g., “½″”) under the U.S. NPS system or as a metric DN value (e.g., “DN40”) in millimeters.
This notation helps ensure correct piping compatibility, even though actual internals (like bore width) may vary slightly from nominal values.
Standard Codes and Certifications
ASME and ANSI Standards for Valve Markings
When it comes to valve markings and tagging, several codes play a key role in ensuring clarity and safety:
ANSI/ASME A13.1 is widely used for general pipe and valve identification, setting guidelines on marker placement, colors, text size, and arrow direction to indicate flow and hazard types. For example, red signifies fire-quenching fluids, yellow is for flammable contents, and green represents other water types.
In the broader context of piping systems, ASME B16 standards (e.g., ASME B16.34) outline requirements for valve dimensions, pressure-temperature ratings, marking, and material specifications—particularly for flanged and socket-weld valves.
ANSI B16.10 governs the face-to-face and end-to-end dimensions of valves, helping to standardize installation and reduce mismatch risks.
CE and Other International Certifications
For manufacturers looking to export, meeting international compliance marks is essential:
The CE marking (Conformité Européenne) is mandatory for products—including valves—sold within the European Economic Area (EEA). It indicates that the product meets EU requirements related to safety, health, and environmental protection, and often includes compliance with directives like the Pressure Equipment Directive (PED).
PED compliance (Pressure Equipment Directive) may require certification by a recognized Notified Body and assures that the valve has undergone design audits and safety testing.
In North America and specialized industries, certifications such as UL (Underwriters Laboratories), CSA (Canadian Standards Association), NSF/ANSI-61 (for potable water suitability), and ROHS (restriction of hazardous substances) may appear on valve markings to signal compliance with specific safety and health standards.
Other Relevant Industry Codes
Beyond ANSI/ASME and CE, additional standards offer focused guidance:
In the U.S., NFPA 99 specifies valve marking requirements within healthcare facilities—especially for medical gas systems—to ensure clarity and safety.
IIAR Bulletin No. 114 provides color-coding and identification protocols for valves in ammonia refrigeration systems, where mislabeling could be hazardous.
Europe’s BS 1710-2014 outlines similar guidelines for valve and pipe marking in industrial or building environments, aligning with the same principles as ANSI A13.1.
ISO standards like ISO 14726 (color-coding for marine piping) and ISO 20560-1 (universal safety information for piping systems) may apply to valves in international or marine contexts.
Interpreting Valve Markings
Examples of Marking Formats in Practice
Valve bodies often carry compact but rich combinations of codes and symbols. For instance, a marking such as “8″ WC9 2500 WOG” delivers multiple insights at a glance:
8″ – Nominal pipe size in inches
WC9 – Body material code indicating cast carbon steel
2500 WOG – Pressure rating for water/oil/gas service (2500 psi)
Such formats help engineers rapidly assess whether a valve fits the system’s physical, pressure, and material requirements.
How to Read Pressure and Temperature Values
Valve markings commonly indicate pressure limits using various terms and units:
PSI (Pounds per Square Inch) – Standard U.S. unit of pressure. A marking like “600 PSI” means the valve can handle up to 600 psi under specified conditions.
CWP (Cold Working Pressure) – Maximum allowable pressure at ambient or “cold” conditions, typically between –20 °F and 100 °F. Example: “720 CWP” means 720 psi under ambient conditions.
WOG (Water-Oil-Gas) – Indicates suitability for these media at ambient temperature, often shown as “600 WOG.”
WSP / SWP (Working Steam Pressure / Steam Working Pressure) – Indicates the maximum steam pressure the valve can tolerate at elevated temperatures.
Decoding Manufacturer Codes and Traceability
Markings also embed identifiers that support traceability and quality control:
Casting or Serial Numbers – Used to trace the production batch or heat treatment details.
Model or Part Numbers – Let users match valve replacements or troubleshoot manufacturer-specific features.
Lead-Free Indicators – Markings like “LF” denote compliance with lead-free regulations.
Markings by Valve Type
Gate Valves

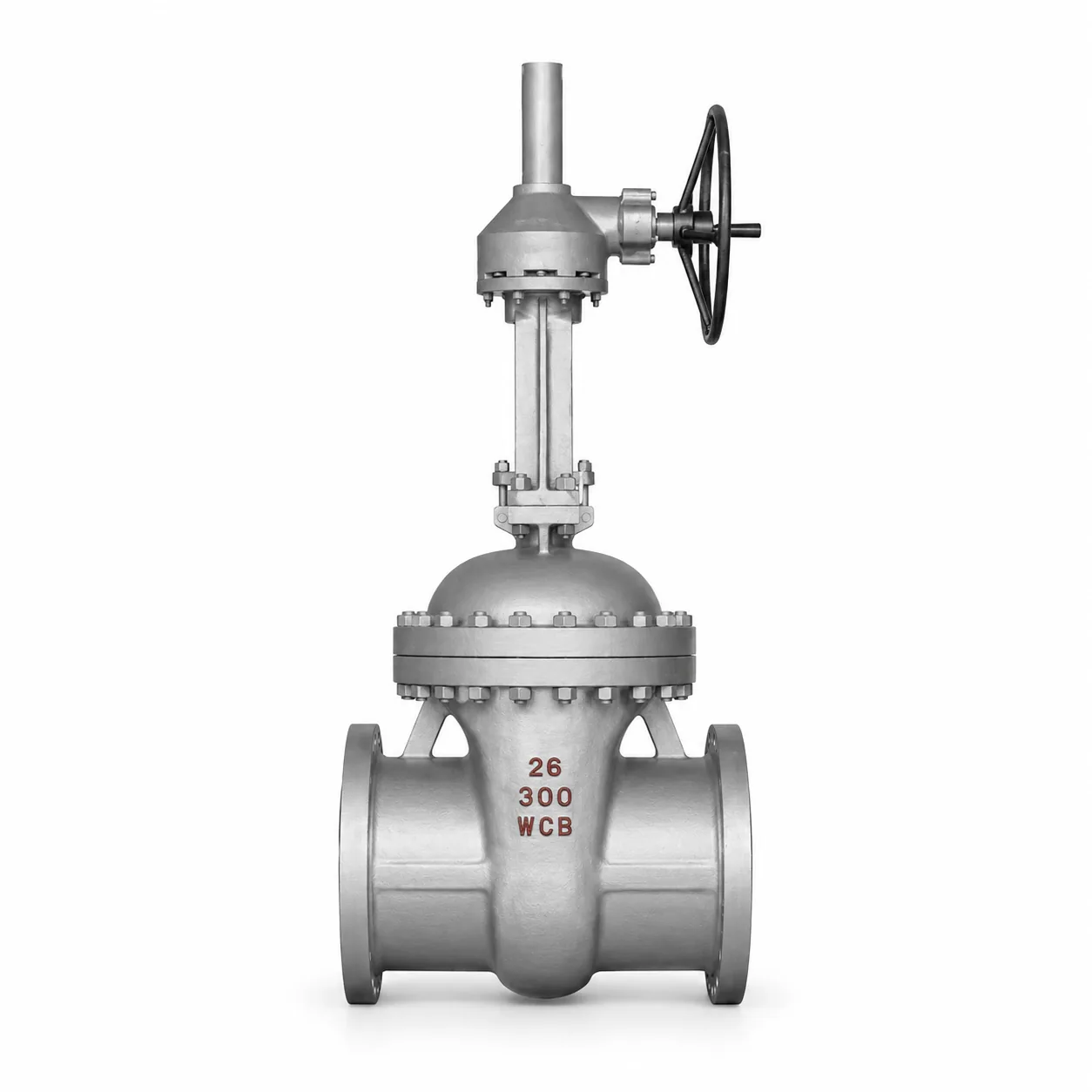

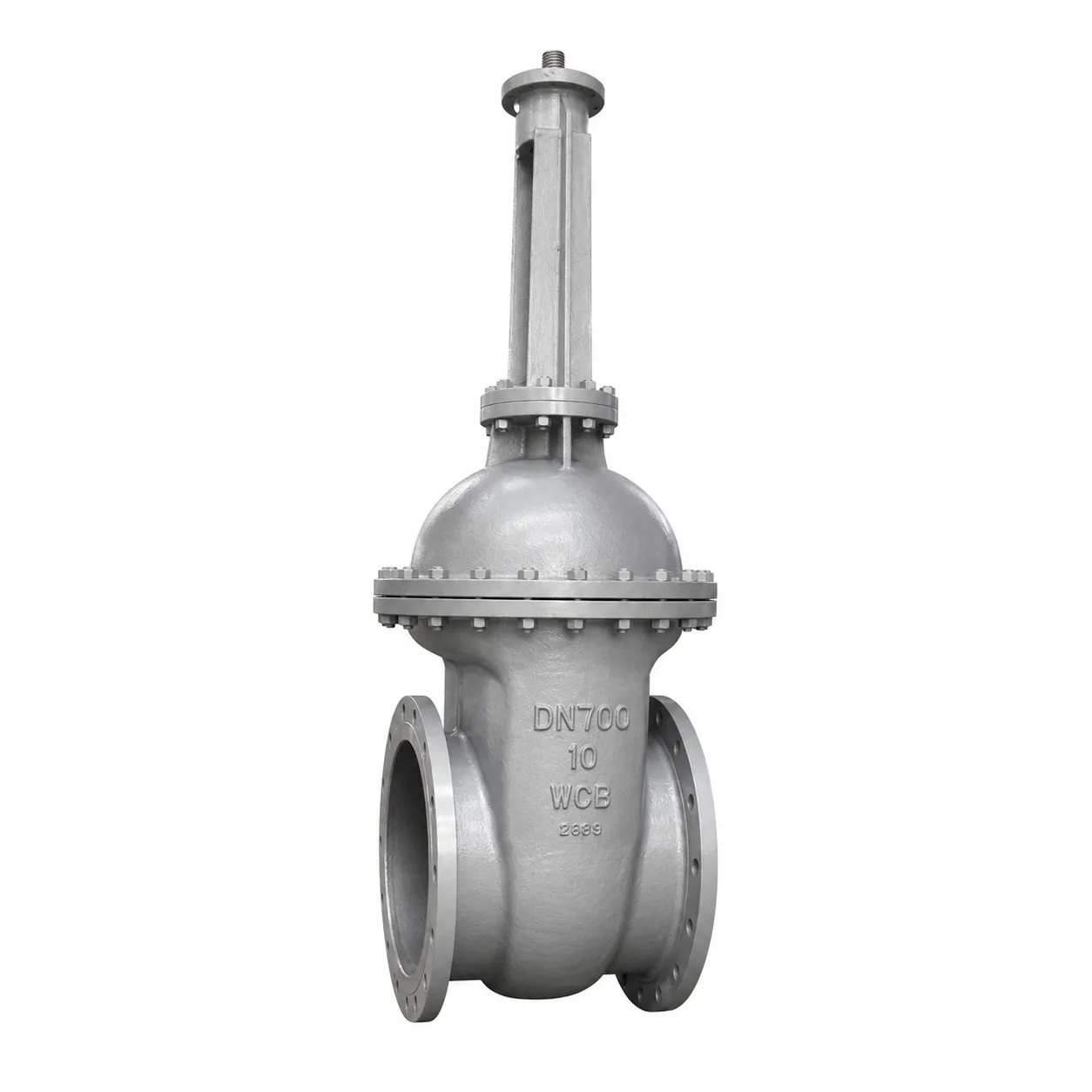

Gate valves are commonly used for full shut-off or full open functions and typically display markings that prioritize size, pressure class, and material. You’ll often find inscriptions like 26′ Class 300 WCB”—indicating:
Size (26′ inch)
Pressure rating (Class 300)
Material (WCB, which is cast carbon steel)
These markings help maintenance teams quickly ensure system compatibility during installation or replacement.
Ball Valves
Ball valves often carry comprehensive details on their bodies or tags.
Size notation (“20′ inch”)
Material code (WCB—carbon steel)
Pressure ratings (600 psi WOG)
These markings reflect the type of media the valve has been tested for and its certified operating limits.
Butterfly Valves
Butterfly valves, known for compact design and large flow capacity, typically display markings similar to ball valves—size, pressure class, and material—but often also include a flow orientation arrow prominently on the body to guide correct installation. In diagrams like P&IDs, these valves are represented by a circle bisected by a diagonal line, illustrating the internal disk mechanism.
Check Valves
Check valves are designed to prevent backflow and commonly feature markings that indicate both flow direction and functional specifics. The body may display a cast arrow showing the permitted flow path, along with size, material, and pressure rating. In schematic diagrams (like P&IDs), check valves are often depicted as a circle with an internal arrow and line, symbolizing non-return functionality.
Key Marking Locations on Valves
Valve markings are strategically placed to ensure visibility, durability, and accuracy. Here’s where you can typically expect to find critical identifiers:
Body
The body of the valve is the safest bet for permanent marking—durable, readable, and most likely to endure the rigors of industrial use.
Common information stamped here includes the manufacturer’s logo, nominal size, pressure rating, and body material. It may even display a flow direction arrow for clarity.
Bonnet / Cover
The bonnet —which seals and protects internal components—can also bear markings, particularly when internal access or maintenance insight is important.
Although less common, some valves include pressure or temperature limits near or on the bonnet to reinforce safety data.
Nameplate / Tag
A nameplate or identification tag (often metal) is typically attached to the actuator yoke or near the bonnet.
These plates carry rich technical data: type designation, Cv value, material composition, temperature range, maximum pressure, manufacturing date, serial or tag number, and more.
Stem / Actuator
The stem (or actuator area) itself usually doesn’t contain operational markings due to movement and exposure.
However, the adjacent nameplate or tag often resides here for accessibility—clearly displaying traceability and safety information.
Importance for Safety and Maintenance
Role in Periodic Inspections
Valve markings and tags are essential for ensuring safety and regulatory compliance during inspections.
Clearly marked valves allow inspectors to quickly verify whether a valve meets the specified pressure, temperature, and material standards.
Routine maintenance—including checking for corrosion, wear, or fatigue—depends on accurately reading these markings to prevent unexpected failures and enhance system reliability.
Regular checks not only safeguard safety but also reduce downtime and lower the risk of costly breakdowns.
Preventing Operational Errors
Well-placed and accurate markings dramatically reduce the chance of human error.
Labels and tags help operators quickly identify a valve’s function, media type, and operating limits—minimizing the risk of misoperation.
Clear tags can even communicate hazards and valve content through color-coding or symbols, making them a critical line of defense against potentially dangerous mistakes.
Supporting Maintenance and Troubleshooting
Valve markings and tags are indispensable tools for maintenance teams.
By including details like valve identifiers, serial numbers, or even QR codes, markings streamline recordkeeping and tracing.
They help teams access historical performance data, identify worn components, and speed up repairs or replacements.
This structured approach not only boosts efficiency but ensures systems are restored accurately and safely.
Common Issues and Misinterpretations
Wear and Fading of Markings
Over time, valve surfaces endure abrasion, corrosion, and repeated handling—gradually erasing vital markings like size, pressure rating, or material type. When these markings fade or fade entirely, technicians may misidentify valves—leading to incorrect replacement, unsafe substitutions, or prolonged downtime.
Mistakes in Reading Codes or Ratings
Complex or unfamiliar marking formats (e.g., “CWP 800,” “600 WOG”) can easily be misread—especially when identifiers are close together or semi-obscured. Confusion between pressure types (e.g., PSI vs. CWP, steam vs. cold) may result in valves being used outside their safe operating limits, increasing the risk of blowouts or performance failure.
Counterfeit or Non-Compliant Markings
The presence of forged or misleading markings poses one of the most serious risks. Some counterfeit or refurbished valves are relabeled with false certifications or authority marks, as if they were genuine—yet they may fail under real conditions. For instance, valves bearing counterfeit UL approval have been flagged by UL, and installations using such valves have been ordered removed immediately due to safety concerns.
Counterfeits can include devices from unauthorized suppliers, refurbished units with fake tags, or even those with mismatched documentation. They’ve been found in high-stakes environments like chemical and nuclear plants, causing serious hazards. In these scenarios, worn or missing manufacturer marks, odd credentials, or inconsistent ratings are red flags signaling deeper safety issues.
Conclusion
Understanding valve markings is vital for safety, compliance, and efficient operations in any industrial system. By following best practices—such as using durable markings, aligning with ASME, ANSI, and CE standards, applying clear tagging and color-coding, and keeping records updated—companies can avoid costly mistakes, reduce downtime, and improve maintenance accuracy. Regular inspections and proper training further ensure that valves are correctly identified and operated within safe limits. Clear, standardized valve markings not only protect equipment and workers but also guarantee long-term reliability and regulatory compliance.
