When it comes to industrial valve applications, the valve seat is often overlooked, yet it plays a pivotal role in the overall performance of the valve. A poorly chosen valve seat material can lead to leaks, valve failure, and costly downtime. In contrast, selecting the correct material can ensure long-term reliability, optimal sealing, and minimal maintenance. In this guide, we will explore the significance of valve seat material selection, factors to consider, and the various types of materials used in valve seats.

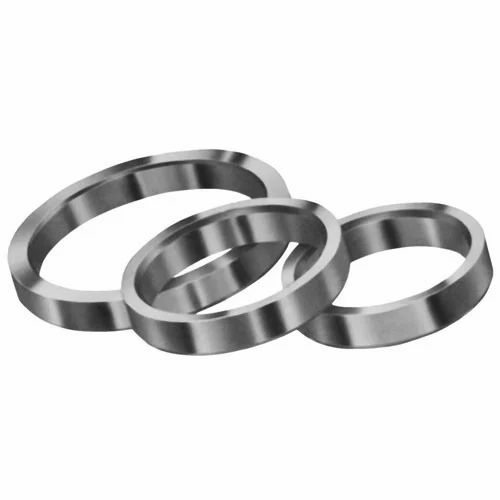

What is a Valve Seat?
A valve seat is a critical component that forms a seal between the valve and the cylinder head or valve body, ensuring airtight closure in systems like engines or fluid control valves. It prevents leaks, maintains pressure, and optimizes system performance. Valve seats also facilitate heat transfer from the valve to the cylinder head to prevent overheating. Made from durable materials like hardened steel, alloys, or composites (e.g., PTFE, PEEK), valve seats are designed to withstand high pressures, temperatures, and wear.
Types of Valve Seat Materials and Their Applications
The material used in the valve seat must match the specific application conditions, such as temperature, pressure, and chemical exposure. There are two primary categories of valve seat materials: metallic and non-metallic (plastic or composite) materials.
Metallic Valve Seat Materials
Metallic materials are typically used for critical valve applications where performance under extreme temperatures and pressures is required. Some of the most common metallic materials include:
- Stainless Steel
- Applications: Widely used in chemical processing, oil & gas, and water treatment industries.
- Advantages: Stainless steel offers high corrosion resistance, good strength, and durability, making it suitable for high-pressure environments.
- Challenges: Stainless steel can be susceptible to galling (a type of wear) in some high-stress applications.
- Stellite
- Applications: Used in industries where high wear resistance and the ability to withstand extreme temperatures are essential.
- Advantages: Stellite is a cobalt-based alloy known for its excellent hardness and resistance to corrosion and wear.
- Challenges: It is more expensive than stainless steel and may require specialized machining.
- Titanium
- Applications: Aerospace, medical, and chemical processing industries.
- Advantages: Titanium provides exceptional strength-to-weight ratio and high corrosion resistance.
- Challenges: Titanium is costly and may not be suitable for all applications due to its high price.
Non-Metallic Valve Seat Materials
Non-metallic materials are often used in applications where sealing properties are critical, and moderate temperatures and pressures prevail. These materials are generally softer than metals but can offer excellent sealing properties and resistance to certain chemicals.
- PTFE (Polytetrafluoroethylene)
- Applications: Common in industries like food processing, pharmaceuticals, and chemical processing where leakage and contamination must be prevented.
- Advantages: PTFE is chemically inert, non-reactive, and can handle a wide range of temperatures.
- Challenges: It is prone to deformation under high pressure and long-term use, particularly in high-load applications.
- PEEK (Polyether Ether Ketone)
- Applications: Aerospace, automotive, and oil & gas industries.
- Advantages: PEEK offers outstanding mechanical strength, thermal stability, and chemical resistance. It is suitable for high-temperature applications and is highly durable.
- Challenges: PEEK is more expensive than PTFE, and not as commonly used in valve seats for general applications.
- Delrin (Acetal)
- Applications: Automotive, aerospace, and consumer goods industries.
- Advantages: Delrin provides excellent strength, stiffness, and wear resistance, making it a suitable option for lower-pressure systems.
- Challenges: Delrin can suffer from reduced performance in high temperatures or when exposed to aggressive chemicals.
- UHMW Polyethylene (Ultra-High Molecular Weight Polyethylene)
- Applications: Chemical processing, food processing, and medical industries.
- Advantages: UHMW PE offers excellent abrasion resistance, low friction, and is chemically resistant to various solvents and acids.
- Challenges: Not suitable for high-pressure applications.
How to Choose the Right Valve Seat Material for Your Application
Choosing the correct valve seat material is vital for performance, safety, lifespan, and cost-effectiveness. Below are the key factors to consider, followed by industry-specific examples and how temperature, pressure, and environment impact material selection.
Factors Based on Valve Type and Operating Conditions
When selecting a seat material, start by evaluating:
1.Valve type and action
Is it a metal-seated or soft-seated valve? Metals are more durable under high load/abrasion; soft seats (resins/polymers) provide better sealing and lower leakage but less mechanical toughness.
Valve geometry / seat configuration matters: seat angle, width, whether there’s backing/support, whether seat is an insert. Precision of fit influences how much stress is borne by the seat material.
2.Fluid/media composition
Corrosiveness: acids, bases, chlorides, sulphur compounds may attack metals. Polymer or resin materials like PTFE/PEEK are often more resistant.
Abrasiveness: presence of solids or particulates increases wear; harder or more wear-resistant materials (stainless steel, sintered alloys, carbide coatings) may be preferred.
3.Mechanical load, cycles and leakage/sealing requirement
How frequently the valve operates, opening/closing cycles matter: materials should resist fatigue, creep, deformation.
Tightness / leakage class: bubble-tight or zero leakage often calls for soft seats that can conform; if some leakage is tolerated, metal seats may suffice.
4.Temperature and pressure
Material must handle the maximum expected operating temperature, plus any spikes. Some materials degrade, soften, or creep at elevated temperatures.
For pressure: the seat material must retain shape and seal integrity under design pressure, including pressure fluctuations or pulsating pressure. Soft materials may extrude or deform under high pressure.
5.Environmental factors
Thermal cycling or shocks (rapid temperature changes) induce stresses; material must tolerate expansion/contraction without cracking or losing seal.
Presence of chemicals, moisture, oxygen, or oxidizing agents. Also UV, or external environment if the valve seat is exposed.
6.Lifecycle, maintenance, cost
Initial cost vs cost of replacements or downtime. Sometimes a more expensive material pays off due to longer life or less frequent maintenance.
Availability of spare parts, ease of machining or repair. Resin or soft seats might be easier/cheaper to replace; metal seats may require more specialized machining.
Industry-Specific Recommendations
Here are some guidelines by industry and typical applications:
| Industry / Application | Typical Operating Challenges | Recommended Valve Seat Materials / Properties |
|---|---|---|
| Automotive / Internal Combustion (engine valves) | Very high temperatures (especially exhaust side), high pressure, cyclic loads, thermal shock, wear by combustion by-products. | Sintered materials, cobalt or nickel alloys, hardened steel inserts; sometimes with surface coatings. Soft seats generally not suitable for exhaust; intake seats may tolerate more variety. |
| Chemical Processing | Aggressive / corrosive fluids, wide range of chemicals, sometimes high temperatures, sometimes need leak tightness. | Materials like PTFE, reinforced PTFE, PEEK, corrosion-resistant alloys (stainless, Hastelloy, etc.). Soft seats if leakage must be very low and pressure moderate; for severe service maybe metal seats with coatings. |
| Water / Wastewater / HVAC / General Industrial | Moderate pressure, variable temperature, potential for abrasive particles, need for durability & cost control. | Stainless steels, bronze/copper alloys, softer polymer seats (PTFE, PE) where chemical attack is mild; often composite or resin seats acceptable. |
| Oil & Gas / Petrochemical | High pressure, high temperature, sour service (H₂S, sulfides), abrasion, sometimes extreme environments. | Hardened metal seats, stellite or other cobalt alloys, perhaps sintered inserts; very careful choice of sealing materials; soft seats only where environment allows. |
| Food / Pharmaceutical / Clean Services | Need for chemical inertness, cleanliness / low contamination, possibly steam cleaning, moderate pressure; sealing tightness and compliance. | PTFE (virgin or reinforced), hygienic finishes, corrosion-resistant metals (stainless grades), polymers compatible with FDA or food safety standards. |
Impact of Temperature, Pressure, and Environment on Material Choice
These operational parameters exert strong influence; understanding them is essential for selecting a seat material that will not fail prematurely.
Temperature
Materials have maximum continuous and peak temperature limits; beyond those, mechanical strength drops, polymers may soften, creep, deform, or chemically degrade. A resin that is fine at 150 °C might lose sealing ability above 250 °C. Also, thermal expansion mismatches between seat, valve body, and closure member can cause leakage or mechanical stress.
Pressure
High pressure can lead to seat deformation, extrusion (especially soft seats), fatigue, sealing face damage. The material must maintain integrity under both static and dynamic (fluctuating) pressure. The design pressure should be used when choosing material, not just typical operating pressure.
Environment (chemical, mechanical, thermal)
Chemical environment (acids, bases, solvents, salt, etc.): materials must resist corrosion, pitting, swelling, or chemical attack. Polymer or fluoropolymer seats often used for chemical resistance; metal seats must be selected among corrosion-resistant alloys.
Mechanical environment (abrasion, particulate load, turbulence, flow induced erosion or cavitation): wear resistance is key; harder materials or protective coatings can help.
Thermal cycling / shocks: frequent start-stop, rapid temperature changes lead to expansion/contraction; materials must be resilient and join well to avoid cracking, losing seal, or warping. Polymers generally weaker under cycling, metals better, but must be designed appropriately.
Conclusion
Choosing the right valve seat material is critical for ensuring that valves perform reliably over the long term. Factors such as temperature, pressure, chemical exposure, and wear resistance must all be considered to select the optimal material. By understanding the properties of various valve seat materials, professionals can make informed decisions that enhance valve performance, reduce downtime, and extend the lifespan of industrial systems.
