Valve stem packing plays a vital role in valve design by serving as the primary barrier between the valve stem and its environment, preventing leaks and ensuring the safe and efficient operation of valves across various industries. It seals the space around the stem as it moves through the valve body and bonnet, preventing process media from escaping, thus maintaining system integrity and minimizing safety and environmental risks. The correct selection of valve stem packing material is essential, taking into account factors such as media type, operating temperature, pressure, and the potential for fugitive emissions. This guide covers the significance of valve stem packing, the materials commonly used, and key considerations for selecting, installing, and maintaining packing to ensure leak-free operation and extended valve life.

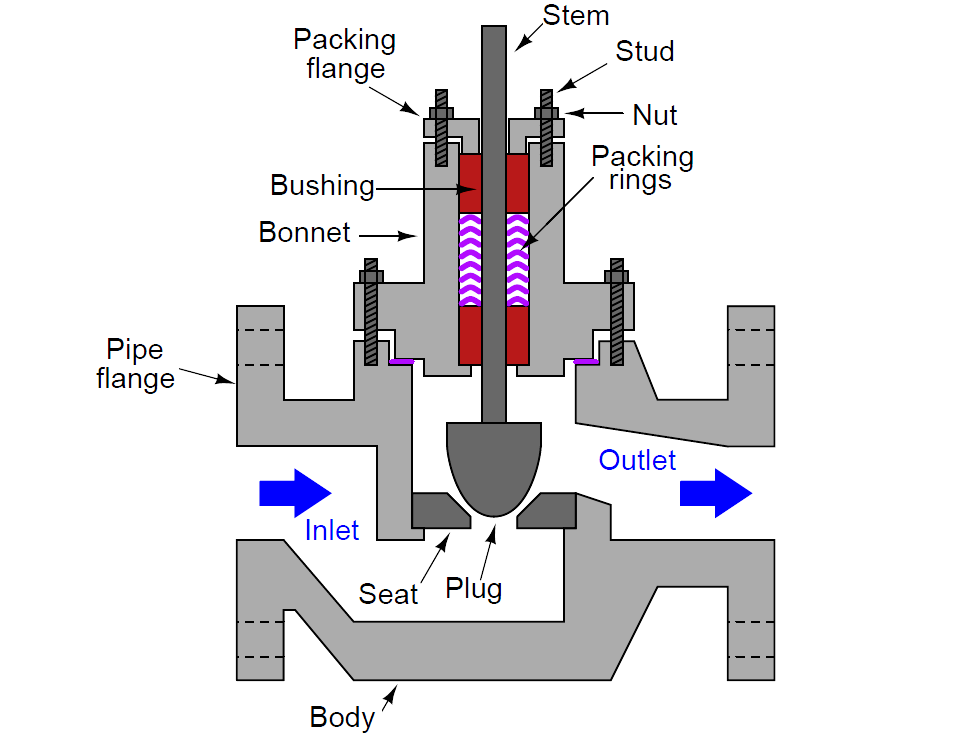

What is Valve Stem Packing?
Valve stem packing is a sealing mechanism used in valves to prevent leakage of fluids or gases along the valve stem, which is the moving part that transmits motion from the actuator to the valve’s internal components. This packing is essential for maintaining the integrity of the valve and ensuring safe and efficient operation.
Definition of Valve Stem Packing
Valve stem packing refers to the materials and components that encase the valve stem within the valve body, forming a barrier that prevents the escape of process fluids. Typically, this assembly includes packing rings, a lantern ring (in some designs), a packing gland, and a gland nut. The packing rings are often made from materials such as PTFE (Teflon), graphite, or flexible graphite, chosen for their sealing capabilities, temperature resistance, and chemical compatibility.
Role of Valve Stem Packing in Sealing the Valve Stem
The primary function of valve stem packing is to create a pressure seal between the moving valve stem and the stationary valve body. As the valve stem moves—either rotating or rising—it passes through the packing material, which is compressed by the packing gland nut. This compression forces the packing rings against the stem and the interior surface of the valve body, effectively sealing the interface and preventing leaks.
In some valve designs, a lantern ring is incorporated between packing sets to allow for lubrication, reducing friction and wear on the stem. Properly selected and maintained valve stem packing ensures smooth valve operation, extends service life, and minimizes the risk of hazardous leaks.
Common Causes of Valve Leakage
Leakage Points in Valves
Valves are designed to control the flow of fluids and gases within a system. However, several areas within the valve assembly can become potential leakage points:
Valve Body and Bonnet: Leaks can occur at the joint between the valve body and bonnet due to casting defects, poor welding, or thermal stresses.
Valve Stem: The valve stem, which transmits motion from the actuator to the valve’s internal components, can be a source of leakage if the stem seal fails.
Sealing Surfaces: The contact surfaces between the valve disc and seat, or ball and seat, are critical for preventing internal leakage. Wear, corrosion, or damage to these surfaces can lead to leaks.
Impact of Improper Sealing Materials
The selection of sealing materials plays a crucial role in preventing valve leakage. Improperly chosen materials can lead to several issues:
Incompatibility with Process Media: Seals that are not chemically compatible with the process fluid can degrade over time, leading to leaks.
Temperature and Pressure Limitations: Sealing materials that cannot withstand the operating temperature and pressure conditions may fail, resulting in leakage.
Mechanical Wear: Seals subjected to high mechanical stresses without adequate wear resistance can wear out prematurely, causing leaks.
Types of Valve Stem Packing Materials
Selecting the appropriate valve stem packing material is crucial for ensuring leak-free operation, especially under varying pressure, temperature, and chemical conditions. Here’s an overview of the most commonly used materials:
Graphite Packing
Graphite packing is renowned for its high-temperature resistance and self-lubricating properties. It maintains flexibility and durability even under extreme conditions, making it suitable for applications involving steam, high pressures, and fluctuating temperatures. Graphite’s inherent conductivity also aids in heat dissipation, enhancing performance in demanding environments.
PTFE (Polytetrafluoroethylene) Packing
PTFE packing is highly resistant to a wide range of chemicals, including acids, bases, and solvents, making it ideal for applications where chemical compatibility is paramount. Its low friction coefficient ensures smooth valve operation and reduces wear on valve stems. However, PTFE may not perform well under high temperatures and pressures compared to other materials like graphite.
Rubber O-Rings
Rubber O-rings are cost-effective sealing solutions commonly used in applications with lower sealing requirements. They provide reliable sealing in static or low-pressure environments and are easy to replace. However, they may not withstand high temperatures or aggressive chemicals, limiting their use in more demanding applications.
Metallic Packing
Metallic packing is designed for high-temperature and high-pressure applications, such as in steam or corrosive environments. Materials like Inconel or stainless steel are often used to construct metallic packings, offering exceptional strength and resistance to thermal degradation. These packings are particularly effective in preventing leakage in critical systems where reliability is essential.
Selecting the Right Valve Stem Packing Based on Media Type
Choosing the appropriate valve stem packing material is crucial for ensuring leak-free operation, especially under varying pressure, temperature, and chemical conditions. Here’s an overview of the most commonly used materials:
Steam and High-Temperature Applications
- Recommended Materials: Corrugated metal seals and flexible graphite packing.
- Benefits: These materials offer dual sealing for enhanced reliability. Flexible graphite is self-lubricating, chemically inert, and thermally conductive, making it ideal for high-temperature environments. Corrugated metal seals provide additional strength and resistance to thermal degradation. Together, they ensure effective sealing in steam and high-temperature applications.
Acidic and Alkaline Media
- Recommended Materials: PTFE (Polytetrafluoroethylene) packing.
- Benefits: PTFE is highly resistant to a wide range of chemicals, including acids and bases. It has a low friction coefficient, ensuring smooth valve operation and reducing wear on valve stems. Additionally, PTFE is self-lubricating and unaffected by most common chemicals, making it ideal for applications involving acidic and alkaline media.
Water and Wastewater Systems
- Recommended Materials: Graphite braided packing.
- Benefits: Graphite braided packing is durable, resistant to dirt and wear, and performs well in water and wastewater systems. It can withstand varying pressures and temperatures, making it suitable for sealing in these applications.
High-Pressure Toxic Gases
- Recommended Materials: Metallic bellows and PTFE double sealing.
- Benefits: Metallic bellows eliminate stem packing leaks, making them ideal for handling toxic, volatile, or environmentally hazardous media. The PTFE double sealing provides an additional layer of protection, ensuring zero leakage and maximum safety in high-pressure toxic gas applications.
Key Factors to Consider When Choosing Valve Stem Packing
Selecting the appropriate valve stem packing material is crucial for ensuring leak-free operation, especially under varying pressure, temperature, and chemical conditions. Here’s an overview of the most commonly used materials:
Temperature Resistance
The packing material must withstand the media temperature without chemical or physical degradation. In dynamic applications, friction from shaft movement can create localized hot spots. If not properly managed, this can lead to thermal glazing (vitrification), hardening, or even burnout of the packing. In static applications, where there is little or no movement, frictional heat is not a concern—the process temperature matters the most.
Chemical Compatibility
Packing must be chemically compatible with the process media it will be exposed to—whether it is a gas, liquid, slurry, or vapor. Incompatible materials can lead to degradation, swelling, hardening, or loss of sealing performance due to binder or lubricant breakdown. Common challenges include:
Strong acids or alkalis that can degrade natural fibers or organic binders.
Hydrocarbons that may soften or swell certain synthetic materials.
Oxidizing agents that attack graphite unless properly inhibited.
Abrasive media (such as slurries or fluids with suspended solids), which can cause rapid wear and erosion of soft packing materials.
Friction Coefficient
The packing compression must not exceed the strictly necessary value to obtain sealing. The friction on the stem is a conditioning factor for the performance of a control valve. If it is too high, the operation of the complete control loop can be compromised. The addition of a valve positioner will guarantee a constant relationship between input signal and valve plug position, but possible dead times in valve positioning cannot be completely avoided.
Pressure and Vacuum Conditions
The packing must be able to withstand the internal system pressure without extruding, deforming, or losing its sealing integrity over time. Operating pressures are often higher in static applications, such as valves. To maintain a proper seal, the packing relies on increased gland load—the mechanical force applied to compress the packing and energize the seal. As pressure increases, so does the demand on both the packing material and the gland design.
Durability and Wear Resistance
The material used must be able to withstand the heat of rigorous operations, the pressure of demanding environments, and the potential corrosive effects of chemicals involved. The service conditions can affect o-ring strength, flexibility, and resilience, which need to be maintained for proper sealing.
Cost-Effectiveness
Valve packing is typically affordable and dependable, and some valves may be designed so that the packing is easy to replace, reducing maintenance costs over time.
The Impact of Packing Selection on Valve Performance
How Packing Choices Affect Valve Operation
The selection of valve stem packing materials directly influences valve performance, particularly in terms of ease of operation and energy efficiency. Packing materials with high friction coefficients can impede the movement of the valve stem, leading to increased actuator load and reduced responsiveness. This resistance not only makes valve operation more labor-intensive but also escalates energy consumption, as actuators must exert greater force to overcome the added friction. Consequently, this can result in higher operational costs and potential wear on actuator components.
Conversely, selecting packing materials with lower friction coefficients, such as PTFE-based packings, can facilitate smoother valve movement. This reduction in friction enhances actuator efficiency, leading to more precise control and potentially extending the lifespan of both the valve and actuator.
The Relationship Between Packing Material Friction and Valve Actuation Effort
The frictional characteristics of packing materials play a pivotal role in determining the force required for valve actuation. High static friction can cause a phenomenon known as “stiction,” where the valve stem resists initial movement, leading to erratic valve operation and difficulty in achieving precise positioning. This is particularly problematic in control valves, where accurate modulation is essential.
Additionally, excessive packing friction can lead to increased wear on both the valve stem and packing material. Over time, this wear can compromise the sealing integrity, leading to leaks and the need for more frequent maintenance or replacement.
Therefore, selecting packing materials with appropriate frictional properties is crucial for optimizing valve performance, ensuring energy efficiency, and minimizing maintenance requirements. Regular monitoring and maintenance of packing systems are also essential to maintain optimal valve operation and longevity.
How to Install Valve Stem Packing
Proper installation of valve stem packing is essential for ensuring leak-free operation and extending the lifespan of valves. Below is a step-by-step guide to assist in the correct installation process.
Step-by-Step Installation Guide
Isolate and Depressurize the Valve
Ensure the valve is in the closed position.
Relieve any pressure within the valve system to prevent accidents.
Lock out the motor and close the valve to ensure safety during the installation process.
Remove Old Packing
Carefully remove the packing gland nuts and follower.
Extract the old packing rings using appropriate tools, ensuring not to damage the valve stem.
Clean the stuffing box thoroughly to remove any debris or remnants of the old packing.
Inspect the valve stem for wear or scoring; replace if necessary.
Select Appropriate Packing Material
Choose packing material compatible with the valve’s operating conditions, including pressure, temperature, and the type of media.
Ensure the packing material is clean and free from contaminants.
Cut Packing Rings to Size
Measure the stuffing box depth and valve stem diameter to determine the appropriate number of packing rings.
Cut the packing material into rings, ensuring they fit snugly without excessive stretching.
Install Packing Rings
Place the first packing ring into the stuffing box, ensuring it seats evenly.
Continue adding rings one at a time, staggering the joints between each ring to prevent leakage paths.
If using a lantern ring, position it between packing rings as per the manufacturer’s instructions.
Apply Lubrication (If Applicable)
Lubricate the packing rings with an appropriate lubricant to reduce friction and wear.
Ensure the lubricant is compatible with the packing material and operating conditions.
Reassemble the Valve Components
Place the packing follower back into position.
Install the gland nuts and tighten them evenly to compress the packing.
Avoid over-tightening, as this can cause excessive friction and premature packing failure.
Test the Valve Operation
Operate the valve through its full range to ensure smooth movement.
Check for any leaks around the packing area.
If leaks are present, tighten the gland nuts slightly and retest.
Common Installation Mistakes to Avoid
Over-tightening the Gland Nuts: Excessive tightening can lead to increased friction, making valve operation difficult and causing premature packing wear.
Using Contaminated Packing Material: Dirt or debris on the packing material can damage the valve stem and compromise the seal.
Incorrect Packing Material Selection: Using packing material incompatible with the media or operating conditions can lead to chemical degradation or failure.
Neglecting Valve Stem Condition: Installing new packing on a worn or damaged valve stem can result in ineffective sealing and leaks.
Improper Installation of Lantern Rings: Incorrect placement of lantern rings can obstruct lubrication channels, leading to uneven packing wear.
Skipping Lubrication: Failure to lubricate the packing can increase friction and wear, reducing the lifespan of the packing material.
Maintenance and Replacement of Valve Stem Packing
Proper maintenance and timely replacement of valve stem packing are essential to ensure optimal valve performance, prevent leaks, and extend the lifespan of your valve systems. Here’s how to effectively manage valve stem packing:
Tips for Maintaining Valve Stem Packing for Long-Term Performance
Regular Tightening of Packing Nuts
Over time, valve stem packing can compress and loosen, leading to leaks. Periodically tightening the packing nuts can re-establish the seal and prevent leakage. However, avoid over-tightening, as this can increase friction and wear on the valve stem.Monitor Valve Stem Operation
If the valve stem becomes difficult to turn or exhibits erratic movement, it may indicate excessive packing compression or wear. Regularly assess the ease of operation to identify potential issues early.Maintain Proper Lubrication
Ensure that the packing is adequately lubricated to reduce friction and wear. Use lubricants compatible with the packing material and the media being handled. Regular lubrication can significantly extend the life of the packing.Inspect for External Leaks
Regularly check the area around the valve stem for signs of leakage. Early detection of leaks allows for timely intervention, preventing more significant issues down the line.Replace Worn Components
If the packing material becomes hard, brittle, or shows signs of degradation, replace it promptly. Continuing to operate with worn packing can lead to increased leakage and potential damage to the valve stem.
When to Replace Valve Stem Packing to Avoid Leaks
Persistent Leakage After Tightening
If tightening the packing nuts does not stop the leakage, it’s an indication that the packing material is no longer effective and needs replacement.Increased Valve Stem Resistance
A noticeable increase in the effort required to operate the valve stem can signal that the packing is too tight or has become hardened, necessitating replacement.Visible Damage to Packing Material
Any visible signs of wear, such as cracks, fraying, or discoloration, indicate that the packing material has deteriorated and should be replaced to maintain a proper seal.Frequent Maintenance Intervals
If the valve requires frequent adjustments or maintenance to stop leaks, it may be more cost-effective to replace the packing material rather than continue with temporary fixes.Changes in Operating Conditions
Alterations in the media type, pressure, or temperature can affect the performance of the packing material. Assess the suitability of the current packing and replace it if necessary to match the new operating conditions.
Conclusion
In this guide, we’ve highlighted the essential role of valve stem packing in ensuring leak-free operation and prolonging the life of valves. Valve stem packing acts as a crucial seal, preventing leaks and maintaining pressure integrity, while its selection depends on factors like temperature, chemical compatibility, and pressure conditions. Common causes of leakage, such as improper sealing materials, over-tightening, and poor maintenance, can increase friction and wear, underscoring the importance of choosing the right packing material—whether graphite, PTFE, rubber O-rings, or metallic packing. Proper installation practices, along with ongoing maintenance and timely replacement, are vital for optimal valve performance. By considering all these factors, you can effectively prevent leaks and ensure the longevity of your valve systems. Contact us today to learn more about selecting the right valve stem packing for your specific needs and optimize your valve performance!
