Valve trim plays a critical role in valve performance, directly influencing flow control, sealing, durability, and overall system reliability across industries like oil and gas, chemical processing, power generation, and water treatment. This comprehensive guide covers everything from core trim components and flow characteristics to material selection, API trim standards, maintenance practices, cost analysis, and real-world applications. By understanding how to choose the right trim for your specific process conditions—factoring in pressure, temperature, fluid chemistry, and performance needs—you can reduce downtime, extend equipment life, and improve operational efficiency.

Understanding Valve Trim Components

Core Components Overview

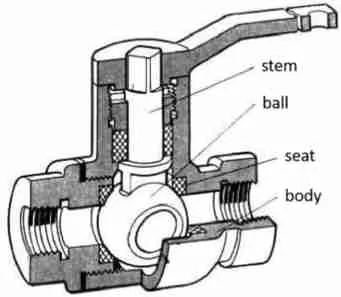

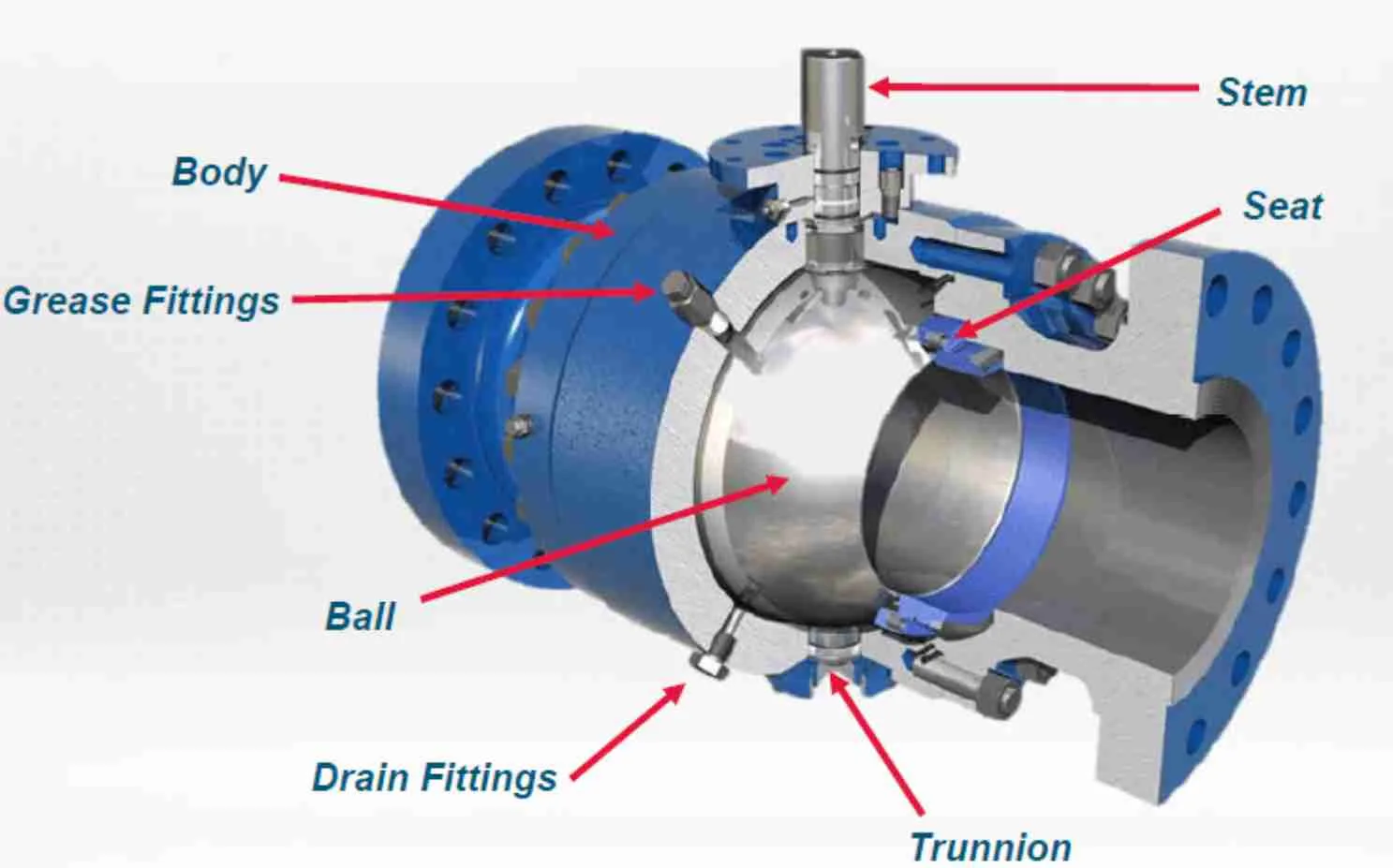

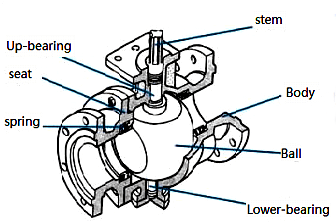

Valve trim is the term for all replaceable internal parts that directly contact the process fluid—typically including the stem, disc/plug, seat(s), back seat, guides, bushings, spacers, retaining pins, and internal springs—across most valve types.

These components determine sealing integrity, flow control behavior, wear resistance, and overall valve service life.

Stem

• The stem transmits motion or torque from actuator or handle to the disc or plug. In linear valves (e.g. gate, globe), it moves vertically; in rotary valves, it turns the disc or plug.

• Stem also interacts with packing and bonnet; in some designs, a back‑seat shoulder forms a seal when fully open.

Disc / Plug

• This is the moving member that throttles or stops fluid flow: disc, plug, wedge, or ball depending on valve design.

• The disc must be smooth and often hard-faced to resist wear and ensure tight sealing against the seat.

Seat

• The stationary surface against which the disc seals. Some valves (globe, swing‑check) have one seat; others (gate, ball) have two (upstream & downstream).

• Seats may be integral or replaceable rings, often hardened or stellite-overlaid to improve durability.

Guides and Bushings

• These sleeve-like components help guide the movement of the stem or disc, ensuring alignment and stability.

• Bushings reduce wear on the stem and minimize vibration or misalignment. Packing glands often include bushings for sealing support.

Internal Springs

• Found in some valve types (especially check or relief valves), internal springs apply force to hold discs or holders in a default position until fluid pressure shifts them.

• Springs are also used to preload bearings or to influence dynamic sealing actions for stability under varying load.

Trim Components by Valve Type

Gate Valve Trim Components

• Stem

• Disc (wedge or parallel)

• Seats (upstream + downstream)

• Back-seat (on some designs to seal packing area)

• Optional: guides/bushings, retaining pins

Gate valves focus on full-open or full-close service, with trim designed for seal integrity rather than throttling.

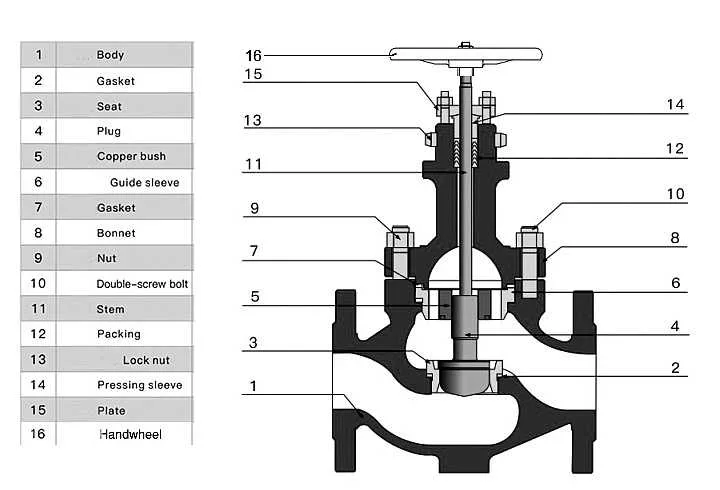

Globe Valve Trim Components

• Stem

• Disc/Plug

• Single Seat ring

• Back-seat bushing (in bonnet designs)

• Sometimes guides or bushings in high‑spec units for plug guidance

Globe valves are typically used for flow regulation, so trim design centers on precise control and sealing.

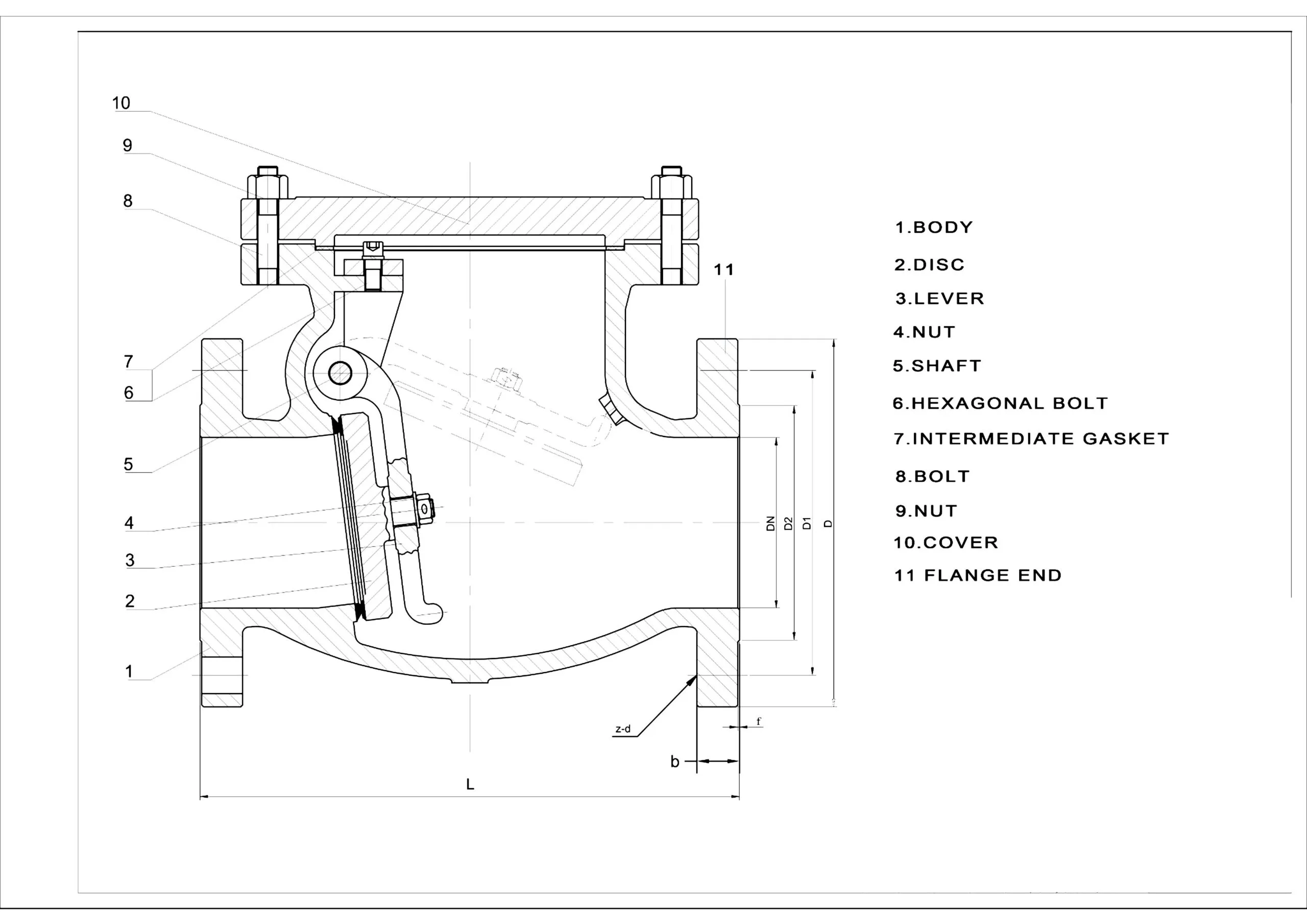

Check Valve Trim Components

• Swing-type check valves: Seat ring; disc (clapper); disc holder/pin; disc nut/pin; sometimes side plug/carrier pin.

• Lift-type check valves: Seat ring; disc; disc guide (no stem).

These valves rely on fluid pressure and internal trim to allow uni‑directional flow without external actuation. Trim must be sized and designed to minimize wear and ensure prompt resealing.

Types of Valve Trim Characteristics

Quick Opening (Snap) Trim

Definition and Operation

Quick‑opening plug profiles open rapidly: a small initial stem travel (e.g. ~25%) delivers a large portion of maximum flow. After that, additional opening yields diminishing flow gains.

Applications and Use Cases

Ideal for on/off or emergency relief duties: dump systems, isolation valves, pressure relief valves where fast flow is crucial.

Advantages and Limitations

Advantages: Fast flow response, high Cv early in opening.
Limitations: Poor modulation control—high initial gain leads to instability in proportional control loops. Rarely used for throttling service.

Linear (Nominal) Trim

Flow Characteristics

Linear trim provides roughly equal increments of flow for each percentage of stem travel—in other words, flow is directly proportional to stem lift under constant ΔP.

Used in loops where pressure drop across the valve remains relatively constant—common in liquid level control, bypass valves in heat exchangers, or short piping systems.

When to Choose Linear Trim

Select linear characteristic when installed pressure drop is stable and the system demands predictable, proportional control response. Especially useful where precise tuning of PID loops is necessary to prevent overshoot or oscillation.

Equal Percentage Trim

Characteristic Curve

In equal percentage design, each fixed increment of stem travel yields the same percentage change in flow coefficient (Cv)—flow increases exponentially. The curve starts shallow, then steepens at higher openings.

High‑Precision Applications

Preferred in process control loops with large variation in system pressure drop, such as temperature control systems or long piping fed by centrifugal pumps. It compensates for “droop” caused by changing ΔP, producing a more linear installed response overall.

Performance Benefits

• Better control stability: avoids oversensitivity at low flow rates and sluggish response at high flow.

• Resilience to oversizing: equal percentage trim remains operable even when Cv is larger than optimal—unlike linear plugs, which may perform unpredictably when oversized.

Summary Table

(Learn the difference between linear and equal percentage valves and how each impacts flow control in your system.)

Valve Trim Materials Guide

Material Selection Factors

Operating Temperature Requirements

Trim materials must tolerate the full operating temperature range. For high-temperature service, hardened cobalt alloys like Stellite or high-performance nickel alloys are recommended. Exceeding 600 °F (~315 °C), hardened trim is advised to resist erosion and thermal stress.

Pressure Considerations

Higher pressure drops increase erosive wear on trim components. Hardened or wear-resistant materials are essential in such severe service environments to extend durability.

Fluid Compatibility

Select trim based on the chemical nature of the process fluid—acids, caustics, hydrocarbons, chlorides, etc. Some fluids demand exotic alloys for safe, long-term performance (e.g. hydrofluoric or sulfuric acid service).

Corrosion and Erosion Resistance

Corrosive or abrasive fluids require materials that resist oxide formation, pitting, erosion, and cavitation. It’s vital to match the trim alloy’s corrosion resistance with the fluid environment.

Common Trim Materials

Stainless Steel (316, 304, 410)

• 304 SS is widely used in moderate corrosive duty, offering good resistance to many chemicals; it’s non‑magnetic and weldable.

• 316 SS adds molybdenum for enhanced pitting and chloride resistance—ideal for seawater or acidic service.

• 410 SS (13% chromium martensitic steel) is harder and suitable for applications requiring more strength but lesser corrosion resistance; it is often used in API Trim 1 legacy applications.

Carbon Steel

Used where fluid is non-corrosive and process conditions are benign. Carbon steel is cost‑effective for basic service but needs to be avoided in wet, acidic, or chloride-bearing conditions due to rust and erosion.

Alloy Materials (Monel, Alloy 20)

• Monel (nickel‑copper alloy) is exceptionally resistant to seawater, hydrofluoric acid, and caustic environments—widely selected for offshore and chemical plant trim in severe service.

• Alloy 20 (nickel‑iron‑chromium‑molybdenum) is tailored for sulfuric acid and other aggressive acid flows; it’s commonly applied where stainless steels fail.

• Stellite is a cobalt‑chromium hard facing alloy offering outstanding wear, erosion, corrosion, and thermal fatigue resistance. It’s widely used for seat rings and plug faces in high-wear or high-temperature applications.

• Tungsten carbide is another option in extremely abrasive or erosive flows, though less common due to cost and application complexity.

Non‑Metallic Options (PTFE, Teflon)

PTFE-based materials are used in low-temperature, low-pressure, and highly corrosive applications such as flue gases or acid dilute solutions. They are not suitable for high-pressure or high-temperature service and have strict limits around gases and solids due to wear potential.

Specialized Material Applications

Seawater Applications

Monel and duplex/super duplex stainless steels are preferred because of their high resistance to chloride attack and biofouling. They outperform standard stainless alloys in marine conditions.

High‑Temperature Services

Trim faces or materials exposed to temperatures above ~315 °C benefit from Stellite overlays or high-chrome alloys. These materials maintain hardness and resist oxidation at elevated temperatures.

Corrosive Environments

For contact with strong acids (HF, H₂SO₄, chlorinated media), Monel or Alloy 20 trim offers superior corrosion resistance. PTFE might work when temperatures and pressures are low, but metallic alloys are preferred for durability.

API Valve Trim Standards and Charts

Understanding API 600 Trim Numbers

API Trim Numbers (used in API 600, 602, 603, and 594 standards) assign a numeric code to specific combinations of materials used in valve trim: stem, disc/seat surface, backseat bushing, and other wetted parts. Each Trim Number defines a standard material mix optimized for particular service conditions.

Standard Trim Configurations

The API trim chart outlines standard material configurations for Trim Nos. 1–18. It specifies material grades—for example, 304, 316, 410 stainless steel or nickel alloys—and whether seating surfaces are hardfaced (e.g., with Stellite).

Seats often require a minimum Brinell hardness (e.g. 750 HB) for abrasion resistance in high‑stress services.

Trim Number Classification System

• Trim 1–3: Basic stainless steels (e.g. 410, 304, 310).

• Trim 4–8: Hardened or hard‑faced 410 stainless (Stellite or Ni‑Cr overlays).

• Trim 9–14: Nickel alloys (Monel, Alloy 20) optionally with hardfacing.

• Trim 15–18: Stainless or alloy steels with hard-faced seats (e.g. Stellite overlays).

Legacy trims like #1 (non‑hardfaced 410) are considered obsolete in newer API specs but remain noted for reference.

API Trim Chart Reference

Here’s a concise summary of common Trim Numbers and their material combinations:

Trim 16 (316 SS with stellite overlay) and Trim 14 (Alloy 20 with hardface) are widely used for corrosion plus wear resistance.

Popular Trim Numbers (1–20)

Trim Nos. 5, 8, 10, 12, 13, 14, and 16 are most common for industrial valves used in chemical, petrochemical, seawater, and high‑cycle environments:

• Trim 5 / 8: Stellite overlay on 410 SS for high wear/corrosion.

• Trim 10 / 12 / 16: 316 SS options with hardface variants.

• Trim 9 / 11 / 13 / 14 / 18: Monel or Alloy 20 for severe corrosion resistance.

Material Combinations: Trim Numbers Explained

Each trim number specifies combination:

• Stem & backbone parts: e.g. 316 SS or Monel.

• Seat & disc: may be same base alloy or overlaid with hard-facing (Stellite, Ni‑Cr) where wear/corrosion resistance is critical.

• Backseat bushing: typically same as stem material or better corrosion resistance.

Application Guidelines

• Choose Trim 1 or Trim 2 for benign conditions with minimal erosion and non-corrosive service.

• Opt for Trim 5 / 8 when cavitation, erosion, or moderate corrosion is expected.

• Use Trim 10 / 12 / 16 for chloride-bearing media and elevated temperature needs.

• Narrow corrosive or seawater service calls for Trim 9 / 11 / 13 / 14 / 18 based on severity and required overlay configuration.

Always cross-check against latest API 600, 602, 603, and 594 documents to ensure trim numbers comply with current material specifications and hardness requirements.

API 602 and Other Standards

API 602 governs forged gate, globe, and check valves up to Class 1500 and adopts the same trim numbering system as API 600. While API 603 does not formalize a trim table, it defers to API 600’s trim definitions. API 594 (check valves) references trim numbers up to #14 in swing/tilt designs.

For globe valves in cast form, API 623 refers to API 600 for trim materials. And ISO 15761 mirrors API 602 trim definitions for forged valves up to 2500 lb. Classes.

Valve Trim Selection Process

Step‑by‑Step Selection Guide

1. Process Condition Analysis

Start by gathering accurate data: fluid type, operating temperature & pressure, flow rates, piping layout, and whether the valve will serve in a new installation, upgrade, or spare parts replacement. Document min, normal, and max values.

2. Material Compatibility Assessment

Match trim materials to the fluid chemistry, temperature extremes, and expected wear. Consider corrosion, erosion, and hardness needs. Leverage chemical compatibility charts and industry‐recognized trim charts.

3. Performance Requirements

Determine required Cv range, turndown ratio, flow characteristic (quick‑opening, linear, equal percentage) based on control stability and system dynamics. Check for cavitation, flashing, or choked flow needs triggering specialized trim.

4. Cost vs. Performance Evaluation

Compare the long‑term value of higher‑grade or hard‑faced trims like Stellite versus standard stainless or carbon steel. Balance initial cost, projected lifetime, maintenance frequency, and downtime risks.

Selection Criteria Checklist

Ensure each criterion is clearly analyzed:

• Temperature Range – Ensure material strength at max and min service temps; avoid embrittlement or thermal creep.

• Pressure Drop – Higher ΔP accelerates erosion. In severe cases include anti-cavitation trim or hardened trim.

• Flow Velocity – High velocity fluids, particulates, or slurries require erosion-resistant or hard-faced materials.

• Chemical Composition – Account for pH, dissolved solids, chlorides, acids/bases, oxygen content when choosing stainless, Monel, Alloy 20, or PTFE options.

• Maintenance Requirements – Consider access, service intervals, and ease of replacing trim parts vs full valves.

Common Selection Mistakes to Avoid

• Oversizing a valve such that it operates at low percentage of stroke—reduces control rangeability and response precision.

• Ignoring system pressure dynamics—selecting linear or quick‑open trim when equal percentage would provide better PID stability.

• Choosing trim material based solely on cost—leading to increased wear, leakage, or premature failure in corrosive or erosive service.

• Failing to account for startup/shutdown or upset conditions—missing peak stresses or corrosion episodes.

Applications and Industry Use Cases

Oil and Gas Industry

Valve trim in oil and gas must withstand extreme pressure drops, high flow velocity, abrasive media (saltwater, sand), and chemical corrosion. Quick-opening trims are used for relief duties, while hardened and ceramic trims (e.g., Stellite, carbide, zirconia) resist wear during flowback or sand-laden wells. Equal percentage trims improve control stability in varying ΔP loops.

Chemical Processing

This sector demands trim materials that resist aggressive fluids including acids, solvents, and chlorides. Alloy trim like Monel or Alloy 20—and PFA/PTFE linings—are common. Control valves often use equal-percentage characteristic trim for precise flow regulation in reactors and batching systems.

Water Treatment

Valves handle processes such as filtration, dosing, chlorine injection, and backwash cycles. Materials like stainless and carbon steel are typical, but for corrosive or heavily treated water, PTFE or lined trims are used. Butterfly or gate valves with reliable isolation trim support low maintenance and durability in continuous service.

Power Generation

Steam and condensate control valves operate under high temperature and pressure. Trim materials often require Stellite overlays or high-strength stainless for thermal stability and hardness. Control loops for boiler feedwater and turbine bypass use linear or equal-percentage trim for smooth regulation.

Marine Applications

Warm seawater and chloride-rich environments lead to corrosion and biofouling challenges. Monel or duplex stainless trim is preferred for valves used in seawater cooling, firewater injection, and ballast control. Anti-fouling trims and abrasion-resistant coatings help improve lifespan.

HVAC Systems

Valves managing chilled water, steam, and hydronic flow require trim optimized for consistent, moderate pressure services. Stainless or carbon steel trims are commonly paired with linear or equal-percentage flow characteristics to balance temperature and flow control in HVAC loops.

Food and Beverage Industry

Valve trim must comply with sanitary standards and resist aggressive cleaning chemicals. Multi-seat valves and PTFE-lined trims are widely used in aseptic processing, CIP/SIP systems, and beverage production. Flow characteristic is usually linear or equal preference to support consistent dosing and hygienic operation.

Valve Trim Maintenance and Troubleshooting

Maintenance Best Practices

Inspection Schedules

• Conduct weekly visual inspections of accessible valve trim areas: stem, packing glands, bonnet joints, actuator linkage. Look for signs of leakage, vibration, corrosion, or unusual noise.

• Inspect seat and disc surfaces and check for abnormal wear, erosion, or damage—more frequently in high-service or high-cycle environments.

Preventive Maintenance

• Lubricate packing and moving parts per the manufacturer’s recommendations to prevent sticking and binding, especially in dusty or humid environments.

• Implement calibration routines for control valves—monitor stroke time, feedback vs. command position—to detect drift or sluggish actuator response.

Quick‑Change Trim Kits

• Utilizing trim cartridges or pre‑assembled kits simplifies maintenance: reduces downtime by 60%, avoids disassembling the entire valve, and eases reassembly in the field.

Common Trim Problems

Erosion and Wear

• High velocity flow, cavitation, or abrasive solids can rapidly erode seat and disc surfaces. Hardened trims (Stellite, carbide) mitigate damage in severe-service conditions.

Corrosion Issues

• Exposure to corrosive fluids can pit or degrade trim components. Choose suitable alloys based on fluid chemistry, and inspect for early pitting or thinning.

Leakage Problems

• External leaks often stem from worn packing, loose bonnet gland bolts, or O‑ring failure. Internal leakage usually signals seat or disc degradation or misalignment.

Performance Degradation

• Symptoms include sluggish actuation, unstable control response, stiction, or inability to reach full stroke. Causes might be actuator issues, degraded trim surfaces, or miscalibration.

Troubleshooting Guide

Symptoms and Solutions

• Stem sticking or binding
  Cause: debris, corrosion, poor lubrication
  Solution: clean internals, lubricate, replace corroded parts; add upstream filtration if needed.

• Internal or external leakage
  Cause: worn seat/disc, packing failure, flange misalignment
  Solution: replace or resurface seat/disc, tighten bonnet bolts, renew packing or O‑rings.

• Slow or erratic actuator response
  Cause: actuator or pneumatic issues, binding trim, feedback discrepancies
  Solution: verify air supply, adjust spring tension, inspect actuator diaphragm and positioner alignment.

• Noise or vibration (often cavitation)
  Cause: fluid vapor bubbles collapsing, improper sizing or pressure drop
  Solution: switch to anti‑cavitation trim, reduce ΔP in stages, or resize valve.

When to Replace Trim

• Severe erosion, corrosion, or denting beyond repair tolerance.

• Persistent internal leakage or seat damage that cannot be remachined.

• Trim no longer meets control performance requirements—even after lapping or refurbishing.

Repair vs. Replacement Decisions

• If degradation is localized, consider partial repair or lapping.

• For multiple worn components, complex diagnostics, or future reliability needs, use pre‑assembled trim kits for full trim replacement to restore performance quickly.

Conclusion

Selecting the right valve trim is critical for ensuring reliable, efficient, and long-lasting valve performance across industries. From understanding core components and flow characteristics to choosing materials based on temperature, pressure, and fluid chemistry, every decision affects sealing integrity, wear resistance, and control accuracy. API trim standards offer clarity and consistency, while a structured selection process helps avoid common mistakes and reduce total cost of ownership. When supported by proper maintenance and inspection routines, the right trim not only minimizes downtime and maintenance costs but also protects your system against erosion, corrosion, and operational failures—ultimately delivering maximum return on investment.
