Valves play a critical role in controlling the flow of fluids in pipelines across various industries. Among these, throttling valves are used specifically for regulating the flow of liquids and gases with precision. The ability to control flow rates is crucial for maintaining system stability, preventing equipment damage, and ensuring efficient operation. This article explores the different types of throttling valves, their working principles, and the factors involved in selecting the right valve for specific applications.



Principles of Throttling in Fluid Mechanics

Throttling refers to the process of regulating fluid flow by altering the passage area in a valve, which in turn controls the velocity and pressure of the fluid. The goal of throttling is not to completely stop or start the flow, but rather to precisely modulate it. This process depends heavily on the design of the valve and the fluid dynamics involved, including parameters such as pressure drop, flow rate, and the characteristics of the fluid.



Common Types of Throttling Valves

Globe Valves

Globe valves are among the most popular types for throttling purposes. Their design includes a movable disk and a stationary ring seat in a spherical body, allowing precise control over flow rates. Globe valves are particularly suitable for applications that require frequent adjustments and can handle a significant pressure drop without compromising performance. However, they tend to have higher pressure losses compared to other valve types due to the tortuous flow path.

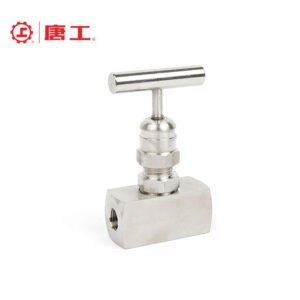

Needle Valves

Needle valves offer extremely fine control over flow due to their narrow, pointed needle-like plunger. They are ideal for applications requiring precise adjustments, such as sampling lines and instrumentation control. Their main advantage lies in their ability to achieve gradual and consistent flow changes. However, needle valves are best suited for low flow rates and can be more prone to wear if used with particulates or abrasive fluids.

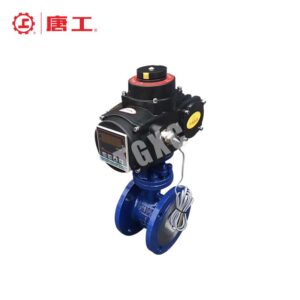

Butterfly Valves

Butterfly valves are often used for throttling in large-diameter pipes. They consist of a rotating disc that can be adjusted to restrict or allow flow. These valves are lightweight, cost-effective, and provide a good balance between control and ease of operation. While they are less precise than globe or needle valves, they excel in applications where moderate throttling is needed and flow rates are high. One downside is their tendency to create turbulence, which can affect flow control accuracy in certain situations.

Ball Valves with V-Port

Ball valves with a V-shaped port provide an alternative for throttling applications where higher flow rates are needed. The V-shaped opening allows for better control as the valve opens, creating a linear or equal percentage flow characteristic. This type of valve is durable and offers low-pressure drops, but it may not be as precise as a needle or globe valve for fine adjustments.



Selection Criteria for Throttling Applications

When selecting a throttling valve, several criteria must be considered to ensure effective flow control:

• Flow Characteristics: Different valves have unique flow characteristics, such as linear, quick-opening, or equal percentage. Understanding these is essential for choosing the right valve type.
• Pressure Drop Considerations: Valves create resistance in the system, leading to pressure drops. The amount of allowable pressure drop can help determine the best valve for the application.
• Material Compatibility: The valve material must be compatible with the fluid being handled to prevent corrosion or degradation, ensuring long-term reliability.



Design Considerations for Throttling Valves

Design aspects such as valve body shape, seat configuration, and actuator selection play a key role in how well a valve can throttle fluid. For example, a streamlined valve body can help reduce turbulence and pressure losses, while an appropriate seat configuration can enhance sealing efficiency and control accuracy. The actuator type, whether manual, electric, or pneumatic, must be chosen based on the desired level of control and responsiveness. Additionally, the ability to withstand cavitation—a phenomenon that can cause significant damage due to the formation and collapse of vapor bubbles—is crucial in throttling applications, especially at high-pressure drops. Minimizing wear through durable materials and proper valve design helps ensure optimal performance and longevity, reducing maintenance needs and improving reliability over time.



Materials Used In Making Throttling Valves

The selection of materials for throttling valves is critical, as it directly influences their performance, durability, and suitability for specific applications. Key considerations include:

1. Metallic Materials

Stainless Steel: Valves constructed from stainless steel offer excellent corrosion resistance and mechanical strength, making them suitable for a wide range of applications, including those involving corrosive fluids or high-pressure environments.

Carbon Steel: Known for its strength and cost-effectiveness, carbon steel is often used in applications where corrosion resistance is not a primary concern.

Alloy Steels: Incorporating elements such as chromium, molybdenum, and nickel, alloy steels enhance properties like strength, toughness, and resistance to wear and corrosion, making them ideal for demanding service conditions.

2. Non-Metallic Materials

Polymers (e.g., PTFE, PVC): Polytetrafluoroethylene (PTFE) and polyvinyl chloride (PVC) are utilized for their chemical inertness and resistance to corrosion. These materials are suitable for applications involving aggressive chemicals but are limited by lower temperature and pressure thresholds.

Ceramics: Advanced ceramics, such as alumina and zirconia, are employed in applications requiring exceptional hardness and wear resistance. They are particularly effective in handling abrasive fluids but can be brittle and sensitive to thermal shock.

3. Lining and Coating Materials

Rubber Linings (e.g., EPDM, Neoprene): Elastomeric linings provide flexibility and resistance to certain chemicals, making them suitable for applications involving abrasive or corrosive fluids.

Fluoropolymer Coatings: Coatings like PTFE offer a non-reactive surface, reducing friction and preventing chemical attack on the valve’s internal surfaces.



Applications of Throttling Valves in Industry

Throttling valves are used in a wide range of industries where flow regulation is critical:

1. Chemical Processing

In chemical plants, throttling valves regulate the flow of reactants and products, ensuring optimal reaction conditions and maintaining safety by controlling pressure within reactors and pipelines.

2. Power Generation

Power plants utilize throttling valves to manage steam flow to turbines, enabling efficient energy production and rapid response to load changes. They also control feedwater flow and maintain boiler pressure.

3. Oil and Gas Industry

Throttling valves are employed in upstream and downstream operations to control the flow of crude oil, natural gas, and refined products. They manage wellhead pressures, regulate pipeline flows, and control injection rates in enhanced oil recovery processes.

4. Water Treatment and Distribution

In water treatment facilities, these valves adjust flow rates during filtration, chemical dosing, and distribution, ensuring consistent water quality and system pressure.

5. HVAC Systems

Heating, ventilation, and air conditioning systems use throttling valves to modulate refrigerant flow, maintaining desired temperature and humidity levels within buildings.



Selecting the Right Throttling Valve

1. Valve Size

Accurate valve sizing is essential for effective flow control. An undersized valve may restrict flow, leading to increased pressure drop and potential system inefficiencies. Conversely, an oversized valve can result in poor control accuracy and instability. Proper sizing involves calculating the required flow coefficient (Cv) based on process parameters such as flow rate, pressure drop, and fluid properties. Utilizing standardized sizing methods ensures the valve meets the specific demands of the application.

2. Construction Material

The selection of construction materials for a throttling valve must account for the chemical compatibility with the process fluid, as well as the operating temperature and pressure conditions. Materials such as stainless steel, brass, or specialized alloys are chosen based on their resistance to corrosion, erosion, and mechanical stress. For instance, in applications involving corrosive fluids, materials like Alloy 20 or Hastelloy may be appropriate. Proper material selection enhances valve durability and minimizes maintenance requirements.

3. Connection Types

The method of connecting the valve to the piping system influences both installation and maintenance. Common connection types include threaded, flanged, and welded joints. Threaded connections are typically used for smaller valves and lower-pressure applications due to their ease of assembly and disassembly. Flanged connections offer robust sealing and are suitable for higher-pressure systems, facilitating easier removal for maintenance. Welded connections provide a permanent, leak-proof joint ideal for high-pressure and high-temperature applications but complicate maintenance due to the need for cutting and rewelding.

4. Actuation Mechanisms

The choice of actuation mechanism—manual, pneumatic, hydraulic, or electric—depends on the application’s control requirements, response time, and available power sources. Manual actuators are simple and cost-effective but may lack precision. Pneumatic actuators offer rapid response and are suitable for hazardous environments but require a compressed air supply. Hydraulic actuators provide high force output, making them ideal for large valves or high-pressure applications. Electric actuators offer precise control and integration with automated systems but may be limited by power availability and environmental conditions.



Conclusion

Selecting the right throttling valve is crucial for achieving precise flow control in various industrial processes. Understanding the advantages and limitations of different valve types—such as globe, needle, butterfly, and V-port ball valves—enables informed decisions that enhance system efficiency and reliability. With advancements in valve technology, throttling control has become more precise and easier to implement, providing industries with the tools they need for effective flow management.
