Valves play a vital role in the oil and gas industry, ensuring the safe, efficient, and reliable flow of fluids across different stages of production, processing, transportation, and refining. These components are instrumental in controlling pressure, managing flow rates, and isolating systems during maintenance or emergencies. Given the high-risk nature of the oil and gas sector, selecting the correct type of valve is essential for mitigating operational hazards and ensuring regulatory compliance.
This article provides an overview of the types of valves used in the oil and gas industry, their functions, and their importance in maintaining safety and efficiency in various processes.
Types of Valves in the Oil and Gas Industry
The oil and gas sector employs a range of valve types, each designed for specific purposes and operational conditions. The most commonly used valves in the industry include:
1. Gate Valves
Gate valves are linear motion valves used to start or stop the flow of fluid. They operate by raising or lowering a gate—usually a wedge or parallel-shaped barrier—to regulate flow. In the fully open position, gate valves provide minimal resistance, allowing full bore flow, which minimizes pressure drop.
Gate valves are primarily used in on-off applications where tight sealing is required. They are ideal for use in crude oil and natural gas pipelines, where they can handle high pressure and temperature conditions. However, they are not suitable for throttling purposes due to the risk of damaging the gate or causing cavitation.
(Click here to know more about gate valves >>)

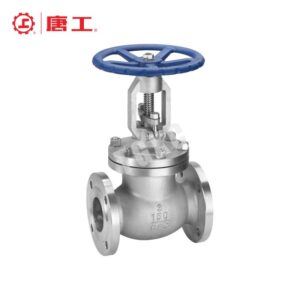

2. Globe Valves
Globe valves are another type of linear motion valve, often used for throttling and regulating flow. The flow is controlled by moving a plug (or disc) in and out of the flow path. Globe valves provide a more precise flow control compared to gate valves, making them well-suited for systems requiring fine adjustments.
In the oil and gas industry, globe valves are commonly found in fuel oil systems, cooling water systems, and in applications where precise flow control is necessary, such as gas processing and refining units. They are also used to control bypass operations around large compressors and turbines.
(Click here to know more about globe valves >>)
3. Ball Valves
Ball valves are quarter-turn valves that use a spherical disc with a hole through the center to control the flow of fluid. By rotating the ball 90 degrees, the valve can be opened or closed. Ball valves are widely valued for their tight sealing capabilities, rapid shutoff, and minimal pressure drop when fully open.
They are extensively used in the oil and gas industry for isolating applications, such as upstream production processes, where high pressure and tight sealing are crucial. Ball valves are also found in pipeline systems, gas processing, and refining stages, particularly for emergency shut-off and isolation duties due to their reliability.
(Click here to know more about ball valves >>)
4. Butterfly Valves
Butterfly valves are quarter-turn valves with a disc that rotates to control flow. Unlike ball valves, butterfly valves have a simpler design and are generally lighter and more compact, making them suitable for applications where space is limited. Butterfly valves can be used for both on-off and throttling services, although they are less precise than globe valves.
In the oil and gas industry, butterfly valves are used in large-diameter pipelines, cooling water systems, and firewater systems. Their lightweight nature and ease of operation make them ideal for applications where fast flow regulation is required.
(Click here to know more about butterfly valves >>)
5. Check Valves
Check valves are designed to allow flow in one direction and prevent backflow, ensuring that the system is protected from pressure surges or reverse flow, which could cause equipment damage or operational disruptions. The two main types of check valves are swing check valves and lift check valves.
In the oil and gas sector, check valves are often installed in pumping systems to prevent backflow, thereby protecting pumps and compressors. They are critical in safeguarding downstream equipment in production, processing, and refining stages, ensuring that the flow direction remains consistent even under fluctuating pressure conditions.
(Click here to know more about check valves >>)
Applications of Valves Across Different Stages of Oil and Gas Operations
Valves are utilized throughout the various stages of oil and gas operations, from extraction to refining. Here is a breakdown of their roles at each stage:
1. Production Stage
During the production stage, valves control the flow of crude oil and natural gas extracted from wells. Gate valves and ball valves are commonly used here due to their ability to handle high pressures and their reliable sealing capabilities, which are crucial for preventing leaks and ensuring safety.
2. Processing Stage
In the processing stage, such as in gas treatment or oil refining, globe valves and butterfly valves are typically used to regulate the flow of gases and liquids with precision. Globe valves provide the control necessary for managing pressure levels in refining columns, while butterfly valves offer quick shutoff capabilities in cooling systems.
3. Transportation Stage
When transporting oil and gas through pipelines, ball valves and gate valves are often used to isolate sections of the pipeline for maintenance or emergencies. Check valves are also installed to prevent backflow, protecting pipeline integrity and maintaining consistent flow direction across long distances.
4. Refining Stage
In the refining stage, where crude oil is transformed into different refined products, a combination of valve types—including globe, butterfly, and ball valves—is used to control various process flows and ensure safe, efficient operation. Valves are essential for managing the pressure, temperature, and flow rates of the numerous fluid streams involved in refining processes.
Importance of Choosing the Right Valve
Selecting the appropriate valve for a specific application in the oil and gas industry is crucial for several reasons:
- Safety: Valves are key components in maintaining safety by controlling the flow of potentially hazardous fluids. Incorrect valve selection can lead to leaks, equipment failure, or even catastrophic incidents.
- Operational Efficiency: Using the right valve type for a specific operation helps minimize pressure drops, ensures precise flow control, and reduces energy consumption, leading to better overall efficiency.
- Compliance: The oil and gas industry is highly regulated, and valves must meet strict standards set by organizations such as API (American Petroleum Institute) and ASME (American Society of Mechanical Engineers). Choosing compliant valves ensures the safety and legality of operations.
Conclusion
Valves are indispensable components of the oil and gas industry, playing a critical role in ensuring the safe, efficient, and reliable flow of fluids through all stages of production, processing, transportation, and refining. From gate valves for high-pressure isolation to globe valves for precise flow control, each valve type serves a distinct purpose in maintaining operational integrity. Understanding these valves, their functions, and applications is essential for optimizing safety, efficiency, and regulatory compliance in oil and gas operations.
Selecting the correct valve for a given application requires an understanding of the operational requirements and a consideration of factors such as pressure, temperature, and flow characteristics. By making informed choices, industry professionals can ensure smoother processes, enhance safety, and minimize the risks associated with the complex operations of the oil and gas sector.
