In fluid systems, vortex formation is a critical fluid dynamic phenomenon where swirling flows can develop around a central axis, often triggered by turbulence, abrupt flow changes, or pressure drops. These vortices, while common in pipelines and valves, can disrupt flow stability, reduce process efficiency, and cause long-term issues like vibration, cavitation, and erosion. Valves play a central role in managing these dynamics—through their design, they regulate flow, minimize turbulence, and prevent vortex-related damage. By understanding how vortices form and applying design-focused solutions such as streamlined geometries, anti-cavitation trims, and proper valve sizing, engineers can significantly improve system reliability and efficiency across high-pressure and high-velocity applications.

How Vortex Formation Impacts Valve Performance

Effects on Flow Stability and Process Efficiency

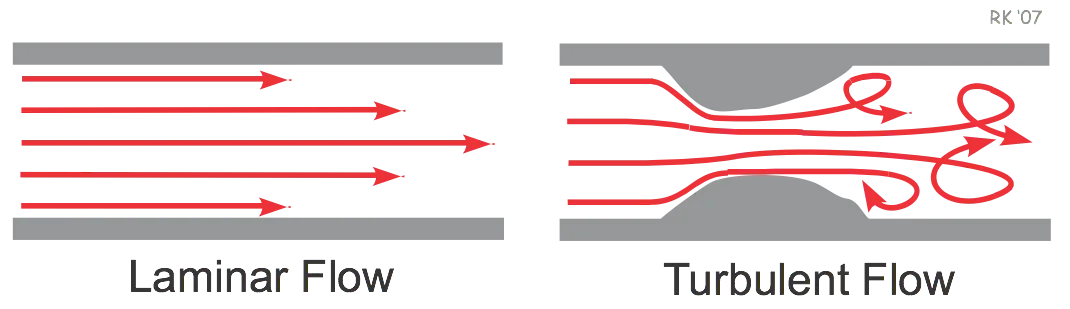

Vortex formation within valves can significantly disrupt fluid flow, leading to instability and reduced process efficiency. When fluid passes through a valve, especially under conditions of high velocity or abrupt directional changes, vortices can develop. These swirling flows introduce turbulence, causing fluctuations in pressure and velocity downstream of the valve. Such disturbances can compromise the precise control of flow rates, essential in processes requiring high accuracy, like chemical dosing or thermal regulation.

Moreover, the presence of vortices increases energy losses due to induced turbulence, necessitating higher pumping power to maintain desired flow rates. This not only escalates operational costs but also imposes additional stress on system components, potentially leading to premature wear and maintenance issues.

Long-Term Risks: Vibration, Erosion, and Cavitation Damage

Beyond immediate efficiency concerns, sustained vortex formation poses several long-term risks to valve integrity and system reliability:

• Vibration: Vortices can induce oscillatory forces on valve components, leading to vibrations. Over time, these vibrations may cause fatigue in valve structures, resulting in mechanical failures or compromised sealing capabilities.

• Erosion: The turbulent flow associated with vortices can lead to uneven wear on valve internals. High-velocity fluid particles, especially if carrying abrasive materials, can erode valve seats and discs, diminishing their effectiveness and lifespan.

• Cavitation Damage: In scenarios where vortices cause localized pressure drops below the fluid’s vapor pressure, cavitation can occur. This phenomenon involves the formation and subsequent collapse of vapor bubbles, generating shock waves that can pit and damage valve surfaces. Repeated cavitation events exacerbate material degradation, leading to leaks or complete valve failure.

Key Causes of Vortex Formation in Valves

High-Flow Velocity Scenarios

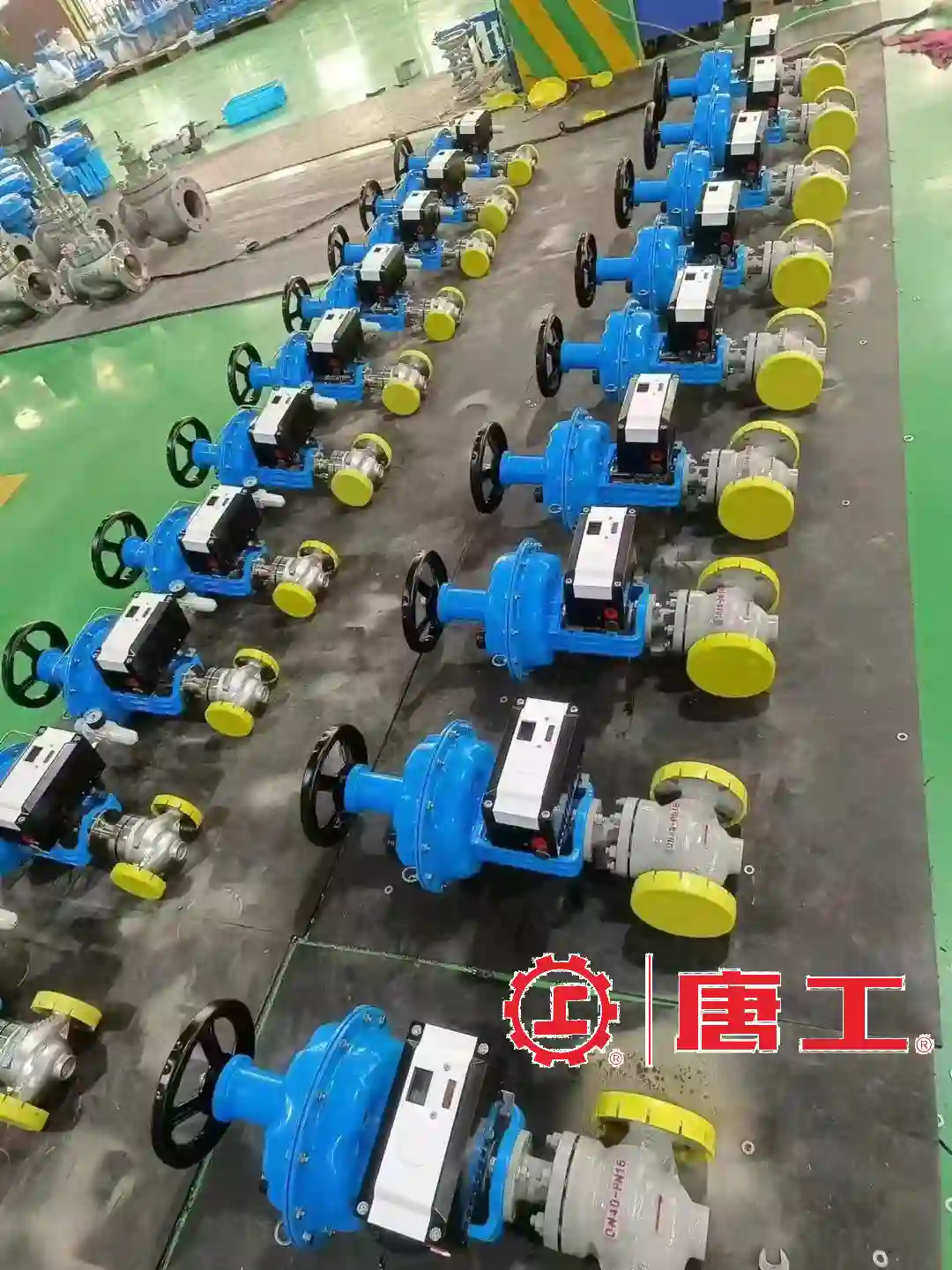

Throttled Valves (e.g., Partially Open Control Valves): When control valves operate in a partially open state, the constricted flow path accelerates the fluid velocity. This acceleration can lead to the formation of vortices downstream of the valve, disrupting smooth flow and potentially causing vibrations and noise.​

Rapid Fluid Direction Changes in Pipelines: Sudden changes in the direction of fluid flow, such as sharp bends or elbows in piping systems, can induce vortex formation. The abrupt alteration in flow direction causes separation of the fluid streamlines, leading to swirling motions and vortices that can reduce flow efficiency and increase wear on system components.​

Pressure Differential Challenges

High-Pressure Drop Systems (Steam, Liquefied Gas): In systems where there is a significant pressure drop across a valve—common in steam or liquefied gas applications—the rapid decrease in pressure can cause the fluid to reach its vapor pressure, leading to cavitation. The formation and subsequent collapse of vapor bubbles can generate strong vortices, resulting in noise, vibration, and potential damage to the valve and downstream equipment.​

Sudden Pressure Reduction Leading to Cavitation: Cavitation occurs when local pressure in the fluid drops below its vapor pressure, forming vapor bubbles that collapse violently as they move into higher-pressure regions. This collapse can create intense shockwaves and vortices, eroding valve surfaces and compromising structural integrity.​

Poor Flow Path Design

Sharp Bends or Abrupt Contractions in Valve Geometry: Valves with internal geometries that include sharp turns or sudden contractions can disrupt the smooth flow of fluid, leading to separation of flow and vortex formation. These design features can create areas of low pressure and recirculation zones, increasing the likelihood of cavitation and reducing overall system efficiency.​

Non-Optimized Trim Configurations: The trim of a valve—the internal components that control flow—plays a crucial role in directing fluid movement. Poorly designed trims can cause uneven flow distribution and turbulence, fostering conditions conducive to vortex formation. Optimizing trim design is essential to ensure smooth fluid passage and minimize the risk of vortices.

Engineering Solutions to Mitigate Vortex Formation

Addressing vortex-related issues in valves requires a multifaceted approach, combining optimized design, advanced components, and proactive maintenance.​

Optimized Valve Design Strategies

Streamlined Flow Paths and Full-Bore Valve Designs

Designing valves with smooth, streamlined internal geometries minimizes abrupt changes in flow direction, reducing turbulence and vortex formation. Full-bore valves, which maintain consistent diameter throughout, help maintain laminar flow and decrease pressure losses, enhancing overall system efficiency.​

Multi-Stage Pressure Reduction for High ΔP Applications

In systems with significant pressure differentials, implementing multi-stage pressure-reducing valves is crucial. These valves dissipate energy across multiple stages, preventing sudden pressure drops that can lead to cavitation and vortex formation. This approach is particularly effective in applications like slurry transport and power generation.

Advanced Flow Control Components

Anti-Cavitation Trims and Flow Straighteners

Anti-cavitation trims are engineered to manage pressure drops within the valve, preventing the formation of vapor bubbles that can collapse and cause damage. Flow straighteners, installed upstream of valves, condition the flow by reducing swirl and asymmetry, ensuring a more uniform velocity profile and mitigating vortex development.​

Guided Vanes or Diffusers to Stabilize Fluid Movement

Incorporating guided vanes or diffusers within the valve or piping system can effectively redirect and stabilize fluid flow. These components help in aligning the flow direction, reducing turbulence, and minimizing the potential for vortex formation, especially in high-velocity or high-pressure scenarios.

​

Material and Maintenance Best Practices

Erosion-Resistant Coatings for Critical Components

Applying erosion-resistant coatings, such as ceramic or specialized polymer layers, to valve internals protects against wear caused by turbulent flow and cavitation. These coatings extend the service life of valves by resisting the abrasive effects of particles and fluid-induced erosion .​

Predictive Maintenance for Early Vortex Detection

Implementing predictive maintenance strategies involves monitoring valve performance and flow characteristics to detect early signs of vortex-related issues. Utilizing sensors and data analytics allows for timely interventions, reducing unplanned downtime and preventing extensive damage.

Conclusion

Vortex formation in valves is more than just a flow irregularity—it poses real risks like flow instability, mechanical vibration, erosion, and cavitation that can compromise system performance and reliability over time. These issues are often caused by high flow velocities, sudden pressure drops, or poor valve geometry, but they’re not without solutions. With optimized valve designs, anti-cavitation trims, guided vanes, and erosion-resistant materials, these problems can be significantly reduced or prevented altogether. Whether you’re dealing with steam systems, chemical processes, or high-pressure pipelines, addressing vortex formation early is key to long-term efficiency and equipment longevity. If you’re facing persistent flow issues or planning a new system, consult with valve engineering experts to design a custom solution tailored to your operating conditions.
