Water distribution system design is the process of planning, constructing, and maintaining infrastructure to transport water to users across residential, commercial, and industrial settings. This intricate system includes pipelines, valves, pumps, storage reservoirs, and treatment plants, all working together to deliver clean and reliable water. The design process takes into account factors like water demand, pressure, material selection, and system resilience to ensure the safe and efficient operation of the water supply network.
What is Water Distribution System Design?
Definition & Core Purpose:
A water distribution system is the part of the water supply network that moves treated, safe drinking water from treatment works or storage reservoirs to the end user. Through a connected network of underground pipes and pumping facilities, it supplies homes, businesses, industry and public services with water when they need it and in a condition that’s fit for use.
In practice, it’s much more than a collection of pipes. The system also includes valves, pumps, service reservoirs and, in some cases, pressure-regulating structures. Together, these components keep water moving continuously and ensure pressure stays within a range that customers can rely on.
A well-designed distribution system treats water as an essential public service rather than just a product. It must deliver water that meets public health standards, in sufficient quantities throughout the day, and at pressures high enough to support everyday activities as well as emergency needs such as firefighting.
Key Requirements of a Water Distribution System
Reliability
Reliability means water is available 24 hours a day, even during peak demand, routine maintenance or unexpected disruptions. A dependable system ensures customers can turn on the tap at any time without interruption. To achieve this, utilities often design networks with alternative supply routes, allowing water to be rerouted if a pipe or section of the system is taken out of service.
Adequate Pressure
Water must arrive at the tap with enough pressure to support normal household use, supply multi-storey buildings and provide sufficient flow for firefighting. If pressure is too low, service quality suffers and there’s a higher risk of contaminants entering the system. If it’s too high, pipes and fittings are placed under unnecessary strain, increasing the likelihood of leaks or bursts. Maintaining the right balance is a core design challenge.
Water Quality Safety
Although water leaves the treatment works in a safe condition, its quality can change as it travels through the network. Protecting water quality means preventing contamination, limiting stagnation and controlling chemical or microbiological changes. This relies on thoughtful system design, regular monitoring and ongoing maintenance of pipes, tanks and other assets to ensure water reaching the tap remains safe and compliant.
Types of Water Distribution Systems
Water distribution systems are essential for delivering potable water from treatment facilities to consumers, ensuring adequate pressure and flow for various needs, including domestic use and firefighting. The primary types of water distribution systems are:
Dead-End (Tree) System:
This is the simplest form of distribution layout. A single main pipe runs through the service area, with smaller branches feeding off it like the limbs of a tree. Because the branches end in “dead ends”, water flows in only one direction. It’s cheap to build and easy to design, but that simplicity comes with drawbacks. Water can stagnate at the ends of pipes, and a break or maintenance on a branch can interrupt supply downstream. That makes it less suitable for larger or denser urban areas.
| Pros | Cons |
|---|---|
| Simple layout that is easy to design and understand | A single pipe failure can cut off supply to large sections |
| Lower construction cost, making it suitable for small or older towns | Dead ends encourage water stagnation and sediment build-up |
| Fewer valves and shorter pipe lengths | Lower pressure at the ends of the network |
| Straightforward pressure and flow calculations | Limited fire-fighting capacity |
Gridiron System:
The Gridiron system, also referred to as the reticulation or interlaced system, is one of the primary layouts used in urban water distribution. It is designed with interconnecting mains, sub-mains, and branch lines that create a network with no dead-ends, ensuring continuous water flow throughout the system. This type of system is best suited for cities with rectangular layouts, as it provides the flexibility to meet various demands in well-planned urban areas.
Key Features:
- Interconnected Pipes: In this system, all pipes are interconnected, allowing water to flow freely throughout the network. This eliminates the possibility of stagnant water and ensures that there are no dead ends where water can stagnate, which can lead to contamination.
- Main and Sub-mains Arrangement: The gridiron system typically includes a central main line that runs through the area, with sub-mains branching off perpendicular to the main. These sub-mains are further connected to smaller branch lines that reach individual service points.
- Continuous Flow: The interconnected nature of the system ensures that water flows continuously, even if one part of the network requires maintenance. This is an advantage in urban environments where disruptions need to be minimized.
- Simplicity in Design and Maintenance: While the design of a gridiron system can be complex due to its interconnections, it is relatively easier to manage repairs. By isolating damaged sections, repairs can be carried out with minimal disruption to the rest of the network. The system allows for straightforward pressure and flow calculations due to its consistent design.
| Pros | Cons |
|---|---|
| High reliability due to multiple flow paths | Higher construction costs due to more pipes and valves |
| Supply can be maintained during repairs | More complex hydraulic design and calculations |
| Continuous circulation helps maintain water quality | Requires careful planning and skilled operation |
| More consistent pressure across the network |
Ring (Circular) System:
The Ring (or Circular) Water Distribution System is a method of organizing water supply pipelines in the form of a closed loop around a designated area, such as a city or town. This system is characterized by its circular or rectangular shape, formed by a continuous main pipeline that serves as the backbone of the distribution network. Branch pipelines extend from the main ring and distribute water to smaller areas. This interconnected design ensures that water can be supplied from multiple directions, enhancing reliability and efficiency.
Key Features:
- Closed Loop: The entire area served by the system is enclosed by the main supply pipe, creating a loop.
- Sub-Mains and Branches: Smaller pipelines branch off from the main loop to supply water to different sectors or individual buildings. These branch pipes are interconnected with other branches or sub-mains, ensuring water can flow through various paths.
- Valves: Strategic placement of cut-off valves is essential for isolating specific sections of the network during maintenance or repair work without disrupting the supply to the rest of the system.
| Pros | Cons |
|---|---|
| Supply can continue even if part of the ring is isolated | Higher initial cost than simple tree systems |
| Balanced pressure throughout the service area | Requires careful layout to gain full benefit |
| Improved fire-flow availability | More valves to install and maintain |
| Reduced risk of stagnation |
Radial System:
The Radial Water Distribution System is a configuration where water is supplied to an area by dividing it into several smaller distribution zones. Each zone is served by a central, elevated distribution reservoir, and the pipes radiate outward from the central reservoir to the surrounding areas. This system is designed to ensure high pressure and velocity for the water flow, making it particularly suited for areas where roads are laid out in a radial pattern, such as in many urban or planned developments.
In the radial system, the main pipelines are typically aligned in the center of the area, connecting to a series of smaller distribution lines that branch out toward the periphery. These pipes extend from the central reservoir to various locations, ensuring that water can reach all parts of the area without significant delays or drops in pressure. The central location of the reservoirs allows for easier maintenance and control, as water can be distributed evenly from a central point.
| Pros | Cons |
|---|---|
| High and predictable pressure across the zone | Complex installation and longer pipe runs |
| Minimal head loss due to centralised supply | Higher material and construction costs |
| Simple pressure calculations | Central supply failure affects the whole zone |
| Well suited to high-rise or high-density areas |
Key Components of Water Distribution Systems
Water distribution systems consist of various essential components that work together to ensure clean water reaches consumers in a reliable and safe manner. Below are the primary elements that constitute a water distribution system:
Pipes
Pipes form the backbone of the water distribution network. These are used to transport water from treatment plants to consumers. Depending on their role and environmental factors, different materials are used for pipes, including ductile iron, PVC, and HDPE. The system includes different types of pipes:
- Transmission Mains: These large pipes carry water over long distances from the treatment plant to regional areas.
- Distribution Mains: These smaller pipes branch off from the transmission mains and distribute water to local neighborhoods.
- Service Laterals: These pipes connect the main distribution network to individual consumers’ properties.

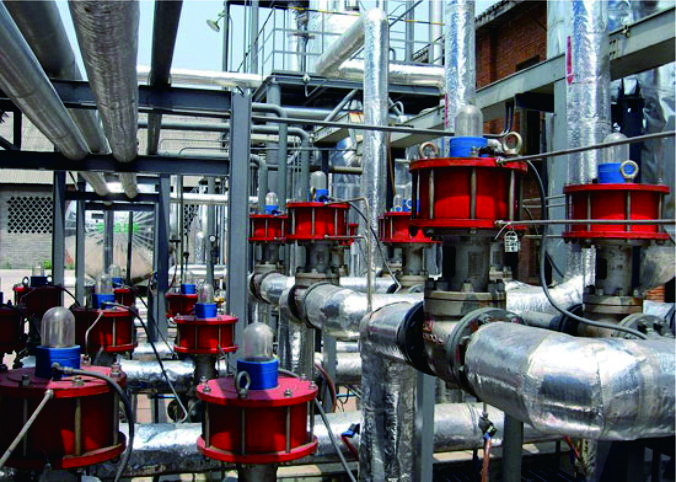

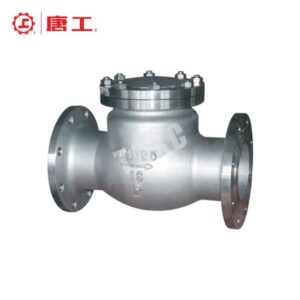

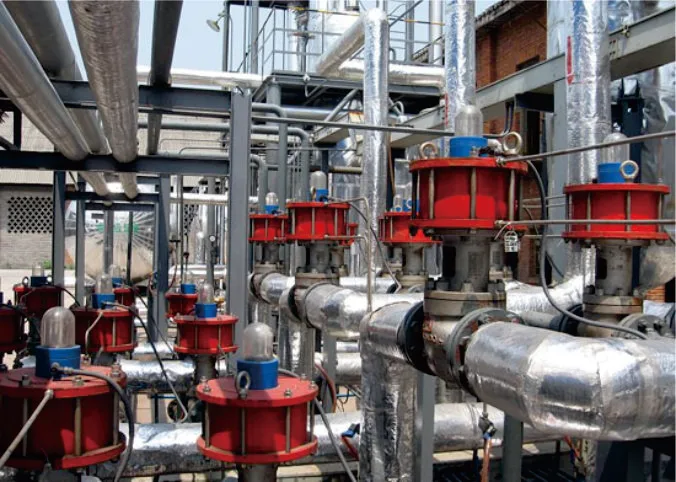

Valves
Valves are small compared with pipes, but they are crucial for controlling water flow, isolating parts of the network and maintaining pressure.
Isolation valves: These include gate and butterfly valves, used to shut off sections of the system for maintenance or repair without affecting the entire network. Gate valves slide a flat gate into the flow to stop water, while butterfly valves use a rotating disc that is lighter and quicker to operate.

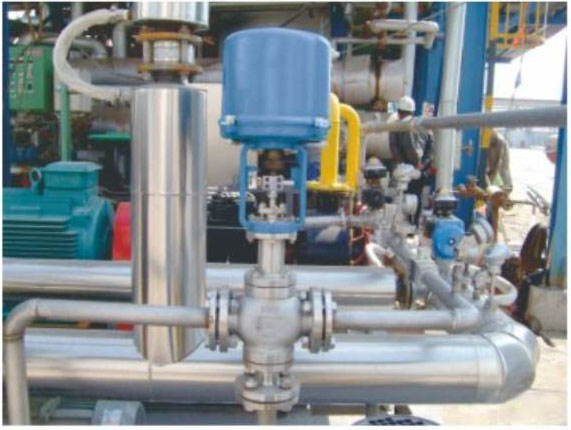

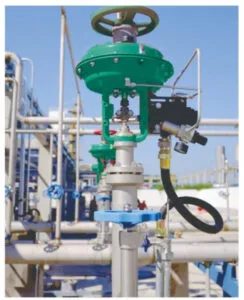

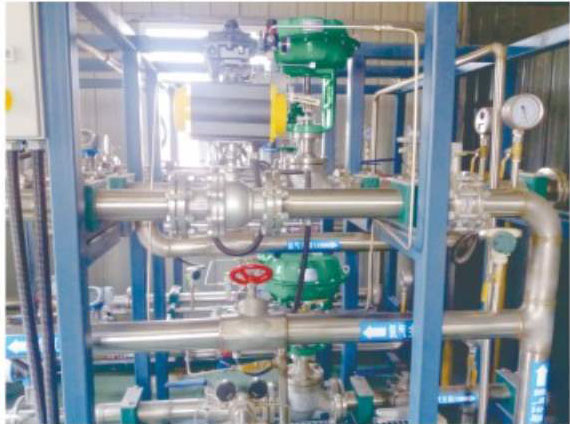

Control valves: These are used to manage operating pressure or regulate flow between different parts of the network. The classic example is a Pressure Reducing Valve (PRV), which lowers high incoming pressure before it reaches a sensitive section of the system to prevent pipe bursts or leaks.
Air valves: Also known as air release or vacuum valves, these help maintain smooth flow by allowing trapped air to escape from high points or preventing a vacuum from forming when pipes drain. Without them, air pockets can interrupt flow or even damage pipes.
Together, valves help maintain system integrity, support efficient maintenance and allow operators to respond to changing conditions.
Pumps & Storage
Even a well-designed pipe and valve network can’t function without proper pressure and storage management. In many systems, water must be pumped to maintain pressure, especially where gravity alone isn’t enough. Pumps boost water from treatment works into the network or between pressure zones, ensuring that supply reaches high-elevation areas, multi-storey buildings and fire-flow demands.
Storage tanks and reservoirs play a complementary role by buffering peak demand and smoothing operational variations. They also help stabilise pressure when demand spikes, such as in the morning or evening, or during firefighting. By providing a reserve of treated water on demand, storage helps ensure continuity even if pumps momentarily fail or are taken offline for maintenance.
Step-by-Step Design Process
Step 1: Demand Assessment
The first step is to establish how much water the network must deliver. This starts with basic demand figures, such as average daily consumption, and extends to peak demand scenarios when usage is highest. Designers also need to plan for exceptional conditions such as fire flows, where a high volume of water must be available quickly without compromising pressure at other outlets. For municipal systems, flow requirements are often defined in standards produced by professional bodies (such as the American Water Works Association, or AWWA), which set guidance on how to estimate average and peak flows. A typical approach is to identify the average daily demand and then apply peaking factors to derive maximum day and peak hour demands that the system must serve reliably.
Good demand assessment incorporates reliable data on population, land use and future growth, and assumes that fire-flow demand (the volume required for effective firefighting) will occur simultaneously with maximum normal usage. It’s a critical foundation because it drives every subsequent design decision in the process.
Step 2: Hydraulic Modelling
Once demand figures are established, designers create a hydraulic model of the proposed network. This uses specialised software — the most recognised being EPANET, a public-domain tool developed by the United States Environmental Protection Agency — which simulates how water flows and what pressures develop throughout the system under different demand patterns.
Hydraulic modelling involves drawing the network’s layout in the software, assigning junctions (nodes), pipes, storage and control elements, and defining demand patterns over time. The tool then uses numerical methods to calculate flows, pressures and head losses for each scenario. These simulations help engineers identify potential problems such as low-pressure zones or excessive velocities, and allow them to test changes before construction.
Such models are essential for validating that the sizing and layout proposed in preliminary designs will meet performance requirements in reality. Adjustments are made iteratively until the model predicts acceptable performance across all critical scenarios.
Step 3: Pipe & Valve Sizing
With a validated hydraulic model, the next step is sizing pipes and valves to deliver the required flows without excessive pressure loss or energy cost.
For pipes, this means selecting diameters that will carry the peak flows with acceptable friction head loss. The head loss depends heavily on pipe size, material and length, and is assessed using hydraulic relationships such as the Darcy–Weisbach or Hazen–Williams equations that relate flow, velocity and pressure drop in a pipe. Larger pipes reduce friction loss but increase capital cost, so designers need to balance performance and budget.
Valves are sized to control local pressures and to allow sections of the network to be isolated for maintenance without disrupting the entire system. When sizing control valves such as Pressure Reducing Valves (PRVs), engineers consider the valve’s flow coefficient (Cv) — a measure of how much flow a valve permits at a given pressure drop — to ensure the valve will perform adequately at expected operating conditions. Cv calculations are fundamental to matching valve capacity with system demands.
This design phase is iterative: changes to pipe diameter or valve settings alter system hydraulics, so engineers return to hydraulic modelling to confirm that performance remains within acceptable limits. Tools like EPANET help automate these checks by simulating the refined network under varied demand patterns.
Design Considerations for Water Distribution System
Even a well-planned water distribution system faces practical challenges once it’s in the ground and in daily use. Good design looks beyond basic layout and sizing to address pressure control, system protection and water loss, all of which directly affect reliability, cost and public trust.
Pressure Management
Pressure is one of the most delicate balancing acts in water distribution design. On one hand, the system must deliver enough pressure at the tap to support everyday use, taller buildings and firefighting. On the other, excessive pressure puts pipes, joints and fittings under constant stress.
If pressure is too high, the risk of pipe bursts and leaks increases, particularly in older networks. If it’s too low, customers experience poor service and there’s a higher chance of contaminants entering the system through small cracks. Designers typically address this by dividing the network into pressure zones and using tools such as Pressure Reducing Valves (PRVs) to keep pressures within safe limits. Careful hydraulic modelling helps ensure minimum pressure requirements are met without over-pressurising vulnerable sections of the network.
Water Hammer Prevention
Another major challenge is water hammer, a pressure surge that occurs when water flow changes suddenly — for example, when a valve closes too quickly or a pump stops unexpectedly. These surges can create shock waves that travel through the pipes, leading to noisy operation, damaged fittings or even pipe failure over time.
Preventing water hammer starts at the design stage. This includes controlling flow velocities, selecting valves with appropriate closing characteristics, and designing pump start-up and shut-down sequences carefully. In higher-risk areas, engineers may also specify air valves, surge vessels or pressure relief devices to absorb sudden changes and protect the system. Addressing water hammer early reduces long-term maintenance costs and improves asset life.
Non-Revenue Water (NRW)
Non-revenue water (NRW) refers to water that is produced and treated but never billed due to leaks, illegal connections or metering inaccuracies. High NRW levels are costly, waste valuable resources and put unnecessary strain on infrastructure.
Smart design plays a key role in reducing NRW. This includes creating well-defined district metered areas (DMAs) that make it easier to monitor flows and detect leaks, maintaining stable pressures to reduce stress on pipes, and ensuring good access to isolation valves for faster repairs. Modern systems may also integrate pressure management and monitoring points from the outset, making future leak detection and system optimisation far more effective.
Modern Optimisation: Smart Water & IoT
Water distribution design is no longer just about pipes, pumps and valves. Increasingly, utilities are using smart water technologies and IoT (Internet of Things) to improve performance, reduce costs and respond faster to problems. This is an area many competitors overlook, yet it’s becoming one of the most effective ways to future-proof a network.
Real-Time Monitoring
Traditional water networks rely heavily on scheduled inspections and customer reports to identify issues. By the time a leak is noticed, a significant amount of water may already be lost. IoT sensors change this approach completely.
Pressure, flow and acoustic sensors installed across the network provide real-time data, allowing operators to spot unusual patterns almost instantly. A sudden pressure drop or unexplained increase in flow can signal a leak or burst long before it reaches the surface. This early detection reduces water loss, limits damage to surrounding infrastructure and shortens repair times.
Real-time monitoring also supports better pressure management. Instead of setting pressures conservatively high to avoid complaints, utilities can actively manage pressure based on live demand, lowering stress on pipes while still meeting service standards at the tap.
Digital Twins
Building on real-time data, many utilities are now adopting digital twins — virtual models of the physical water network that update continuously as new data comes in. These models mirror how the system behaves under real operating conditions, not just design assumptions.
Digital twins allow engineers to predict problems before they happen. By analysing trends in pressure, flow and asset performance, they can identify pipes or valves that are likely to fail and schedule maintenance before a burst occurs. This moves the network away from reactive repairs towards predictive maintenance, which is cheaper, less disruptive and far more reliable.
They also make planning easier. Engineers can test changes — such as new developments, pressure adjustments or valve closures — in the digital environment first, reducing risk when changes are implemented in the real system.
Conclusion
Water distribution system design is a crucial aspect of urban infrastructure that directly impacts public health, environmental sustainability, and economic stability. With technological advances, particularly in smart water systems and leak detection, the future of water distribution is becoming more efficient and reliable. As the demand for water continues to rise, it is imperative that engineers, planners, and policymakers adopt modern, sustainable practices to ensure a continuous, safe water supply for generations to come.
By embracing emerging trends and adhering to best practices in system design, the water distribution industry can mitigate challenges like water scarcity, aging infrastructure, and rising costs, while ensuring that essential water resources are distributed efficiently and equitably. Whether you’re an engineer, a municipal planner, or simply someone interested in water systems, understanding the principles of water distribution system design is essential for shaping a sustainable and resilient water future.
