What is a Wedge Valve?
A wedge valve is a type of gate valve that utilizes a wedge-shaped disc to control fluid flow. This design allows the valve to seal tightly, even in applications involving high pressure or temperature variations. The wedge shape ensures that the disc fits snugly against the seats, minimizing leakage and providing reliable shut-off capabilities. Wedge valves are commonly used in industries such as oil and gas, water treatment, and power generation, where dependable isolation of fluid flow is essential.
Working Mechanism of Wedge Valves
Wedge valves operate by utilizing a wedge-shaped gate to control fluid flow. When the valve is actuated, the wedge moves perpendicular to the flow direction, either lifting to open and allow passage or descending to close and block the flow. The unique wedge design ensures a tight seal when closed, effectively minimizing leakage. This mechanism is particularly advantageous in applications requiring reliable shut-off capabilities.
Advantages and Disadvantages of Wedge Valves
Advantages:
- Superior Sealing: The wedge-shaped design ensures a tight seal, effectively preventing fluid leaks.
- Durability: Wedge valves are less prone to wear and tear, making them reliable for long-term use.
Disadvantages:
- Limited Flow Control: The design may result in a reduced flow rate, making it less suitable for applications requiring rapid fluid movement.
Applications of Wedge Valves
Wedge valves are commonly employed in high-pressure and high-temperature environments due to their robust sealing capabilities. They are ideal for applications requiring tight shut-off, such as in steam systems, oil and gas pipelines, and power generation facilities. The wedge-shaped gate ensures minimal leakage, making these valves suitable for critical operations where safety and efficiency are paramount.

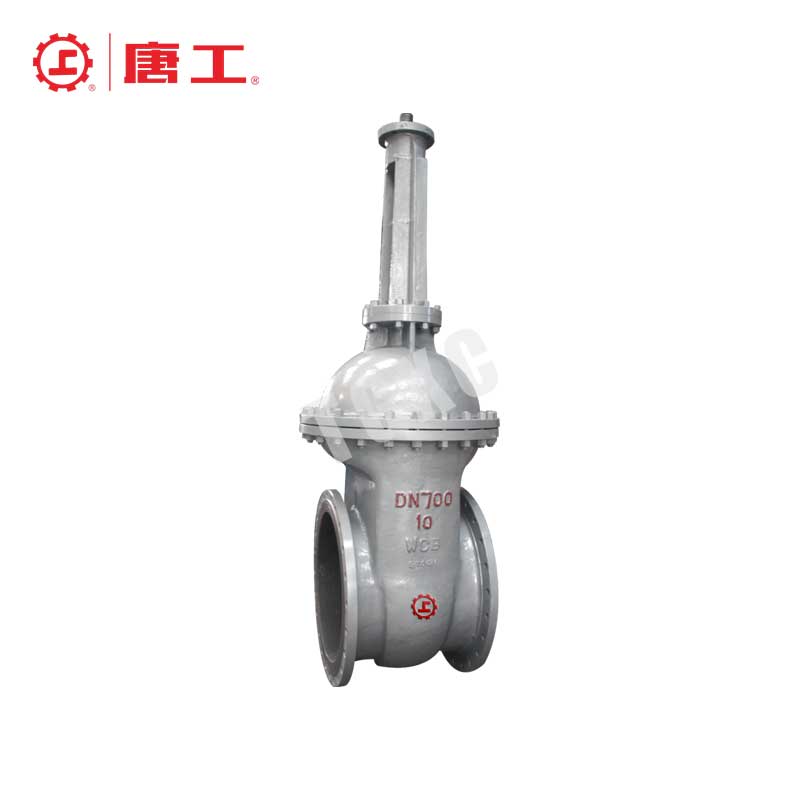

What is a Gate Valve?
A gate valve is a device used to start or stop the flow of fluid in a pipeline. It operates by lifting or lowering a gate—typically a flat or wedge-shaped disc—out of the path of the fluid. When the gate is fully raised, the valve allows for unobstructed flow with minimal pressure drop. Gate valves are designed to be either fully open or fully closed; they are not suitable for throttling purposes, as partial opening can cause damage due to vibration or erosion. These valves are widely employed in various industries, including water distribution, wastewater treatment, and chemical processing, due to their simplicity and effectiveness in providing a tight seal when closed.
Working Mechanism of Gate Valves
Gate valves function by employing a flat or disc-shaped gate that moves vertically to regulate fluid flow. In the open position, the gate is fully retracted, permitting unobstructed flow through the valve. Conversely, when closed, the gate descends to block the flow path completely. This straightforward mechanism provides minimal resistance when open, making gate valves suitable for various applications where full flow is desired.
Advantages and Disadvantages of Gate Valves
Advantages:
- Precise Flow Control: Gate valves allow for precise control of fluid flow, offering low resistance when fully open.
- Durability: Designed for longevity, gate valves are suitable for heavy-duty industrial applications.
Disadvantages:
- Operational Challenges: Gate valves can be difficult to operate when partially open and may trap debris, leading to reduced performance.
- Size and Cost: Gate valves tend to be larger and more expensive than other valve types, which can be a consideration in certain applications.
Applications of Gate Valves
Gate valves are versatile components used across various industries for on-off fluid control. They are particularly effective in systems where full, unobstructed flow is necessary, such as water distribution networks, wastewater treatment plants, and chemical processing units. Their design allows for minimal pressure drop when fully open, making them suitable for applications where maintaining flow efficiency is essential.
Wedge Valve vs Gate Valve: Key Differences
Below is a comparative table highlighting the key differences between wedge valves and gate valves:
| Aspect | Wedge Valve | Gate Valve |
| Design | Features a wedge-shaped disc that fits between two inclined seats, creating a tight seal when closed. | Utilizes a flat or parallel disc that moves vertically to block or allow fluid flow. |
| Sealing Mechanism | Achieves sealing through the wedging action of the gate, enhancing leak prevention. | Relies on the pressure of the medium or external force to press the gate plates against the seat for sealing. |
| Operation | Requires higher torque to operate due to the wedging action; suitable for applications requiring a tight seal. | Operates with lower torque; ideal for applications needing frequent opening and closing. |
| Applications | Preferred in high-pressure and high-temperature environments where a tight seal is critical. | Commonly used in pipelines carrying fluids, water treatment, power generation, and refineries. |
| Maintenance | May require more careful initial seating procedures to create an optimal seal; robust sealing can lead to reduced maintenance needs. | Easier to maintain and repair due to simpler design; suitable for applications requiring frequent operation. |
How to Choose Between Wedge Valve vs Gate Valve
Selecting the appropriate valve type is crucial for ensuring optimal performance and longevity in fluid control systems. Here are key considerations to guide your decision:
Fluid Characteristics
- Viscosity and Solids Content: Wedge valves are designed for highly viscous fluids with a high solids content, making them suitable for applications involving thick or slurry-like substances. Gate valves, on the other hand, are better suited for less dense liquids with a lower solids content, such as those found in chemical processing.
Pressure and Temperature Conditions
- High Pressure and Temperature: Wedge valves are often a better choice in situations involving high pressures, as they can handle these conditions with less leakage. They are designed to withstand high-pressure and high-temperature applications, making them suitable for demanding industrial environments.
- Low Pressure and Temperature: Gate valves are typically used in applications where a straight, uninterrupted flow of fluid is required. When the gate valve is open, there is very little resistance to flow, and the valve can be used with various fluids, including liquids, gases, and vapors.
Space and Installation Constraints
- Size of the Opening: Wedge valves have a smaller opening than gate valves, which means they can be used for smaller diameter pipes. This makes them suitable for installations where space is limited.
Maintenance and Durability
- Maintenance Requirements: Gate valves are relatively easy to maintain and repair. They are designed to be fully open or fully closed and are not meant to be used in a partially open position, as this can damage the valve.
Cost Considerations
- Budget Constraints: Gate valves are often more cost-effective than wedge valves, making them a practical choice for applications with budget limitations. However, it’s essential to balance initial costs with long-term performance and maintenance expenses.
Conclusion
In summary, wedge valves and gate valves each offer distinct advantages tailored to specific applications. Wedge valves are ideal for high-pressure and high-temperature environments, providing superior sealing capabilities and durability. Conversely, gate valves are well-suited for applications requiring unobstructed flow and are commonly used in water distribution and chemical processing industries. Understanding the unique features and operational contexts of each valve type is essential for selecting the most appropriate solution for your fluid control needs.
