In the world of hydraulic systems, efficiency, reliability, and longevity are paramount. Whether it’s in agricultural machinery, industrial applications, or automotive systems, the demand for high-performance hydraulic systems is ever-growing. One critical component that plays a vital role in ensuring these systems operate smoothly is the hydraulic check valve. In this article, we’ll explore what hydraulic check valves are, their importance in modern hydraulic systems, and how they contribute to the efficient operation of systems across industries.

Understanding Hydraulic Check Valves

A hydraulic check valve is a type of valve that automatically prevents backflow in a hydraulic system. They are essential for maintaining proper pressure, ensuring that hydraulic fluid only flows in one direction, and protecting system components from damage. These valves play a crucial role in preventing unwanted reverse flow, which could otherwise cause damage to pumps, actuators, and other critical components.

As industries across the world continue to evolve, the need for reliable hydraulic systems grows. Check valves are fundamental in ensuring that hydraulic fluid is kept under the right pressure and direction to maintain system efficiency and reliability.



The Role of Hydraulic Check Valves in Modern Hydraulic Systems

Hydraulic systems are widely used in industries like manufacturing, agriculture, construction, oil & gas, and automotive. As the demand for precision and high-performance machinery increases, the need for efficient hydraulic systems is more crucial than ever. Here’s where hydraulic check valves come into play.

Preventing Backflow

One of the primary functions of a hydraulic check valve is to prevent backflow. Backflow can damage the hydraulic components by causing contaminants or air to enter the system, disrupting the performance of pumps, actuators, and other essential elements. A check valve prevents fluid from flowing backward, which ensures that the pressure is always maintained in the intended direction.

Ensuring Pressure Maintenance

In many hydraulic systems, maintaining the right pressure is essential for performance. Hydraulic check valves help by holding back pressure, preventing fluid from flowing when the system is not in use, or when there is a potential risk of pressure loss. This ensures that the system remains pressurized, and there is no loss of energy or efficiency.

Improving System Efficiency

Hydraulic check valves contribute significantly to the overall efficiency of hydraulic systems. They help manage fluid flow, prevent unnecessary fluid waste, and protect the system from malfunctions. Whether it’s in a complex manufacturing machine or a simple agricultural tool, check valves ensure smooth operation by maintaining proper flow and pressure levels.



The Growing Demand and Trends in Hydraulic Systems

The valve industry, especially in the hydraulic segment, is evolving rapidly due to innovations in materials, design, and automation. There’s a growing emphasis on systems that require less maintenance, are more energy-efficient, and are built for longer lifespans.

Some notable trends influencing the hydraulic check valve market include:

• Automation in Hydraulic Systems: With the rise of smart technologies, hydraulic systems are becoming more automated. Check valves are now being designed with advanced features that integrate with automated systems for real-time monitoring and control.
• Energy Efficiency: Manufacturers are increasingly focused on designing energy-efficient hydraulic systems. Check valves that minimize pressure drops and enhance fluid flow are in high demand.
• Customization: With the diversity of industries that rely on hydraulic systems, the need for customized hydraulic check valves tailored to specific applications is growing.



Types of Hydraulic Check Valves

There are several different types of hydraulic check valves, each suited for specific applications and system requirements. Some of the most common types include:

Inline Spring-Loaded Check Valves:

At the heart of an inline spring-loaded check valve is the spring-loaded mechanism, which is typically attached to a poppet or piston. When fluid flows in the designated direction, the valve remains open, allowing the fluid to pass through. However, if the flow reverses, the pressure on the valve causes the spring to force the poppet or piston to close, effectively blocking the reverse flow. This action helps maintain pressure, prevent system damage, and ensure the fluid’s integrity.

The spring component plays an essential role by controlling the cracking pressure—the minimum pressure required to open the valve. This allows for precise control over when the valve opens or closes, optimizing flow rates and reducing the risk of water hammer (the shockwave caused by sudden changes in flow). In many systems, a well-calibrated spring can also mitigate noise and vibrations, contributing to quieter and more stable operations.



Swing Check Valves:

Swing check valves are designed with a hinged disc that swings open when fluid flows in the intended direction and swings closed when flow reverses, thus stopping backflow. This simple yet effective mechanism makes them highly reliable for applications requiring unidirectional fluid flow. Swing check valves are commonly used in various industries, including water treatment, oil and gas, and power generation. They are known for their low maintenance requirements and durability, often lasting for years with minimal attention. These valves can be made from a range of materials, including stainless steel, brass, and PVC, ensuring compatibility with various fluids and environmental conditions. The key advantage of swing check valves lies in their ability to handle high-pressure applications with minimal pressure drop, though they can be susceptible to issues like water hammer if not properly managed. Proper installation, usually in a horizontal orientation, ensures optimal performance, though they can also be used vertically in some cases.

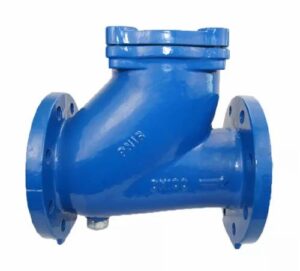

Ball Check Valves:

A ball check valve operates as a one-way valve that allows fluid to flow in a single direction while preventing reverse flow. This mechanism is achieved by utilizing a ball that moves within the valve body. When fluid moves in the intended direction, it lifts the ball off its seat, allowing passage. Conversely, when the flow pressure decreases or reverses, the ball reseats, blocking the backflow. These valves are often employed in applications where backflow prevention is critical, such as in wastewater, water treatment, and irrigation systems. They are designed to offer minimal maintenance, as the ball’s movement helps clear away any impurities that might clog it. Ball check valves are particularly advantageous in environments where water hammer or flow reversal could cause damage, as their quick closing action reduces such risks. Available in various sizes, from small (½”) to large (up to 10″), these valves are typically crafted from durable materials like thermoplastic or reinforced fiberglass, with the design ensuring a smooth and unobstructed flow path to reduce pressure loss.

Lift Check Valves:

A lift check valve is a mechanical device designed to prevent backflow in a piping system. It works by utilizing a disc or ball mechanism that lifts when the fluid flows in the correct direction, allowing it to pass through. However, when the flow reverses or stops, the disc or ball returns to its seat, closing the passage and preventing any backflow. This design ensures the system’s integrity and protects sensitive equipment from damage due to reverse flow.

These valves are highly versatile, used across industries such as water treatment, chemical processing, oil and gas, and power generation. They are typically made from durable materials like forged metals or plastics and can withstand high pressures and temperatures, ensuring reliability in harsh conditions. Lift check valves are often installed in horizontal or vertical configurations depending on the system requirements, though they operate best in horizontal installations where gravity can assist the valve’s function.

The advantages of lift check valves include their simplicity, durability, and minimal maintenance requirements. Their straightforward design with fewer moving parts reduces the need for frequent service. However, proper installation and maintenance are crucial to ensure optimal performance. Additionally, lift check valves are available in various types, including standard, spring-loaded, and angle-pattern designs, each tailored for specific application needs. Regular inspections and preventive measures such as lubrication and debris removal help maintain their efficiency over time.



Materials Used in Hydraulic Check Valves

Hydraulic check valves are critical components in fluid systems, controlling the direction of flow and preventing backflow. The materials used in these valves significantly influence their performance, longevity, and suitability for various applications. Below is an overview of the most commonly used materials for hydraulic check valves and their respective properties.

1. Stainless Steel

Stainless steel is one of the most widely used materials for hydraulic check valves due to its excellent corrosion resistance, durability, and strength. Two common types of stainless steel used are 304 and 316.

• 304 Stainless Steel: This is a general-purpose material used in applications such as food processing, brewing, and water treatment. It offers a good balance of corrosion resistance and strength at a relatively low cost, but is less resistant to chlorides and saline environments compared to 316.
• 316 Stainless Steel: Known for its enhanced corrosion resistance, especially in marine and chemical processing environments, 316 stainless steel is preferred for high-end applications. It resists corrosion caused by chlorides and industrial solvents but is more expensive than 304 stainless steel.

2. Carbon Steel

Carbon steel is often used for check valves in non-corrosive environments. It is a cost-effective option that provides high strength and the ability to withstand high pressures. However, carbon steel lacks the corrosion resistance of stainless steel, making it unsuitable for environments where moisture or aggressive chemicals are present. Carbon steel check valves are often used in dry gas applications or hydraulic liquids that do not contain water.

3. Brass

Brass is a versatile material that offers a balance of good corrosion resistance and ease of machining. It is commonly used in plumbing, water systems, and low-pressure applications. Brass check valves are often chosen for potable water systems or HVAC systems. However, brass is not ideal for high-pressure or highly corrosive environments, especially when compared to stainless steel or specialized alloys.

• Types of Brass:
  • Standard Brass: Typically used in low-pressure applications, offering good corrosion resistance but limited in high-pressure environments.
  • Chromed Brass: Used primarily for decorative plumbing applications, providing enhanced corrosion resistance and aesthetic appeal.
  • Red Brass: Contains more copper and offers better corrosion resistance, making it suitable for more demanding environments like potable water systems.

4. Monel

Monel, a nickel-based alloy, is known for its exceptional corrosion resistance, especially in saline, salt, or seawater environments. It is used in applications where standard materials like stainless steel might fail due to high levels of corrosion. Monel’s high strength and resistance to chemical attack make it ideal for harsh environments, including marine and chemical processing industries.

5. Alloy 20

Alloy 20 is an austenitic alloy with superior corrosion resistance compared to traditional stainless steel. It is particularly effective in applications where resistance to sulfuric acid, phosphoric acid, and other aggressive chemicals is required. It is less expensive than some super alloys, making it a cost-effective choice for chemical processing industries.



Applications of Hydraulic Check Valves

Hydraulic check valves are used in a wide range of industries, and their applications vary depending on the specific requirements of the system. Here are just a few of the industries that rely heavily on these valves:

• Agricultural Equipment: Hydraulic systems in tractors, combines, and harvesters depend on check valves to prevent fluid backflow and ensure smooth operation in the field.
• Industrial Machinery: Manufacturing machines that require hydraulic power rely on check valves to protect the system from pressure surges and fluid contamination.
• Oil & Gas: In the oil and gas industry, hydraulic check valves are crucial in drilling rigs, pipelines, and pumping stations, where pressure control is essential for safe operation.
• Automotive Systems: In vehicle braking and steering systems, hydraulic check valves ensure fluid remains under the correct pressure and prevents backflow during operation.



Selecting the Right Hydraulic Check Valve for Your System

Choosing the right hydraulic check valve for your system depends on several factors, including:

System Requirements

The valve must match the system’s flow rates, pressure ranges, and fluid characteristics. This ensures the valve can handle the required pressure and flow without causing damage or inefficiencies.

Valve Type and Design

Selecting the right valve type—such as swing check, ball check, or spring-loaded check—based on the system’s pressure and flow characteristics is crucial for ensuring efficient operation and preventing backflow.

Crack Pressure

The valve’s crack pressure (the pressure at which it opens) is vital to ensure it opens and closes at the correct times. Too high or too low of a crack pressure can cause inefficiencies, system failures, or premature valve wear.

Material Compatibility

The valve must be constructed from materials that are compatible with the fluid type in your system, whether it’s corrosive, high-temperature, or otherwise. This ensures durability and avoids material degradation.



Conclusion

 hydraulic check valves are indispensable components in modern hydraulic systems, playing a crucial role in maintaining system efficiency, reliability, and longevity. They prevent backflow, ensure pressure maintenance, and improve system performance across industries like agriculture, automotive, and oil & gas. Choosing the right valve type—whether spring-loaded, swing, ball, or lift—along with considering system requirements, crack pressure, and material compatibility, is crucial for optimal performance. As trends like automation and energy efficiency evolve, the demand for reliable and customizable check valves will continue to grow, ensuring smooth operation and protection for critical machinery.
