Marine valves are essential components in ship and offshore systems, playing a critical role in controlling the flow of liquids, gases, and other fluids under varying conditions. They regulate pressure, direct fluid flow, and prevent backflow—functions that are crucial for the safe and efficient operation of marine machinery. By ensuring precise fluid dynamics control, these valves help maintain the integrity of onboard systems, protect critical equipment from damage, and ensure compliance with stringent maritime safety standards. Their reliable performance is key to optimizing vessel efficiency, enhancing operational reliability, and meeting regulatory requirements, making marine valves indispensable for both ship operations and offshore installations.
What Are Marine Valves?
Marine valves are specialized devices engineered to control the flow of fluids—such as water, fuel, and lubricants—in marine and offshore systems. Their basic function is to regulate pressure, direct flow, and prevent reverse flow, ensuring that every component in a ship’s system operates smoothly.
Unlike standard industrial valves, marine valves are built with high-grade, corrosion-resistant materials designed to withstand the aggressive saltwater environment and the high pressure variations encountered at sea. Their enhanced durability and sealing capabilities are crucial for maintaining system integrity, ensuring safety, and meeting stringent maritime regulatory standards.
Types of Marine Valves
Marine valves come in several specialized designs, each tailored to meet specific operational requirements in challenging marine environments. Here’s an overview of the key types:
Gate Valves
Gate valves control flow by lifting or lowering a solid barrier (the gate) to either allow full flow or completely stop it. They are ideal for on/off applications where minimal pressure drop is needed but are not suitable for throttling.
Globe Valves
Globe valves feature a movable disk that seats against a ring to regulate flow. They offer precise control, making them perfect for applications where fine-tuning of flow is critical, such as cooling and lubrication systems.

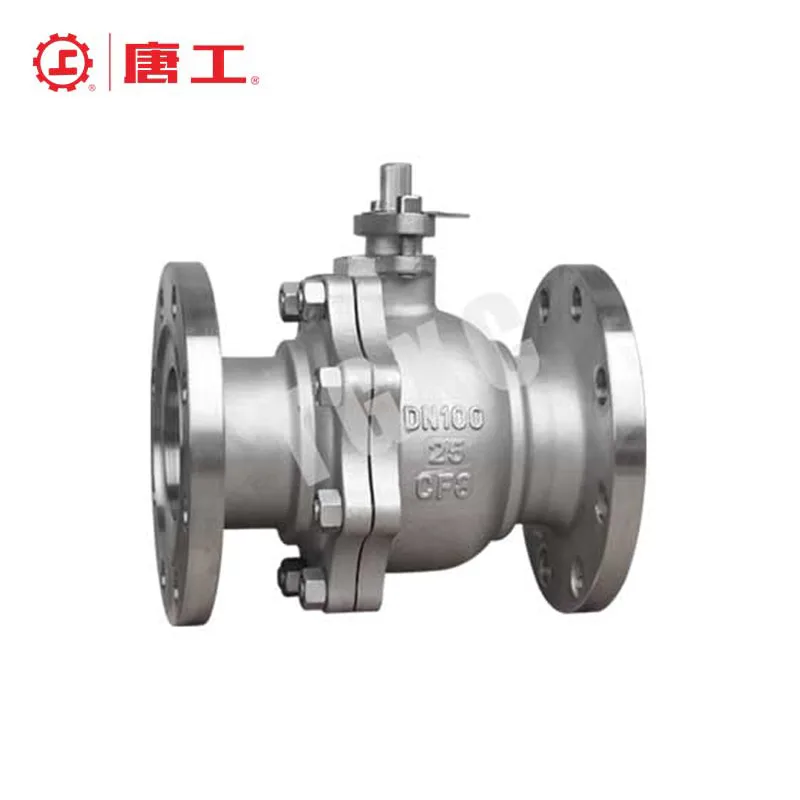

Ball Valves
Ball valves use a hollow, perforated sphere that rotates to open or close the passage. Their quick quarter-turn operation, excellent sealing, and minimal pressure drop make them popular in fuel transfer and general flow control applications.
Butterfly Valves
Butterfly valves employ a rotating disc that pivots on a central axis. Their compact design and lightweight structure allow rapid operation, which is particularly beneficial in space-constrained marine environments.
Check Valves
Check valves automatically allow fluid to flow in one direction only, preventing backflow that could harm system components. Their self-actuating nature enhances safety and maintains system integrity without manual intervention.
Safety Relief Valves
Safety relief valves are engineered to automatically release excess pressure, protecting critical equipment and ensuring the safety of personnel. They are essential for preventing overpressure scenarios in pressurized systems.
Control Valves
Control valves modulate flow and pressure according to system demands. Often integrated with automated control systems, they offer precise adjustments to maintain optimal performance and energy efficiency.
How Marine Valves Work
Controlling Flow: Liquids, Gases, and Other Media
Marine valves manage flow by using strategic internal mechanisms—like discs, gates, stems, or springs—to open, close, or modulate fluid passage. Their primary roles include:
Flow direction and volume management: Valves enable the smooth movement of water, fuel, lubricants, steam, or gases through ship systems—vital for cooling, propulsion, or ballast control.
Precise throttling and pressure control: Specific valve types (e.g., globe or flow-control valves) offer finely tuned regulation of flow rate or pressure to maintain engine, boiler, or hydraulic system performance.
Robust, reliable performance under marine stress: Marine valve design must endure corrosive seawater, variable pressure, and temperature extremes—all while maintaining operational accuracy and safety.
Isolation, Regulation, and Prevention of Backflow
Isolation
Valves serve as barriers within marine piping systems to stop flow where needed—essential for maintenance, emergencies, or system rerouting. Isolation valves (like gate or ball types) provide a tight shut-off, while “double block and bleed” configurations give enhanced safety during high-risk operations.
Regulation
Valves such as globe or specialized flow-control models allow gradual adjustment of flow or pressure. This is critical in systems demanding steady control—think engine cooling, lubrication monitoring, or controlling ballast intake/exhaust.
Prevention of Backflow
Check valves (a.k.a. non-return valves) are self-actuating devices that open for forward flow and automatically close when flow reverses, protecting pumps and preventing contamination of critical systems.
Spring-loaded check valves use a spring to close quickly once forward pressure drops, safeguarding systems against hydraulic shocks.
Stop-check valves offer combined functionality—they allow flow in one direction, prevent backflow, and can be manually shut regardless of flow pressure.
Quick Comparison Table
| Function | Mechanism / Valve Type | Role Aboard Ships |
|---|---|---|
| Flow control | Globe valves, flow-control devices | Manage pressure and flow in engine, cooling, fuel lines |
| Full system isolation | Gate valves, ball valves (and double block systems) | Safe maintenance, emergency shutdown |
| Backflow prevention | Check valves (spring-loaded or stop-check) | Protect pumps, prevent contamination, ensure flow direction |
Key Functions of Marine Valves in Ships
1. Flow Control
Marine valves are the central regulators for fluid movement throughout a vessel. Whether managing seawater for cooling, fuel, lubricants, or domestic water, they facilitate precise direction and volume control—enabling systems to start, stop, or redirect flow as required.
Manual types like globe or ball valves offer reliable, straightforward control for flow isolation.
Control valves—often automated—modulate flow rate dynamically based on sensor feedback, critical for propulsion systems, temperature regulation, and fuel delivery.
2. Pressure Regulation
Maintaining optimal pressure levels is vital for the safety and efficiency of shipboard systems.
Pressure-relief and safety valves automatically open at predetermined thresholds to prevent dangerous overpressure scenarios in tanks, boilers, and pipelines.
These protective devices act as pressure “safety valves,” preserving the integrity of onboard infrastructure.
3. System Protection (Leak Prevention & Safety Measures)
Beyond controlling flow and pressure, marine valves play key roles in safeguarding systems and enhancing overall safety.
Check valves (non-return valves) allow fluid to move in one direction only, preventing backflow and contamination—essential for bilge, ballast, and pumping systems.
Safety shutdown valves or emergency shutdown valves (ESVs) instantly halt flow of hazardous fluids upon detecting dangerous conditions, thus protecting crew, equipment, and the environment.
Materials and Construction
High‑Grade Materials Commonly Used in Marine Valves
Marine valves must endure relentless exposure to saltwater, humidity, and harsh marine conditions. To meet these demands, valve bodies and internal components are typically constructed from:
Marine-grade stainless steels (such as 316, 316L, and super duplex): Renowned for their chromium and molybdenum content, these grades resist pitting and crevice corrosion in chloride-rich environments.
Bronze and aluminum bronze (e.g., C95400 aluminum bronze): Copper-based alloys prized for exceptional saltwater corrosion resistance, wear durability, and long service life—even under high-pressure and temperature conditions.
High-performance alloys like Hastelloy (C‑276, etc.): Engineered for unmatched corrosion resistance in aggressive marine and chemical environments. They also tolerate extreme temperatures and require less maintenance.
Premium options for specialized needs: Materials such as Monel, titanium, and super duplex steel are sometimes specified—especially for military-grade or Mil-Spec applications—offering robust resistance to rapidly flowing seawater and strong corrosive stress.
Corrosion Resistance & Durability in Extremely Harsh Marine Environments
Marine environments accelerate corrosion—up to 5–10 times faster than freshwater—so valve construction uses both material and protective strategies:
Alloy selection for inherent durability: Choosing robust materials like 316-grade stainless steel, aluminum bronze, Hastelloy, or Monel enables high resilience to saltwater, stress, and temperature swings.
Surface treatments & coatings: Stainless valve bodies (e.g., CF8M) may receive chromium or nickel plating, electroplated zinc, or epoxies to enhance corrosion resistance and surface integrity in aggressive conditions.
Durability through design and alloy chemistry: Aluminum bronze forms an alumina (Al₂O₃) surface layer, offering superior corrosion resistance and biostatic properties (inhibiting marine organism growth). Super duplex stainless steel boosts resistance to chloride-induced stress corrosion cracking.
Key Applications of Marine Valves
Marine valves are integral to various shipboard systems, ensuring smooth and safe operations in challenging marine environments. Here are some of their key applications:
Engine Room Systems:
They manage the flow of cooling water, fuel, and lubricants, which are crucial for maintaining optimal engine performance and preventing overheating or mechanical wear.Cargo Handling and Tank Systems:
In cargo operations, marine valves regulate the transfer and containment of liquids—such as fuel, chemicals, and ballast water—ensuring efficient loading, unloading, and storage.Ballast and Bilge Systems:
These valves control water intake and discharge, playing a vital role in maintaining vessel stability and preventing flooding by efficiently managing ballast and bilge water.Firefighting and Safety Systems:
Marine valves are critical for isolating and shutting down sections of a system during emergencies, helping to control the release of fire suppression agents and relieve excess pressure to protect both equipment and crew.
Standards and Certifications for Marine Valves
Marine valves are subject to stringent international standards and certifications to guarantee their quality, safety, and environmental performance in demanding maritime conditions. Key standards include:
- ISO 10434: Outlines performance, design, and testing requirements specific to marine valves.
- ASTM: Provides comprehensive guidelines for material properties and manufacturing processes to ensure durability.
- ANSI: Establishes benchmarks for quality, compatibility, and safety in valve design and operation.
- MARPOL: Ensures that marine valves meet environmental regulations to prevent pollution in maritime operations.
- SOLAS: Sets critical safety standards to protect vessels, crew, and cargo by ensuring reliable valve performance.
How to Choose the Right Marine Valve
1. Fluid Type (Liquid, Gas, Corrosive Media)
Selecting the right marine valve starts with understanding the fluid you’ll be controlling. The characteristics of the medium—whether it’s seawater, fuel, steam, oil, or a chemical—have direct implications on material compatibility and valve performance.
Corrosive or saline fluids (e.g., seawater, aggressive chemicals): Require highly corrosion-resistant materials such as bronze, duplex stainless steel, or super-duplex stainless steel. For chemical media, polymer-lined or specialty alloy valves may be necessary.
Hydrocarbon-based fluids (fuel/oil): Demand valves with compatible seal materials like nitrile or Viton to prevent degradation.
Gases or steam: Temperature and gas properties affect material choice and seal design.
In short: ensure fluid–material compatibility to avoid corrosion, leaks, and premature failures.
2. Pressure and Temperature Ratings
Marine environments often involve extreme pressures and temperatures—from high-pressure fuel and steam systems to sub-zero ballast lines.
Always confirm both the working (operating) and design (maximum safe) pressure and temperature ratings for your valve. Valves should never be used beyond their stated thresholds.
Temperature effects: As temperatures fluctuate, the valve material’s strength—and thus its rated pressure—can change significantly. High-temperature systems like exhaust or steam may require stainless or duplex alloys, whereas low-temp environments might need special cold-grade materials.
3. Flow Requirements and Sizing
Proper sizing ensures optimal performance, efficiency, and safety.
Use flow metrics such as the flow coefficient (Cv or Kv) to select a valve that meets your system’s flow and pressure-drop requirements. For instance, ball valves typically offer much higher Cv values than globe valves—making them more suitable when minimal flow restriction is needed.
Undersized valves can lead to excessive pressure drop and reduced flow, while oversized ones may lead to poor control and higher costs.
Summary Table
| Selection Factor | Why It Matters | Key Considerations |
|---|---|---|
| Fluid Type | Drives material and seal compatibility | Corrosive (e.g., seawater), hydrocarbons, gases/steam |
| Pressure & Temperature | Ensures valve integrity under operating extremes | Working vs. design values, material behavior at temp |
| Flow & Sizing | Influences system efficiency, control, and safety | Cv/Kv values, avoid over/under-sizing, pressure drops |
Maintenance and Inspection
Best Practices for Inspection and Servicing Marine Valves
Routine Visual & Functional Inspections
Conduct regular inspections to catch early signs of wear or damage. Use visual checks to identify corrosion, leaks, cracks, or loose fittings. Manually cycle each valve through its full range to assess its smooth operation and watertight integrity.Lubrication of Moving Parts
Apply lubricants specifically designed for marine conditions to valve stems, handles, and actuator components to reduce friction, prevent seizure, and extend operational life.Seal, Gasket & Surface Care
Regularly examine seals and gaskets for wear or failure. Replace marine-grade components as needed. Clean surfaces, remove deposits, and apply anti-corrosion coatings or protective treatments to shield against saltwater damage.Debris Removal and System Cleaning
Address blockages caused by sediment, marine growth, or debris. Periodic flushes, manual cleaning, and the use of strainers upstream of valves help maintain proper flow.Emergency Preparedness and Crew Training
Ensure crew members are trained in rapid valve operation and emergency shutdown procedures. Regular drills build familiarity and confidence in isolating critical systems during fires, collisions, or system failures.Inspection Documentation and Record-Keeping
Record every inspection, repair, and replacement—even minor ones. Documentation of valve condition over time supports maintenance planning, compliance audits, and proactive lifecycle management.
Common Maintenance Challenges in Marine Environments
Accelerated Corrosion and Material Degradation
Saltwater exposure and humidity hasten corrosive damage—weakening valve components and causing leaks or failure. Even corrosion-resistant materials must be monitored regularly.Seal Failure and Leakage
Aging seals and gaskets often succumb to pressure, vibration, and wear, leading to leakage. Proper installation, quality materials, and timely replacement are essential.Blockage and Clogging
Marine valves—especially those in seawater intake systems—are vulnerable to fouling from sediments or biogrowth, impairing their function.Mechanical Wear and Sticking
Continuous cycling, high pressure, and lack of lubrication contribute to mechanical wear, difficulty operating, or valves jamming. Regular lubrication and exercising of valves are preventive measures.Pressure Surges and Water Hammer
Rapid valve closures or pump shutdowns may cause water hammer—damaging valves via shock waves or deformation. Surge arrestors and slow-closing mechanisms help mitigate this risk.Calibration Drift in Precision Valves
Safety and control valves may drift from calibrated settings over time, compromising reliability. Scheduled recalibration ensures they perform within specified parameters.
Conclusion
Marine valves are critical components in ensuring the safe, efficient, and reliable operation of ship and offshore systems. From managing fluid flow to preventing corrosion and ensuring compliance with strict maritime regulations, these valves play an essential role in maintaining operational integrity and safety. Choosing the right materials and valve types, along with regular maintenance, is crucial for long-lasting performance. If you’re looking for high-quality marine valve solutions tailored to your specific needs, don’t hesitate to contact us for expert advice and reliable products to support your maritime operations.
