A sanitary control valve has to do two jobs at once. It must move to intermediate positions to regulate flow, pressure, temperature, or level, and its product-contacting path must be designed for the hygiene requirements of the process. Stainless steel construction or a sanitary clamp connection alone does not satisfy both conditions.
This distinction matters because the term sanitary control valves is often applied too broadly. An automated butterfly valve used only to open or close a line is a sanitary shutoff valve, while a check valve or pressure-relief valve performs a different function altogether. A true sanitary control valve is the final control element in a modulating loop, with its body, trim, seals, connections, actuator, and control accessories selected as one assembly.
The correct design therefore depends on two envelopes: the operating duty and the cleaning duty. Product properties, required flow range, pressure drop, and fail action must be considered alongside drainability, wetted-surface finish, seal compatibility, CIP/SIP temperatures, and any model-specific documentation. This guide explains how to separate those requirements, compare suitable valve designs, and specify the evidence needed before purchase.
What Is a Sanitary Control Valve?
A sanitary control valve is the final control element in a hygienic process loop. The controller compares the measured variable with its setpoint and sends a command to the valve assembly. The actuator then moves the closure element to the required intermediate position, changing the flow restriction instead of simply switching the line fully open or fully closed.
The working assembly normally includes the valve body and trim, an actuator, and the control accessories needed for the specified signal and feedback. The body and trim create the variable restriction; the actuator supplies linear thrust or rotary torque; and a positioner, when used, adjusts valve travel to follow the command. This is the same basic principle described in how a control valve works. The word sanitary adds requirements for the product-contacting path, which are addressed in the next section.
Control Is More Than Automatic Opening and Closing
Automation describes how a valve is operated, not necessarily what function it performs. Several automated or self-acting sanitary valves serve purposes other than modulation:
- On-off valves isolate or release flow in response to a discrete open or closed command.
- Check valves close when the pressure differential reverses, limiting backflow.
- Pressure-relief valves open when system pressure reaches the set pressure to protect the system.
Each can use hygienic materials and connections, but that does not make it a sanitary control valve. For modulating service, the selected body, trim, actuator, and control accessories must be intended to vary the flow restriction through intermediate positions in response to the control signal. Establishing that functional duty first prevents a sanitary shutoff device from being specified where intermediate-position control is required.
What Makes a Control Valve Sanitary?
Sanitary performance begins with the complete wetted path: what the product and cleaning fluids can touch, where residue can remain, and whether every relevant area can be cleaned and verified. A stainless steel body or sanitary clamp connection does not answer those questions by itself. The valve must combine suitable geometry, a specified surface condition, compatible materials and seals, hygienic joints, and an installation that supports the required cleaning and drainage strategy.
Wetted-Path Geometry and Drainability
The internal flow path should avoid unnecessary crevices, ledges, voids, and pockets that are difficult for product or cleaning solution to reach. Areas around the plug and seat, stem or diaphragm interface, body joints, and connection transitions deserve particular attention. The goal is not simply a smooth-looking body; it is a cleanable assembly in which all product-contacting regions are included in the cleaning process.
Drainability is a property of the installed system, not just the valve catalog. Body geometry, port location, actuator orientation, piping slope, and the direction in which the valve is mounted can all affect retained liquid. A “self-draining” claim is therefore meaningful only when it identifies the applicable configuration and installation orientation. The CIP circuit must also deliver the required flow, temperature, chemistry, and contact time through the wetted spaces that need cleaning.
Surface Finish and Material Traceability
Wetted-surface finish should be stated as a measurable project or product requirement, normally with the relevant roughness parameter, acceptance value, measurement method, and locations to which it applies. A nominal finish shown on one model cannot be assumed for every size, trim, weld, or connection. Mechanical polishing, passivation, and electropolishing are also different processes; specifying one does not remove the need to verify the resulting surface condition.
316L stainless steel is common in hygienic service, but it is not automatically compatible with every product or cleaning regime. Product chemistry, chloride level, temperature, cleaning agents, exposure time, and corrosion risk may justify another alloy or a different surface treatment. Procurement documents should identify the wetted materials and request the required material records, heat traceability, surface-finish records, and weld documentation rather than relying on a general “food-grade stainless steel” description.
Connection details matter as well. A sanitary clamp does not correct a recessed gasket, seal intrusion, misalignment, or an internal step at the joint. The mating ferrules, gasket dimensions, assembly condition, and installation tolerances must preserve the intended wetted-path geometry.
Seals Must Survive Both Product and CIP/SIP Exposure
Seats, stem seals, packing, diaphragms, and connection gaskets experience at least two chemical and thermal environments: the process product and the cleaning or sterilization cycle. The more severe case may be the cleaner, hot rinse, steam exposure, or rapid temperature change rather than normal production. Seal selection should therefore account for swelling, hardening, compression set, permeation, extractables requirements, pressure cycling, and the maximum time and temperature of each exposure.
Materials such as EPDM, FKM, and PTFE are not interchangeable, and a food-contact declaration does not prove resistance to a specific CIP chemical or repeated SIP cycle. The specification should name the exact seal material or compound, its intended contact conditions, and the supporting documentation. Maintenance intervals should then be based on the validated duty and inspection history, not a universal replacement period.
For the same reason, “CIP/SIP capable” should be verified for the exact valve model, trim, seal set, installation, and cycle conditions. This keeps a general hygienic-design claim from being mistaken for proof that the assembled valve will clean, drain, and remain reliable in a particular process.
Which Sanitary Valve Designs Can Provide Modulating Control?
Valve function comes before the sanitary label. The first question is whether the body and trim are designed to produce usable changes in flow across the required operating window. Only then should the design be screened for cleanability, drainability, materials, seals, and documentation. Several sanitary control valve designs can provide modulation, but none is the best choice for every process.
The comparison below applies the same functional distinctions used for other control valve body types while adding the hygienic issues that affect the wetted path.
| Valve design | Common control strength | Potential hygienic advantage | Main caution | Verify before selection |
|---|---|---|---|---|
| Angle-body or globe-style single-seat | A purpose-designed plug and seat can provide controlled throttling and a defined flow characteristic. | An angle flow path can reduce internal volume and support drainage when installed in the specified orientation. | The seat region and stem-sealing arrangement must be cleanable. An unbalanced plug may also increase required actuator thrust as pressure drop rises. | Sized capacity, characteristic, operating pressure drop, actuator thrust, shutoff requirement, drain orientation, wetted finish, and connections. |
| Diaphragm control valve | A control-specific diaphragm body can regulate flow without a dynamic stem packing interface in the wetted boundary. | The diaphragm separates the process from the bonnet and actuator, and suitable body geometry can minimize product-retention areas. | Diaphragm life, flow capacity, and control behavior depend on the body design, material, travel, pressure, temperature, and cycle conditions. | Diaphragm compound and traceability, product and CIP/SIP exposure, capacity, control characteristic, pressure-temperature limits, and drain orientation. |

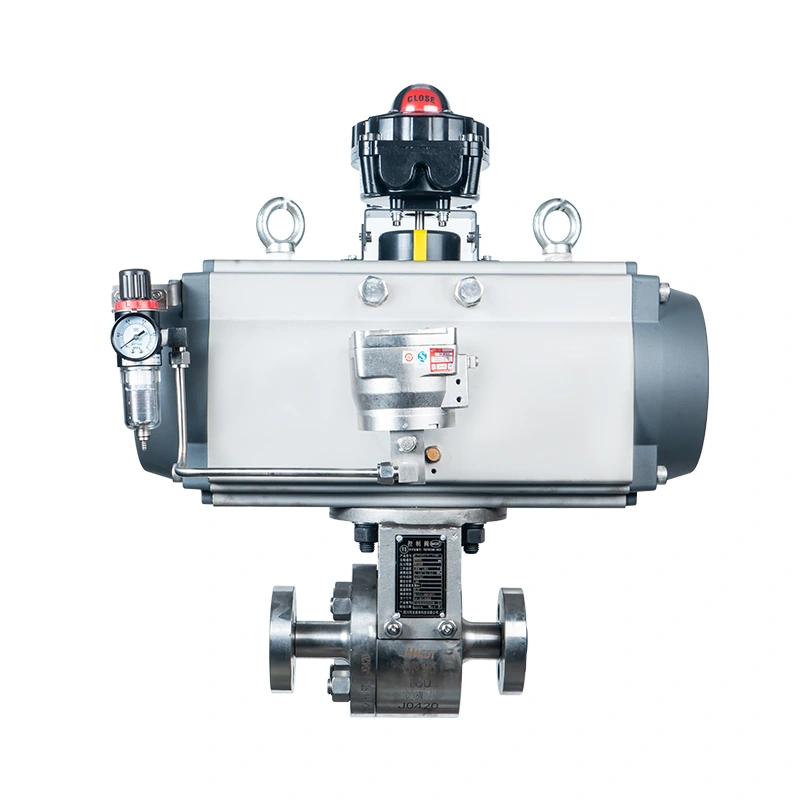

| Characterized or segmented ball valve | A shaped ball or segment can combine rotary actuation with a defined throttling characteristic and relatively high capacity. | A suitably designed flow path can be compact and less restrictive at higher openings. | A standard full-port sanitary ball valve is usually selected for shutoff, not automatically for stable modulation. Body cavities and seat interfaces also require cleaning review. | Characterized element, usable travel range, cavity design, cleaning method, seat compatibility, actuator torque, pressure drop, and shutoff requirement. |
| Control butterfly valve | A modulation-rated disc and actuator can offer compact rotary control, particularly as line size increases. | The short body and exposed disc can provide a comparatively simple wetted profile when the seat and shaft interfaces are hygienically designed. | Control sensitivity can be limited near low openings, and the disc, shaft, and seal interfaces require close examination. A simple on-off butterfly valve should not be assumed to control steadily. | Flow characteristic over the intended travel, minimum controllable opening, operating pressure drop, shaft and seat design, orientation, and actuator torque. |
This table is a screening tool, not a universal ranking. Actual flow cases, pressure drop, allowable product retention, cleaning method, and required fail action can eliminate an otherwise suitable design. The evaluation must use the exact body, trim, seal set, actuator, and installation orientation rather than the valve family name alone.
Check valves and pressure-relief valves are intentionally excluded because their primary functions are backflow prevention and overpressure protection. An automated sanitary ball or butterfly valve used only for isolation also remains an on-off valve unless its trim and actuation package are designed and sized for the required modulating duty.
What Do Sanitary Control Valves Regulate?
Sanitary control valves commonly regulate flow or dosing, pressure or backpressure, temperature through a heating or cooling stream, and vessel level. The controlled variable determines what the valve must accomplish; the location of the valve determines whether its wetted path also requires hygienic construction.
Flow and dosing. The valve changes the flow of product, an ingredient, cleaning solution, or another process stream in response to the flow controller. Selection must cover the minimum, normal, and maximum operating cases rather than one nominal flow rate. Available pressure drop, fluid properties, required turndown, shutoff behavior, and changes elsewhere in the system all affect whether the chosen valve can deliver usable control across those cases.
Pressure and backpressure. A control valve can maintain pressure downstream by adjusting the supply flow, or maintain upstream backpressure by restricting the outlet. These duties place the valve at different points in the process and may require different fail actions. The sizing review must also consider the pressure differential at each operating case because it affects flow capacity, actuator demand, trim loading, and the risk of damaging flow conditions.
Temperature. A temperature controller often positions a valve on a steam, hot-water, chilled-water, or other utility line feeding a heat exchanger or vessel jacket. The valve changes utility flow; it does not control temperature independently of the sensor, controller, heat-transfer surface, and process dynamics. If the valve is only on a non-product-contact utility line, its hygienic requirements may differ from those of a valve installed directly in the product path.
Level. Vessel level can be controlled by modulating an inlet valve, an outlet valve, or both under a defined control strategy. The valve must handle the changing pressure conditions created by liquid head and downstream equipment while still meeting the required response and fail position. When the controlled stream is the product, body orientation, drainage, seals, and cleaning coverage remain part of the selection.
The service boundary should therefore be marked on the process diagram before a sanitary valve is specified. A product-contact valve, a valve in a clean-utility system, and a general plant-utility valve may perform similar control functions but face different material, surface-finish, drainage, documentation, and validation requirements. Defining that boundary prevents both under-specification and unnecessary hygienic features.
What Do FDA, 3-A, EHEDG and ASME BPE Claims Actually Mean?
FDA, 3-A, EHEDG, and ASME BPE do not prove the same thing. One may address the regulatory status of a food-contact substance, another may authorize a symbol for identified equipment, another may evaluate hygienic design within a defined certification class, and another may set project requirements for bioprocessing equipment. Combining them into a general “sanitary certified” label hides these different scopes.
FDA Status Applies to Components and Conditions of Use
In the United States, the food-contact question begins with the substances used in each wetted component and their regulatory basis for the intended conditions of use. The applicable status can depend on the material formulation, food type, contact time, and temperature. The FDA guidance on food-contact material components explains this component-by-component approach.
For that reason, “FDA-approved valve” is usually too broad to be technically useful. A more precise record identifies the relevant seat, gasket, diaphragm, lubricant, coating, or other food-contact component; states its material or compound; and connects it to the applicable regulatory basis and use conditions. Food-contact status also does not establish cleanability, drainability, corrosion resistance, or durability through repeated CIP/SIP cycles.
3-A Symbol Authorization Is Equipment- and Standard-Specific
3-A Sanitary Standards define hygienic criteria for particular equipment categories. Use of the 3-A Symbol is tied to authorization under the program, not merely to the use of stainless steel or a sanitary connection. The 3-A database of current certificates allows the authorization holder, equipment type, model information, applicable standard, and certificate status to be checked.
A statement that a design “follows 3-A principles” is not the same as a current 3-A Symbol authorization for the exact equipment. The scope should be associated with the identified model or series and the applicable standard. Extending one authorization to unrelated sizes, trims, seal sets, or valve families without supporting documentation creates a broader claim than the certificate establishes.
EHEDG Certification Has a Defined Class and Scope
EHEDG publishes design guidance and also operates equipment certification. A design can refer to an EHEDG guideline without being EHEDG-certified. For valves, the published requirements for hygienic and aseptic process valves address topics such as materials, drainability, microbial barriers, and considerations for different valve types.
An equipment certificate must still be read by its exact class, equipment type, model range, limitations, and validity. EHEDG explains in its certification FAQ that, for some closed-equipment certification classes, the evaluated scope concerns the internal wetted surfaces and parts rather than automatically covering the external frame or actuator. The unqualified phrase “EHEDG-compliant valve” does not communicate those boundaries.
ASME BPE Is a Bioprocessing Equipment Standard
ASME BPE addresses hygienic bioprocessing equipment and covers areas including materials, design, fabrication, inspection, testing, and certification. Its role differs from the regulatory status of a seal material or a model-specific hygienic equipment certificate. A project may invoke the standard for defined equipment, documentation, surface, joining, inspection, or testing requirements.
A statement such as “ASME BPE design” is incomplete unless it identifies the edition and the requirements applied to the valve or installation. It should not be treated as interchangeable with FDA food-contact status, a 3-A Symbol authorization, or an EHEDG certificate.
These evidence paths answer four different questions: what food-contact substances are suitable for their intended use, what identified equipment carries a current 3-A authorization, what equipment and wetted scope an EHEDG certificate evaluates, and what ASME BPE requirements apply to the project. A defensible claim links the exact component, equipment model, use condition, certification class, standard edition, and current supporting document. Without that link, a blanket compliance statement remains unverified.
