Ball valves are critical components in industrial systems, particularly for regulating the flow of fluids and gases through pipelines. Two of the most common types are top entry and side entry ball valves. While they serve similar functions, their design, maintenance, and application scenarios can differ significantly. Understanding these differences is essential for engineers, procurement professionals, and operations managers who must make informed decisions for their pipeline systems.
The Top Entry Ball Valve Structure and Characteristics
Top entry ball valves are widely regarded for their efficiency, accessibility, and versatility in industrial applications. Their structure is engineered to facilitate easy maintenance and servicing, making them highly suitable for environments where quick access to internal components is critical. Unlike other types of ball valves, the top entry design allows for the valve’s internals, including the ball, seats, seals, and stem, to be serviced from the top of the valve body without removing it from the pipeline.
One of the key structural features of top entry ball valves is the use of a single-piece body design. This design minimizes the number of joints, which in turn reduces the risk of leakage and simplifies the valve’s construction. The internal components, such as the ball and seats, are aligned vertically within the valve, which ensures that the flow path is unobstructed and optimizes the valve’s sealing performance.
In terms of material construction, top entry ball valves are often made from durable materials such as stainless steel or carbon steel, ensuring high resistance to corrosion, high pressures, and extreme temperatures. This makes them suitable for a wide range of industries, including oil and gas, chemical processing, water treatment, and power generation. The rugged construction of these valves enables them to maintain reliable performance over extended periods, even in harsh operating conditions.
Additionally, top entry ball valves offer flexibility in terms of automation. They can be paired with pneumatic, hydraulic, or electric actuators, enabling automated operations. This integration reduces the potential for human error and increases the efficiency of the system, particularly in applications that require remote operation or continuous monitoring.
Below is a detailed animation of a top-entry trunnion ball valve.
Source:Altek supply

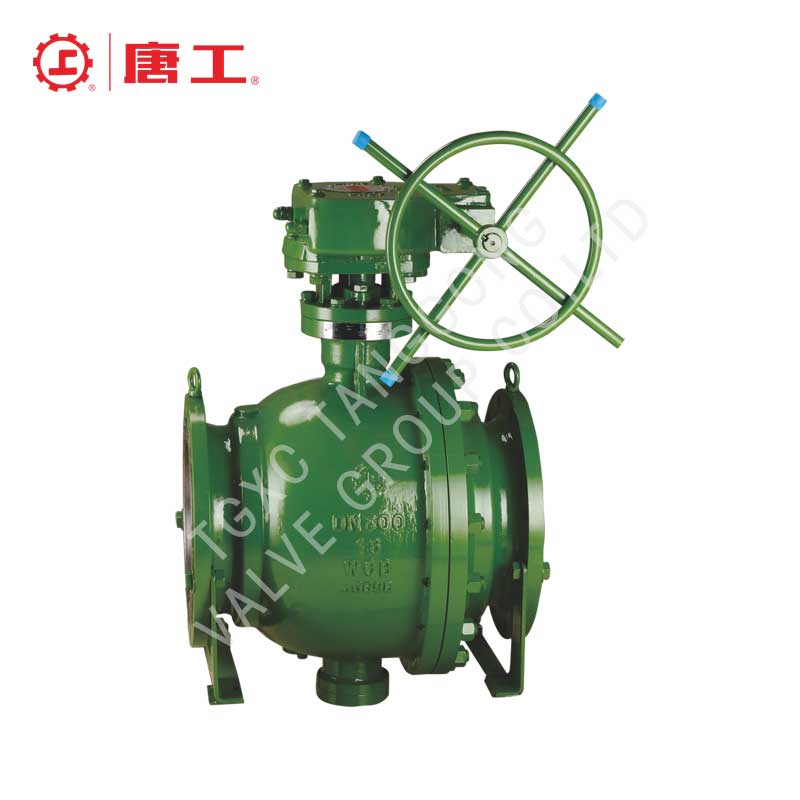

The Side Entry Ball Valve Design and Characteristics
Side entry ball valves are widely used in various industries due to their unique design and versatile characteristics. These valves are assembled by placing the ball into the valve body from the side, as opposed to the top-entry valve design. Typically, side-entry ball valves consist of a two-piece or three-piece body structure, where each section is secured using bolts or studs. This construction method makes them relatively easy to assemble and align, offering a more efficient and cost-effective solution for many applications.
One of the key features of side-entry ball valves is their straightforward maintenance process. While they may require the removal of the valve from the pipeline for servicing, this design allows maintenance personnel to access the valve’s trim components easily. This is in contrast to top-entry valves, which often require less disassembly for internal maintenance, making side-entry ball valves an ideal choice for applications that do not require frequent servicing or when space for maintenance is limited.
In terms of functionality, side-entry ball valves work by rotating a ball with a hollow center inside the valve body. The ball is connected to a stem that is positioned on the side of the valve, making it easier to operate the valve by turning the handle or lever. This quarter-turn movement of the ball either allows or blocks the flow of fluids, providing excellent flow control for a wide range of systems.
Here is a video provides valuable insights into side-entry trunnion ball valves and their assembly.
Source:L&T Valves
Maintenance and Ease of Use: A Key Factor in Valve Selection
Maintenance is a critical consideration when selecting a valve for an industrial application.
Top Entry Ball Valve Maintenance
- Quick Access to Internals: The primary advantage of top entry valves is that they can be serviced without being removed from the pipeline. This is a time-saving feature, especially in systems where uptime is a priority.
- Reduced Downtime: Because the valve internals can be accessed via the top, repairs and inspections can be done quickly, which is ideal for industries that cannot afford prolonged downtime.
Side Entry Ball Valve Maintenance
- Requires Valve Removal: For maintenance or repairs, side entry valves generally require the valve to be detached from the pipeline, leading to longer downtime.
- Suitability for Less Frequent Maintenance: If maintenance is less frequent or scheduled during planned shutdowns, side entry valves can be more cost-effective in the long term
Key Differences Between Top Entry and Side Entry Ball Valves
| Feature | Top Entry Ball Valve | Side Entry Ball Valve |
|---|---|---|
| Assembly | Assembled from the top of the valve body | Assembled from the side of the valve body |
| Maintenance | Quick access to internal components without removal from the pipeline | Requires removal from the pipeline for maintenance |
| Applications | Ideal for industries with high maintenance needs and frequent inspections | Suitable for industries with less frequent maintenance requirements |
| Cost | Generally higher initial cost, but lower maintenance costs due to ease of access | Typically lower initial cost, but higher long-term maintenance costs due to removal needs |
| Durability | Often built with more robust materials, suitable for high-pressure and high-temperature environments | Suitable for standard pressure and temperature applications, but may need more maintenance in harsh conditions |
| Installation | Requires more complex installation due to top-entry assembly | Easier to install due to side-entry design |
Which Valve Type Should You Choose?
When deciding between a top entry or side entry ball valve, consider the following factors:
- Maintenance Frequency: If your system requires frequent maintenance and inspections, a top entry valve might be the best choice due to its easy access.
- Cost Considerations: Side entry valves typically have a lower initial cost but may incur higher maintenance costs over time due to the need for valve removal.
- Application: Top entry ball valves are ideal for critical systems where uptime is essential, while side entry valves may be more suited for less critical or larger-scale operations where downtime is planned.
Conclusion
Both top entry and side entry ball valves have distinct advantages and disadvantages, depending on your specific needs. If minimizing downtime and ensuring easy maintenance are top priorities, a top entry valve will be the better option. However, if cost is a more significant concern and your application can accommodate scheduled maintenance, side entry valves may be more cost-effective. By carefully considering your maintenance requirements, budget, and application needs, you can make the right decision on which valve type will provide the best performance and longevity for your system.
