Valve actuators look simple from the outside, but they decide how a valve moves, how fast it responds, and what happens if air, power, or hydraulic pressure is lost. The main types of valve actuators include manual, pneumatic, electric, hydraulic, and self-acting designs, and each one fits a different duty.
For an industrial valve, the actuator should not be selected by power source alone. It must match the valve body, torque or thrust demand, pressure drop, medium, control signal, site environment, maintenance access, and required fail-safe position.
This guide compares valve actuator types by power source, motion, and fail-safe behaviour, then shows how each option fits ball, butterfly, gate, globe, and control valves. If you are matching an actuator with a process control valve package, MacoTango’s control valve series is a useful starting point for product direction.
What Is a Valve Actuator?
A valve actuator is the device that moves a valve from one position to another. It turns a valve stem, pushes a sliding stem, or rotates a shaft so the valve can open, close, or control flow without direct hand operation.
In a simple on-off valve, the actuator may only move the valve between fully open and fully closed. In a control valve, the actuator may move in small steps so the valve can regulate flow, pressure, temperature, or liquid level in a process line.
The actuator is not a separate choice from the valve. It must match the valve body, medium, pressure drop, required torque or thrust, control signal, and fail-safe position. This is why actuator selection usually sits inside a wider valve decision, alongside material, trim, seat, connection, and service conditions.
Main Types of Valve Actuators by Power Source
The easiest way to group valve actuator types is by the power source that drives the movement. In industrial valve service, the common choices are manual, pneumatic, electric, hydraulic, and self-acting actuators.
There is no single best actuator for every valve. A small isolation valve, a large butterfly valve, and a modulating control valve may all need different actuator designs because the duty, speed, force, control accuracy, and fail-safe requirement are different.
| Actuator type | Power source | Best fit | Main caution |
|---|---|---|---|
| Manual actuator | Handwheel, lever, gear operator | Simple local operation and low switching frequency | Not ideal for remote, unsafe, or frequent operation |
| Pneumatic actuator | Compressed air | Fast on-off duty, control valves, hazardous areas, spring-return fail action | Needs clean, dry air and correct air supply pressure |
| Electric actuator | Electric motor | Remote operation, position feedback, slow modulating or open-close service | Fail-safe action may need battery, spring, or special design |
| Hydraulic actuator | Pressurised hydraulic fluid | High force or high torque valves, large valves, heavy-duty service | Requires hydraulic power unit, seals, hoses, filtration, and maintenance |
| Self-acting actuator | Process pressure, temperature, or spring force | Local pressure or temperature control without external power | Less flexible than instrumented control systems |
For most process valves, pneumatic actuators are chosen when fast response, simple fail-safe action, and plant air are available. You can compare the working principle in more detail in MacoTango’s guide to pneumatic actuators.
Electric actuators are often useful where wiring is easier than air piping, or where remote position feedback is important. Hydraulic actuators are usually considered when the valve needs much higher force or torque. For these two options, see the related comparison of hydraulic and electric actuators.
Valve Actuator Types by Motion
Valve actuators can also be grouped by the motion they create. This matters because the actuator movement must match the way the valve opens, closes, or throttles flow.
A valve with a rising stem needs a different movement from a quarter-turn valve. If the motion does not match the valve design, the actuator will not operate the valve correctly, even if the power source is suitable.
| Motion type | How it moves | Common valve fit | Typical use |
|---|---|---|---|
| Linear actuator | Pushes or pulls a stem in a straight line | Globe valves, gate valves, diaphragm valves, sliding-stem control valves | Throttling, shutoff, and rising-stem valve operation |
| Rotary actuator | Turns a shaft through a set angle, often 90 degrees | Ball valves, butterfly valves, plug valves, rotary control valves | Fast open-close service and quarter-turn automation |
| Multi-turn actuator | Rotates the stem many times to open or close the valve | Gate valves, globe valves, some large isolation valves | Slower movement where high travel or stem rotation is needed |
Linear motion is common on globe-style control valves because the plug moves up and down against the seat. Rotary motion is common on ball and butterfly valves because the closure member turns inside the valve body.
When comparing rotary and linear actuators, the first check is the valve’s mechanical movement. After that, the buyer can compare torque, thrust, speed, control signal, fail position, and site utilities.
Spring-Return, Double-Acting and Fail-Safe Actuators
Actuator type is not only about power source or motion. It also decides what the valve does when the control signal, air supply, electric power, or hydraulic pressure is lost.
This is why fail-safe behaviour is one of the most important choices for automated valves. A valve may need to fail open, fail closed, or hold its last position, depending on the process risk.
Spring-return actuators
A spring-return actuator uses air, electricity, or hydraulic pressure to move the valve in one direction, then uses spring force to return the valve when power is lost. In pneumatic service, this is often called a single-acting actuator.
Spring-return designs are useful when the valve must move to a known safe position. For example, a process may need the valve to close to stop flow, or open to release pressure, if the utility supply fails.
Double-acting actuators
A double-acting actuator uses powered force in both directions. In a pneumatic actuator, air pressure opens the valve and air pressure also closes it. This can provide strong, steady movement, especially on larger valves or higher-torque duties.
The caution is that a double-acting actuator may not move to a safe position by itself when the air supply fails. If the process needs a defined fail-open or fail-closed action, the actuator package may need extra accessories or a different fail-safe design.
Fail-open, fail-closed and fail-last
Fail-open means the valve moves open when the utility supply is lost. Fail-closed means it moves closed. Fail-last means it stays close to its last position, which may be useful in some control duties but may not be safe for every process.
For pneumatic valves, the choice between single acting and double acting pneumatic actuators should be made with the valve action, process risk, air supply, and emergency position in mind.
Smart Actuators, Positioners and Feedback
Some valve actuators only receive a simple open or close command. Others are part of a control loop, where the system needs to know the valve position and adjust it in small steps.
This is where positioners, feedback devices, and smart actuator functions become important. They help the valve move closer to the required position instead of only switching between fully open and fully closed.
Positioners for modulating control
A valve positioner compares the control signal with the actual valve position. If the valve is not where it should be, the positioner adjusts the actuator until the valve reaches the target position.
Positioners are common on modulating control valves, especially when the valve must regulate flow, pressure, temperature, or level. They are less important for simple isolation valves that only need open and closed positions.
Feedback for open and closed status
Feedback devices tell the control system what the valve is doing. A limit switch may confirm fully open or fully closed status. A position transmitter may send a continuous position signal, such as a percentage opening.
This feedback helps operators avoid guessing. It also helps the control system detect slow movement, wrong position, or a valve that did not respond to a command.
Smart actuator functions
A smart actuator may include local display, digital control, diagnostics, communication output, and fault alarms. These functions can be useful when valves are hard to reach, tied into a DCS or PLC system, or part of a process that needs remote monitoring.
Smart features should still be selected around the process duty. For a basic manual backup or simple on-off valve, extra electronics may add cost without much value. For a control valve actuator, feedback and position control can be central to stable process operation.
Which Valve Bodies Use Which Actuators?
The valve body often decides the actuator motion before the power source is chosen. Ball, butterfly, and plug valves usually need quarter-turn rotary movement, while globe, gate, and many control valves often need linear or multi-turn movement.
This first fit check prevents a common mistake: selecting an actuator because it is pneumatic, electric, or hydraulic, before confirming whether it can move the valve in the right way.

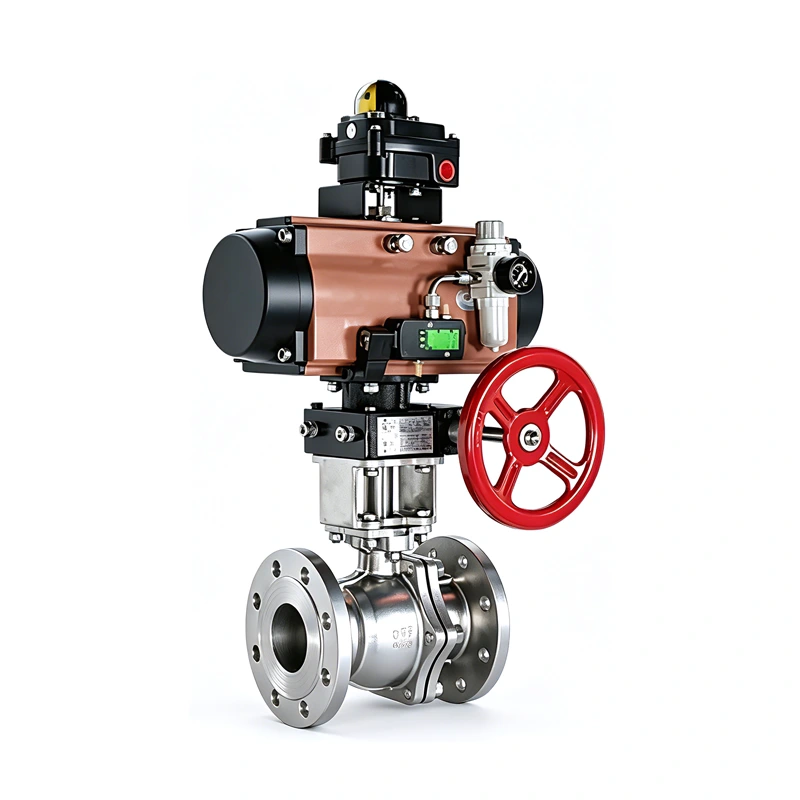

| Valve body type | Common actuator motion | Typical actuator options | Selection note |
|---|---|---|---|
| Ball valve | Quarter-turn rotary | Pneumatic, electric, hydraulic, manual lever or gear | Check break torque and shutoff pressure |
| Butterfly valve | Quarter-turn rotary | Pneumatic, electric, hydraulic, worm gear | Confirm disc torque, seat type, and service temperature |
| Plug valve | Quarter-turn rotary | Pneumatic, electric, hydraulic, manual gear | Check seating friction and required torque margin |
| Globe or control valve | Linear sliding-stem | Pneumatic diaphragm, piston, electric linear, hydraulic | Match thrust, stroke, positioner, and control signal |
| Gate valve | Multi-turn or linear | Electric multi-turn, bevel gear, hydraulic, manual handwheel | Check stem travel, closing time, and thrust demand |
| Knife gate valve | Linear | Pneumatic cylinder, hydraulic cylinder, electric linear | Consider slurry, solids, packing friction, and full stroke |
For quarter-turn valves, the mounting interface also matters. If a ball, butterfly, or plug valve is prepared for actuator mounting, the ISO 5211 mounting standard can help align the valve top flange, shaft, bracket, and actuator connection.
This table is only the first selection layer. Final actuator sizing still needs torque or thrust data, differential pressure, valve travel, operating speed, fail position, control duty, and site utility conditions.
How to Choose the Right Valve Actuator Type
Choosing the right valve actuator type starts with the valve duty, not the actuator catalogue. The actuator must move the valve reliably under real process conditions, then meet the control, safety, and maintenance needs of the site.
Start with the valve and process duty
First confirm whether the valve is used for isolation, emergency shutoff, throttling, pressure control, flow control, or temperature control. On-off valves usually need reliable travel between two positions. Modulating valves need stable intermediate movement and often need a positioner or feedback signal.
- Check the valve body type and movement: quarter-turn, linear, or multi-turn.
- Confirm required torque or thrust under pressure, not only under no-load conditions.
- Review pressure drop, medium, temperature, viscosity, solids, and corrosion risk.
- Decide whether the valve must fail open, fail closed, or hold last position.
- Confirm available utilities: compressed air, electric power, hydraulic power, or process pressure.
- Match the control duty: manual, on-off, modulating, remote operation, or feedback control.
- Check site conditions such as hazardous area, outdoor exposure, humidity, dust, and ambient temperature.
- Leave enough space for mounting, manual override, air filter regulator, solenoid valve, limit switch, and maintenance access.
Choose by service fit, not by habit
Pneumatic actuators often fit fast operation, simple fail-safe action, and plants with stable compressed air. Electric actuators can fit remote sites, slow operation, and applications where wiring is easier than air supply. Hydraulic actuators are better suited to high-force or high-torque duties, especially on large valves or severe service.
The final choice should also consider maintenance skill on site. A plant with strong instrument-air support may prefer pneumatic packages. A remote water or utility site may prefer electric operation. A large high-pressure valve may need hydraulic force even if other actuators are easier to install.
A good actuator selection does not just make the valve move once. It makes the valve move at the right speed, to the right position, with the right safety action, under the real pressure and service conditions of the process.
Common Valve Actuator Selection Mistakes
Most actuator problems start before installation. The actuator may be good, but it can still perform poorly if it was selected without enough process, valve, or control information.
These mistakes are common when a buyer treats the actuator as an accessory instead of part of the full valve package.
- Choosing by power source only. A pneumatic actuator is not automatically better because plant air is available, and an electric actuator is not automatically better because wiring is simple. The actuator still needs the right motion, force, speed, and fail action.
- Ignoring real torque or thrust demand. Valve torque changes with pressure, temperature, seat type, medium, wear, and differential pressure. An actuator sized only from no-load movement can be too weak in service.
- Using the wrong fail position. Fail-open, fail-closed, and fail-last are process safety decisions. The wrong emergency position can create a bigger process risk than the actuator failure itself.
- Mixing the wrong motion and valve body. A quarter-turn actuator fits many ball and butterfly valves, but it does not fit a rising-stem valve unless a suitable mechanism is used.
- Forgetting position feedback. A remote valve may need open/closed confirmation, fault signal, or continuous position feedback. Without feedback, operators may not know whether the valve actually moved.
- Overlooking the site environment. Outdoor exposure, dust, humidity, hazardous area, vibration, corrosive air, and high ambient temperature can all change enclosure, material, and accessory choices.
- Leaving no room for maintenance. Actuators often need space for removal, manual override, solenoid valves, air filter regulators, limit switches, tubing, cables, and inspection access.
The safest approach is to select the actuator and valve as one assembly. This keeps the mechanical movement, operating force, control signal, fail-safe action, and maintenance needs aligned from the start.
Where Different Valve Actuator Types Are Used
Different valve actuator types are used across many process industries. The choice depends on how often the valve moves, how much force is needed, what utilities are available, and what the valve must do during an emergency.
In chemical processing, actuated valves are often used where operators need remote control, repeatable shutoff, or safer handling of aggressive media. Pneumatic actuators are common where plant air is available, while electric actuators may fit slower remote operation or sites with fewer air lines.
In water treatment and wastewater systems, electric and pneumatic actuators are often used on butterfly valves, ball valves, gate valves, and control valves. These systems may need remote operation, flow adjustment, pump protection, or automatic isolation across large plant areas.
In power, steam, and boiler-related service, actuator selection must consider temperature, pressure, valve movement, and control accuracy. Pneumatic control valve actuators are often used where fast response and modulating control are needed, while electric multi-turn actuators may suit larger isolation valves.
In oil, gas, mining, and slurry service, the actuator may need higher torque, strong sealing force, rugged enclosure protection, or hydraulic power. The medium can be heavy, dirty, abrasive, or high pressure, so the actuator should be selected with valve torque margin and maintenance access in mind.
For process-control applications, the actuator is part of the full control valve package. The valve body, trim, actuator, positioner, accessories, and signal must work together. MacoTango’s industrial control valves page can support the next product-level review when the application needs modulating flow or pressure control.
