Buried soft seal gate valves are an essential component in modern pipeline systems, particularly for applications where space conservation and protection from environmental factors are critical. Unlike conventional gate valves, which are typically installed above ground, buried soft seal gate valves are designed for underground installation, offering enhanced protection against corrosion, physical damage, and environmental elements. Their unique soft sealing mechanism ensures a reliable and durable seal, making them ideal for urban water supply networks, sewage systems, and underground heating applications. In this article, we will explore the key differences, advantages, and best practices for installing and maintaining buried soft seal gate valves, helping you make informed decisions for your pipeline infrastructure.

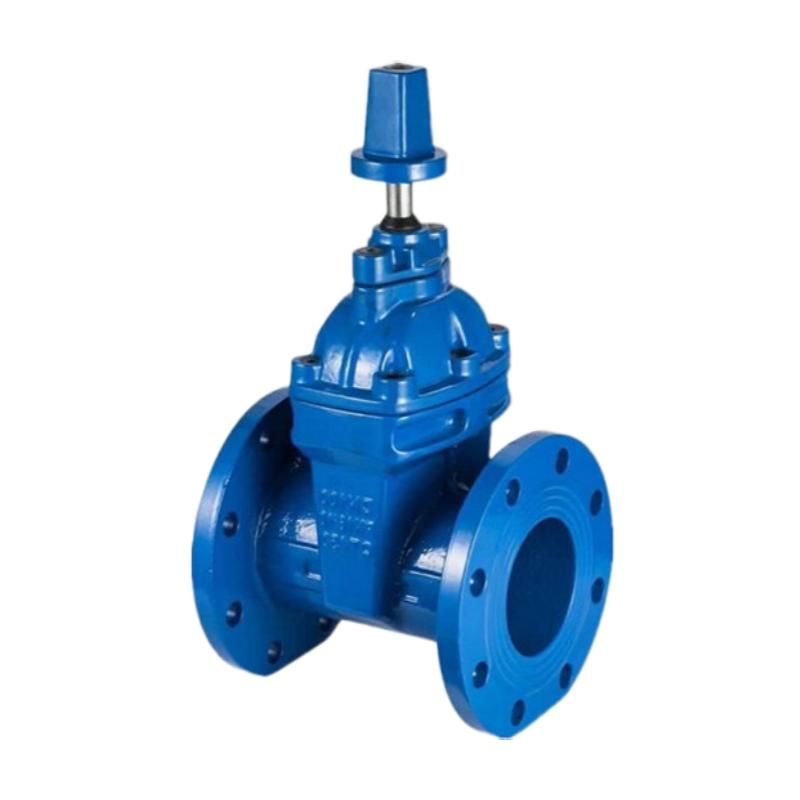

What is a Buried Soft Seal Gate Valve?

A buried soft seal gate valve is a type of valve specifically designed for underground installation within pipeline systems. Unlike traditional gate valves that are installed above ground, these valves are buried to protect them from environmental factors such as corrosion, physical damage, and to conserve surface space. They are commonly used in urban water supply systems, sewage treatment plants, and other infrastructure projects where space is limited and environmental protection is crucial. ​

The primary purpose of a buried soft seal gate valve is to control the flow of fluids within a pipeline. When closed, the valve creates a tight seal, preventing the passage of fluids, and when open, it allows for the unrestricted flow of fluids. This on/off functionality is essential for managing water distribution, sewage systems, and various industrial processes. The “soft seal” refers to the valve’s sealing mechanism, which utilizes elastic materials like rubber or polymers to achieve a reliable and durable seal, ensuring minimal leakage and prolonged service life. ​

Importance in Modern Pipeline Systems

In contemporary pipeline infrastructure, especially in urban settings, space constraints and environmental considerations make buried soft seal gate valves indispensable. By being installed underground, they free up valuable surface area, maintaining the aesthetic integrity of urban landscapes and reducing the need for extensive surface excavation. Additionally, their underground placement shields them from environmental elements, thereby extending their operational lifespan and reducing maintenance requirements.



Buried vs. Conventional Soft Seal Gate Valves: Key Differences

Installation Location:

Conventional soft seal gate valves are typically installed above ground, allowing for easy access and straightforward maintenance. In contrast, buried soft seal gate valves are designed for underground installation, effectively protecting them from environmental factors such as corrosion and physical damage. This underground placement is particularly advantageous in urban areas where surface space is limited and aesthetic considerations are important. ​

The underground installation of buried soft seal gate valves necessitates specialized access points, such as extension rods, to facilitate operation and maintenance. While these valves are less susceptible to environmental damage, the need for excavation to access them can increase maintenance complexity and costs. Conversely, conventional gate valves, being surface-mounted, offer easier access, simplifying routine inspections and maintenance tasks.

Material and Environmental Resistance

To withstand the harsh conditions of underground environments, buried soft seal gate valves are often constructed from corrosion-resistant materials such as ductile iron, stainless steel, or carbon steel. Additionally, these valves may be coated with epoxy or other protective layers to enhance their resistance to corrosion and prolong their service life. ​

The underground location exposes these valves to soil moisture, chemicals, and potential electrochemical reactions. The use of corrosion-resistant materials and protective coatings is essential to prevent degradation from these environmental factors, ensuring the valves maintain their integrity and functionality over time. ​

Operation and Control Methods

While conventional soft seal gate valves are often operated manually or via actuators, buried soft seal gate valves typically require operation through surface-mounted operating devices or installation of remote control systems. This may involve the use of extension rods or actuators to facilitate operation from ground level, accommodating the underground installation. ​



Applications of Buried Soft Seal Gate Valve

• Urban Water Supply Networks: In municipal water distribution, buried soft seal gate valves are crucial for regulating water flow and isolating sections of the pipeline for maintenance or emergencies. Their underground installation conserves surface space and protects them from environmental factors, ensuring a consistent and safe water supply to urban areas. ​
• Underground Heating and Sewage Systems: These valves are extensively used in underground heating networks to control the flow of heat transfer media, maintaining efficient energy distribution throughout urban heating systems. Similarly, in sewage treatment facilities, they manage wastewater flow, facilitating effective treatment processes and preventing backflow. ​
• Industrial and Municipal Infrastructure Projects: Buried soft seal gate valves are employed in various industrial applications, including oil and gas pipelines, chemical processing plants, and power generation facilities. Their robust construction and corrosion-resistant materials make them suitable for handling diverse media under varying pressure and temperature conditions. Municipal projects, such as stormwater drainage systems and irrigation networks, also utilize these valves to ensure reliable operation and infrastructure longevity.



Advantages of Buried Soft Seal Gate Valves

1. Long-Term Durability in Harsh Environments

Constructed from corrosion-resistant materials such as ductile iron and equipped with protective coatings, these valves are designed to withstand the challenging conditions of underground installations. This robust construction ensures a prolonged service life, even in environments exposed to soil moisture, chemicals, and electrochemical corrosion. ​

2. Reduced Maintenance Requirements

The durable materials and protective coatings minimize the frequency and intensity of maintenance activities. Additionally, the valves’ design allows for straightforward disassembly and component replacement, further reducing maintenance efforts and associated costs. ​

3. Enhanced Safety and Leak Prevention

The soft sealing mechanism, often utilizing elastic rubber linings, provides a reliable seal that effectively prevents leaks, even under low-pressure conditions. This feature is particularly beneficial in applications where leak prevention is critical for safety and environmental protection.



Installation Best Practices for Buried Soft Seal Gate Valve

Source:bestopvalveindustry

Proper installation of buried valves is essential to ensure their longevity and optimal performance. The following best practices are recommended:​

1. Soil Preparation and Trench Requirements

• Trench Excavation: Excavate trenches to the required depth, ensuring a stable foundation for the valve assembly. The trench width should accommodate the valve and allow for proper backfilling.​

• Bedding Material: Place a layer of well-compacted granular material at the trench base to support the valve and facilitate proper alignment. This bedding layer should be free from sharp objects that could damage the valve.​

• Trench Stability: Implement measures to prevent trench collapse, such as shoring or trench boxes, especially in unstable soils. Ensure that the trench walls are vertical or battered back to a safe angle to maintain stability.​

2. Proper Sealing and Anti-Corrosion Measures

• Valve Coatings: Apply high-quality, corrosion-resistant coatings to the valve body to protect against soil moisture and chemicals. Epoxy coatings are commonly used for their durability and resistance to aggressive environments.​

• Cathodic Protection: Install cathodic protection systems to prevent electrochemical corrosion. This involves applying a small, continuous electrical charge to counteract the natural corrosion process. Regular monitoring and maintenance of the cathodic protection system are crucial for its effectiveness. ​

• Wrapping: Use protective wraps, such as polyethylene or bituminous tapes, around the valve to provide an additional barrier against moisture and corrosive elements. Ensure that the wrapping is applied without gaps and extends over the valve’s joints.​

3. Compliance with Industry Standards

• Adherence to Standards: Follow relevant industry standards and guidelines to ensure the installation meets safety and performance requirements. For instance, the American Water Works Association (AWWA) provides specific standards for the installation of buried valves. ​

• Documentation: Maintain detailed records of the installation process, including materials used, installation dates, and inspection reports. This documentation is valuable for future maintenance and compliance audits.​

• Quality Assurance: Implement quality control measures during installation, such as visual inspections and pressure testing, to verify that the valve operates correctly and is free from defects.



Maintenance Tips for Buried Soft Seal Gate Valve

Proper maintenance of underground valves is essential to ensure their longevity and reliable operation. The following guidelines are recommended:​

1. Inspection Intervals and Remote Monitoring Solutions

• Regular Inspections: Conduct routine inspections at intervals recommended by the valve manufacturer or industry standards. These inspections should assess the valve’s operational status, sealing integrity, and the condition of surrounding infrastructure.​

• Remote Monitoring: Implement remote monitoring systems to track valve performance and detect anomalies in real-time. Technologies such as smart sensors and IoT-enabled devices can provide continuous data, facilitating proactive maintenance and reducing the need for frequent manual inspections.​

2. Addressing Common Issues

• Sediment Buildup: Over time, sediment can accumulate within the valve, impeding its function. Regular flushing of the valve can help remove these deposits. In cases of significant buildup, disassembling the valve for thorough cleaning may be necessary. ​

• Seal Wear: The sealing components of the valve are subject to wear and tear, leading to potential leaks. Inspect seals during routine maintenance and replace them promptly if signs of degradation are observed. Utilizing high-quality sealing materials can extend the lifespan of these components.

• Packing Leakage: Leakage around the valve stem packing is a common issue. To address this, ensure the gland nut is tightened evenly. If leakage persists, consider adding more packing material or replacing the packing entirely.

• Gate Plate and Valve Seat Sealing Surface Issues: Contamination or damage to the sealing surfaces can lead to leakage. Regularly inspect these areas and clean them as needed to maintain a proper seal.



How to Choose the Right Buried Soft Seal Gate Valve

Selecting the appropriate buried soft seal gate valve is crucial for ensuring the longevity and efficiency of your pipeline system. Consider the following key factors:

1. Material Grade

The material selection for the valve body and sealing components is vital to withstand environmental conditions and the conveyed medium. Common materials include:​

• Ductile Iron: Offers high strength and excellent corrosion resistance, making it suitable for various applications.​

• Stainless Steel: Provides superior resistance to corrosion and high temperatures, ideal for aggressive environments.​

• Carbon Steel with Protective Coatings: Utilizes coatings like epoxy to enhance corrosion resistance, suitable for less demanding conditions.​

Ensure that the chosen material aligns with the specific requirements of your application.​

2. Pressure Rating

The valve’s pressure rating determines the maximum pressure it can safely handle. Selecting a valve with an appropriate pressure rating ensures reliable operation under expected system pressures. For instance, valves designed for high-pressure applications should meet standards such as ASME B16.34. ​

3. Valve Size

Choosing the correct valve size is essential for optimal flow control. The size should match the pipeline diameter and accommodate the required flow rates without causing excessive pressure drops. Refer to standards like ASME B16.5 for flange dimensions and ASME B16.10 for face-to-face dimensions to ensure compatibility. ​

4. Importance of Certifications and Supplier Reliability

• Certifications: Opt for valves that comply with recognized industry standards and certifications, such as ISO 9001 for quality management systems or CE marking for products sold in the European Union. These certifications indicate that the valves have undergone rigorous testing and meet specific performance and safety criteria.

• Supplier Reliability: Choose reputable suppliers like Tanggong Valve, known for their proven track record of delivering high-quality products and providing reliable customer support. A reliable supplier ensures timely delivery, availability of spare parts, and assistance with technical issues, contributing to the overall success of your project.



Conclusion

In conclusion, buried soft seal gate valves offer significant advantages in modern pipeline systems, providing long-term durability, reduced maintenance, and enhanced safety, particularly in urban water supply networks, underground heating, and sewage systems. Their ability to withstand harsh environmental conditions and operate efficiently in limited-access environments makes them an essential component for various industrial and municipal applications. By following best practices in installation, maintenance, and choosing the right valve based on material, pressure rating, and size, you can ensure the longevity and optimal performance of your system. If you’re looking for high-quality buried soft seal gate valves, contact us today to discuss your project needs and get expert advice.
