A CF8M mark on a ball valve body identifies the body casting as a 316-type stainless steel material, but it does not specify the whole valve package.
The buyer still has to check the pressure class, WOG marking, temperature, seat material, ball and stem material, end connection and medium. A CF8M body can be a good choice for many corrosive water, chemical and clean-service lines, but the same marking will not make a valve suitable for every chloride, acid, slurry, steam or high-temperature duty.
For a CF8M ball valve, the useful check is whether the body material, pressure rating and sealing system all match the same service. The material code is the starting point; the final selection depends on what the valve will actually shut off, how hot the line gets, and what the seats and internal parts can tolerate.
What CF8M Means on a Ball Valve Body
On a ball valve body, CF8M normally refers to the cast stainless steel body material, not the seat, ball, stem, packing or gasket material.
The letters are usually seen as a raised casting mark on the valve body, often beside size and pressure information such as DN, PN or Class. In a practical inspection, that marking tells the buyer that the pressure-containing body is a cast 316-type stainless steel. It does not confirm the end connection, bore type, soft-seat material, fire-safe design or test document scope.
This is why a CF8M replacement valve should not be selected from the body code alone. Two valves can both have CF8M bodies, but one may use PTFE seats for normal temperature liquid service while another may need graphite packing, metal seats or a different pressure-temperature rating. If the existing valve has several cast or nameplate codes, read them together instead of treating CF8M as the full specification. MacoTango’s guide to valve body markings can help separate body material, size, rating and standard information before the replacement is ordered.
CF8M Material Properties and ASTM A351 Context
CF8M is chosen for ball valve bodies when the line needs better corrosion resistance than ordinary cast carbon steel or CF8 cast stainless steel.
In valve material documents, CF8M is a cast austenitic stainless steel grade under ASTM A351. It is commonly treated as the cast equivalent of 316 stainless steel because it contains molybdenum, usually around 2% to 3%, along with chromium and nickel. That molybdenum content is the main reason CF8M handles pitting and crevice corrosion better than CF8 in many mildly corrosive services.
The word “cast” matters. A CF8M body is made as a casting, while 316 stainless steel is often used to describe wrought plate, bar, pipe, forged parts or general stainless trim. In a ball valve datasheet, the body may be CF8M, but the ball, stem, seat, packing and bolting can have different materials. A buyer should check each wetted and pressure-containing part rather than reading “316 stainless steel ball valve” as one complete material statement.
External material references such as ASTM A351 CF8M casting alloy descriptions are useful for confirming the material family, but the valve still needs to be checked against the working pressure, temperature, medium and sealing design. CF8M improves the body material, not every weak point in the valve assembly.
CF8M vs CF8, CF3M and 316 Stainless Steel
CF8M is usually selected over CF8 when the medium needs a molybdenum-bearing 316-type cast body, especially where pitting or crevice corrosion is a concern.
| Material code | Common stainless family | Practical meaning for ball valves | Buyer check |
|---|---|---|---|
| CF8 | Cast 304-type stainless steel | Suitable for many clean water, air and mild service conditions | May be weaker than CF8M where chlorides or stronger corrosion are present |
| CF8M | Cast 316-type stainless steel | Adds molybdenum for better resistance in many corrosive liquid services | Still check chloride level, temperature, seat material and pressure rating |
| CF3M | Cast 316L-type stainless steel | Lower carbon version used when corrosion risk after welding or heat exposure is a concern | Confirm whether low-carbon casting is required by the project specification |
| 316 / 316L | Wrought or general stainless steel designation | Often used for balls, stems, forged parts, pipe, plate or general material descriptions | Do not assume every valve part is 316 just because the body is CF8M |
The useful comparison is not whether one code is always better than another. CF8M gives the body a 316-type cast stainless material, while CF8 is closer to cast 304 and CF3M is the low-carbon cast 316L-type option. A stainless steel ball valve may combine several of these material families in one assembly.
For replacement work, ask which part the material code describes. The body casting, ball, stem, seat, gland packing, gasket and bolting can each have a different material requirement. A valve that is correct for ambient water service may still be wrong for hot chemical service if the seat, packing or pressure-temperature rating is not checked with the same care as the CF8M body mark.
Where CF8M Ball Valves Fit Best
CF8M ball valves fit best when the valve body needs better corrosion resistance than carbon steel or CF8, but the service does not require a higher alloy such as duplex, super duplex, Hastelloy or titanium.
Common uses include treated water, mildly corrosive chemical lines, clean liquid service, compressed air with moisture, and process systems where ordinary cast steel would rust or contaminate the medium. CF8M is also a practical choice for many outdoor or coastal atmospheres, provided the actual chloride exposure, temperature and cleaning chemicals are checked before ordering.
The body material is only one part of the selection. A CF8M body with PTFE seats may work well for many normal-temperature liquid services, but the same body may need different seats, packing or gaskets for steam, solvents, abrasive particles or frequent cycling. For automated service, actuator torque also depends on pressure drop, seat design and how often the valve opens and closes.
For standard shut-off duties, MacoTango can match CF8M body material with different end connections, bore types and actuation options in its industrial ball valves. The safer selection method is to match the medium, pressure, temperature and sealing material together instead of choosing by stainless grade alone.
Where CF8M Is Not Enough
A CF8M body does not make the whole ball valve corrosion-proof.
The risk is higher in chloride-rich water, seawater, strong acids, strong alkalis, slurry, high-temperature service and lines where solids can scratch the ball or seats. In these conditions, corrosion or leakage may start at crevices, seat pockets, packing areas, bolting, weld zones or internal parts, even when the body casting itself is CF8M.
Temperature also changes the decision. A valve that is acceptable for ambient liquid service may lose margin when the line gets hot, because pressure-temperature ratings and soft-seat limits are not fixed numbers. PTFE, reinforced PTFE, graphite, metal seats and elastomer seals all behave differently under heat, pressure, chemical attack and frequent operation.
For continuous seawater, high chloride chemicals, abrasive slurry, high-cycle automation or high-temperature shut-off, CF8M should be treated as a starting material, not the final answer. The better choice may be a different stainless grade, duplex stainless steel, a special alloy, a lined valve, a metal-seated design or a different valve type. The decision should come from the medium and duty cycle, not from the CF8M marking alone.
Pressure Class, WOG Marking and Seat Details to Check
A 1000 WOG CF8M marking should not be read as a high-temperature steam rating.
WOG markings are commonly used for water, oil and gas pressure ratings under non-shock conditions, often at normal temperature. They do not replace the pressure-temperature rating for a flanged, threaded or welded industrial valve. When the line temperature rises, the allowable working pressure can fall, and the seat material may reach its limit before the CF8M body does.
| Item to check | Why it matters | Common mistake |
|---|---|---|
| CF8M body | Confirms the cast stainless body material | Assuming the ball, stem and seats are the same material |
| WOG or pressure class | Defines the pressure basis for the valve | Using a WOG mark as a steam or high-temperature rating |
| Temperature | Changes the allowable pressure and sealing material choice | Checking pressure at ambient temperature only |
| Seat and packing | Control shut-off, chemical resistance and temperature limit | Selecting CF8M while ignoring PTFE, graphite or elastomer limits |
| End connection | Affects installation, pressure rating and replacement fit | Matching DN size but missing flange, thread or weld-end details |
For pressure-temperature ratings, standards such as ASME B16.34 are used to define valve pressure classes and material ratings. MacoTango’s guide to the ASME B16.34 standard gives more context for buyers comparing valve markings, pressure classes and end connections.
The safest reading is simple: CF8M tells you the body material, while WOG, PN, Class, temperature and seat material tell you whether that valve can work in the actual line.
Practical Selection Notes Before Replacement or Ordering
A replacement valve can match CF8M and still be wrong for the line.
Start by matching the installation details: DN or NPS size, flange drilling, thread type, weld end, face-to-face length and bore type. A full-port CF8M ball valve, reduced-port CF8M ball valve and three-piece butt weld design may all use similar body material, but they do not fit the same piping layout or create the same pressure drop.
Then check the working duty. Frequent opening and closing can change the seat and actuator choice. Abrasive particles may damage soft seats. Hot service may require graphite packing or metal seats. Chemical service may need confirmation for the seat, packing, gasket and stem, not just the body casting.

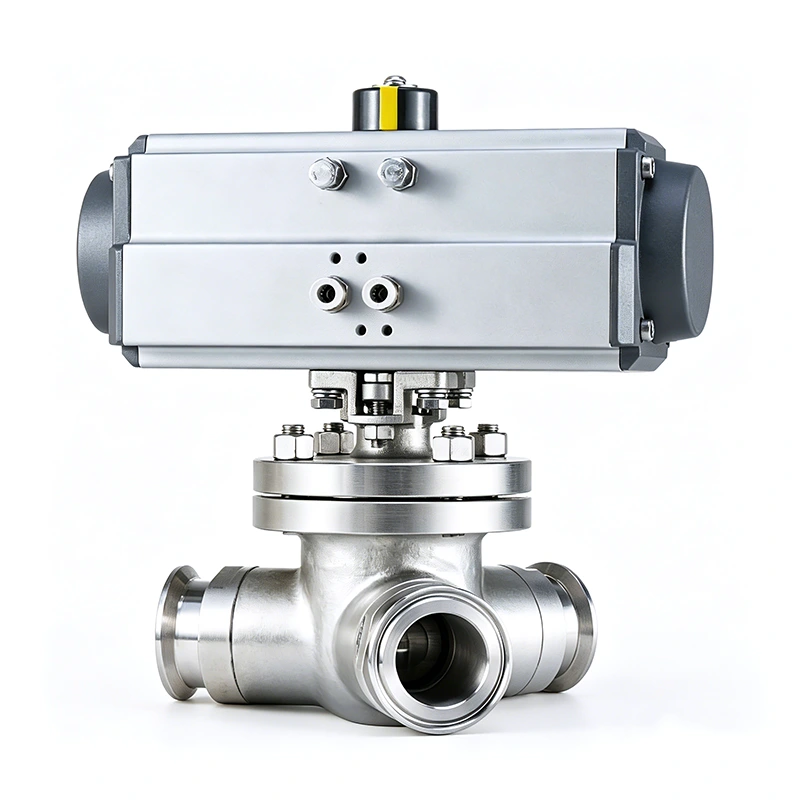

If the valve is automated, do not select the actuator from valve size alone. Required torque changes with pressure, seat design, medium, temperature and how long the valve has been in service. A pneumatic or electric actuator that works on a clean water line may not give enough margin on a sticky, corrosive or high-pressure shut-off duty.
For construction reference, a three-piece butt weld ball valve shows why body style and connection type matter as much as material. The CF8M mark answers the material question; the replacement still has to match the pipe, pressure, temperature, seat system and operation method.
Match CF8M to the Medium, Rating and Seat System
For a CF8M ball valve, the final decision is made by the medium, pressure-temperature rating and sealing system working together.
If the service is ambient water or a mild chemical, a CF8M body with suitable soft seats may be enough. If the line contains chlorides, steam, abrasive particles, strong chemicals, frequent cycling or automated shut-off, the body, ball, stem, seats, packing, gasket, pressure class and end connection should be checked as one valve package.
MacoTango can review existing valve markings, drawings, medium, working temperature, pressure and connection details before recommending a CF8M ball valve or another material option. For service-condition review, contact MacoTango with the line data and any photos of the current valve body markings.
