A control valve changes the effective flow area inside a pipeline in response to a control command. By increasing, reducing or holding that opening, it directly alters fluid flow and allows a control loop to regulate flow rate, pressure, temperature or liquid level.
Within that loop, a transmitter measures the process variable, the controller compares it with the set point, and an actuator moves the valve trim. As the final control element, the valve converts controller output into a physical process change and can hold intermediate positions instead of operating only fully open or fully closed.
What Is a Control Valve?
The term control valve identifies the regulating duty of an assembly, not a particular valve-body shape. Globe, angle, ball, butterfly and plug bodies can all be configured for control when their trim, actuator and control arrangement suit modulating service.
During modulation, the plug, ball, disc or other closure member moves through intermediate positions as the process load changes. An actuated valve that receives only open and close commands remains an on-off valve, even if its body and actuator resemble those used in a control-valve assembly.
Regulating valve and modulating valve are often used for similar duties, although terminology varies between industries and plants. These names describe operating behaviour rather than construction; they do not establish the body type, actuator power, fail action or suitability for a particular service.
How Does a Control Valve Work?
A control valve works inside a feedback loop. The loop measures the process, calculates a correction and changes the restriction in the pipeline until the controlled variable moves back towards its set point.
Measurement and controller output
A sensor and transmitter measure the process variable, such as flow rate, downstream pressure, temperature or liquid level. The controller compares that measurement with the set point and calculates the output required to correct the difference. This output represents the requested valve response; the controller does not move the valve or fluid directly.
Actuator and positioner response
The controller output reaches the actuator either directly or through a positioner. A pneumatic, electric or hydraulic actuator converts its input energy into the thrust or torque needed to move the valve stem or shaft.
When fitted, a positioner compares the requested valve travel with the measured position and adjusts the actuator output to reduce the difference. It can help compensate for packing friction, process forces and actuator behaviour, but not every control-valve application requires one.
Trim movement and process correction
The actuator moves a plug, ball, disc or other closure member relative to its seat. This movement changes the effective flow area, alters the restriction and changes the flow available under the current pressure conditions. The resulting flow change can then correct pressure, temperature, level or another controlled variable elsewhere in the process.
The transmitter measures the new process condition and returns it to the controller, so the loop continues adjusting as the load changes. Valve position is not a direct flow measurement: 50% travel does not necessarily produce 50% flow because the result also depends on the valve characteristic, pressure drop and resistance of the installed system.
Main Parts of a Control Valve Assembly
A control valve assembly combines components that contain and regulate the fluid, generate mechanical movement and, where required, improve position control. The exact construction depends on the valve type, actuator and service conditions.

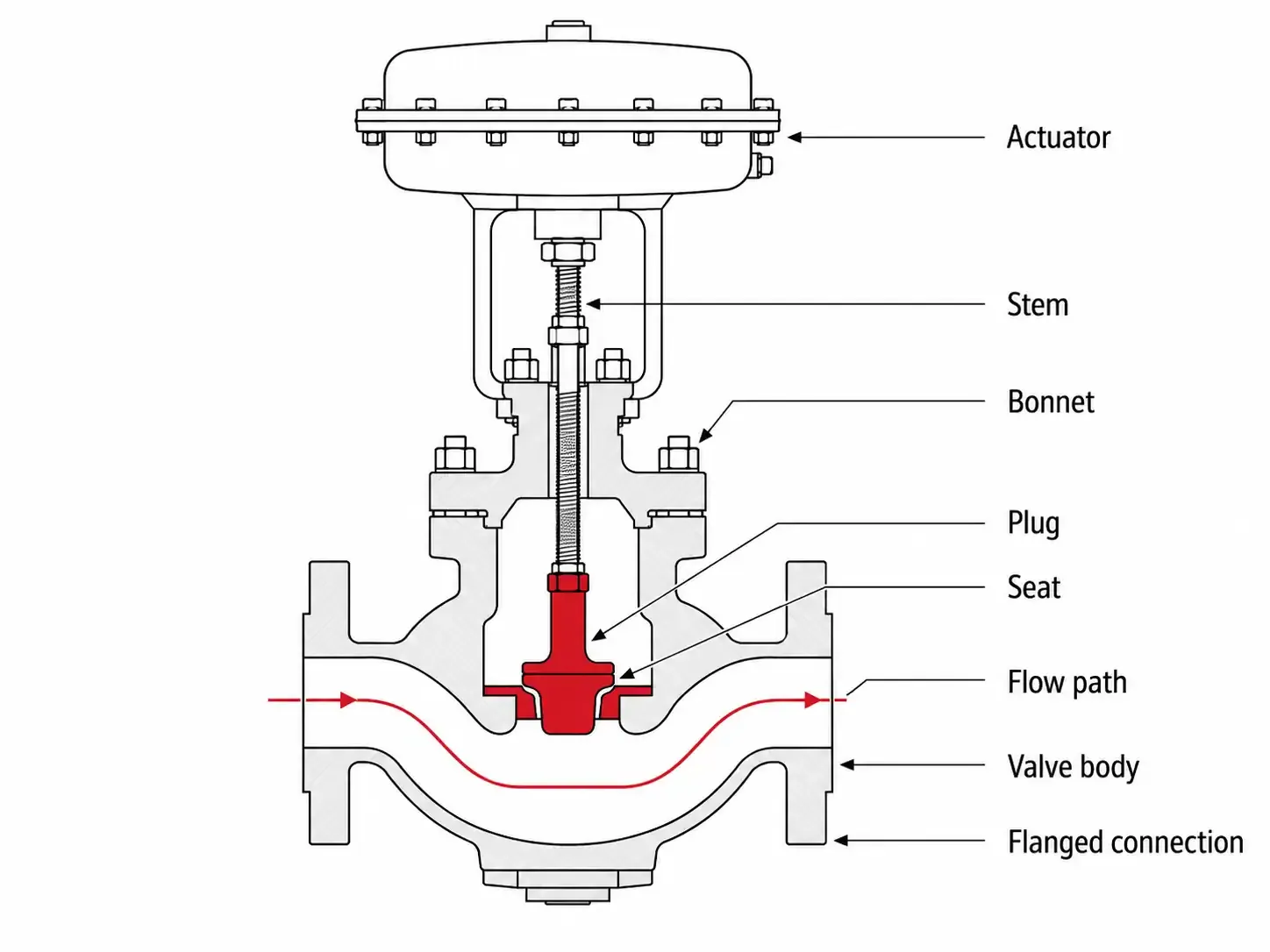

Valve body and trim
The valve body is the main pressure-containing structure and provides the connections to the pipeline. Inside it, the trim changes the effective flow area and forms the shut-off interface. Depending on the design, the trim can include a plug, ball or disc together with its seat, stem, shaft, cage or guides.
A bonnet closes the body opening and supports the moving stem in many linear-motion designs. Packing around the stem limits external leakage while allowing movement, although the sealing arrangement and allowable leakage depend on the valve design and service requirements.
Actuator
The actuator supplies the thrust or torque required to move the valve trim. Pneumatic, electric and hydraulic actuators are available, but their suitability depends on the valve motion, process forces, required seat load, friction and available power or supply pressure.
An actuator must have sufficient usable force throughout the required travel. If it lacks adequate margin, the valve may respond slowly, stop before reaching the commanded position or fail to achieve the specified shut-off performance even when the control signal is correct.
Positioner and accessories
A positioner is used when the application requires the valve position to follow the controller command more closely. It compares the requested travel with the measured stem or shaft position and adjusts the actuator input to reduce the difference. Some applications can operate without a positioner.
Accessories may include an air filter regulator, solenoid valve, volume booster, lock-up valve, limit switch or position transmitter. Their selection depends on the signal system, response requirements and required protective functions. See the detailed guide to control valve body, trim, actuator and positioner parts for individual component names and functions.
Control Valve vs On-Off Valve
A control valve is commanded to hold intermediate positions so that it can vary the process restriction. An on-off valve is commanded primarily to move between its open and closed end positions for isolation, diversion or discrete process control.
| Comparison point | Control valve | On-off valve |
|---|---|---|
| Primary duty | Modulates flow to influence a process variable | Starts, stops, isolates or redirects flow |
| Commanded positions | Uses intermediate positions as the process load changes | Normally uses fully open and fully closed positions |
| Trim and seat duty | Must suit sustained throttling and the expected pressure and velocity conditions | Selected mainly for isolation performance and cycling duty |
| Body style | Can use globe, ball, butterfly, plug or other suitable designs | Can use many of the same body styles |
The body shape or presence of an actuator does not establish the valve duty. A ball valve can be configured for modulation, while a globe valve can serve an on-off application. The complete assembly must be suitable for the intended operating positions, pressure conditions, cycling frequency and required shut-off performance. A detailed control valve vs on-off valve comparison explains these application boundaries further.
Common Control Valve Types
There is no universal list of three control valve types. Control valves can be categorised by trim motion, body style, actuator power or control method, and these classifications should not be treated as interchangeable. By trim motion, the two main groups are linear-motion and rotary-motion valves.
Linear-motion control valves
In a linear-motion valve, the closure member moves in a straight line towards or away from the seat. Globe and angle control valves are common examples. Their internal construction may use different plugs, seats, cages and flow directions to produce the required capacity, flow characteristic, pressure control and shut-off performance.
Rotary-motion control valves
In a rotary-motion valve, a ball, disc or plug turns around a shaft to change the flow area. Ball, butterfly and rotary plug control valves belong to this group. Their available capacity, range of controllable travel and response to pressure forces depend on the body and trim geometry rather than rotary motion alone.
Pneumatic, electric and hydraulic describe actuator power sources, while self-operated valves use process energy instead of an external controller and actuator signal chain. These are separate classification dimensions, not additional motion groups. The appropriate construction remains dependent on the fluid, pressure drop, required flow characteristic, shut-off duty and operating conditions. A broader guide to control valve types and body styles covers the individual designs in more detail.
Conclusion
A control valve is defined by its regulating duty: it converts a control command into a change in process restriction through the combined action of the valve body, trim and actuator, with a positioner or other accessories added where the application requires them. The label identifies what the assembly is intended to do, but it does not by itself define the body style, actuator, flow characteristic, shut-off capability or suitability for a particular service.
