A flange check valve is a type of valve designed to allow fluid flow in one direction while preventing backflow, which is critical in maintaining system integrity in fluid control systems. The distinctive feature of flange check valves is their flanged ends, which make it easy to bolt the valve to pipelines, ensuring a secure and leak-proof connection. These valves are used in various industries, including oil and gas, water treatment, and chemical processing, where the prevention of reverse flow is crucial.

Purpose and Functionality of Flange Check Valves

The primary function of a flange check valve is to control the direction of fluid flow and prevent reverse flow that could damage equipment or disrupt system operations. Check valves, in general, are self-acting valves, meaning they do not require manual or external power to operate. Instead, they rely on the flow of the medium (liquid or gas) to function. When the forward flow occurs, the valve opens automatically, and when the flow stops or reverses, the valve closes, preventing backflow.

Flange check valves are typically used in systems where pressure must be maintained, and backflow could cause significant problems, such as pump damage, contamination, or safety hazards. They can be found in both horizontal and vertical pipeline configurations, making them versatile for different installation setups.

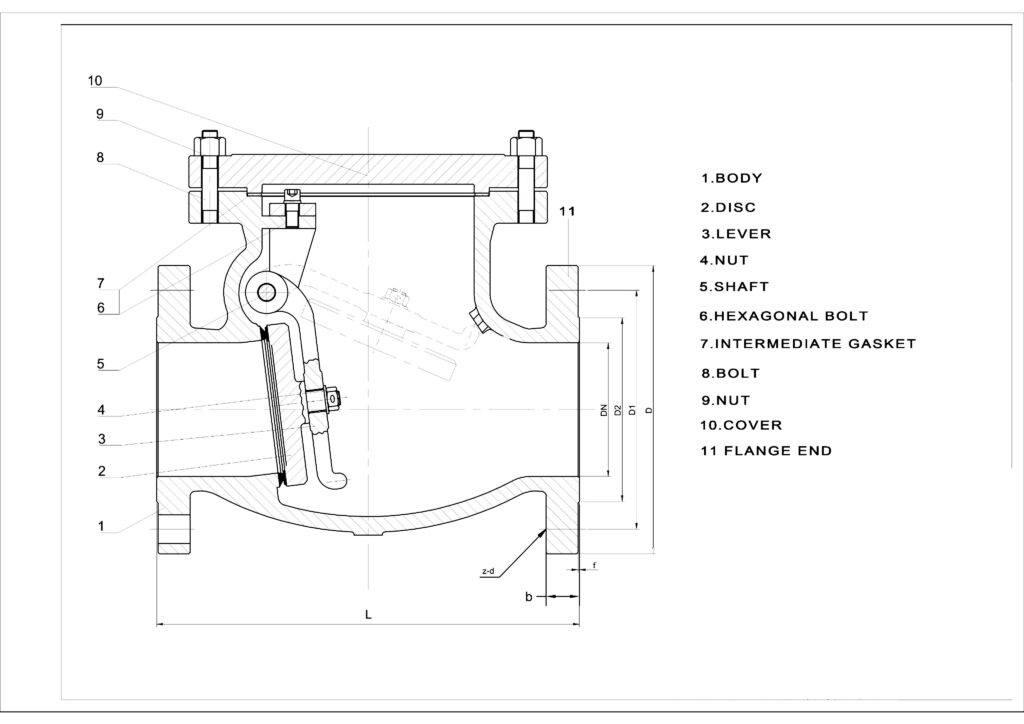

Check Valve Diagram

Components

• Body (1): The main casing that holds all the components together and provides the passage for fluid flow.
• Disc (2): The core component that moves to allow or block the flow of fluid.
• Lever (3) and Shaft (5): The disc is connected to a lever and shaft, which helps in guiding its movement and maintaining stability during operation.
• Intermediate Gasket (7): Ensures a proper seal between connecting parts to prevent leakage.
• Bolts (8) and Hexagonal Bolt (6): Used to secure the valve components, especially the cover.
• Cover (10): Protects internal components and helps in maintenance.
• Flange Ends (11): The flanges are used to connect the valve to the piping system.

Working Principle of Flange Check Valve

Forward Flow (Opening the Valve)

• When fluid enters the valve from the inlet side (left side in the diagram), the fluid pressure pushes against the disc (2).
• The disc pivots or lifts away from its seat due to the pressure differential, creating an open path for the fluid to flow through the valve.
• The lever (3) and shaft (5) help guide and support the movement of the disc, ensuring it moves smoothly without tilting or getting misaligned.
• During forward flow, the valve remains open, allowing fluid to move from the inlet flange to the outlet flange with minimal resistance.

Reverse Flow Prevention (Closing the Valve)

• When the fluid flow reverses or the inlet pressure drops below the downstream pressure, the disc (2) is forced back towards the valve seat.
• The reverse pressure or the weight of the disc causes it to return to its closed position, effectively sealing the flow passage.
• This movement prevents any backflow of fluid, ensuring that the medium moves only in the intended direction.
• The intermediate gasket (7) ensures a tight seal when the disc closes, preventing any leakage.

Self-Actuating Mechanism

• The operation of the valve is entirely self-actuating, meaning it doesn’t require any external controls or manual operation.
• The movement of the disc is solely dependent on the pressure of the fluid. When forward pressure is sufficient, the disc opens, and when reverse pressure increases, it closes.

Key Points of the Working Mechanism

• The disc (2) acts as a swinging or moving barrier that opens to allow flow and closes to prevent backflow.
• The lever (3) and shaft (5) provide mechanical support, ensuring that the disc operates properly without tilting or misalignment.
• The flange ends (11) make it easy to install the valve within a pipeline, ensuring it can handle pressure effectively without leaking.
• When the fluid pressure from the inlet side is greater than that on the outlet side, the valve opens. When this pressure differential reverses, the valve automatically closes, effectively preventing backflow.

Advantages and Disadvantages of Flange Check Valves

Common Applications of Flange Check Valves

Flange check valves are essential in many industries due to their reliability and effectiveness in preventing backflow. Some common applications include:

• Oil and Gas Pipelines: In oil and gas transportation, flange check valves prevent reverse flow, which could lead to contamination or pressure issues in pipelines.
• Water Treatment Systems: These valves are used to control the flow of water in treatment plants, ensuring that treated water does not mix with untreated water due to backflow.
• Chemical Processing: In chemical plants, flange check valves ensure that chemical mixtures flow in the correct direction, preventing contamination and maintaining process safety.
• Pumping Systems: Flange check valves are installed downstream of pumps to prevent the backflow that could damage the pump impeller or motor, ensuring the longevity of the pumping system.

FAQs

1.What are the common types of flanged check valves?

Common types include:

1. Swing Check Valves: Utilize a hinged disc that swings open and closed.
2. Lift Check Valves: Feature a disc that lifts off the seat to allow flow.
3. Wafer Check Valves: Compact valves that fit between flanges.
4. Ball Check Valves: Use a ball to block reverse flow.

2.What materials are flanged check valves made from?

They are constructed from materials such as stainless steel, carbon steel, cast iron, brass, and PVC, chosen based on the application’s requirements and the nature of the fluid.

3.Where are flanged check valves commonly used?

They are used in industries like water supply, wastewater treatment, oil and gas, chemical processing, and power generation to prevent backflow and protect equipment.

4.How do I select the appropriate flanged check valve for my application?Consider factors such as:

1. Size and Pressure Rating: Ensure compatibility with your system’s specifications.
2. Material Compatibility: Match the valve material to the fluid and operating conditions.
3. Flow Characteristics: Choose a valve type that suits your system’s flow requirements.

5.Can flanged check valves be installed in any orientation?

Installation orientation depends on the valve type. Some are suitable for horizontal and vertical installations, while others may have specific orientation requirements. Always refer to the manufacturer’s guidelines.

6.Do flanged check valves require regular maintenance?

While they are generally low-maintenance, periodic inspection is recommended to ensure proper operation and to address any wear or debris accumulation.

Conclusion

Flange check valves play a vital role in ensuring the proper flow direction in various industrial systems, providing an automatic and reliable way to prevent backflow and protect equipment. Their ease of installation, low maintenance requirements, and effectiveness in maintaining system integrity make them an excellent choice for industries that handle liquids and gases under pressure. However, it’s essential to consider their limitations, such as pressure drop and wear, when selecting them for specific applications.
