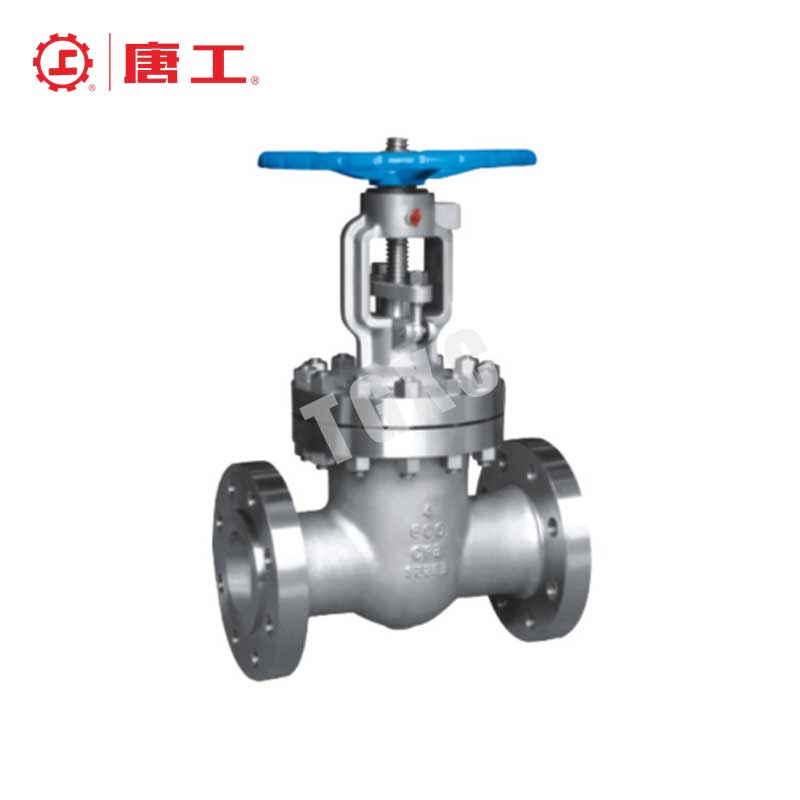

A flange gate valve is a type of valve used primarily for regulating fluid flow in industrial systems. The design is characterized by its flanged ends, which make it easy to install in piping systems, providing a secure connection that can withstand high pressure. Gate valves, in general, are used to either start or stop the flow of a medium, functioning like an on-off switch for pipelines. Due to their simple operation and effective shutoff capabilities, flange gate valves are a popular choice in various applications.
Introduction to Gate Valves
Gate valves are designed to control the flow of liquids and gases through the use of a movable gate. Unlike globe valves, which are often used for throttling applications, gate valves are typically employed in situations requiring a full shutoff with minimal pressure drop. When the gate is fully lifted, the valve allows an unobstructed passage, making it ideal for applications where pressure loss must be minimized. The gate itself can be round or rectangular, and it moves perpendicular to the flow of the fluid.
Design and Functionality of Flange Gate Valves
Flange gate valves feature a gate that moves up and down to open or close the valve. The design consists of the following key components:
- Body and Bonnet: The body contains the gate and provides the housing for the valve’s internal components, while the bonnet covers and protects the moving parts.
- Gate: The gate can either be solid or flexible, and it moves in a linear motion. When fully open, it offers very low flow resistance.
- Stem: The stem connects the handwheel or actuator to the gate, translating the rotational force into linear motion.
- Flanged Ends: The flanged connections ensure easy installation by bolting the valve to the pipeline, which provides strong and leak-resistant joints.
These valves are operated by rotating a handwheel to raise or lower the gate. In automated systems, actuators are often used in place of manual operation to provide more control and efficiency. Flange gate valves are ideal for applications that require a straight-line flow with minimal restrictions.
Characteristics of Flanged Gate Valves
Flanged gate valves have several defining characteristics that make them suitable for a variety of industrial applications:
- Secure Flanged Connections: Flanged gate valves are equipped with flanged ends that allow easy bolting or welding to the pipeline. This provides a strong, leak-proof seal, which is essential in high-pressure environments.
- Low Pressure Drop and Full Bore Flow: When fully open, the gate valve provides an unobstructed path for the fluid, resulting in minimal pressure drop. This characteristic makes flanged gate valves ideal for applications requiring a consistent flow rate and reduced energy loss.
- Reliable Shutoff and Bidirectional Flow: Flanged gate valves are capable of providing reliable shutoff in both directions, which makes them highly versatile for use in pipelines where fluid flow needs to be completely isolated.
- Material and Operational Versatility: These valves are available in various materials, including cast iron, stainless steel, and alloy steels, making them suitable for a wide range of fluids, including corrosive and high-temperature media. They can be manually operated via a handwheel or automated with actuators for enhanced control.
Advantages and Disadvantages of Flange Gate Valves
| Advantages | Disadvantages |
|---|---|
| Ease of Installation and Maintenance: The flanged ends allow for straightforward bolted connections to pipelines, facilitating easy installation and removal for maintenance purposes. | Slow Operation: Gate valves require multiple turns to open or close fully, making them unsuitable for applications necessitating rapid actuation. |
| Minimal Flow Resistance: When fully open, these valves provide an unobstructed flow path, resulting in low pressure drop and efficient fluid movement. | Not Suitable for Throttling: Using gate valves for flow regulation can cause vibration and uneven wear, leading to potential damage over time. |
| Robust Construction: The simple design with minimal moving parts enhances durability and reduces the likelihood of mechanical failure. | Large Installation Space Required: The overall dimensions and opening height are relatively large, necessitating significant installation space. |
| Bidirectional Sealing Capability: Flanged gate valves can effectively block flow in both directions, offering flexibility in system design and operation. | Potential for Leakage: Due to the gap between the valve disc and the valve seat, there may be a small leakage when the valve is closed, especially under low pressure or high temperature conditions. |
Applications of Flanged Gate Valves
- Oil and Gas Industry: Flanged gate valves are extensively used in the oil and gas sector for isolating flow in pipelines, refineries, and storage facilities. Their ability to handle high-pressure and high-temperature conditions makes them ideal for controlling the flow of crude oil, natural gas, and refined products.
- Water and Wastewater Treatment: In municipal and industrial water treatment plants, these valves regulate the flow of water and sewage. Their robust construction ensures durability and reliability in handling large volumes of fluid.
- Chemical Processing: Flanged gate valves are employed in chemical plants to control the flow of various chemicals, including corrosive and hazardous substances. Material selection is crucial in these applications to ensure compatibility and prevent degradation.
- Power Generation: In power plants, these valves manage the flow of steam, water, and other fluids within the system. Their ability to withstand high temperatures and pressures is essential for maintaining operational safety and efficiency.
Conclusion
Flange gate valves play a vital role in various industrial systems, offering dependable flow control and efficient shutoff capabilities. Their robust design, characterized by flanged connections and minimal pressure drop, makes them suitable for high-pressure and high-temperature environments, such as those found in oil and gas, chemical processing, and power generation industries. While flange gate valves excel in providing reliable shutoff and low flow resistance, they are less suited for throttling and require adequate space for installation. A comprehensive understanding of their design, advantages, and limitations ensures the proper selection and application of flange gate valves to meet specific operational needs effectively.
