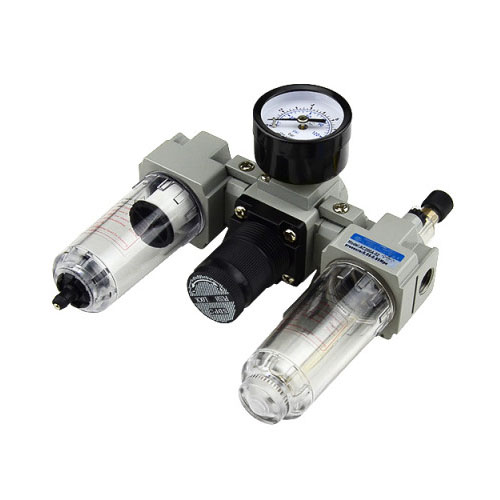

An FRL unit, which stands for Filter, Regulator, and Lubricator, is an essential component in pneumatic systems that ensures compressed air is clean, properly pressurized, and lubricated before reaching downstream equipment. This integrated unit streamlines maintenance and enhances system efficiency, playing a critical role in industrial settings where the quality of compressed air directly impacts the performance and longevity of pneumatic tools and machinery. By filtering out contaminants, regulating air pressure, and providing lubrication, an FRL unit protects sensitive components from damage, reduces downtime, ensures consistent operation, and extends the service life of equipment. As a result, it enhances productivity, reduces maintenance costs, and improves the overall reliability of pneumatic systems.

The Three Core Components of an FRL Unit

Air Filter: Ensuring Clean Compressed Air

• Function: The air filter removes moisture, contaminants, and impurities from compressed air. By trapping solid particles such as dust, dirt, and rust, it prevents these contaminants from entering the pneumatic system, thereby safeguarding sensitive components.

• Impact on System Longevity and Performance: By eliminating harmful particles, the filter reduces the risk of equipment damage and wear. This contributes to smoother operation, fewer maintenance requirements, and an extended service life for pneumatic tools and machinery.

Pressure Regulator: Stabilizing Airflow

• Role in Maintaining Consistent Pressure: The pressure regulator controls and stabilizes the air pressure within the pneumatic system. It ensures that downstream components receive air at the optimal pressure, preventing fluctuations that could affect performance.

• Protecting Valves and Actuators from Pressure Fluctuations: By maintaining consistent pressure, the regulator protects valves, actuators, and other pneumatic components from potential damage caused by pressure spikes or drops. This protection enhances the reliability and efficiency of the entire system.

Lubricator: Enhancing Component Longevity

• Purpose: The lubricator injects a controlled amount of oil mist into the compressed air system. This lubrication reduces friction in moving parts, such as valves and actuators, ensuring smooth operation.

• Applications Where Lubrication Is Critical: Lubrication is particularly important in applications where components experience high friction or operate under heavy loads. Proper lubrication minimizes wear and tear, leading to improved performance and a longer lifespan for pneumatic equipment.



Key Benefits of Using an FRL Unit

Incorporating a Filter, Regulator, and Lubricator (FRL) unit into pneumatic systems offers several advantages that enhance operational efficiency and equipment longevity.

1. Extended Equipment Lifespan

• Protection from Contaminants: The filter component removes moisture, dirt, and other harmful debris from compressed air, preventing these contaminants from entering pneumatic components. This protection reduces wear and tear, thereby extending the lifespan of tools and machinery.

• Consistent Lubrication: The lubricator ensures that moving parts receive a controlled amount of oil mist, reducing friction and minimizing the risk of premature component failure. This consistent lubrication contributes to the durability of pneumatic equipment.

2. Improved System Efficiency and Reliability

• Stable Air Pressure: The regulator maintains consistent air pressure, ensuring that pneumatic tools operate at optimal performance levels. Stable pressure is crucial for the efficient functioning of actuators and valves, leading to reliable system performance.

• Enhanced Performance: By providing clean, properly pressurized, and lubricated air, FRL units enable pneumatic systems to function smoothly, reducing the likelihood of operational disruptions and enhancing overall system efficiency.

3. Cost Savings Through Reduced Downtime and Repairs

• Minimized Maintenance: By preventing contaminants from entering the system and ensuring proper lubrication, FRL units reduce the frequency of maintenance interventions. This reduction in maintenance needs leads to cost savings and less downtime.

• Lower Repair Costs: Protecting components from damage caused by contaminants and pressure fluctuations decreases the likelihood of costly repairs or replacements, contributing to significant cost savings over time.



Standard Installation Sequence for FRL Units

The Correct Order: Filter → Regulator → Lubricator (F→R→L)

The correct installation order is Filter → Regulator → Lubricator (F→R→L). This sequence ensures that each component functions effectively:

• Filter: Eliminates moisture and contaminants before air reaches downstream components.
• Regulator: Maintains consistent pressure in clean air, ensuring stable operation.
• Lubricator: Provides controlled lubrication without contaminating the filter or regulator.



For a visual overview of FRL units and their components, you might find the following video helpful:

Source: ARO® Fluid Management



Step-by-Step Installation Guidelines

1. Verify Component Cleanliness: Before installation, ensure that all FRL components are clean and free from dust or debris.

2. Check Airflow Direction: Each component is marked with an arrow indicating the correct airflow direction. Install the filter first, followed by the regulator, and then the lubricator, ensuring the arrows point toward the downstream equipment.

3. Secure Mounting: Mount the FRL unit securely to minimize vibration and prevent potential damage. Use appropriate brackets and fasteners to ensure stability.

4. Connect to Air Supply: Attach the FRL unit to the compressed air supply line, ensuring all connections are tight and leak-free.

5. Adjust Pressure Settings: Set the regulator to the desired pressure level, typically around 90 PSI for most pneumatic tools. Ensure the pressure gauge reflects the correct setting.

6. Add Lubricant: If using a lubricator, fill it with the recommended air tool oil up to the indicated level. Avoid overfilling to prevent excessive oil mist.



Maintenance Checklist

1. Drain Filters Regularly: Periodically drain the filter bowl to remove accumulated water and contaminants. This prevents corrosion and maintains air quality.

2. Monitor Regulator Pressure Settings: Regularly check and adjust the regulator to ensure consistent pressure. Inconsistent pressure can affect the performance of pneumatic tools.

3. Refill Lubricator Oil: Check the oil level in the lubricator and refill as necessary. Use the recommended type of oil to prevent damage to pneumatic components.

4. Inspect for Leaks: Regularly inspect the FRL unit and associated piping for air leaks, which can reduce system efficiency and increase energy costs.

5. Replace Filter Elements: Over time, filter elements can become clogged with contaminants. Replace them at least once a year or as needed, depending on usage and air quality.



Risks of Incorrect Installation Order

Deviating from the standard sequence can lead to several issues:

1. Contaminant Exposure to Sensitive Components:

   • Installing the lubricator before the filter allows oil mist to reach the filter and regulator, potentially causing contamination and reducing their effectiveness.
   • Without prior filtration, contaminants can enter the regulator and lubricator, leading to premature wear and potential system failures.

2. Inconsistent Air Pressure:

   • Placing the lubricator before the regulator can result in fluctuating air pressure, as the regulator may not function optimally without clean, filtered air.
   • Inconsistent pressure can affect the performance of pneumatic tools and machinery, leading to inefficiencies and increased maintenance needs.

3. Reduced Lubrication Efficiency:

   • If the filter and regulator are not properly installed, the lubricator may not distribute oil mist evenly, causing inadequate lubrication.
   • This uneven lubrication can lead to increased friction, component wear, and potential system malfunctions.

4. Increased Maintenance and Downtime:

   • Incorrect installation can cause components to malfunction or fail, necessitating frequent maintenance and repairs.
   • This not only increases operational costs but also leads to unplanned downtime, affecting overall productivity.



Why Some Actuators Lack a Lubricator

In certain applications, actuators are designed without a lubricator to meet specific industry requirements, advancements in actuator design, and material considerations.

Industry-Specific Requirements

• Cleanroom Environments: Industries such as food processing and pharmaceuticals operate in cleanroom settings where maintaining a contaminant-free environment is crucial. In these settings, the use of oil-based lubricants is avoided to prevent contamination. Actuators in these environments are often designed to be self-lubricating or utilize dry lubrication methods to ensure compliance with stringent cleanliness standards

Advancements in Actuator Design

• Self-Lubricating Materials: Modern actuators are increasingly constructed using self-lubricating materials, such as certain polymers, which reduce the need for external lubricants. These materials allow actuators to operate efficiently without the risk of lubricant contamination, making them ideal for applications where traditional lubrication methods are impractical.

• Maintenance-Free Technologies: Advancements in actuator design have led to the development of maintenance-free technologies that eliminate the need for external lubrication. These actuators are engineered to operate effectively over extended periods without the need for regular maintenance, reducing downtime and operational costs.



When is a Lubricator Necessary?

In pneumatic systems, the decision to incorporate a lubricator depends on specific operational requirements and the nature of the components involved. While modern advancements have reduced the need for lubrication in many applications, certain scenarios still necessitate the use of a lubricator to ensure optimal performance and longevity of the equipment.

Scenarios Requiring External Lubrication:

• Older Systems with Non-Self-Lubricating Components: In legacy pneumatic systems, components such as valves and actuators were often constructed with materials that required external lubrication to function effectively. These components may not have the self-lubricating properties found in modern designs, making the use of a lubricator essential to prevent wear and ensure smooth operation.

• High-Friction or Heavy-Duty Applications: Applications involving high friction or heavy-duty operations, such as those in manufacturing and construction, place significant stress on pneumatic components. In these environments, a lubricator provides continuous lubrication, reducing wear and tear, preventing breakdowns, and minimizing maintenance costs.



FAQs About A FRL Unit

1.Do all pneumatic systems require an FRL unit?

Not all pneumatic systems require an FRL unit. The necessity depends on the specific requirements of the equipment and the operating environment. For instance, if the pneumatic tools are self-lubricating and the air quality is already sufficient, an FRL unit may not be necessary. However, in systems where air quality, pressure regulation, and lubrication are critical, incorporating an FRL unit is advisable to ensure optimal performance and longevity of the equipment.



Conclusion

In summary, the Filter, Regulator, and Lubricator (FRL) unit is essential in industrial pneumatic systems, ensuring that compressed air is clean, properly pressurized, and adequately lubricated before reaching downstream equipment. This integration of three critical components—filter, regulator, and lubricator—streamlines maintenance and enhances system efficiency. When selecting and customizing an FRL unit, it’s crucial to consider factors such as the operating environment, the specific requirements of the pneumatic tools, and the desired air quality. By carefully assessing these elements, industries can optimize performance, protect equipment, and achieve cost savings through reduced downtime and maintenance.
