What Is a Full Port Valve?

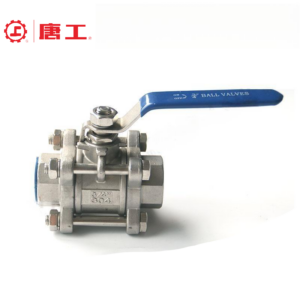

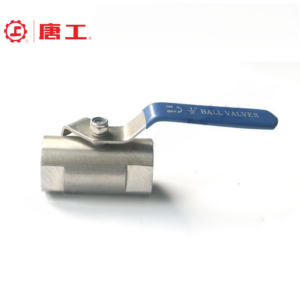

Three-Piece Threaded Ball Valve
A full port valve, also known as a full-bore ball valve, is engineered to provide uninterrupted fluid flow by ensuring that the valve’s internal diameter matches the pipeline’s size. This design element ensures that when the valve is open, there is minimal or no restriction to the flow, preserving the pressure and efficiency of the system.
Core Design Principle:
The defining feature of a full port valve is its internal bore, which is the same size as the pipeline it is attached to. Unlike standard port valves, which have a smaller internal opening, a full port valve provides a direct, unimpeded passage for the flow of liquids, gases, or slurries. This design ensures that the flow rate remains high and consistent, which is essential in many industrial applications that require the efficient movement of large volumes of fluid.
Key Components: Ball, Seats, and Materials
A full port valve consists of several crucial components that work together to control the flow:
- Ball: The ball inside the valve has a hole or “port” that aligns with the pipeline when the valve is open. This ball rotates to either allow or block the flow.
- Seats: Seals that prevent leakage when the valve is closed, ensuring that no fluid escapes.
- Materials: Full port valves are commonly made from materials like stainless steel, brass, or plastic. These materials are chosen for their durability, corrosion resistance, and ability to withstand high pressure and temperature conditions. PTFE (polytetrafluoroethylene) seals are often used to enhance leak prevention and improve the valve’s performance.
How It Works:
The operation of a full port valve is relatively simple. When the valve is open, the ball’s hole aligns with the pipeline, allowing fluid to pass through without restriction. This alignment ensures that the flow characteristics of the pipeline are maintained, and the pressure drop across the valve is minimal. The ball is rotated by a handle or actuator, which allows it to either open or close the valve by a quarter-turn. This straightforward operation makes full port valves an excellent choice for systems that require rapid response times and reliable flow control.
Key Features & Design of Full Port Valves
Unrestricted Flow Path:
Full port valves are designed with a flow path that aligns seamlessly with the pipe diameter, ensuring minimal resistance to fluid flow. This design significantly reduces friction, preventing any flow restriction and offering higher efficiency, especially in systems requiring large volumes of fluid. The unrestricted path allows for optimal fluid velocity and pressure retention, making these valves particularly valuable in industries like oil and gas, chemical processing, and water treatment, where consistent flow is essential.
Material Selection:
Material choice plays a crucial role in the performance and longevity of full port valves. They are typically made from corrosion-resistant metals like stainless steel, brass, and other alloys designed to withstand harsh environmental conditions and high-pressure scenarios. In addition to durable metals, high-performance seals, often made from elastomers or PTFE, ensure leak-tight performance and superior sealing capabilities. This makes full port valves an ideal choice for applications dealing with aggressive fluids or varying temperatures, ensuring reliability over time and minimizing the risk of system failures.
Pressure & Temperature Ratings:
Full port valves are engineered to handle a wide range of operating pressures and temperatures, making them versatile for various industrial environments. Their robust construction allows them to function efficiently in extreme conditions, from cryogenic to high-temperature applications, as well as systems under high pressure. Their ratings typically exceed those of standard valves, offering durability and performance in more demanding conditions. Whether used in pipelines for steam, natural gas, or chemicals, these valves provide excellent sealing and control, ensuring safe and effective fluid handling.
Advantages of Full Port Valves
High Flow Efficiency:
Full port valves are designed to provide a completely unobstructed flow path that matches the diameter of the pipe. This larger port size ensures minimal flow resistance, making them ideal for systems that handle viscous fluids or slurries. The smooth, unrestricted flow reduces turbulence and allows the fluid or slurry to pass through without significant pressure drops or friction. This is especially crucial for industries like manufacturing and chemical processing, where maintaining a steady and efficient flow is essential for optimal system performance.
Reduced Cavitation & Erosion
One of the most significant benefits of full port valves is their ability to reduce cavitation—a phenomenon where bubbles form and collapse within the flow, creating destructive forces that can damage both the valve and the pipeline. By ensuring an unrestricted flow path, full port valves help to mitigate the risks of cavitation, reducing the wear and tear on the system. This leads to longer service life for both the valve and the piping infrastructure, saving on costly repairs and downtime.
Energy Savings
The design of full port valves, with their larger bore size, significantly reduces the pressure drop across the valve when it is fully open. This means that less energy is required to push fluids through the system, which directly contributes to energy savings. In systems where energy efficiency is a top priority, such as in large-scale industrial plants or HVAC systems, full port valves can contribute to substantial cost reductions over time.
Limitations of Full Port Valves
Higher Cost
Due to their larger size and more robust design, full port valves typically come with a higher upfront cost compared to standard port valves. The increased material requirements and more complex manufacturing processes contribute to the cost difference. For budget-conscious projects or applications with less stringent flow requirements, the higher initial investment may be a disadvantage.
Bulkier Design
Full port valves, due to their larger body size, may not be suitable for applications where space is limited. Their bulkier design requires more room within the piping system, which can be a challenge in smaller or more compact setups. In such cases, opting for a standard port valve, which takes up less space, might be a more practical solution.
Pressure Limitations
While full port valves offer many advantages in flow efficiency, they can be more vulnerable to high-pressure environments. The thinner walls, designed to accommodate the larger bore size, may not be as well-suited to withstand extreme pressures. This limitation makes full port valves less ideal for applications where high-pressure conditions are a concern.
Differences Between Full Port Ball Valve and Standard Port Ball Valve
| Feature | Full Port Ball Valve | Standard Port Ball Valve |
|---|---|---|
| Flow Path | Unobstructed, equal to pipe diameter | Restricted, smaller than pipe diameter |
| Flow Resistance | Minimal, resulting in lower pressure drop | Greater, resulting in higher pressure drop |
| Size | Larger, requires more material | More compact, uses less material |
| Cost | Higher cost due to larger valve body | Lower cost, economical |
| Pressure Rating | Lower pressure rating due to thinner valve walls | Higher pressure rating due to thicker valve walls |
| Energy Efficiency | Higher, minimizes flow resistance | Moderate, higher pressure drop can lead to inefficiency |
| Applications | High flow water lines, steam systems, high viscosity fluids | High-pressure gas transport, cryogenic services, offshore platforms |
| Advantages | Reduced erosion, minimal cavitation, high flow capacity, energy efficiency | Compact, higher pressure ratings, cost-effective |
| Disadvantages | Expensive, bulky, limited pressure ratings | Causes pressure drop, not ideal for viscous or dirty fluids |
| Common Use Cases | Municipal water systems, oil and gas, HVAC, high viscosity media | Natural gas pipelines, offshore platforms, cryogenic services |
Common Applications of Full Port Valves
Full port valves are used in a wide range of industries, particularly in situations where maintaining maximum flow capacity is crucial. Typical applications include:
- Oil and Gas Pipelines: Full port valves are used to ensure full flow of hydrocarbons with minimal pressure loss, making them ideal for both upstream and downstream operations.
- Chemical Processing: The need for minimal pressure drop and reduced turbulence makes full port valves suitable for chemical processing where flow characteristics are critical.
- Water Treatment: In systems where water or wastewater must pass through without pressure losses, full port valves ensure efficient flow.
- Food and Beverage Production: The smooth flow through full port valves is especially important for maintaining product quality in sanitary applications.
How to Choose the Right Full Port Valve
Choosing the right full port valve for your application requires a deep understanding of several factors that affect the flow of materials and the performance of the valve. These considerations will ensure that the valve can operate efficiently and meet your specific needs.
Fluid Type
When selecting a full port valve, the compatibility with the type of fluid passing through is a key factor. Full port valves are highly versatile and can handle a variety of fluids, including gases, liquids, slurries, and even corrosive chemicals. For applications involving corrosive or aggressive chemicals, ensure that the materials used in the valve construction, such as stainless steel, PTFE, or other resistant materials, can withstand chemical reactions or corrosion. The right choice of material can prevent leaks, damage, and contamination, ensuring the longevity of your system.
Flow Requirements
The valve’s size must match the pipeline’s specifications to avoid flow restrictions. A full port valve, by definition, allows for the same diameter through the valve as the pipeline, ensuring an unobstructed flow. It is especially crucial for applications where high flow rates are necessary, such as in oil and gas pipelines or water treatment systems. Ensure that the valve’s bore is large enough to avoid any pressure drops, which can be detrimental to the overall efficiency of the system. A full port valve helps minimize pressure loss and ensures smooth fluid flow, which is essential in systems requiring high flow capacity or where flow efficiency is critical.
Environmental Factors
Finally, consider the environmental conditions in which the valve will operate. High-pressure or high-temperature systems require a valve that can withstand such conditions without compromising its integrity or performance. Full port valves are designed to handle extreme conditions, but choosing the correct material and sealing is still vital for ensuring reliable operation. Additionally, installation space constraints should be taken into account. Some full port valves may be bulkier due to their larger internal diameter, so assessing the available space in your pipeline and surrounding infrastructure is crucial. Make sure the valve can be installed easily without affecting the overall system design or performance.
FAQs
1.How does a full port valve improve flow?
A full port valve improves flow by providing an internal passage that matches the pipeline diameter, eliminating any narrowing of the flow path that could lead to increased friction, turbulence, or pressure drop.
2.What makes a full port valve ideal for specific applications?
Full port valves are ideal in applications where maintaining consistent flow rates and minimizing pressure drop are critical. This includes industries that handle high-viscosity fluids, slurries, or require the ability to clean systems efficiently.
Conclusion
In conclusion, full port valves offer exceptional benefits for high-flow applications, providing unrestricted flow paths that reduce pressure drops, minimize turbulence, and enhance system efficiency. Their durable design ensures long-term reliability, even in harsh conditions, making them ideal for industries handling viscous fluids, corrosive chemicals, or high-pressure systems. If you’re looking for tailored solutions that optimize flow and performance, we invite you to explore the full range of high-quality valves we offer to meet your specific needs.
