Non-slam check valves are engineered to prevent the rapid reversal of fluid flow, which can lead to issues like water hammer. These valves automatically close in response to backflow, preventing damage to pipelines, pumps, and other connected equipment. Unlike traditional check valves, which may slam shut and generate harmful pressure surges, non-slam check valves provide smoother operation by closing gently and quickly, minimizing stress on the system. This design is particularly beneficial in applications where sudden changes in flow can cause significant damage or inefficiency, such as in high-pressure or high-velocity fluid systems.



What is a Non-Slam Check Valve?

A non-slam check valve is a type of check valve designed to prevent reverse fluid flow while eliminating the occurrence of water hammer—a pressure surge or wave resulting when a fluid in motion is forced to stop or change direction suddenly. Unlike traditional check valves, which may close abruptly and cause water hammer, non-slam check valves utilize a spring-assisted mechanism that ensures a smooth and rapid closure, thereby mitigating pressure spikes and associated system stresses.



Types of Non-Slam Check Valves

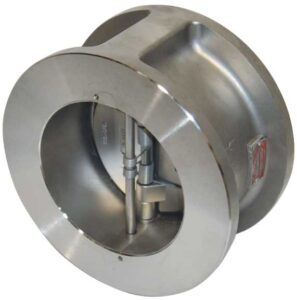

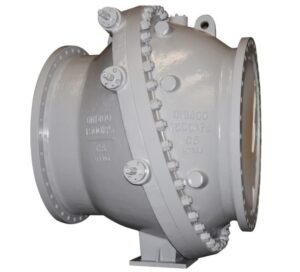

Metallic Seated Non-Slam Check Valves

Source: FCT Valve

Metallic seated non-slam check valves are engineered for high-pressure and high-temperature applications. These valves feature a seat made from durable metallic materials such as stainless steel, carbon steel, brass, or bronze. The metallic seat provides enhanced strength, making it ideal for environments where high pressure and temperature are common, as well as in corrosive conditions. They are used in industries like petrochemical, water treatment, and power generation. The robustness of the metallic seating ensures a reliable seal even under extreme conditions, preventing backflow and ensuring a steady flow direction.

Soft-Seated Non-Slam Check Valves

Soft-seated non-slam check valves incorporate a softer material, such as rubber or plastic, in the seat design. While the body of the valve is made from robust metallic materials to withstand high pressures, the soft seat material helps create a tight seal, ensuring that the valve closes properly without slamming. These valves are best suited for medium and low-pressure systems and are commonly used in applications involving less aggressive fluids. The soft seating material also offers excellent resistance to corrosion, making these valves ideal for use in chemical processing and wastewater treatment facilities.

Lifting Non-Slam Check Valves

Lifting non-slam check valves operate by lifting the disc along the valve’s centerline when fluid pressure is applied. The valve disc moves vertically, providing minimal resistance to fluid flow. These valves are typically used in smaller pipeline applications where space is limited, and where reliable, efficient flow control is necessary. Their design allows for smoother flow compared to other types of non-slam check valves, although they are better suited for smaller systems due to the larger pressure forces required to open the valve.

Swing Non-Slam Check Valves

Swing non-slam check valves are designed with a hinged disc that rotates around a pivot, allowing fluid to flow in one direction while preventing backflow. The swing design reduces the internal resistance when the valve is open, making it an ideal choice for larger pipelines where space and weight are less of a concern. These valves are commonly used in water and wastewater management, as well as in oil and gas pipelines. Swing valves provide a good balance between low pressure drop and cost-effectiveness, making them suitable for a variety of industrial applications.

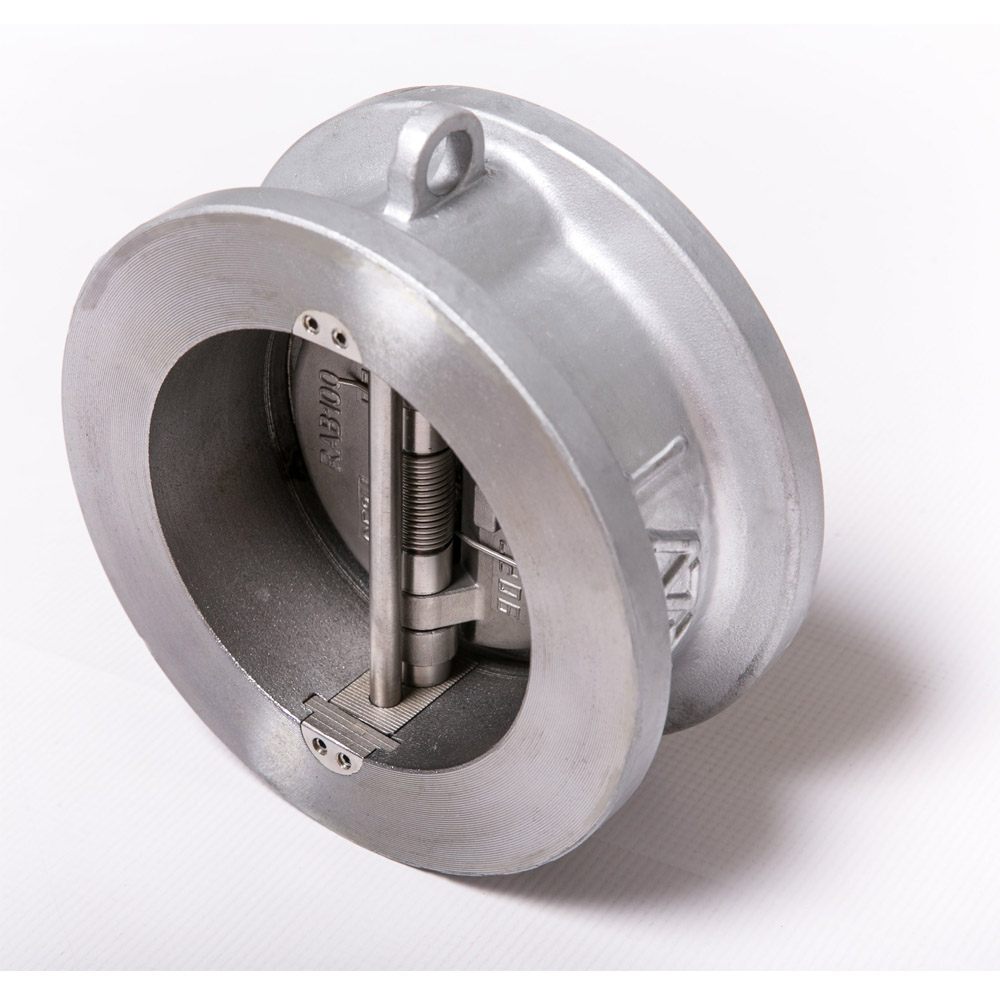

Butterfly Non-Slam Check Valves

Butterfly non-slam check valves are characterized by their simple, compact design and are often used in larger pipelines where space and weight savings are critical. These valves feature a disc that pivots to control flow direction, similar to other non-slam check valves, but their butterfly-style disc offers a lower profile and reduced flow resistance. Butterfly valves are ideal for systems requiring quick response times and are widely used in HVAC systems, fire protection, and high-flow applications where efficiency is key.

Each type of non-slam check valve has its distinct advantages depending on the application’s pressure, temperature, fluid type, and space constraints. Selecting the appropriate valve ensures optimal system performance and longevity.



Key Features of Non-Slam Check Valves

Powerful Spring for Fast Closure

Non-slam check valves are equipped with a powerful spring that ensures the valve disc closes quickly in response to flow changes. This rapid closure prevents backflow, safeguarding equipment and preventing pressure surges like water hammer. The spring-assisted closure mechanism effectively reduces the risk of sudden fluid reversal, ensuring smooth system operation.

Venturi Pattern Design

The Venturi pattern design incorporated in some non-slam check valves enhances fluid velocity and reduces pressure drop across the valve. This design is particularly beneficial in high-pressure applications, where it minimizes energy loss while maintaining a stable flow direction. The Venturi effect also aids in smooth valve operation, contributing to efficient system performance.

Short Stroke for Rapid Closing

Non-slam check valves typically feature a short stroke mechanism that enables quick disc movement. This characteristic ensures that the valve closes swiftly when flow reverses, preventing the damaging effects of backflow. The short stroke minimizes the chances of pressure surges or turbulence, allowing the valve to act as a reliable safeguard against fluid flow disruptions.

Low Pressure Drop

One of the key advantages of non-slam check valves is their low pressure drop across the valve. Thanks to their streamlined design, these valves allow for efficient flow, minimizing resistance and ensuring that the pressure within the system remains stable. The reduction in pressure drop not only enhances system efficiency but also extends the lifespan of pumps and other components by maintaining optimal operating conditions.

High Dynamic Response

Non-slam check valves are designed for high dynamic response, ensuring they react swiftly to changes in flow conditions. This quick response prevents reverse flow from causing damage to sensitive equipment, such as pumps and motors. The fast-acting nature of these valves ensures that fluid systems operate seamlessly, reducing the potential for operational interruptions or mechanical failures.



How Does a Non-Slam Check Valve Work?

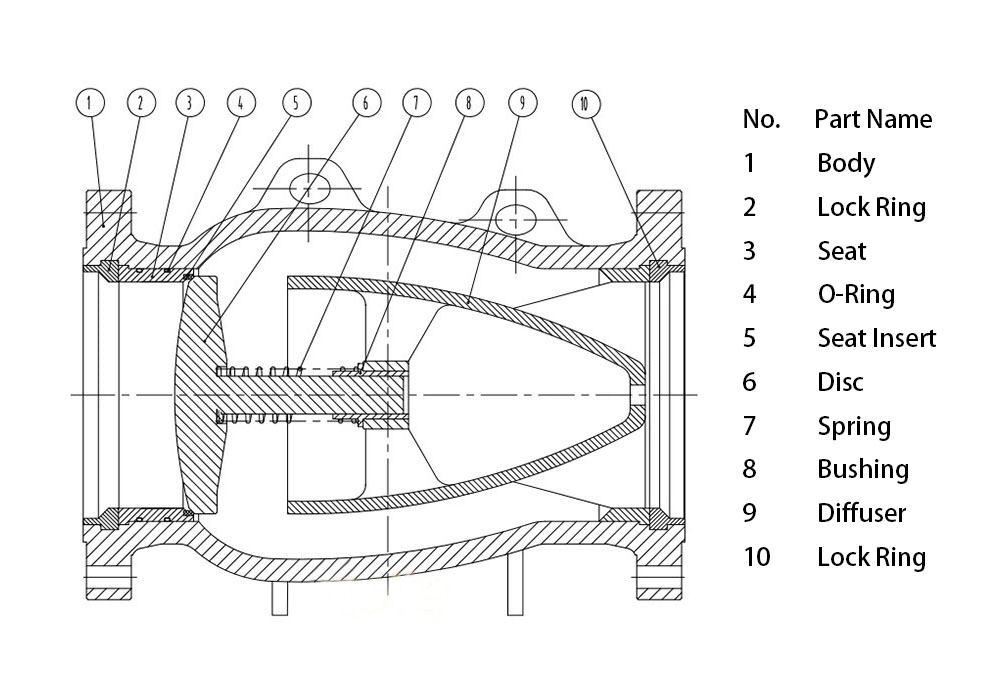

Non-Slam Check Valve Diagram

A non-slam check valve, also known as a silent check valve, is engineered to prevent reverse fluid flow while eliminating the water hammer effect—a pressure surge that occurs when fluid flow stops abruptly. Its internal mechanism ensures smooth operation and system protection.​

Internal Mechanism: Spring-Assisted Closure and Guided Disc

The core components of a non-slam check valve include a spring-assisted disc and a guiding mechanism:​

• Spring-Assisted Closure: In normal flow conditions, the fluid pressure pushes the disc open, compressing the spring. When the flow decreases or attempts to reverse, the spring expands, promptly and smoothly closing the disc to prevent backflow. This controlled closure minimizes pressure spikes and vibrations.

• Guided Disc: The disc is aligned within the valve body to ensure consistent movement along the flow axis. This alignment prevents misalignment and ensures a tight seal upon closure, enhancing the valve’s reliability and longevity. ​

Visual Analogy: Smooth Braking vs. Sudden Stop

Imagine driving a car and approaching a red light:​

• Traditional Check Valve (Sudden Stop): Stopping abruptly would jolt the vehicle and its occupants, similar to how a standard check valve might close suddenly, causing water hammer and potential system damage.​

• Non-Slam Check Valve (Smooth Braking): Gradually applying the brakes results in a smooth, controlled stop, akin to the non-slam check valve’s gentle closure that prevents shocks and maintains system integrity.



Key Advantages of Non-Slam Check Valves

1. Prevention of Water Hammer and System Damage

Water hammer is a pressure surge that occurs when fluid flow is suddenly halted, potentially causing significant damage to pipelines and equipment. Non-slam check valves are designed to close smoothly and promptly, effectively preventing water hammer and protecting the system’s structural integrity. ​

2. Reduction in Maintenance Costs and Downtime

By mitigating issues like water hammer and ensuring reliable operation, non-slam check valves decrease the likelihood of system failures. This reduction in mechanical stress leads to lower maintenance requirements and minimizes operational downtime, resulting in cost savings over time. ​

3. Enhancement of System Longevity and Safety

The controlled closure mechanism of non-slam check valves reduces wear and tear on system components, thereby extending the overall lifespan of the equipment. Additionally, by preventing sudden pressure surges, these valves contribute to a safer operating environment. ​

4. Versatility in Installation Orientations

Non-slam check valves are designed for flexible installation, functioning effectively in both vertical and horizontal orientations. This adaptability simplifies system design and allows for greater versatility in various piping configurations.



Applications of Non-Slam Check Valves

Non-slam check valves are integral components in various industries, ensuring efficient and safe fluid flow by preventing reverse flow and mitigating water hammer. Key applications include:​

1. Water and Wastewater Treatment Plants

In these facilities, non-slam check valves prevent backflow, protecting equipment and maintaining system integrity. Their ability to operate quietly and efficiently makes them ideal for such environments. ​

2. Oil and Gas Pipelines

The oil and gas industry relies on non-slam check valves to prevent reverse flow in pipelines, ensuring operational safety and protecting equipment from potential damage. ​

3. HVAC Systems

Heating, Ventilation, and Air Conditioning (HVAC) systems utilize non-slam check valves to maintain unidirectional flow, enhancing system efficiency and preventing issues like water hammer that can lead to noise and system stress. ​

4. Chemical Processing Industries

In chemical processing, maintaining the purity of fluids is crucial. Non-slam check valves prevent cross-contamination by ensuring that chemicals flow in the intended direction, thereby safeguarding product integrity and process efficiency.



Comparing Non-Slam Check Valves with Traditional Swing Check Valves

The primary distinction between non-slam check valves and conventional check valves lies in their closing mechanisms. Traditional swing check valves rely on gravity and reverse flow to close, which can result in a delayed response and abrupt closure, leading to water hammer. In contrast, non-slam check valves feature a spring-assisted design that facilitates prompt and controlled closure before reverse flow can establish, effectively preventing sudden closure and the resultant hydraulic shock.

Aspect	Non-Slam Check Valves	Swing Check Valves
Water Hammer Prevention	Prevents water hammer by closing smoothly and quickly.	Prone to water hammer due to abrupt closing action.
Maintenance	Low maintenance due to minimal wear and fewer moving parts.	Higher maintenance due to disc wear from rotational movement.
Durability	Longer lifespan due to fewer moving parts and gentle closing action.	Shorter lifespan due to increased wear from disc movement and pressure.
Flow Restriction	May cause slight restriction in flow due to internal spring mechanism.	Allows for unobstructed flow, making it suitable for systems needing frequent cleaning.
Pressure Control	Ideal for systems with sensitive pressure control requirements.	Less effective in applications requiring precise pressure control.
Installation Complexity	Requires precise alignment for proper sealing, making installation more complex.	Easier to install but more sensitive to orientation.
Cost	Higher upfront cost due to advanced design and spring mechanism.	More cost-effective due to simple design.
Suitability for Cleaning	Not suitable for systems requiring frequent line cleaning (pigging).	Suitable for systems where line cleaning is frequent or required.



For a visual comparison between swing check valves and non-slam check valves, you might find the following video informative:

Source: Boostrand ChemE



How to Choose the Right Non-Slam Check Valve

Selecting the appropriate non-slam check valve is crucial for ensuring efficient and reliable operation of fluid systems. Key factors to consider include:

1. Flow Rate and Pressure Requirements

Understanding the system’s flow rate and pressure is essential. Valves must be selected based on their capacity to handle specific flow velocities and pressure conditions to prevent issues like water hammer and ensure optimal performance. ​

2. Material Compatibility

The valve’s material should be compatible with the fluid it will encounter to prevent corrosion and degradation. Common materials include stainless steel and cast iron, each suitable for different fluids and operating environments.

3. Installation Orientation

Determine whether the valve will be installed horizontally or vertically, as some designs are optimized for specific orientations. Proper alignment ensures effective operation and longevity of the valve. ​

4. Industry-Specific Certifications

Ensure the selected valve complies with relevant industry standards and certifications, such as API or ASME, to meet safety and performance requirements specific to your application.



Maintenance and Troubleshooting

Common Faults and Solutions

Non-slam check valves are designed for long-term reliability with minimal maintenance, but like any mechanical component, they can experience issues over time. Understanding common faults and their solutions can help maintain optimal performance and extend the life of the valve.

• Improper Sealing
  • Cause: Misalignment or debris buildup can prevent the valve from sealing properly, leading to leakage or backflow.
  • Solution: Regular inspection and cleaning of the valve components can prevent debris buildup. Ensure proper alignment during installation and routine maintenance checks.
• Spring Wear or Damage
  • Cause: The internal spring that controls the valve’s closing action can wear out or become damaged over time, affecting its function.
  • Solution: Periodic inspection of the spring should be conducted, particularly in high-pressure or high-cycle systems. If the spring is found to be damaged or weakened, it should be replaced promptly to restore functionality.
• Sticking or Jammed Disc
  • Cause: The valve disc may become stuck due to corrosion, debris, or a malfunctioning spring.
  • Solution: A thorough cleaning and lubrication of the valve’s internal components can prevent sticking. Corroded parts should be replaced to ensure smooth operation of the disc.
• Leaks at the Seat
  • Cause: Worn seat surfaces or accumulation of dirt and debris may lead to leaks, compromising the valve’s ability to prevent backflow.
  • Solution: Regular maintenance should include checking and cleaning the seating surfaces. If necessary, the valve seats should be resurfaced or replaced to maintain a proper seal.

Low Maintenance Requirements

One of the main advantages of non-slam check valves is their low maintenance requirement compared to traditional valve types. These valves are designed with fewer moving parts, which reduces wear and tear, resulting in less frequent need for repairs. The spring mechanism provides controlled and smooth valve closure, preventing common issues such as water hammer or disc slamming, which can wear out the valve over time.

In addition to their durability, non-slam check valves require minimal cleaning. Their smooth design helps to prevent debris buildup, and the internal spring reduces friction, making the valve less prone to corrosion or mechanical failure. Routine inspections are typically sufficient to ensure the valve continues to operate efficiently, with most maintenance tasks focused on cleaning, inspecting the spring, and checking for any signs of wear or leaks.

Overall, the low maintenance requirements of non-slam check valves make them an excellent choice for systems where minimizing downtime and reducing maintenance costs is a priority. Regular, proactive maintenance can keep these valves operating optimally for many years, delivering long-term value to industrial applications.



FAQs About Non-Slam Check Valves

1. Can non-slam check valves handle high-pressure systems?

Yes, non-slam check valves are designed to operate effectively in high-pressure systems. Their robust construction and efficient design make them suitable for applications requiring reliable performance under elevated pressures. ​

2. Do non-slam check valves require regular maintenance?

Non-slam check valves typically require less maintenance compared to traditional swing check valves. Their design minimizes wear and tear, reducing the frequency of maintenance and associated costs. ​

3. Are non-slam check valves more expensive than traditional check valves?

Initially, non-slam check valves may have a higher purchase price due to their advanced design and materials. However, their extended lifespan and reduced maintenance needs often result in lower total ownership costs over time.



Conclusion

Non-slam check valves are essential components in modern fluid systems. By preventing water hammer and minimizing pressure surges, they help maintain system integrity and reduce wear on other components. Their design ensures smoother operation, leading to longer valve lifespans and reduced maintenance costs. Additionally, non-slam check valves provide significant advantages over traditional valves, especially in high-pressure, high-flow, and sensitive systems. Whether used in water supply, chemical processing, or power generation, these valves contribute to more efficient, durable, and cost-effective operations. Choosing the right type of valve, considering factors like flow dynamics, pressure conditions, and system requirements, ensures optimal system performance and longevity.
