Pneumatic control systems are essential technologies that harness the power of compressed air to regulate and control mechanical processes. These systems are widely used in industries ranging from manufacturing and automotive to aerospace and healthcare, thanks to their efficiency, reliability, and cost-effectiveness. By utilizing air as the driving medium, pneumatic systems provide a clean, safe, and flexible alternative to electrical or hydraulic systems.

At the core of a pneumatic control system lies its ability to convert compressed air into mechanical energy, enabling precise control over movements and operations. This adaptability makes pneumatic systems ideal for applications requiring rapid and accurate actuation, such as operating valves, powering tools, or automating industrial processes. Their straightforward design and minimal maintenance requirements further enhance their appeal across diverse sectors.

In this article, we will explore the components, working principles, and advantages of pneumatic control systems, shedding light on why they remain a popular choice for modern automation and control solutions.

How Pneumatic Control Systems Work

Source: Research Gate

Components of a Pneumatic Control System

A pneumatic system utilizes compressed air to transmit and control energy. The primary components of such a system include:

Air Compressor: This device draws in atmospheric air and compresses it to a higher pressure, providing the energy source for the system.

Air Reservoir (Storage Tank): After compression, the air is stored in a reservoir to ensure a steady supply, accommodating fluctuations in demand and maintaining system pressure.

Air Preparation Units (Filter, Regulator, Lubricator):

• Filter: Removes contaminants and moisture from the compressed air, ensuring clean operation.
• Regulator: Maintains the desired pressure level within the system for consistent performance.
• Lubricator: Adds a controlled amount of lubricant to the air to reduce wear on internal components.

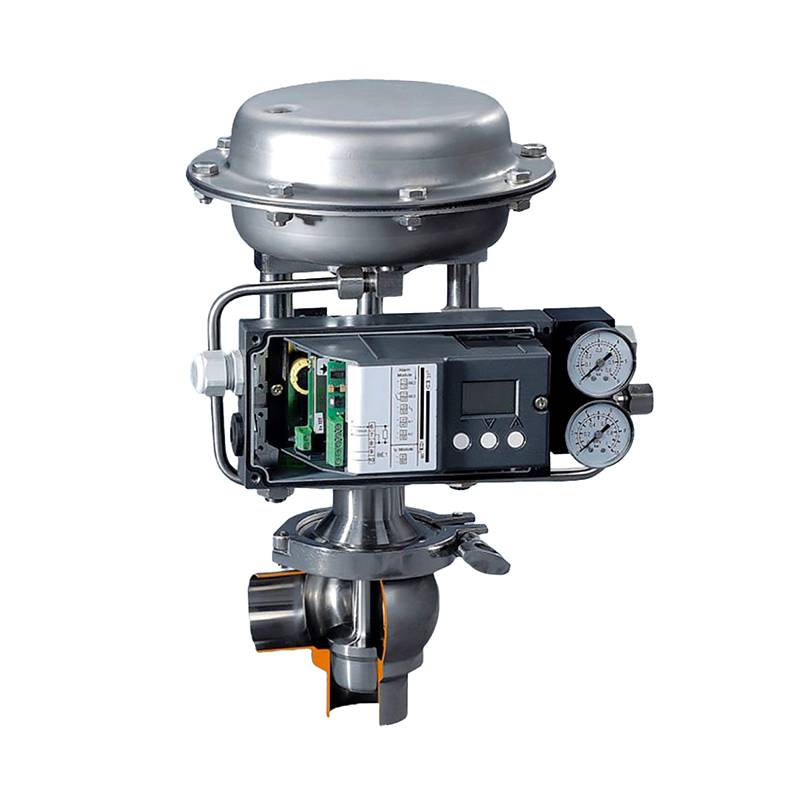

Control Valves: Control the direction, flow rate, and pressure of the compressed air, enabling precise operation of actuators.

Actuators: Convert the energy of the compressed air into mechanical motion. This can be in the form of linear motion, typically achieved using cylinders, or rotary motion, achieved using motors.

Piping and Connectors: A network of pipes, tubes, and fittings that transport compressed air to various components, ensuring efficient and leak-free delivery.

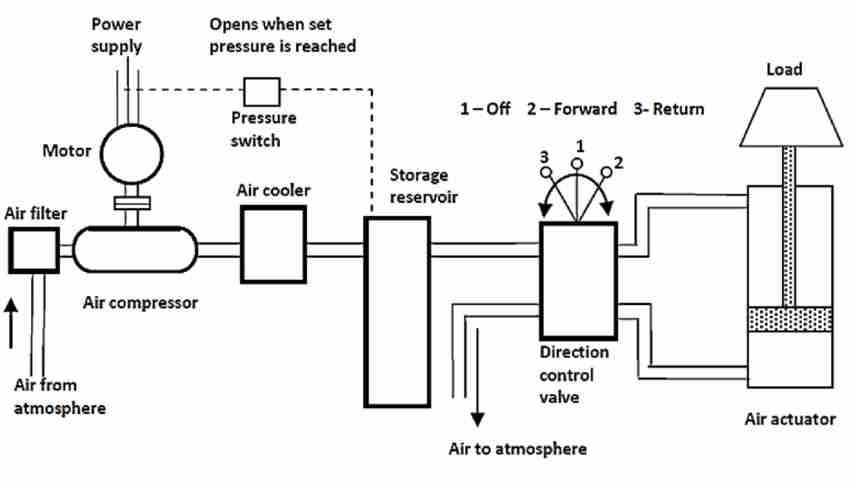

Working principle of a Pneumatic Control System

Here’s an explanation of how pneumatic control systems work:

Air Intake and Filtration:

Atmospheric air enters the system through an air filter, which removes dust, dirt, and contaminants to ensure clean air supply.

Compression:

The filtered air is drawn into the air compressor, powered by a motor, where it is pressurized to the required level for system operation.

Cooling and Storage:

After compression, the air is passed through an air cooler to reduce its temperature and improve efficiency. The cooled compressed air is then stored in a storage reservoir, ensuring a steady supply during operation.

Pressure Regulation:

A pressure switch monitors the system’s pressure level and opens when the set pressure is reached to maintain safety and optimal performance.

Directional Control:

Compressed air flows to a direction control valve, which determines the path of the air (off, forward, or return) based on the operational requirement.

Actuation:

The controlled air is sent to an air actuator, such as a cylinder, which converts the energy from compressed air into mechanical motion to perform tasks like moving a load.

Exhaust:

After completing the work, the used air is vented to the atmosphere through the exhaust port, preparing the system for the next cycle.



Here’s a YouTube video that provides the basic of pneumatic control systems.



Advantages of Pneumatic Control Systems

Pneumatic systems offer numerous advantages that make them a preferred choice in various industrial and commercial applications:

Safety: Utilizing air as the operating medium eliminates risks associated with hazardous materials, ensuring a safer working environment.

Abundant and Free Source: Air is readily available and free, making it an economical choice for powering systems.

Ease of Maintenance: Pneumatic systems are designed for simplicity, resulting in low maintenance requirements and reduced downtime.

Cost-Effectiveness: The components used in pneumatic systems are generally less expensive compared to other technologies, leading to lower initial and operational costs.

Environmental Friendliness: Since pneumatic systems use air, they do not produce pollutants, contributing to a cleaner environment.

Reliability and Durability: These systems are known for their long operational life and consistent performance, even in demanding conditions.



Applications of Pneumatic Control Systems

Source: iStockphoto

Pneumatic control systems are integral to a wide array of applications across various industries, owing to their efficiency, reliability, and versatility. Key applications include:

Manufacturing and Automation:

Pneumatic systems are extensively used in assembly lines, material handling, robotics, and packaging equipment, providing precise control and rapid response essential for efficient production processes.

Air brakes on buses, trucks, and trains utilize compressed air to ensure safe and effective braking systems.

Healthcare:

In medical facilities, pneumatic systems are employed in devices such as dental drills, oxygen concentrators, and infusion pumps, benefiting from the clean and safe operation of compressed air.

Food and Beverage Processing:

Pneumatic equipment is preferred for operations like cutting, mixing, and packaging, as it maintains hygiene standards by minimizing contamination risks.

Construction and Mining:

Tools such as jackhammers and drills powered by pneumatic systems are favored for their durability and ability to operate in demanding environments.

Material Handling:

Pneumatic systems facilitate the movement and control of materials in various settings, enhancing efficiency and safety in operations.

Transportation of Goods:

Pneumatic tube systems are utilized for transporting items like documents and medications within buildings, such as hospitals and offices, ensuring quick and secure delivery.



Maintenance Tips for Pneumatic Control Systems

Regular maintenance of pneumatic systems is essential to ensure their efficiency, longevity, and safe operation. Here are key maintenance tips:

Regularly Inspect for Leaks: Frequently check all connections, hoses, and seals for any signs of air leakage. Even minor leaks can lead to significant energy loss and reduced system performance.

Maintain Cleanliness: Keep the system and its components free from dust, dirt, and other contaminants. Regular cleaning prevents debris from entering the system, which can cause wear and tear or blockages.

Replace Filters Periodically: Change air filters according to the manufacturer’s recommendations to prevent clogging and ensure a clean air supply, which is vital for optimal system performance.

Lubricate Moving Parts: Apply appropriate lubrication to moving components to minimize friction and wear. Ensure that the correct type of lubricant is used and follow a regular lubrication schedule.

Monitor and Maintain Seals: Regularly inspect seals for wear or damage and replace them as needed. Properly functioning seals are crucial to prevent air leaks and maintain system pressure.

Ensure Proper Air Quality: Use air dryers and filters to maintain the quality of compressed air, removing moisture and contaminants that could damage system components.

Schedule Professional Inspections: Periodically have qualified technicians perform comprehensive system evaluations to identify potential issues before they lead to significant problems.



Conclusion

Pneumatic control systems play a crucial role in modern industrial automation, offering a reliable, cost-effective, and energy-efficient solution for controlling mechanical processes. Their simplicity, durability, and safety make them widely applicable across industries such as manufacturing, healthcare, construction, and transportation. By understanding their components, working principles, advantages, and proper maintenance practices, businesses can maximize efficiency and extend the lifespan of their pneumatic systems. With ongoing advancements in pneumatic technology, these systems continue to evolve, providing even greater precision and sustainability in industrial operations.
