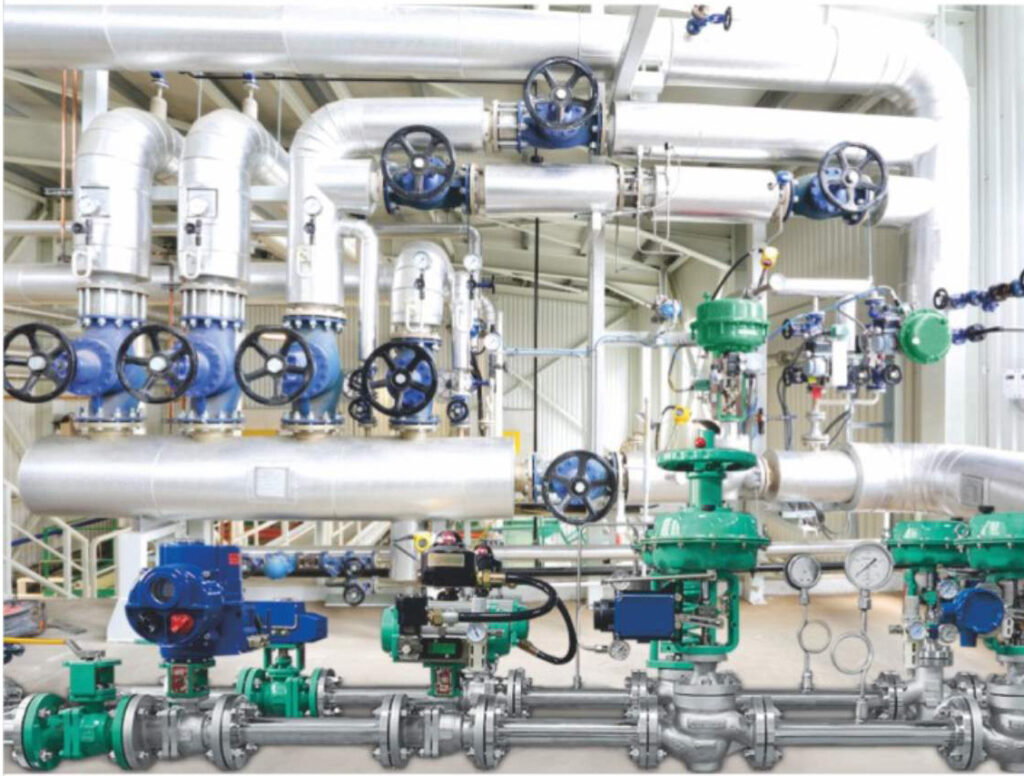

Pneumatic valves are fundamental components in automation and control systems. Used across a wide variety of industries such as oil & gas, manufacturing, and water treatment, these valves play a crucial role in regulating air or gas flow, enabling effective control of machinery and processes. But what exactly is a pneumatic valve, how does it work, and why is it important? This article aims to break down these questions into easy-to-understand parts, giving you a thorough understanding of pneumatic valves, their types, and their applications.
How a Pneumatic System Works
Basic pneumatic system (Source: electricalandcontrol)
A pneumatic system uses compressed air to transmit energy and create mechanical motion in industrial and automated applications. It works by converting ambient air into a controlled power source that can drive actuators and tools.
The process starts with a compressor, which draws in air and compresses it. This air is often stored in a receiver tank to maintain stable pressure and meet changing demand. Before use, the air passes through air preparation components such as filters, regulators and, where required, lubricators. These ensure the air is clean, dry and at the correct pressure.
Conditioned air is then directed through pneumatic valves, which control when air flows, where it flows and when it is exhausted. The valves act as the system’s control points, responding to signals from a controller.
Finally, the air reaches the actuator, such as a cylinder or pneumatic motor, where pressure is converted into linear or rotary motion. By managing air generation, preparation and control, a pneumatic system delivers fast, reliable and repeatable motion for industrial processes.
What Is a Pneumatic Valve?
A pneumatic valve is a type of control device that uses compressed air to direct, start, stop or throttle airflow within a pneumatic system. In industrial automation and process control, these valves function as the key control points that manage how and where compressed air flows, enabling actuators and other components to perform work as required. In simple terms, they are the “switches” that make air-powered systems operate effectively and predictably.
Key Functions of Pneumatic Valves
Pneumatic valves are vital components in compressed air systems because they control how air flows, where it goes and under what conditions. By managing airflow and pressure, they make it possible to drive actuators such as cylinders reliably and efficiently. Below are the core functions that pneumatic valves perform in industrial applications.
Directional Control
One of the primary roles of a pneumatic valve is directional control — deciding whether compressed air flows, which path it takes, and when it stops. This function enables the basic “on/off” operation of airflow, as well as the switching of air paths to drive actuators like single-acting or double-acting cylinders. For example, a directional control valve routes air to a cylinder to make it extend, then switches pathways so air pushes it back to retract the cylinder.
Directional control valves are essential in automation because they coordinate and sequence movement, often working with sensors and controllers to make machines operate smoothly.
Flow Control
Flow control is another key function of pneumatic valves. By regulating the rate of airflow, these valves influence the speed of actuators such as cylinders. Controlling flow is important when you need smoother motion, a softer start or controlled exhaust — for instance, slowing a cylinder as it reaches the end of its stroke or preventing sudden movements that could stress mechanical components.
Various types of flow control valves — such as needle valves or one-way flow control valves — allow precise adjustment of airflow, helping to balance performance with energy use and machinery longevity.
Pneumatic Valve Porting and Positions (2/2, 3/2, 5/2, 5/3)
In pneumatic systems, directional control valves are described using two numbers: the first is the number of ports (ways) — the connections on the valve body — and the second is the number of positions the valve spool can occupy. For example, a 3/2 valve has three ports and two switching positions. The same naming logic applies to other common valve types such as 2/2, 5/2 and 5/3 valves.
What the Numbers Mean
Ports are openings for compressed air to enter, exit or be vented within the valve body. Typical pneumatic valves have up to five ports numbered in standardised diagrams.
Positions indicate the number of states the valve can switch between as it changes how these ports are connected internally.
Common Valve Configurations and Uses
2/2 valves — With two ports and two positions, these are the simplest form of pneumatic valve. They act essentially as an on/off switch for airflow, opening to allow air through or closing to block it. They are often used for isolating air supply or venting a line.
3/2 valves — These have three ports and two positions, adding an exhaust port to the basic 2/2 layout. One port feeds air into the system, one supplies a working output (for example to a valve pilot or single-acting cylinder) and the third vents the downstream air to atmosphere. This makes 3/2 valves a good choice for single-acting cylinder control, where air is applied to extend the cylinder and a spring retracts it.
5/2 valves — Often used for double-acting cylinders, these valves have five ports and two positions. The extra outlets mean that air can be directed alternately to either side of a cylinder, with separate exhaust paths for each side. In one position, air flows to the extend side and the opposite side is vented; in the other position, air is directed to the retract side and the first side is vented. This is the workhorse configuration for pneumatic motion control.
5/3 valves — Adding a third position gives a five-port valve three possible states. The two outer positions act like a normal 5/2 valve for extension and retraction, but the middle position alters how air is handled when the valve is not actuated.
Common Types by Actuation Method
Pneumatic valves are not only defined by what they control, but also how they are actuated. The actuation method determines how the valve receives its control signal — whether that’s electrical, air pressure, or direct human or mechanical input. Choosing the right actuation method affects control precision, response time and suitability for specific environments.
Solenoid-Operated Pneumatic Valves
One of the most widely used actuation methods in modern industrial automation is the solenoid-operated pneumatic valve. These valves use an electromagnetic coil to shift the internal mechanism when an electrical signal is applied. That signal commonly comes from a programmable logic controller (PLC) or I/O module, making them ideal for automated control systems where timing, sequencing and remote operation are important.
When the solenoid is energised, the magnetic field pulls a plunger or armature, which then opens or closes the air path inside the valve. When de-energised, a spring or other return mechanism brings the valve back to its default state. Solenoid valves are valued for their fast response times and compatibility with electrical control systems, and they support integration with modern automation platforms without extra conversion hardware.
Air-Operated (Pilot) Valves
In some applications, particularly where electrical signals are impractical or hazardous, air-operated valves — often known as pilot valves — are used. Instead of relying on electricity to move the valve’s mechanism, these valves use compressed air pressure as the control energy. A small pilot valve directs air into the main valve actuator, which then produces the force needed to open or close the main valve.
This method is especially useful in hazardous or remote environments where electrical signals are unsafe or susceptible to interference. Because the pilot air provides the actuation force, these valves can also be used to control larger valves or higher flow systems that would otherwise be difficult to operate directly.
Mechanically and Manually Operated Valves
At the simplest end of the spectrum are mechanically and manually operated pneumatic valves. These require direct physical input — such as a lever, push button, roller or foot pedal — to change the valve position.
Manual and mechanical actuation is common in situations where automatic control isn’t essential, or where operators need local control at the machine, for example during setup, adjustment or maintenance. They are also beneficial in small installations or safety-critical areas where electrical power may be unavailable or undesirable.
Common forms include hand-lever valves, button-operated valves and roller-activated valves positioned along machine guides or conveyor systems. Their simplicity makes them cost-effective and reliable, although they obviously lack the remote control and automation capabilities of solenoid-actuated options.
How Does a Pneumatic Valve Work?
Penumatic Valve Diagram
At the heart of a pneumatic valve’s operation is the interaction between compressed air and internal moving elements. When compressed air is supplied, the pressure forces act on these elements, causing them to move from one position to another. For example, in a valve with a sliding spool, differences in air pressure on each side of the spool will push it along its bore. As the spool shifts, it opens some ports and closes others, allowing air to travel along selected pathways and control the system’s actuators. In valves designed to modulate flow, the internal element can position itself in intermediate states to regulate how much air passes through.
Key Internal Components
Although designs vary depending on valve type and function, most pneumatic valves share a common set of internal components:
Body: The main housing that contains all internal parts and defines the air pathways through the valve.
Ports: These are the inlet, outlet and exhaust openings in the valve body. Ports provide the connection points for piping and determine how many possible flow paths the valve can manage.
Moving Element (Spool or Poppet): This is the core control mechanism that moves to open, block or redirect airflow. A spool slides within the valve body to align different ports, whereas a poppet lifts off its seat to allow flow or seals down to stop it.
Actuator: The mechanism that causes the moving element to shift. It may be mechanical (lever or cam), pneumatic pilot-operated, or controlled electrically via a solenoid coil.
Seals: Elastomer or rubber seals prevent air from leaking between internal passages, ensuring air is directed efficiently and the valve maintains pressure where required.
Springs: Many valves include return springs that push the moving element back to its default position when the actuation signal is removed. This is common in valves that need to return to a safe or neutral position.
Together, these components allow a pneumatic valve to respond to control signals and manage the flow and pressure of compressed air effectively. Whether switching airflow on and off, changing directions, or modulating flow rates, the interaction of air pressure and internal mechanics is what makes pneumatic valves essential in automated and industrial systems.
Here’s a video that clearly explains how a pneumatic valve works.
Source:saVRee
Advantages and Limitations of Pneumatic Valves
When considering pneumatic valves for industrial automation or process control, it helps to see both their strengths and limitations clearly. This balanced view supports smarter decisions about when pneumatic solutions are a good fit and when alternative technologies might be better.
Advantages of Pneumatic Valves
One of the most attractive benefits of pneumatic valves is their speed and rapid response. Compressed air can move and switch quickly, enabling valves to actuate in milliseconds — a key advantage in high-cycle automation applications.
They are also known for reliable, robust performance. Because pneumatic systems use compressed air rather than complex electronics or fluids, they tend to be less sensitive to dust, humidity and outdoor environments. This simplicity often leads to lower upfront costs and easier maintenance compared with electric or hydraulic alternatives.
Safety is another factor where pneumatics stand out. Compressed air is non-flammable and does not carry the same fire risk as electrical systems in environments with explosive gases or dust. In fact, pneumatic valves are commonly specified in hazardous or explosive atmospheres because they reduce the potential for sparks or ignition sources.
Maintenance is generally straightforward too — pneumatic valves have fewer moving parts than many electric or hydraulic systems. This ease of maintenance, combined with robust construction, often means less downtime and lower service costs over the long term.
Limitations of Pneumatic Valves
Despite these advantages, pneumatic valves do have limitations. The most obvious is their dependence on a compressed air supply. A compressor, air dryer and filtration system are necessary to deliver clean, dry air, adding to system complexity, footprint and energy use.
Pneumatic systems can be noisy because of the release of compressed air during operation, which might be an issue in certain environments unless mitigated with silencers or other measures.
Energy efficiency can also be a concern. Compressing air inherently involves energy losses, and long runs of piping or poor system design can reduce efficiency further. This means that over long operating hours, pneumatic actuation can consume more power relative to electric systems, which often convert electrical energy more efficiently into motion.
Finally, because air is compressible, very precise positioning or speed control can be more challenging compared with electric actuators. For applications where extreme accuracy or feedback control is required, electric options may perform better.
When to Choose Pneumatic Over Electric or Hydraulic Actuation
Choosing between pneumatic, electric and hydraulic actuation often comes down to application priorities.
You might choose pneumatic valves when you need:
Rapid switching and cycle rates — ideal for repetitive automation tasks.
Operation in hazardous or explosive environments where electrical actuation could pose risks.
Simple, cost-effective systems with relatively low maintenance requirements.
Electric actuation, by contrast, is often better when precision control, energy efficiency and quiet operation are priorities. Hydraulic actuation excels in very high-force, continuous heavy-load applications where compressed air cannot deliver sufficient power.
Typical Industrial Applications
Pneumatic valves and systems are used across many industrial sectors, largely because they offer reliable, fast and cost-effective control of compressed air for motion, actuation and process needs. Their versatility means they appear in both heavy automated production environments and specialised process applications.
Factory Automation: Cylinders, Grippers, Pick-and-Place, Conveyors
In factory and machine automation, pneumatic valves are essential for controlling cylinders, grippers and other actuators that perform repetitive motion tasks. Whether it’s moving a cylinder to press an item, operating a gripper to pick up a component, or directing air to shuttle parts along a conveyor, pneumatic control provides simple and reliable motion control that is easily integrated with automated systems.
For example, in assembly lines and handling systems, pneumatic valves work with sensors and PLCs to deliver precise timing and sequencing for pick-and-place operations, sorting, packaging and more. Their fast response times and ease of connection to control systems make them highly suitable for these roles.
Process Industries: Chemical, Food, Water and Energy
Beyond discrete manufacturing, pneumatic valves are widely used in process industries where fluid control and safety are critical. In chemical manufacturing, they help regulate air or gas distribution in reactors and conveyors, while resisting aggressive environments that might degrade other technologies. In sectors like food and beverage, pneumatic systems are favoured for their clean operation and ease of sanitisation, which is especially important in filling and packaging processes.
Pneumatic valves also play a role in water and wastewater treatment plants, where they control air-driven actuators for valves used in filtration, aeration and distribution systems. Their compatibility with compressed air and low risk of leakage makes them suitable for environmental and utility applications.
In energy production and related sectors, pneumatic valves can control fuel or air supplies in systems ranging from boilers to turbine operations, where safety and robust performance are essential.
Packaging, Automotive, Electronics and Other Sectors
Pneumatic solutions are also prevalent in packaging machinery, where valves regulate motion for carton erecting, sealing and product handling at high speed. Their ability to deliver consistent actuation under rapid cycles enhances both throughput and reliability in modern packaging lines.
The automotive industry uses pneumatic valves extensively on production floors — from stamping and welding fixtures to paint shops and component assembly — where compressed air drives actuators that position, clamp and move parts with precision.
In electronics manufacturing, pneumatic control assists in delicate handling tasks, such as moving circuit boards or actuating vacuum grippers on pick-and-place robots, where gentle yet firm motion is required.
Other sectors such as pharmaceuticals, plastics, textiles and medical device production also use pneumatic valves where control reliability, cleanliness and responsiveness are priorities.
