A shut-off valve is an industrial valve used to stop or isolate liquid, gas, steam or compressed-air flow in a pipeline. The term describes the valve’s duty, not one construction. Ball, gate, butterfly and plug valves can all perform shut-off service when their design, seat and materials suit the operating conditions.
Selection starts with the required isolation duty and the complete service envelope. Valve motion, bore, seat design, pressure-temperature rating, actuator, closing time and specified closure-test basis determine whether a design is suitable for the line. A valve being closed does not, by itself, prove zero leakage or establish safe isolation for maintenance.
Source: SC Plumbing & Gas
What is a shut-off valve used for in industrial systems?
Closing a shut-off valve moves a ball, disc, gate, plug or other closure element across the flow path and against its seat. This action stops normal flow so that a process stream can be started or stopped, equipment can be taken out of service, or one section of piping can be separated from another.
The required operating state depends on the process. A feed-line isolation valve may remain normally open and close only during maintenance or an abnormal condition. A drain, vent or standby-line valve may remain normally closed and open only when that path is required. Manual valves rely on an operator, while automated packages respond to a control command or defined trip signal.
A closed indication confirms that the valve has reached its commanded position, but it does not establish how much fluid may pass across the seat. Actual shut-off performance depends on the valve design, seat condition, differential pressure, temperature, medium, trapped solids and the specified closure-test basis.
Main types of industrial shut-off valves
Industrial shut-off duty can be handled by several valve constructions. The useful comparison is how each closure element moves, what remains in the flow path when open, and which service conditions affect seating. A broader overview is available in MacoTango’s industrial valve types guide.
| Valve type | Closure movement | Typical shut-off fit | Main selection caution |
|---|---|---|---|
| Ball valve | Quarter-turn ball with a port | Frequent on-off duty and compact automation | Seat material, cavity behaviour and solids exposure |
| Gate valve | Linear gate movement | Infrequent isolation with an unobstructed open flow path | Slow operation and poor suitability for sustained throttling |
| Butterfly valve | Quarter-turn disc movement | Large lines and installations with limited weight or space | Disc obstruction, seat compatibility and operating torque |
| Plug valve | Quarter-turn ported plug | On-off service where the selected plug design suits the medium | Operating torque, sealing design and maintenance method |
| Selected globe or special-service valve | Linear plug or application-specific movement | Service requiring a defined combination of isolation and flow control | Higher pressure loss and design-specific shut-off capability |

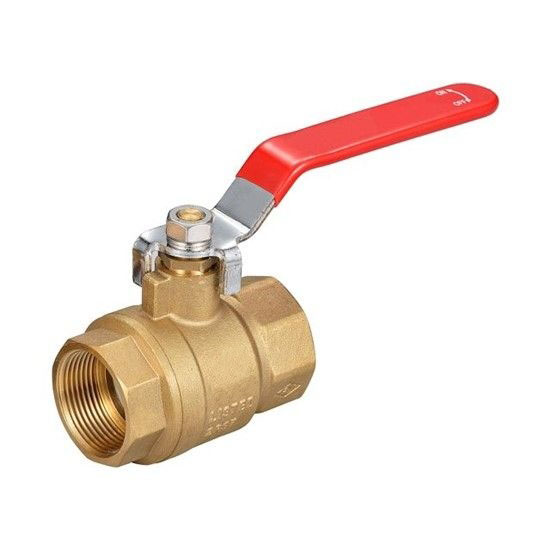

Ball valves
A ball valve aligns its port with the pipeline when open and turns the solid side of the ball across the flow path when closed. Quarter-turn movement gives a clear operating action and suits manual levers, pneumatic actuators and electric actuators.
Seat construction controls much of its application range. Soft seats can provide low closed-valve leakage under a specified test, but temperature, chemical exposure, abrasive particles and pressure differential may limit them. Metal-seated designs address different conditions and must be evaluated against their own leakage and torque requirements.
Gate valves
A gate valve lifts its gate out of the flow path as the stem moves through multiple turns. A suitable fully open design offers a relatively unobstructed bore, which can be useful where open-valve pressure loss must remain low.
Gate valves are generally selected for fully open or fully closed service rather than sustained throttling. Operating them partly open can expose the gate and seating surfaces to unstable flow, vibration or erosion, depending on the medium and velocity.
Butterfly valves
A butterfly valve rotates a disc through 90 degrees. Its short face-to-face length and comparatively low installed weight can make it practical for larger pipe sizes, but the disc and shaft remain in the flow path when open.
Concentric, double-offset and triple-offset designs do not have the same sealing behaviour or service range. Seat material, differential pressure, flow direction and required operating torque must be checked for the selected construction.
Plug valves
A plug valve turns a ported plug to align or block the flow path. The design can provide direct quarter-turn isolation, while its suitability depends on whether it uses a lubricated, sleeved, lined or other sealing arrangement.
Plug-to-seat contact can increase operating torque as pressure, temperature or deposit build-up changes. Maintenance provisions and actuator capacity therefore need to match the specific design rather than the generic valve name.
Globe and special-service options
Selected globe valves and application-specific designs can provide shut-off where the same valve must also regulate flow. Their more restrictive flow path usually creates greater pressure loss than a full-bore isolation valve, and control capability does not automatically establish acceptable isolation performance.
How do you know whether a shut-off valve is open or closed?
The correct indication depends on the valve motion and operator. Handle position can be useful, but it is not a universal method for confirming the internal closure element’s position.
Quarter-turn valves

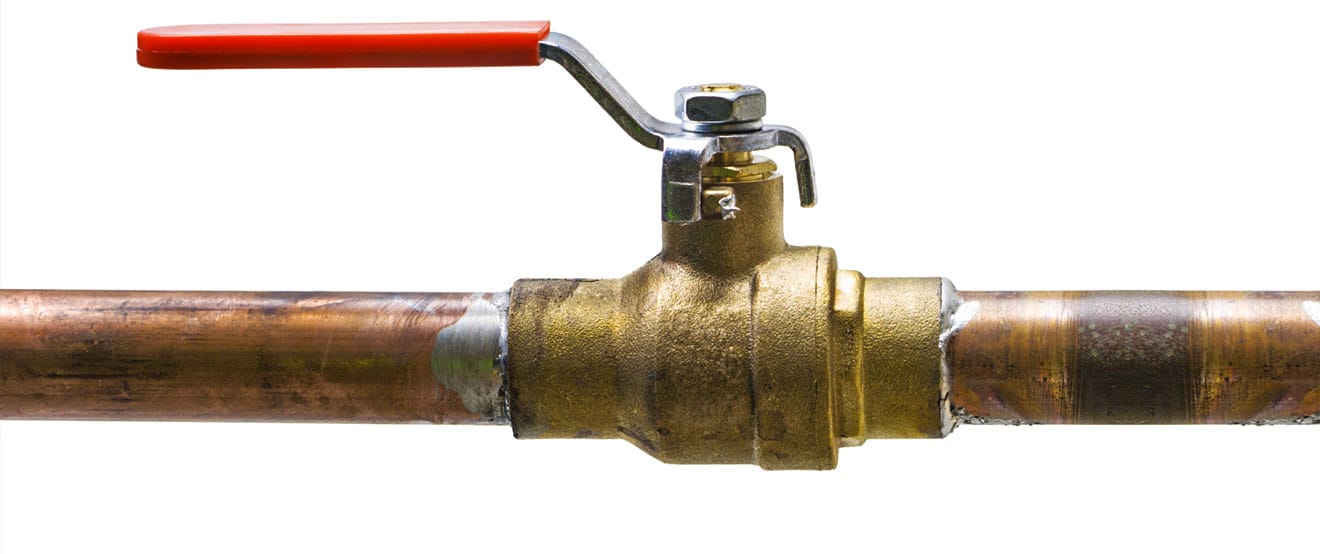

On many lever-operated ball, butterfly and plug valves, a handle parallel to the pipeline indicates open, while a handle perpendicular to the pipeline indicates closed. The position plate, travel stops and manufacturer markings should take precedence because handle installation and gearbox arrangements can differ.
Multi-turn valves
A handwheel’s angle does not show whether a gate or globe valve is open. A rising-stem design provides a visible indication through stem travel, while a non-rising-stem valve may require a separate position indicator or a known number of turns between its travel limits. Excessive handwheel force should not be used as proof that the valve is correctly seated.
Actuated valves
Pneumatic and electric actuators may provide a local position indicator, mechanical travel stops and open or closed limit-switch feedback to the control system. The command signal and the feedback signal should be distinguished. A close command shows what the system requested, while confirmed limit feedback shows that the actuator reached its set end position.
Position feedback still does not prove seat tightness. If leakage across the closed valve affects process safety or maintenance work, the isolation must be verified by the project’s specified test or operating procedure.
How manual and automated shut-off valves work
Every shut-off valve requires enough torque or thrust to move its closure element through the full travel and establish the intended seat contact. The operator may supply that force directly through a handle or handwheel, or indirectly through a gearbox, pneumatic actuator or electric actuator.
Manual operation
Levers are common on smaller quarter-turn valves because they provide direct movement between the open and closed stops. Larger valves or applications with higher operating torque may use a gearbox and handwheel. Multi-turn gate and globe valves convert handwheel rotation into linear stem movement.
Manual operation suits valves that are accessible and do not require frequent or remote movement. The operator still needs a reliable position indication and enough access to move the valve without extensions or excessive force that could damage the stem, gearbox or seating surfaces.
Pneumatic operation
A pneumatic actuator converts air pressure into rotary torque or linear thrust. A complete package may also include a mounting bracket, coupling, solenoid valve, air filter regulator and open or closed limit switches. Each component must match the valve travel, available air pressure and required operating sequence.
Spring-return actuators can move towards a defined position after loss of air when the complete package is designed for that action. Double-acting actuators use air for both directions and require the control arrangement to address loss of air or electrical power. The actuator label alone does not establish the valve’s failure position.
Electric operation
An electric actuator uses a motor and reduction gearing to move the valve. Limit switches stop travel at the set open and closed positions, while torque protection can interrupt movement if resistance exceeds its setting. The actuator’s output, speed, duty rating and enclosure must suit the valve and installation environment.
Closing time and feedback
Closing speed is part of the valve package specification. Rapid closure can create damaging pressure transients, particularly in liquid systems, while slow closure may not meet the process response requirement. Stroke time should therefore be checked against the piping system and operating case rather than selected from actuator speed alone.
Automation also requires confirmation of the achieved position. Local indicators and limit switches can report end travel, but they do not measure leakage across the seat. MacoTango’s industrial valve product overview provides examples of valve and actuator configurations, while final package selection remains dependent on the service data.
How to select a shut-off valve for industrial service
Valve selection begins with the required shut-off duty, then eliminates constructions that cannot tolerate the service conditions. Pipe size alone does not determine the valve type, seat, materials, actuator or acceptable closure performance.
- Define the operating duty. Establish whether the valve will remain normally open or normally closed, how often it will cycle, why it must close and how quickly the process requires it to move. A rarely operated equipment-isolation valve presents a different duty from a frequently cycled transfer-line valve.
- Characterise the medium. Confirm whether the line contains liquid, gas, steam, compressed air or a mixed phase. Corrosivity, viscosity, abrasive particles, fibres, deposits and crystallising or polymerising behaviour can change the suitable body, trim, seat and cavity arrangement.
- Check the complete pressure-temperature envelope. The body, end connection, seat, packing and other pressure-retaining parts must remain suitable at normal, start-up, shutdown and credible upset conditions. Differential pressure at the moment of closure also affects seating load and required actuator output.
- Compare the open flow path and closed seat. A full or unobstructed bore may matter where pressure loss, pigging or solids passage controls the choice. Disc obstruction, seat exposure, flow direction and the possibility of material collecting in body cavities must also be considered.
- Match the operating method to the system. Confirm whether manual, pneumatic or electric operation is required. Available energy, torque or thrust, closing time, pressure-transient risk, failure position, local indication and remote feedback belong to the package decision.
- Specify how shut-off performance will be verified. Terms such as tight shut-off are incomplete without a test method, test pressure, medium, direction, duration and acceptance criterion. Shell testing, seat testing and actuator functional testing provide different evidence and should not be treated as interchangeable.
These checks may narrow the choice to more than one workable valve family. The final comparison should then consider installation space, maintenance access, expected service life and the project’s inspection requirements. MacoTango’s pipeline valve guide provides additional context for relating valve construction to pipeline duty.
Shut-off valve, isolation valve, on-off valve and shutdown valve: what changes?
These terms often overlap in drawings, datasheets and everyday plant language, but they do not always carry the same engineering requirements. The project specification, piping class, operating philosophy and safety documentation should define the intended duty.
Shut-off valve
A shut-off valve stops normal flow through a line when moved to its closed position. The name describes the required function and does not identify whether the valve is a ball, gate, butterfly, plug or another construction.
Isolation valve
An isolation valve separates equipment or a section of piping from the process. In many applications, the same valve is called both a shut-off valve and an isolation valve. The word isolation may also introduce additional requirements for locking, position control, leakage verification, venting or a second isolation barrier.
On-off valve
An on-off valve is operated between defined open and closed positions rather than used for continuous flow regulation. It may be manual or actuated, although the term commonly appears in automated valve specifications. Stroke time, position feedback and the required state after loss of power or air must be stated separately.
Control valve
A control valve changes its opening in response to a control signal to regulate flow, pressure, temperature or another process variable. Its trim, actuator and dynamic behaviour are selected for modulation. A control valve may have a specified closed-seat leakage rating, but that does not automatically make it suitable as the required isolation barrier.
Shutdown valve
A shutdown valve, often identified as an SDV, is an actuated final element that moves to a defined state when the protective system initiates a trip. Its specification can include failure action, closing time, solenoid arrangement, position feedback and proof-testing requirements beyond ordinary process on-off duty.
The valve body may resemble a standard automated shut-off valve, but the complete safety function determines whether it qualifies as an SDV. MacoTango’s shutdown valve guide covers that distinction in more detail.
A closed valve is not automatically a safe isolation
Closing a shut-off valve may stop normal process flow, but maintenance isolation must also address possible seat leakage, unintended valve movement and stored pressure. A local indicator or closed limit switch confirms travel position. It does not prove that the downstream section is depressurised or that hazardous material cannot pass across the seat.
The isolation arrangement must match the hazard and the work being performed. Depending on the risk, site procedures may require locking or securing the valve, a second isolation barrier, venting or bleeding the enclosed space, a line blind, physical disconnection or another positive-isolation method.
The UK Health and Safety Executive’s HSG253 guidance on safe isolation requires the isolation method to account for sealing ability, security and reliability, with effectiveness proved before intrusive work begins. Personnel should follow the approved site procedure to isolate every relevant energy source, release trapped energy and verify the condition at an appropriate test point.
