Stainless steel ball valves are a quarter-turn flow control device known for their strength, reliability, and resistance to corrosion. Built with a rotating ball and precision-engineered components, it provides efficient shut-off and control for liquids and gases across a wide range of applications. Favored in industries such as oil and gas, water treatment, chemical processing, food production, HVAC, and marine systems, stainless steel ball valves offer durability under high pressure and temperature, along with hygienic properties essential for clean environments. Their versatility, long service life, and minimal maintenance make them a dependable, cost-effective choice for demanding systems.

Key Components of a Stainless Steel Ball Valve

​A stainless steel ball valve is a robust and reliable component used to control fluid flow in various industrial applications. Its design comprises several key components, each contributing to the valve’s functionality and performance.​

The Ball: Rotating Sphere with a Bore

At the core of the valve is the ball—a polished, spherical component with a central bore. When the valve handle is turned, the ball rotates to align the bore with the flow path, allowing fluid to pass through. Rotating the ball 90 degrees positions the bore perpendicular to the flow path, effectively stopping the flow. The ball is typically made of stainless steel, offering durability and resistance to corrosion.​

Valve Body: Stainless Steel Construction

The valve body serves as the outer shell, housing the internal components and providing structural integrity. Constructed from stainless steel, the body offers excellent resistance to corrosion, making it suitable for harsh environments and various media types. The design of the valve body can vary, including one-piece, two-piece, or three-piece configurations, each offering different benefits in terms of maintenance and assembly.​

Stem, Seats, and Seals: Materials and Roles

• Stem: The stem connects the actuator or handle to the ball, transmitting the rotational force needed to open or close the valve. It is designed to withstand operational stresses and is often equipped with seals to prevent leakage.​

• Seats: Positioned between the ball and the valve body, the seats provide a sealing surface to prevent fluid leakage when the valve is closed. Materials for seats vary based on application requirements:

  • PTFE (Teflon): Offers excellent chemical resistance and low friction, suitable for a wide range of applications.

  • PEEK: Provides high mechanical strength and thermal stability, ideal for high-pressure and high-temperature environments.

  • Metal: Used in applications involving high temperatures, abrasive media, or where soft seats are unsuitable.​

• Seals: Seals prevent leakage around the stem and other potential leak paths. Common materials include:

  • Viton: Known for its chemical resistance and high-temperature tolerance.

  • EPDM: Suitable for water, steam, and some chemicals, offering good weather resistance.

  • Graphite: Used in high-temperature applications due to its thermal stability.​

Connection Types: Flanged, Threaded, Welded

Stainless steel ball valves are available with various connection types to accommodate different piping systems:​

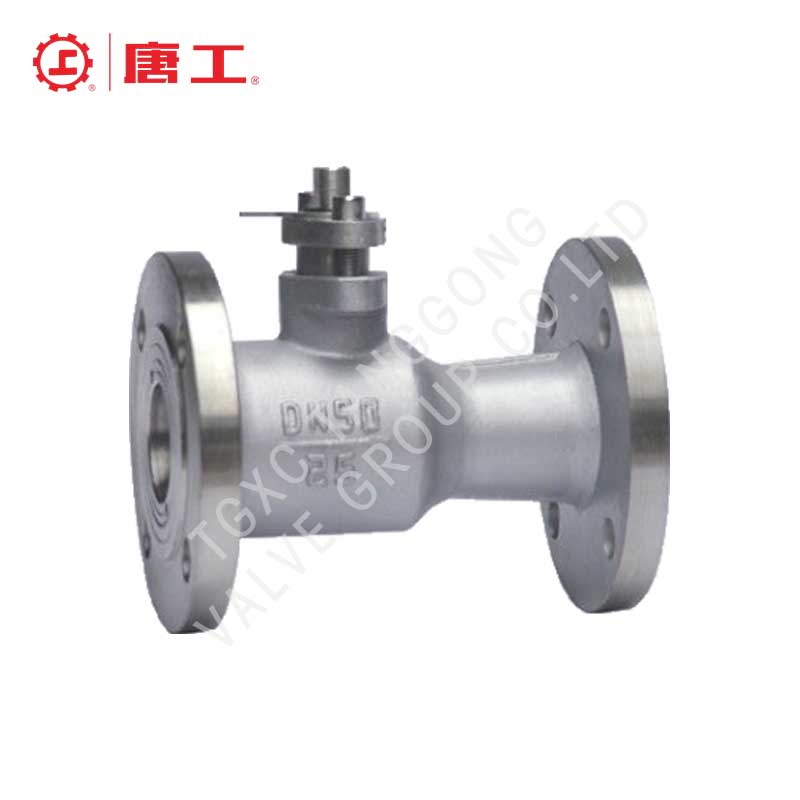

• Flanged Connections: Feature flanges that are bolted to matching flanges on the pipeline. They provide a secure, leak-resistant joint, making them suitable for high-pressure and high-temperature applications. Flanged connections also facilitate easy disassembly for maintenance.​

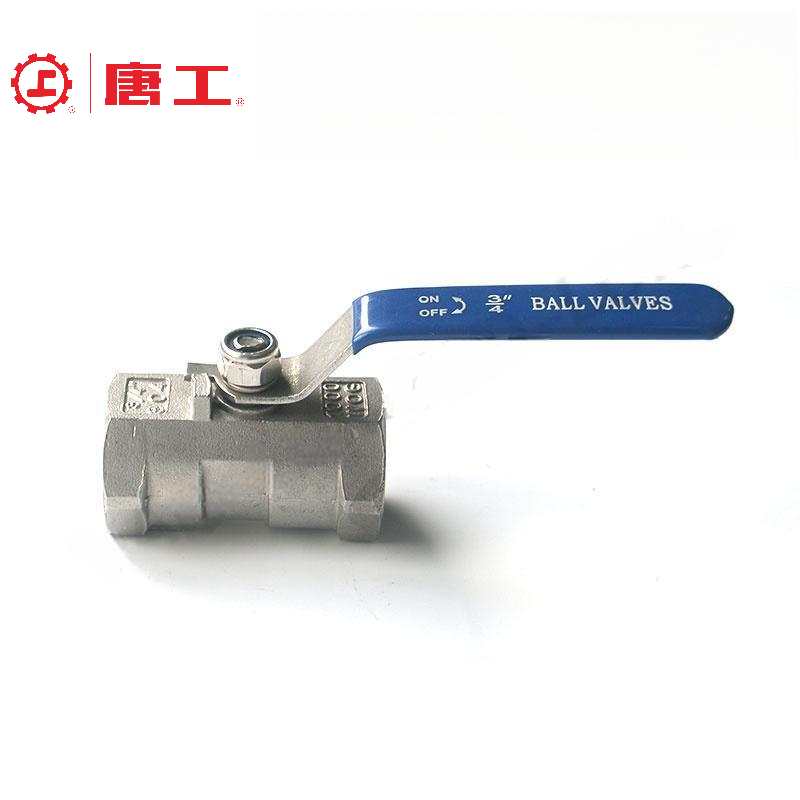

• Threaded Connections: Utilize screw-type threads to connect the valve to the pipeline. They are easy to install and are commonly used in smaller diameter pipelines and low to medium-pressure systems.​

• Welded Connections: Involve welding the valve directly to the pipeline, creating a permanent and robust joint. Welded connections are ideal for high-pressure, high-temperature applications where leakage must be minimized, but they make valve removal more challenging.



Types of Stainless Steel Ball Valves

Stainless steel ball valves come in various configurations, each designed to meet specific operational requirements. Understanding these types is crucial for selecting the right valve for your application.

By Design:

Floating Ball Valves feature a ball that is not fixed but held in place by the valve seats. When pressure is applied, the ball moves slightly downstream, pressing against the seat to create a seal. This design is typically used in low to medium-pressure applications and is known for its simplicity and cost-effectiveness. ​

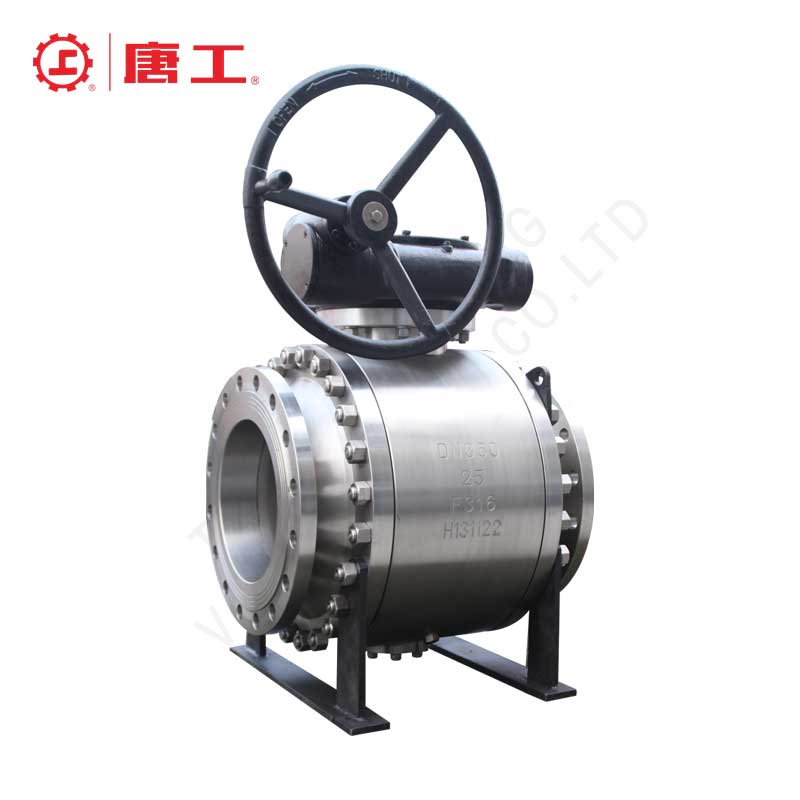

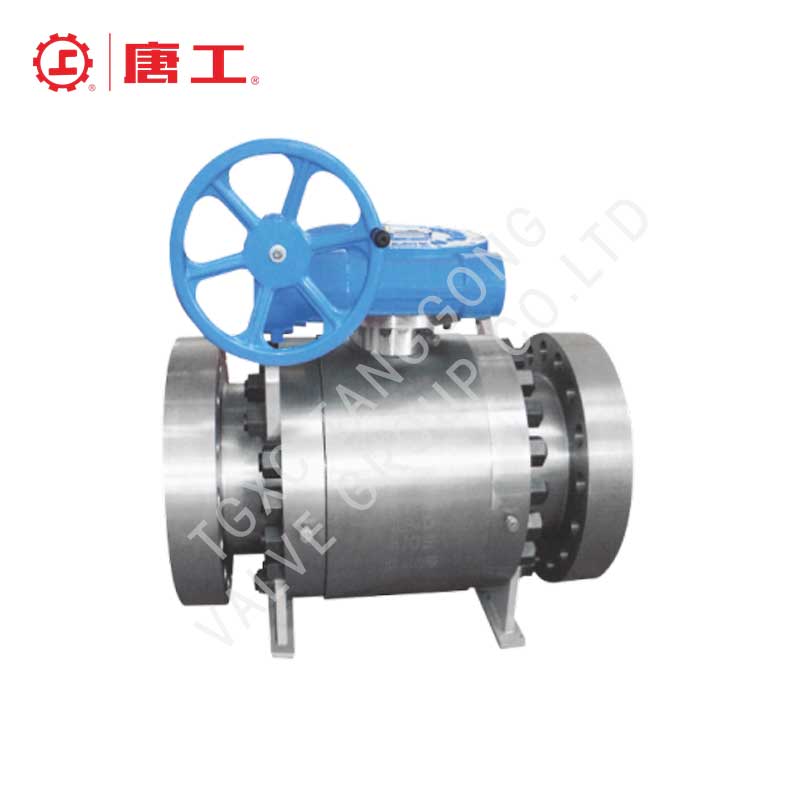

Trunnion-Mounted Ball Valves have additional mechanical anchoring at the top and bottom of the ball, known as trunnions. This design prevents the ball from moving laterally, allowing it to handle higher pressures and larger sizes with reduced operating torque. Trunnion-mounted valves are ideal for high-pressure applications and are commonly used in the oil and gas industry. ​

By Bore Type:

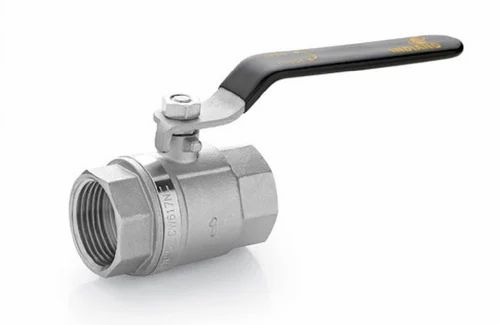

Full-Port (Full-Bore) Ball Valves have a bore diameter equal to the pipeline, ensuring minimal flow restriction and pressure drop. They are suitable for applications requiring unrestricted flow, such as in pipelines that require pigging. ​

Reduced-Port (Standard-Port) Ball Valves have a smaller bore than the pipeline, resulting in some flow restriction and pressure drop. However, they are more compact and cost-effective, making them suitable for applications where flow rate is not a critical factor. ​

By Actuation Method:

Manual Actuation involves operating the valve by hand using a lever or wheel. This method is straightforward and cost-effective, suitable for applications where automation is not required.​

Pneumatic Actuation uses compressed air to operate the valve. Pneumatic actuators provide rapid and reliable operation, making them ideal for systems requiring quick response times. ​

Electric Actuation employs an electric motor to control the valve. Electric actuators offer precise control and are suitable for applications requiring remote operation and integration with control systems. ​

Hydraulic Actuation utilizes pressurized fluid to operate the valve. Hydraulic actuators are powerful and capable of handling high-pressure applications, often used in heavy-duty industrial settings.



Advantages of Stainless Steel Ball Valves

​Stainless steel ball valves are renowned for their superior performance and reliability across various industries. Their unique properties make them an ideal choice for applications demanding durability, hygiene, and minimal maintenance.​

Corrosion and Rust Resistance

One of the most significant advantages of stainless steel ball valves is their exceptional resistance to corrosion and rust. The presence of chromium in stainless steel forms a passive oxide layer on the surface, which protects the underlying metal from corrosive elements. This makes them particularly suitable for environments exposed to harsh chemicals, saltwater, or high humidity, such as in marine applications or chemical processing plants. ​

High Durability in Extreme Temperatures and Pressures

Stainless steel ball valves are engineered to withstand extreme operating conditions. They maintain structural integrity and reliable performance under high-pressure systems and across a broad temperature range. This durability ensures consistent operation in demanding applications like oil and gas exploration, power generation, and industrial manufacturing processes. ​

Hygienic Properties for Food, Pharmaceutical, and Chemical Industries

The smooth, non-porous surface of stainless steel makes it easy to clean and sterilize, which is crucial in industries where hygiene is paramount. Stainless steel ball valves are widely used in food and beverage production, pharmaceutical manufacturing, and chemical processing due to their ability to prevent contamination and comply with strict sanitary standards. ​

Low Maintenance and Long Service Life

The robust construction and corrosion-resistant properties of stainless steel ball valves contribute to their long service life and reduced maintenance requirements. Their ability to resist wear and degradation over time minimizes the need for frequent inspections or replacements, leading to cost savings and increased operational efficiency in the long term.



Common Applications of Stainless Steel Ball Valves

​Stainless steel ball valves are integral components across various industries, offering reliable performance in demanding environments. Their durability, corrosion resistance, and hygienic properties make them suitable for numerous applications.​

Oil and Gas Pipelines

In the oil and gas sector, stainless steel ball valves are essential for controlling the flow of crude oil, natural gas, and refined products. Their ability to withstand high pressures and resist corrosion from hydrocarbons and other chemicals ensures safe and efficient operation in upstream, midstream, and downstream applications. ​

Water Treatment and Distribution Systems

Water treatment facilities utilize stainless steel ball valves to manage the flow of water during purification and distribution processes. Their resistance to corrosion from chlorine and other treatment chemicals, along with their durability, makes them ideal for both potable water systems and wastewater management. ​

Chemical Processing Plants

Chemical industries demand materials that can handle aggressive substances. Stainless steel ball valves are favored in these settings due to their compatibility with a wide range of chemicals, including acids and solvents. Their robust construction ensures longevity and safety in processes involving corrosive fluids. ​

Food and Beverage Production

Maintaining hygiene is paramount in food and beverage manufacturing. Stainless steel ball valves are employed to control the flow of ingredients and products, thanks to their easy-to-clean surfaces and compliance with sanitary standards. They are commonly found in breweries, dairies, and processing plants. ​

HVAC and Marine Systems

In HVAC systems, stainless steel ball valves regulate the flow of heating and cooling fluids, offering reliability and resistance to varying temperatures. Marine applications benefit from these valves’ ability to resist saltwater corrosion, making them suitable for use in shipbuilding and offshore installations.



How to Choose the Right Stainless Steel Ball Valve

​Selecting the appropriate stainless steel ball valve is crucial for ensuring optimal performance, safety, and longevity in various applications. Key considerations include pressure and temperature ratings, media compatibility, material grade, and adherence to industry standards.​

Factors to Consider:

• Pressure Rating: Ensure the valve’s pressure rating exceeds the system’s maximum operating pressure to prevent failures or leaks. Common pressure classes include 1500 psi, 3000 psi, and 5000 psi, with some valves rated up to 10,000 psi for extreme applications .​

• Temperature Range: Select valves designed to operate within the system’s temperature parameters. Exceeding these limits can compromise valve integrity and performance .​

• Media Compatibility: Consider the chemical properties of the fluid or gas. Abrasive particles, corrosive chemicals, or high-viscosity fluids require valves made from materials resistant to such conditions .​

Importance of Material Grade:

• 304 Stainless Steel: Contains 18% chromium and 8% nickel, offering good corrosion resistance in general environments. It’s cost-effective and suitable for applications like food processing and water treatment .​

• 316 Stainless Steel: Includes 16% chromium, 10% nickel, and 2% molybdenum, enhancing resistance to chlorides and acidic environments. Ideal for marine applications, chemical processing, and pharmaceutical industries .​

Industry Standards and Certifications

• API Standards:

  • API 6D: Covers pipeline valves, including ball valves, ensuring they meet stringent design and testing requirements .

  • API 598: Specifies testing and inspection procedures for valves to ensure leak-tight performance .​

• ANSI/ASME Standards:

  • ASME B16.34: Defines pressure-temperature ratings and other requirements for steel valves .​

• ISO Standards:

  • ISO 17292: Specifies requirements for metal ball valves used in industrial applications, ensuring global compatibility and performance .​



Maintenance and Troubleshooting Tips

​Proper maintenance of stainless steel ball valves is essential to ensure their longevity and reliable performance. Regular inspection, cleaning, and timely replacement of components can prevent common issues and maintain system efficiency.​

Regular Inspection and Cleaning Practices

Implementing a routine maintenance schedule is crucial for the optimal functioning of stainless steel ball valves. Key practices include:​

• Routine Visual Inspections: Regularly check for signs of wear, corrosion, or leaks around the valve body and connections. ​

• Cleaning Procedures: Clean the valve interiors to remove any debris or buildup that could impede operation. Use appropriate cleaning agents compatible with stainless steel materials. ​

• Lubrication: Apply suitable lubricants to moving parts to ensure smooth operation and prevent seizure. Refer to manufacturer guidelines for recommended lubricants. ​

​Signs of Wear: Leakage, Stiff Operation, Corrosion Spots

Recognizing early signs of wear can prevent more significant problems. Common indicators include:​

• Leakage: Presence of fluid around the valve may indicate worn seals or seats. ​

• Stiff Operation: Difficulty in turning the valve handle could result from internal corrosion or debris buildup. ​

• Corrosion Spots: Visible rust or pitting on the valve surface suggests material degradation, potentially compromising the valve’s integrity. ​​

Replacing Seals and Seats for Optimal Performance

Over time, seals and seats within the valve may deteriorate, leading to leaks or reduced efficiency. Steps for replacement include:​

1. Disassembly: Safely remove the valve from the system and disassemble it according to manufacturer instructions. ​

2. Inspection: Examine the seals and seats for wear, cracks, or deformation. ​

3. Replacement: Install new seals and seats, ensuring they are compatible with the valve model and application. ​

4. Reassembly and Testing: Reassemble the valve and conduct pressure tests to confirm proper sealing and operation.



FAQs

1.Can stainless steel ball valves handle corrosive fluids?

Yes, stainless steel ball valves are well-suited for handling corrosive fluids. Particularly, 316 stainless steel, which contains molybdenum, offers enhanced resistance to chlorides and acidic environments, making it ideal for marine applications and chemical processing industries. For less aggressive media, 304 stainless steel provides adequate corrosion resistance at a more economical price point. Additionally, selecting appropriate seal materials like PTFE or FKM can further enhance the valve’s compatibility with corrosive substances. ​

2.Are they suitable for high-pressure systems?

Absolutely. Stainless steel ball valves are designed to withstand high-pressure environments. High-pressure variants, especially those made from 316 stainless steel, can handle pressures up to 3,000 psi or more, depending on the design and application. These valves are commonly used in industries like oil and gas, petrochemical processing, and hydraulic systems where reliable performance under high pressure is crucial. ​

3.How do they compare to brass or PVC ball valves?

Stainless steel ball valves offer superior strength, durability, and corrosion resistance compared to brass or PVC valves. While brass valves are more cost-effective and suitable for moderate pressure and temperature applications, they may not perform well in highly corrosive environments. PVC valves are lightweight and corrosion-resistant but are limited to low-pressure and temperature applications. In contrast, stainless steel valves are ideal for high-pressure, high-temperature, and corrosive conditions, making them suitable for demanding industrial applications. ​



Conclusion

Stainless steel ball valves stand out for their corrosion resistance, high durability under pressure and temperature extremes, hygienic qualities for sensitive industries, and minimal maintenance needs. Their versatility across oil and gas, water treatment, chemical, food processing, HVAC, and marine applications makes it a reliable choice for demanding systems. Whether you need a floating or trunnion-mounted design, full or reduced port, or manual or automated actuation, there’s a solution tailored to your needs. Explore our full range of stainless steel ball valves or contact us to discuss custom options that fit your specific requirements.
