A control valve can receive the correct 4-20 mA command and still stop short of the required travel when actuator force, packing friction, air supply, or feedback setup is wrong. In that condition, changing the valve body alone will not correct the loop behaviour. The valve positioner is the device that helps the actuator move the stem or shaft to the position demanded by the controller.
For buyers, engineers, and maintenance teams, the useful question is whether the application needs a pneumatic, electro-pneumatic, or smart positioner, and how that choice affects response time, calibration, feedback, and fail action. A positioner selected without checking the actuator, instrument air, solenoid valve, and control signal can still leave the valve hunting, moving slowly, or reporting a position that does not match actual travel.
This guide explains what a valve positioner does, how it works in a control valve loop, which types are common, and when the positioner should be specified as part of the complete control valve package rather than treated as a separate accessory.
What Is a Valve Positioner?
A valve positioner is a feedback device mounted between a controller and a valve actuator. It receives the control signal, checks the actual stem or shaft position, and adjusts the actuator output until the valve reaches the demanded travel.
On a pneumatic control valve, this usually means sending more or less air to a diaphragm or piston actuator. If packing friction, unbalanced force from the process medium, or actuator lag stops the valve from moving correctly, the positioner changes the output pressure instead of assuming the valve has followed the command.
The positioner should be treated as part of the valve assembly, not as a loose instrument added after the valve is selected. Its mounting, feedback linkage or sensor, air supply, action direction, calibration, and signal type all affect whether the control valve reaches 25%, 50%, or 80% travel when the control system asks for that position.
How a Valve Positioner Works in a Control Valve Loop
The positioner compares the controller signal with the actual stem or shaft position of the valve. If the control system asks for 50% travel and the feedback shows only 42%, the positioner changes its output to the actuator until the valve moves closer to the demanded position.
In a pneumatic valve assembly, the positioner controls air pressure to the actuator. A traditional pneumatic positioner may use a nozzle, flapper, relay, cam, and feedback linkage. An electro-pneumatic positioner receives a 4-20 mA signal and converts that electrical command into pneumatic output pressure. A digital valve positioner does the same control job, but can also provide travel feedback, calibration data, diagnostic alerts, and communication with the control system.
This feedback loop matters because the actuator does not always move exactly as the signal suggests. Stem packing can create friction. Process pressure can push against the plug, ball, disc, or trim. Air tubing can add delay. The positioner keeps correcting the actuator output until the measured valve position matches the command within the practical limits of the valve assembly.
A positioner cannot repair a badly sized valve, damaged trim, leaking actuator diaphragm, or dirty instrument air. It can only correct position error when the valve, actuator, air supply, and feedback mechanism are capable of responding. That is why the positioner should be checked together with actuator force, fail action, air pressure, calibration, and the required control accuracy.
Main Types of Valve Positioners
The type of valve positioner is mainly decided by the input signal, actuator design, required feedback, and how much diagnostic data the control system needs. A simple pneumatic loop does not need the same positioner as a DCS-controlled plant that wants travel feedback, alarms, and remote calibration.
| Positioner type | Input signal | Output to actuator | Feedback and diagnostics | Best fit | Check before ordering |
|---|---|---|---|---|---|
| Pneumatic valve positioner | Pneumatic signal, often 20-100 kPa or 3-15 psi | Air pressure to a diaphragm or piston actuator | Mechanical or pneumatic feedback from stem or shaft travel | Older pneumatic control loops, simple field operation, plants avoiding electrical devices near the valve | Air quality, action direction, actuator travel, feedback linkage |
| Electro-pneumatic valve positioner | Electrical command, usually 4-20 mA | Converted pneumatic output pressure | Position feedback used to correct travel error | Most analogue control valve loops using pneumatic actuators | Signal range, supply pressure, explosion-proof or intrinsically safe requirements, fail action |
| Digital or smart valve positioner | 4-20 mA with HART, fieldbus, or digital communication depending on model | Controlled pneumatic output to the actuator | Travel feedback, calibration data, alerts, and valve diagnostic information | Critical loops, remote commissioning, predictive maintenance, high-value control valves | Protocol, DCS compatibility, diagnostic needs, hazardous-area approval, local display requirement |
For a new throttling valve package, the positioner should be selected together with the actuator and valve style. A globe control valve, V-port ball valve, or high-performance butterfly control valve may all use a positioner, but the stroke type, actuator torque or thrust, fail position, and air volume are different. MacoTango can match these details through its control valve series when the positioner is part of a complete control valve assembly.
When Does a Control Valve Need a Positioner?
A control valve needs a positioner when the actuator cannot keep valve travel close enough to the controller signal by force and air pressure alone. This usually happens on throttling valves, where the valve must hold partial positions instead of simply moving fully open or fully closed.
High differential pressure is one common reason. The process medium can push against the plug, ball, disc, or trim and create an unbalanced force that resists actuator movement. Without a control valve positioner, the actuator may stop before the valve reaches the requested travel, especially near mid-stroke where the valve is controlling flow.
Friction is another reason. Tight packing, graphite packing, high-temperature service, corrosive media, slurry, viscous liquid, or valves with ageing guide surfaces can make the stem slow to move. A positioner helps by increasing or reducing actuator output until the feedback signal shows that the valve has reached the demanded position.
Large actuators, long air tubing, and long signal distances can also make the valve response slow. A pneumatic valve positioner can reduce part of this lag by mounting close to the actuator and correcting the actuator pressure at the valve, rather than depending only on a remote control signal. If the actuator volume is large or the required stroke speed is high, a volume booster may still be needed with the positioner.
A positioner is usually unnecessary for a simple on/off valve that only needs open and closed confirmation. It becomes valuable when the valve must modulate flow, hold intermediate travel, overcome friction, reduce deadband, support split-range control, or give the control system a more accurate relationship between command signal and actual valve position.
Valve Positioner vs Limit Switch, I/P Transducer and Solenoid Valve
A valve positioner corrects valve travel while the valve is moving. A limit switch, I/P transducer, and solenoid valve may sit on the same actuator package, but they do different jobs. Mixing these functions is a common reason for poor control, wrong feedback, or an actuator package that looks complete on paper but does not behave correctly on site.
Valve positioner vs limit switch
A limit switch confirms a discrete valve state, usually open, closed, or sometimes an intermediate position. It does not continuously correct the actuator output. A valve positioner uses valve travel feedback to move the actuator towards the demanded position, which is why it belongs on throttling control valves rather than simple indication-only duties.
If the control system only needs proof that an on/off valve has reached open or closed, a limit switch may be enough. If the valve must hold 35%, 50%, or 70% travel while controlling flow, a positioner is the correct device. For a deeper comparison, see MacoTango’s positioner and limit switch comparison.
Valve positioner vs I/P transducer
An I/P transducer converts an electrical current signal, usually 4-20 mA, into a proportional pneumatic pressure signal. In a basic I/P arrangement, the device controls output pressure but does not confirm actual valve stem or shaft travel. If packing friction or process force prevents movement, the I/P transducer may still output the expected pressure while the valve remains short of the required position.
A control valve positioner includes valve travel feedback, so it can compare the command with the measured valve position. This is the key difference for modulating service. Use an I/P transducer where proportional pressure output is enough; use a positioner where actual valve travel must be corrected.
Valve positioner vs solenoid valve
A solenoid valve changes the air path to the actuator. It is commonly used for trip, shutdown, emergency action, or remote on/off control of pneumatic supply and exhaust. It does not measure valve travel and it does not tune the valve to a control signal.
On some pneumatic control valve packages, the positioner handles modulation while the solenoid valve handles the safety or shutdown action. Their order in the air circuit matters. A wrongly placed SOV can make the valve fail in a different way from the intended fail-open, fail-closed, or fail-last design, even when the positioner itself is correctly calibrated.
Selection Factors That Affect Positioner Performance
A positioner can correct travel error only when its feedback travel, air output, and action direction match the actuator and valve movement. A unit that works on a small linear diaphragm actuator may be the wrong choice for a rotary pneumatic actuator with higher air volume or faster stroke requirements.
Start with the actuator motion. Linear globe control valves need feedback matched to stem travel. Rotary ball valves and butterfly control valves need feedback matched to shaft rotation. Loose brackets, poor linkage geometry, or the wrong cam setting can create position error even when the 4-20 mA signal and air supply look normal.
Fail action should be confirmed before the positioner is ordered. A fail-open, fail-closed, or fail-last valve package changes how the positioner, actuator spring, solenoid valve, and air circuit should be arranged. If the positioner action is reversed against the actuator action, the valve may move in the wrong direction during commissioning.
Instrument air quality and available pressure set practical limits. Wet, oily, or unstable air can make a positioner stick, drift, or exhaust incorrectly. Large actuators may also need more output capacity than the positioner relay can provide, so a volume booster may be required when stroke speed matters.
The control signal and plant communication decide how simple or advanced the positioner needs to be. A basic analogue loop may only need 4-20 mA control. A DCS loop may need HART, fieldbus, local display, remote calibration, travel feedback, or diagnostic alerts. Hazardous-area service also changes the enclosure and approval requirements.
For a new control valve package, these details should be checked with the valve and actuator together instead of added after the valve body has been selected. When the positioner is part of a complete throttling valve assembly, MacoTango can review the actuator type, fail action, signal, mounting, and accessory arrangement through its control valve manufacturer page.
Air Supply, SOVs and Accessories Around the Positioner
Dirty or unstable instrument air can make a good valve positioner look faulty. The positioner depends on clean, dry, regulated air to move the actuator, vent correctly, and repeat the same travel when the controller sends the same signal.
The usual air path starts from plant instrument air, then passes through a filter regulator before reaching the positioner. The regulator should provide enough pressure for the actuator while staying within the positioner and actuator limits. If supply pressure drops during compressor cycling or plant upset, the valve may move slowly, fail to reach full stroke, or show a command and feedback mismatch.

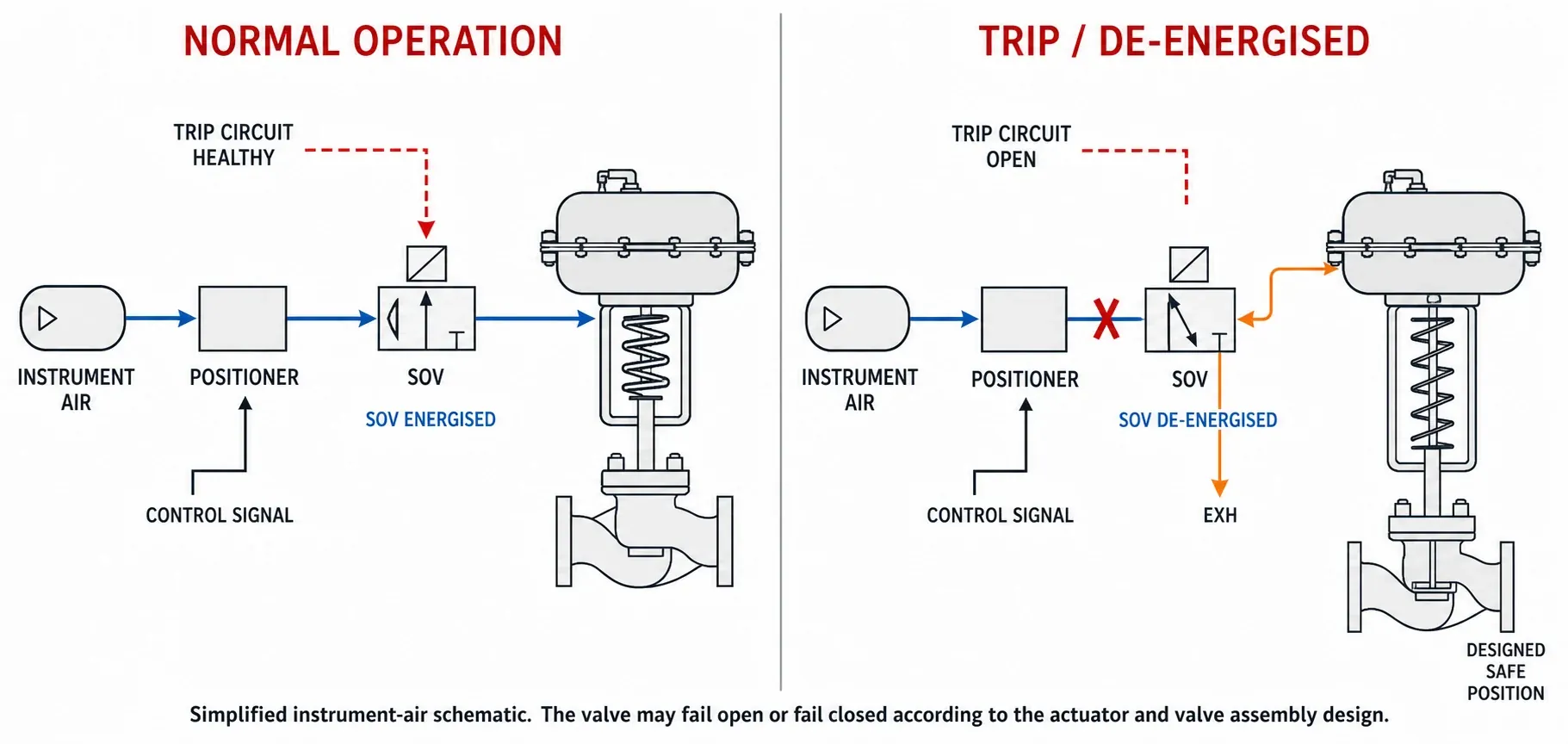

A solenoid valve, often shortened to SOV, is added when the actuator package needs trip, shutdown, remote on/off override, or safety action. Its location in the pneumatic circuit changes the fail behaviour. An SOV fitted before the positioner may cut supply to the positioner. An SOV fitted between the positioner and actuator may dump actuator pressure directly. The correct arrangement depends on fail-open, fail-closed, or fail-last logic.
A volume booster has a different job. It increases air flow to or from a large actuator so the valve can stroke faster. If the booster is too aggressive or the bypass is poorly adjusted, the valve can overshoot, hunt, or become harder to tune. Quick exhaust valves, lock-up valves, pressure gauges, and tubing size should be reviewed in the same air circuit, not treated as separate catalogue items.
If a control valve is slow after commissioning, replacing the positioner first may miss the fault. Check the filter regulator, live supply pressure during stroke, SOV state, booster setting, tubing leaks, exhaust restriction, and actuator air volume before assuming the valve positioner itself is wrong.
Common Symptoms During Commissioning or Maintenance
Slow travel, hunting, and feedback mismatch can come from the positioner, actuator, air circuit, calibration, or valve friction. Treat the symptom as a clue to the actuator package, not as automatic proof that the valve positioner has failed.
| Symptom | Likely cause | What to check first |
|---|---|---|
| Valve moves slowly | Low supply pressure, small tubing, restricted exhaust, large actuator volume | Live air pressure during stroke, filter regulator setting, tubing size, booster need |
| Valve hunts around setpoint | Poor tuning, loose linkage, booster instability, excessive gain | Positioner tuning, feedback linkage, booster bypass, actuator movement |
| Command and feedback do not match | Wrong calibration, travel limit error, stem friction, feedback sensor issue | Zero and span calibration, mechanical travel, cam or sensor setting |
| Valve moves in the wrong direction | Direct or reverse action mismatch, wrong actuator fail action, incorrect air piping | Positioner action, actuator spring direction, SOV position, air ports |
| Valve sticks then jumps | Packing friction, stiction, dirty stem, worn guide surfaces | Manual stroke feel, packing load, stem condition, trim and guide inspection |
| Valve cannot reach full travel | Insufficient actuator force, air leak, travel stop setting, process force | Actuator sizing, diaphragm or piston leakage, travel stops, differential pressure |
Use the table as a first isolation step. If the actuator leaks, the air supply drops during stroke, or the valve stem is sticking, changing positioner settings may hide the fault for a short time but will not make the valve follow the control signal consistently.
For smart positioners, diagnostic data can shorten the check. Travel deviation, supply pressure alarms, calibration history, and travel count can point towards the fault area. These readings still need to be compared with the physical valve movement, actuator response, and live air pressure at the valve.
Specify the Positioner With the Complete Valve Package
Specify the valve positioner after the valve style, actuator force, fail action, air supply, and control signal are clear. The positioner should correct travel error, but it cannot make up for an undersized actuator, unstable instrument air, wrong SOV arrangement, or valve friction that has not been considered.
For a new control valve package or a replacement actuator assembly, review the valve, actuator, positioner, filter regulator, SOV, booster, and feedback requirement together. If you are comparing pneumatic, electro-pneumatic, or smart positioners, you can discuss the control valve package with MacoTango with the service conditions, signal type, fail position, and required diagnostics.
