Valves are essential components in various industrial applications. They play a key role in regulating fluid flow, maintaining pressure, and ensuring system safety. At the core of these mechanisms lies a crucial element known as the valve seat. This blog aims to explain what a valve seat is, its role in valve systems, and why it is vital for efficient and reliable operations.

Understanding the Basics: What is a Valve Seat

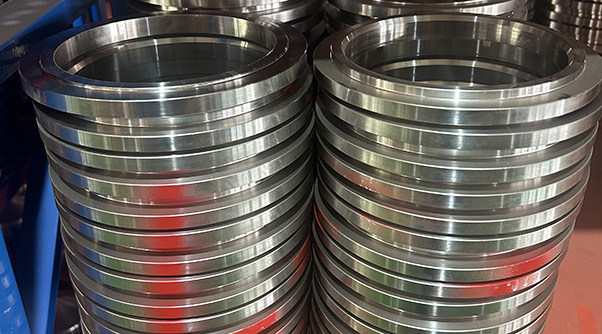

A valve seat is a critical part of a valve that forms a seal between the valve body and the movable component, usually the valve disc or ball. It serves as the resting surface against which the disc or ball closes to control or completely stop fluid flow. In essence, the valve seat ensures tight closure to prevent leaks. This is essential for maintaining the desired pressure and flow within an industrial pipeline.

Valve seats can be made of various materials, including metals like stainless steel or brass, as well as elastomers or composite materials. The choice of material depends on the application, including the type of fluid passing through the valve and the operating temperature and pressure conditions.

The Role of a Valve Seat in Valve Systems

The valve seat ensures proper sealing between the valve and the body. It plays a key role in regulating or completely blocking fluid flow. Valve seats can be integral with the valve body or exist as seat rings that are threaded, welded, or pressed into the valve body. The choice between integral and seat ring often depends on the application and operating conditions. In high-temperature environments, welded-in seats are preferable for enhanced durability.

Valve Seat Materials

Selecting the right valve seat material is crucial for valve performance, longevity, and safety. Factors like chemical compatibility, operating temperature, and pressure influence the choice. Common materials include PTFE (for low-pressure and chemically aggressive environments), reinforced PTFE, tungsten carbide, stainless steel, and high-performance polymers like PEEK. Soft seats, such as PTFE, provide better sealing but may not withstand high temperatures and pressures. Hard and metallic seats, like tungsten carbide, offer excellent wear resistance and work well in abrasive and high-temperature conditions.

Valve Types and Their Seat Design

Globe Valves

Globe valves use a linear motion where the disk moves perpendicularly away from the seat to regulate fluid flow. This allows effective throttling and provides better seat leakage prevention compared to other valve types, like gate valves. The disk-to-seat right-angle contact minimizes leakage, making globe valves effective for applications needing precise flow regulation.

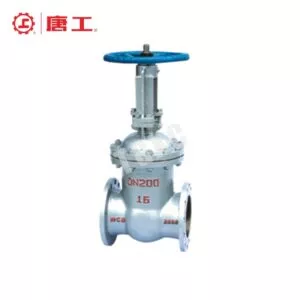

Gate Valves

Gate valves have rising or non-rising stems. Their seats can be integral or replaceable seat rings. These valves are mainly used for on/off applications rather than throttling. They are more prone to leakage compared to globe valves. Integral seats typically use the same material as the valve body, while pressed-in seat rings may use hard facings for better resistance.

Seating Mechanisms

Various seating mechanisms affect the valve’s sealing capabilities. Positioning seating involves placing the valve disc at a specific angle to maintain an optimal seal. This approach is used in double-offset and triple-offset butterfly valves. It provides minimal friction and a reliable seal even under high pressure. Torque seating requires a specific amount of torque to achieve a proper seal, especially in metal-to-metal contact valves operating at higher pressures.

Challenges and Requirements

One key challenge in valve seat design is ensuring a fine surface finish for good sealing, especially with hard surfaces. Factors like seat leakage, mechanical wear, and operating conditions affect valve functionality. Hard-surfaced seats, often made using techniques like tungsten carbide coating, are well-suited for valves operating under extreme pressure or in abrasive environments.

Industrial Applications

Valve seats are found in many industries, including oil and gas, water treatment, and power generation. Their importance is emphasized in systems that require precise fluid control, such as:

• Oil & Gas: Valve seats ensure that control valves in pipelines effectively seal and manage crude oil, gas, or refined products.
• Water Treatment: Maintaining a tight seal is vital to control water flow, prevent leaks, and ensure water quality in filtration systems.
• Power Generation: High-pressure steam and cooling systems depend on valve seats to control flow and maintain safety.

Conclusion

Selecting the correct valve seat design and material is crucial for optimal valve performance, safety, and durability. Choosing between integral seats, seat rings, or welded-in options, and selecting suitable materials like PTFE, stainless steel, or tungsten carbide, significantly enhances valve reliability. Proper seating mechanisms ensure effective sealing, even in challenging environments. By carefully considering these factors, engineers can minimize leakage, improve operational efficiency, and extend valve service life.
