Wedge gate valves are an essential component in various industrial sectors where control over fluid flow is critical. Their unique design, characterized by a wedge-shaped gate, allows for a reliable shut-off function, making them indispensable in high-pressure, high-temperature environments such as oil and gas, power generation, and water treatment industries. In this article, we will explore the attributes and benefits of wedge gate valves, focusing on their construction, operation, and applications.
Table of Contents

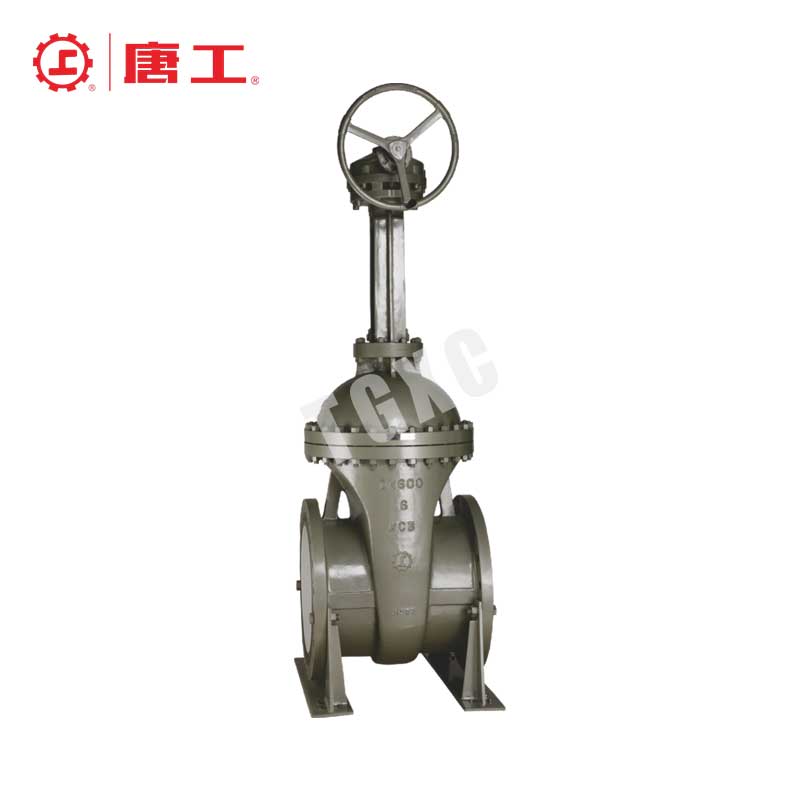

ToggleWedge Gate Valve Design and Functionality
A wedge gate valve is a type of gate valve that features a wedge-shaped gate, which is designed to control the flow of fluid through a pipeline. It is primarily used to either fully open or fully close the flow path, making it ideal for on/off applications. When fully open, the valve provides a clear, uninterrupted passage, resulting in minimal pressure loss and low flow resistance. This design is widely appreciated for its simplicity, reliability, and effectiveness in systems that require robust shut-off capabilities.
The wedge gate valve operates by using a wedge-shaped disc that fits snugly between two seats in the valve body. As the valve is turned, the gate moves upward to allow flow and downward to seal the passage, ensuring tight shutoff. The wedge shape of the gate helps create a strong seal, preventing leakage even under high-pressure conditions. Typically, these valves are operated using a manual wheel, electric motor, or pneumatic actuator, depending on the specific application requirements.
Components of a Wedge Gate Valve

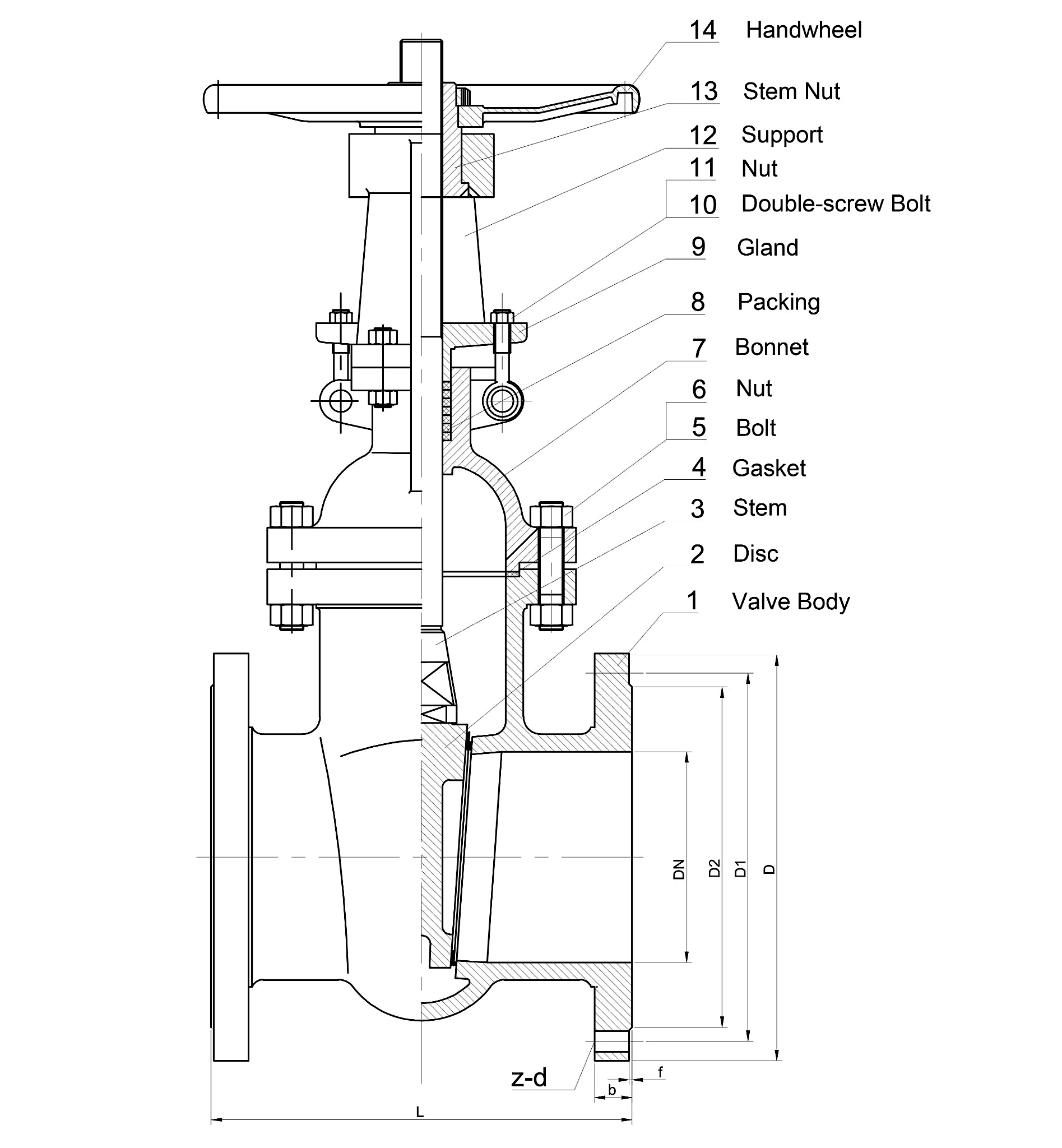

Wedge gate valves are designed with several critical components that work together to provide effective flow control and sealing. Each part plays a unique role in ensuring the valve’s functionality, durability, and performance across various industrial applications. Here are the main components:
Valve Body
The valve body forms the outer shell and houses all the internal components. It provides structural strength to withstand high pressure and temperature, ensuring safe operation in demanding environments. The body is typically constructed from robust materials like stainless steel, cast iron, or alloy steel to offer durability and resistance to corrosion.
Wedge Disc
The wedge-shaped disc is the key element that moves to open or close the valve. Its angled design ensures a tight seal against the seat when the valve is closed, preventing fluid leakage. The disc may be rigid, flexible, or split, depending on the specific requirements of the application.
Valve Stem
The stem connects the actuator (manual handwheel, electric motor, or pneumatic mechanism) to the wedge disc. It transmits the motion required to raise or lower the disc. Stems are engineered for precision and strength, as they endure repeated operations under high stress.
Bonnet
The bonnet is a cover that protects the internal components of the valve, such as the stem and wedge disc. It also helps maintain a seal against external contaminants and supports the structural integrity of the valve.
Seat Rings
Seat rings are located inside the valve body, providing a surface against which the wedge disc seals when the valve is closed. These rings are crafted from wear-resistant materials to maintain a tight seal and minimize damage caused by repeated use or abrasive fluids.
Gaskets and Packing
Gaskets and packing materials are used to seal the connection between the bonnet and valve body, as well as around the valve stem. These components ensure no leakage occurs, even under high pressure or temperature.
Actuator
The actuator is the mechanism used to operate the valve, which could be manual (handwheel), electric, or pneumatic. It provides the force required to move the valve stem and wedge disc efficiently.
Fasteners
Bolts, nuts, and other fasteners are used to secure the bonnet to the valve body and ensure the valve remains leak-proof during operation. They must be made of durable materials to handle the stress of frequent use.
Types of Wedge Gate Valves
Solid Gate Wedge
The solid gate wedge, also known as a solid wedge gate valve, features a single-piece solid disc. This straightforward design provides strength and simplicity, making it suitable for a wide range of applications. Solid gate wedges are versatile and can be installed in any position, handling various fluids effectively. However, they may be prone to thermal binding in high-temperature services, where thermal expansion can cause the wedge to stick between the seats.
Flexible Gate Wedge
Flexible gate wedges consist of a one-piece solid disc with a cut around its perimeter, enhancing flexibility. The design allows the wedge to adjust to changes in seat alignment due to thermal expansion or pressure fluctuations, reducing the risk of thermal binding. This flexibility improves seat alignment and offers better leak tightness, making flexible gate wedges ideal for steam systems and applications involving temperature variations.
Split Gate Wedge

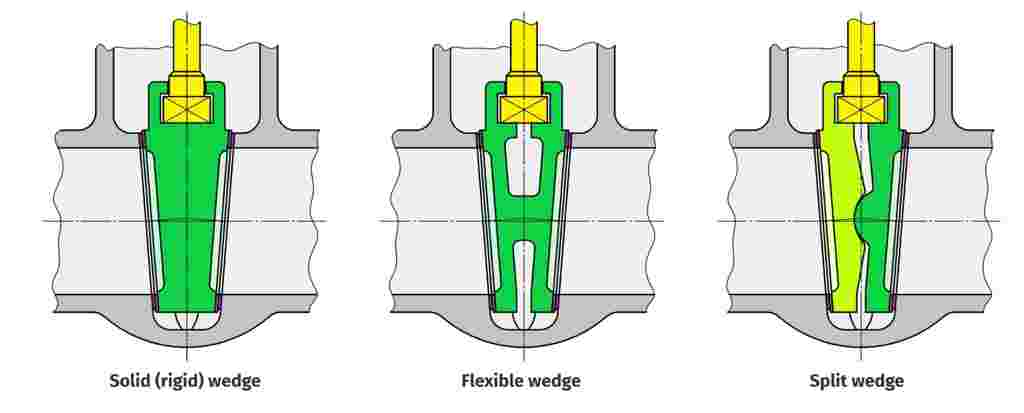

Split gate wedges, also known as split wedge or parallel disk gate valves, comprise two solid pieces held together by a special mechanism. This configuration enables the discs to adjust independently, ensuring proper seating even if the valve body or seats experience slight deformations. Split gate wedges are particularly suitable for handling non-condensing gases and liquids at normal and high temperatures, as they prevent thermal binding and ensure reliable operation under varying thermal conditions.
This video provides an overview of different gate valve wedges, including solid, flexible, split wedges.
Source: Piping Engineering
Advantages and Disadvantages of Wedge Gate Valves
Advantages of Wedge Gate Valves
- Effective Shut-Off: Wedge gate valves provide reliable on/off control, ensuring a tight seal when fully closed.
- Low Pressure Drop: When fully open, these valves offer minimal resistance to fluid flow, resulting in a low-pressure drop across the valve.
- Bi-Directional Functionality: They are designed to provide shut-off in both flow directions, enhancing their versatility in pipeline systems.
- Durability: Constructed from high-quality materials, wedge gate valves are capable of withstanding high pressures and temperatures, contributing to a long service life.
- Cost-Effectiveness: Compared to other valve types, such as ball valves, wedge gate valves tend to be more economical, especially in larger sizes.
Disadvantages of Wedge Gate Valves
- Slow Operation: Due to the multi-turn mechanism required to open or close the valve, operation can be slower compared to other valve types.
- Not Suitable for Throttling: These valves are not designed for regulating or throttling flow, as partial opening can cause excessive wear and vibration.
- Potential for Thermal Binding: In high-temperature applications, thermal expansion can cause the wedge to stick, making operation difficult.
- Maintenance Challenges: Over time, the sealing surfaces may wear, and maintenance can be more involved compared to other valve types.
Applications of Wedge Gate Valves
- Oil and Gas Industry: Used for high-pressure and high-temperature control of hydrocarbons in upstream, midstream, and downstream operations.
- Water Treatment: Regulates water flow and chemical dosing in municipal and industrial water systems.
- Chemical Processing: Handles corrosive and aggressive fluids in chemical manufacturing.
- Power Generation: Controls steam and water flow in high-pressure power plant systems.
- Mining: Manages abrasive slurries and fluids with solid particles in harsh conditions.
- Pulp and Paper: Efficiently regulates fibrous and slurry-based mixtures without clogging.
Conclusion
In conclusion, wedge gate valves are indispensable components in various industrial applications, offering reliable and efficient flow control. Their unique design, featuring a wedge-shaped gate, ensures a tight seal and minimal pressure drop when fully opened. Understanding the different types—solid, flexible, and split wedge gate valves—allows for informed selection tailored to specific operational conditions. By choosing the appropriate wedge gate valve, industries can enhance system performance, ensure safety, and achieve long-term operational success.
