Air filter regulators are crucial components in pneumatic systems, ensuring that compressed air is both clean and maintained at the correct pressure. By combining filtration and pressure regulation into a single unit, these devices protect machinery, improve system performance, and reduce maintenance costs. In this article, we’ll explore the key features, functions, and applications of air filter regulators, helping you understand how they work and how to choose the right one for your specific needs. Whether you’re working in industrial, commercial, or specialty applications, understanding air filter regulator will ensure the efficiency and longevity of your pneumatic systems.



Introduction to Air Filter Regulators

Definition and Basic Function

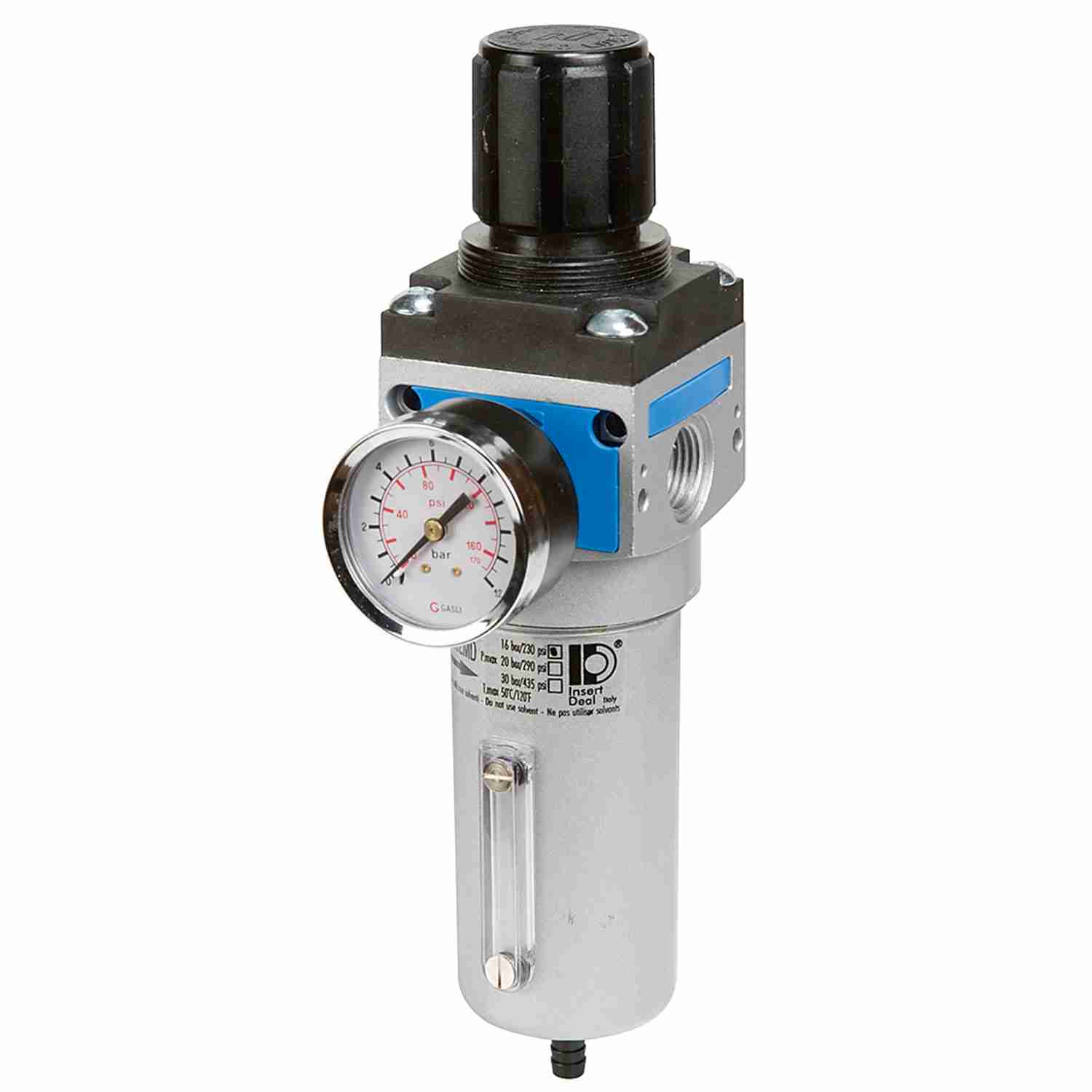

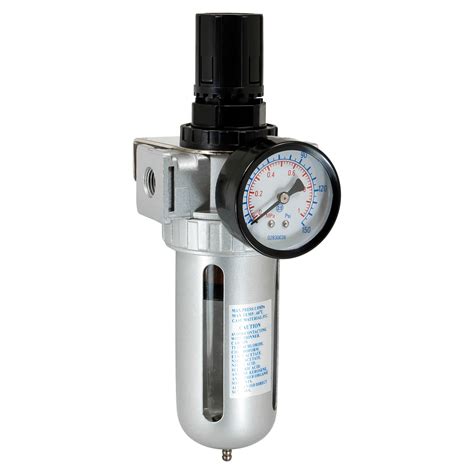

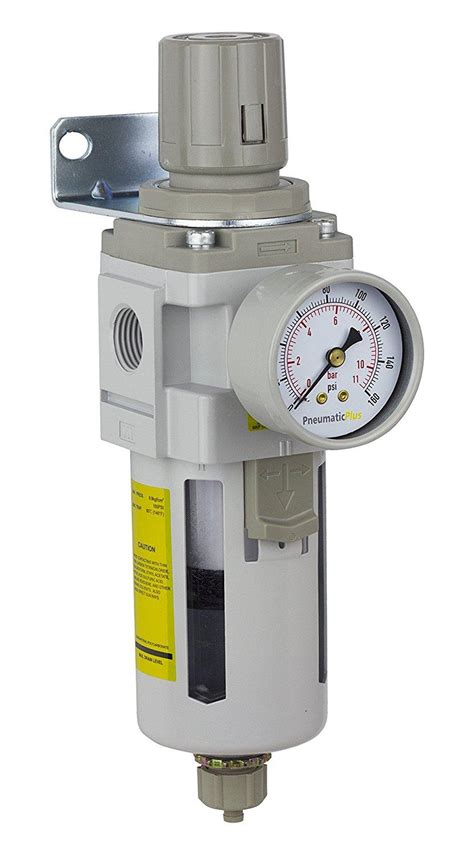

An air filter regulator is a device that combines two essential functions in pneumatic systems: filtration and pressure regulation. It cleans compressed air by removing contaminants such as dust, moisture, and oil aerosols, and simultaneously controls the air pressure to ensure it meets the specific requirements of downstream equipment. This dual functionality helps maintain the efficiency and longevity of pneumatic tools and machinery.

Why Are Air Filter Regulators Important

Air filter regulators play a crucial role in pneumatic systems by ensuring that the air supplied to tools and machinery is both clean and properly pressurized. Contaminated or improperly pressurized air can lead to equipment malfunctions, increased maintenance costs, and reduced operational efficiency. By integrating filtration and pressure regulation into a single unit, air filter regulators simplify system design, reduce the risk of contamination, and provide stable air pressure, thereby enhancing the performance and lifespan of pneumatic equipment.



Key Components of an Air Filter Regulator

The Air Filter: Keeping Contaminants Out

The air filter in an air filter regulator serves as the first line of defense against contaminants in compressed air systems. It effectively removes solid particles such as dust, dirt, and rust, as well as liquid contaminants like water and oil aerosols. This filtration process is crucial for protecting downstream equipment from damage and ensuring optimal performance.

The Pressure Regulator: Ensuring Consistent Airflow

The pressure regulator component of an air filter regulator is responsible for controlling and maintaining a consistent air pressure within the pneumatic system. By adjusting the pressure to the desired level, it ensures that downstream equipment operates safely and efficiently, minimizing downtime and enhancing productivity.

How Filter and Regulator Work Together

The synergy between the filter and regulator components is essential for optimal system performance. By integrating filtration and pressure regulation into a single unit, air filter regulators simplify system design, reduce the risk of contamination, and provide stable air pressure. This combined functionality enhances the performance and lifespan of pneumatic equipment.



How Does an Air Filter Regulator Work?

Step-by-Step Process of Air Filtration and Regulation

An air filter regulator ensures that compressed air is both clean and properly pressurized for pneumatic systems. Here’s how it operates:

1. Intake: Compressed air enters the unit through the inlet port.

2. Filtration: The air passes through a filter element that removes contaminants such as dust, dirt, and moisture. This step is crucial for protecting downstream equipment from damage and ensuring optimal performance.

3. Pressure Adjustment: After filtration, the air moves to the pressure regulator component. Here, a diaphragm and spring mechanism adjusts the air pressure to the desired level set by the user. This ensures that downstream components receive air at the correct pressure, preventing over-pressurization or under-pressurization.

4. Output: The regulated air exits through the outlet port, ready for use in pneumatic tools and machinery.

For a visual explanation of how an air filter regulator works, you might find the following video helpful:



Applications of Air Filter Regulators

Air filter regulators are essential in various industrial sectors, ensuring that pneumatic systems operate efficiently and reliably. Key applications include:

• Manufacturing and Automation: In automated manufacturing lines, air filter regulators ensure that the air driving pneumatic actuators, cylinders, and tools is free from particulates and moisture, preventing equipment malfunction and ensuring consistent operation.

• Automotive Industry: Used in paint spraying applications to ensure that the compressed air is clean and at the right pressure, resulting in high-quality paint finishes on vehicles. They are also used in pneumatic tools for assembly and repair tasks.

• Food and Beverage Processing: Air filter regulators ensure that the air coming into contact with food products is clean and free from oil and contaminants, meeting health and safety standards.

• Pharmaceuticals: In the pharmaceutical industry, where air quality can affect product purity, air filter regulators are used to prevent contamination during manufacturing and packaging processes.

• Packaging: In packaging machinery, air filter regulators are used to ensure that the air used for pneumatic controls is clean and at the correct pressure, preventing damage to delicate products and ensuring efficient operation.

• Textiles: In textile manufacturing, clean and regulated air is necessary to prevent contamination of fabrics and to ensure that pneumatic equipment operates reliably.

• Woodworking and Metalworking: In these industries, air filter regulators help to prevent airborne particles and moisture from damaging pneumatic tools and affecting the quality of the finished products.

Commercial and Specialty Applications

Beyond industrial settings, air filter regulators are vital in various commercial and specialized fields:

• Medical and Dental Equipment: Air filter regulators are used in medical and dental air supply systems to ensure that the air is clean and free from contaminants, which is essential for patient health and safety.

• Laboratories and Clean Rooms: They are used in laboratories and clean rooms to provide contaminant-free air for sensitive experiments, processes, and equipment that require precise air quality control.

• HVAC Systems: In heating, ventilation, and air conditioning systems, air filter regulators ensure that the air supplied is clean and at the desired pressure, contributing to the comfort and safety of building occupants.

• Aerospace: In aerospace applications, air filter regulators are used to ensure that the air systems in aircraft are clean and operate at the correct pressure, which is crucial for the safety and performance of the aircraft.

• Marine: In marine applications, air filter regulators are used to ensure that the air systems on ships and submarines are clean and operate at the correct pressure, which is crucial for the safety and performance of the vessel.



How to Choose the Right Air Filter Regulator

Selecting the appropriate air filter regulator is crucial for ensuring the efficiency and longevity of your pneumatic systems. Here’s a guide to help you make an informed decision:

Factors to Consider

• Flow Rate: Assess the volume of air your system requires, typically measured in cubic feet per minute (CFM). Ensure the regulator can handle the peak flow demands of your application. Undersizing can lead to inadequate performance, while oversizing may result in unnecessary costs.

• Operating Environment: Consider factors such as ambient temperature, humidity, and potential exposure to corrosive substances. Selecting materials and designs compatible with your environment will enhance durability and performance.

• Industry Standards and Compliance: Ensure the air filter regulator meets relevant industry standards and certifications, such as ISO or ANSI, to guarantee quality and reliability. Compliance with these standards is essential for safety and operational efficiency.

Common Mistakes to Avoid

• Undersizing: Choosing a regulator with insufficient capacity can lead to pressure drops, reduced efficiency, and potential damage to downstream equipment. Always match the regulator’s specifications with your system’s requirements.

• Ignoring Maintenance Requirements: Neglecting regular maintenance can result in clogged filters, pressure inconsistencies, and system failures. Opt for regulators with easy-to-drain moisture collection bowls and accessible filter elements to facilitate routine upkeep.

• Poor Compatibility: Selecting a regulator incompatible with your system’s components or operating conditions can lead to inefficiencies and increased wear. Ensure compatibility with existing equipment and operating conditions to maintain optimal performance.



Maintenance Tips for Air Filter Regulators

Regular maintenance of air filter regulators is essential to ensure optimal performance and extend the lifespan of your pneumatic systems. Here are some key maintenance practices to consider:

Routine Cleaning and Filter Replacement

• Regular Cleaning: Periodically drain accumulated moisture from the filter bowl to prevent corrosion and maintain air quality. This simple step can significantly enhance the efficiency of your system.

• Filter Replacement: Replace filter elements as recommended by the manufacturer, typically when the pressure drop reaches around 7 PSI for standard filters. High-efficiency filters may require replacement at a 10 PSI pressure drop. Regular replacement ensures optimal filtration and prevents system inefficiencies.

Signs Your Regulator Needs Attention

• Pressure Drops: A noticeable decrease in downstream pressure can indicate clogged filters or internal leaks, necessitating immediate attention.

• Contamination: Presence of oil, water, or particulate matter in the air supply suggests inadequate filtration, requiring prompt maintenance to prevent equipment damage.

• Leaks: Air escaping from the regulator, especially around seals or fittings, can lead to energy loss and reduced system efficiency. Regular inspections can help identify and address leaks promptly.



For a visual demonstration of servicing filter, regulator, and lubricator units, you might find the following video helpful:

Source: Topring



FAQs About Air Filter Regulators

1.Can a filter regulator be used without a filter?

While it’s technically possible to use a filter regulator without the filtration component, it’s not advisable. The filter element plays a crucial role in removing contaminants from the compressed air, protecting downstream equipment and ensuring optimal system performance. Operating without a filter can lead to increased wear and potential damage to pneumatic components.

2.How often should I replace the filter element?

The frequency of filter element replacement depends on factors such as usage intensity, operating environment, and manufacturer recommendations. Generally, it’s advisable to replace the filter element at regular intervals, typically every 4 to 6 months, or sooner if you notice signs of clogging or reduced performance. Regular maintenance ensures efficient filtration and prolongs the lifespan of your pneumatic system.

3.Are air filter regulators compatible with all pneumatic systems?

Air filter regulators are designed to be compatible with a wide range of pneumatic systems. However, it’s essential to ensure that the specifications of the filter regulator, such as pressure range, flow rate, and filtration efficiency, align with the requirements of your specific application. Consulting with the manufacturer or a pneumatic systems expert can help determine the best fit for your system.



Conclusion

Air filter regulators are vital components in pneumatic systems, ensuring that the air supplied is clean, properly pressurized, and free of contaminants. By understanding their key features, how they work, and their applications across various industries, you can make an informed decision when selecting the right unit for your needs. Regular maintenance, proper sizing, and attention to detail in the installation process will help extend the lifespan of your air filter regulator and keep your pneumatic system operating at peak efficiency. Contact us today to find the perfect air filter regulator for your needs!
