An actuated isolation valve is not automatically suitable as an SDV. For shutdown duty, the valve body, actuator, solenoid or pilot, air supply, position feedback and trip logic must operate as one final-element package and move the process to its defined safe state.
An SDV valve is an automated on/off valve assigned to a shutdown function, but the tag alone does not define its fail action, actuator type or safety integrity capability. The P&ID, cause-and-effect chart and safety requirements specification should state whether the valve must fail closed or fail open, how quickly it should move, and how its final position is confirmed.
The practical questions are where the SDV sits in the safety instrumented function, what happens when a trip is demanded, how it differs from ESDV, BDV, XV, MOV and SOV, and how shutoff duty, closure time, proof testing and failure modes affect selection.
What Is an SDV Valve?
An SDV is an automated shutdown valve that moves a process to its defined safe state when the shutdown logic issues a trip demand. In many applications, the valve closes to isolate hazardous flow. A different process may require the valve to open, so the SDV tag should not be treated as a universal synonym for a fail-closed valve.
SDV commonly means “shutdown valve” or “shut-down valve”. Tagging practice is not identical across every operator or engineering contractor: one project may distinguish an SDV from an emergency shutdown valve (ESDV), while another may use the terms differently. The P&ID, valve list, shutdown narrative and cause-and-effect chart define what the tag means in a specific plant.
An SDV normally provides discrete on/off action rather than continuous flow control. Pneumatic, hydraulic or electric actuation may be used when it meets the required safe action, operating time, available utilities and project design rules. Selection therefore starts with the shutdown function and process duty, not with the acronym or actuator type alone.
Where an SDV Fits in a Safety Instrumented Function
The SDV package is the final element of a safety instrumented function (SIF), not the complete safety function. A typical SIF uses a sensor to detect a hazardous process condition, a logic solver to evaluate the trip demand, and a final element to change the process to its defined safe state.
For a pneumatic SDV, the final-element subsystem may include the valve body, actuator, solenoid valve, air preparation equipment and position switches. When the logic solver sends the trip output, these devices must work together to achieve the required valve position within the specified time. Position feedback can confirm travel, but confirmation of an open or closed signal does not by itself prove seat shutoff or the performance of the complete trip path.
A Safety Integrity Level applies to the performance required from the SIF as a whole. The valve package contributes to that performance through its failure behaviour, architecture, diagnostics and proof-test coverage, but a valve body alone does not make the function SIL 1, SIL 2 or SIL 3. The project team must verify the complete loop against the safety requirements specification and the applicable IEC 61511 functional safety framework.
What Happens During Normal Operation and a Trip?
During a common de-energise-to-trip sequence, the solenoid-operated valve (SOV) changes the actuator air path and stored spring energy moves the SDV to its safe position. This is a frequent pneumatic arrangement, but it is not universal: the project may specify energise-to-trip logic, hydraulic power or an electric actuator where the safety analysis supports that design.
In normal operation, instrument air or hydraulic pressure holds the actuator in the required operating position. When a valid trip demand reaches the final element, the solenoid-operated valve changes the actuator control path. A spring-return actuator may then use stored mechanical energy to close or open the process valve even after the control signal or supply is lost.
- The actuator starts moving only after the trip signal, pilot valve and exhaust path respond.
- Open and closed limit switches report valve travel, but feedback should be checked against the required final position and travel time.
- Closure time must be fast enough for the safety function without creating unacceptable pressure surge, liquid hammer or compressor upset.
- After a trip, reset and reopening should follow the cause-and-effect logic; automatic reopening is not appropriate unless the project design specifically permits it.
Terms such as “instant shutdown” are misleading because an SDV always has a measurable response and stroke time. The safety requirements specification should define the permitted time from trip detection to the valve reaching its required safe position.
Inside an SDV Package
A shutdown function can fail even when the valve body is sound if the actuator, solenoid, exhaust path or position feedback is unsuitable. The SDV should therefore be specified and tested as a complete final-element package rather than as a bare valve with accessories added later.
The valve body provides the process isolation and must suit the pressure class, temperature, medium, shutoff requirement and maximum differential pressure. A ball valve is often selected where low pressure loss and tight shutoff are required. A butterfly valve can reduce weight and installation space on larger lines, but its seat design, shutoff torque and pressure-temperature limits need closer checking. The SDV designation does not make every valve body suitable for safety shutdown duty.
The actuator must produce enough torque or thrust at the worst expected supply pressure and process load, including the force needed to unseat or fully seat the valve. Spring-return pneumatic actuators are common when stored mechanical energy is required, while double-acting, hydraulic or electric designs need a documented means of reaching the safe position after a trip or utility failure. The choice should follow the required action rather than a preferred actuator technology; the operating differences are explained in the pneumatic actuator types and working principle guide.
The SOV or pilot controls the actuator supply and exhaust path, so its flow capacity affects response time. Air filters, regulators, tubing and exhaust devices must pass enough clean air without creating a restriction. Position switches or transmitters report travel, while a partial-stroke device may exercise part of the movement between full proof tests. None of these feedback signals alone confirms that the closed valve meets its required seat-leakage limit.
SDV vs ESDV, BDV, XV, MOV and SOV

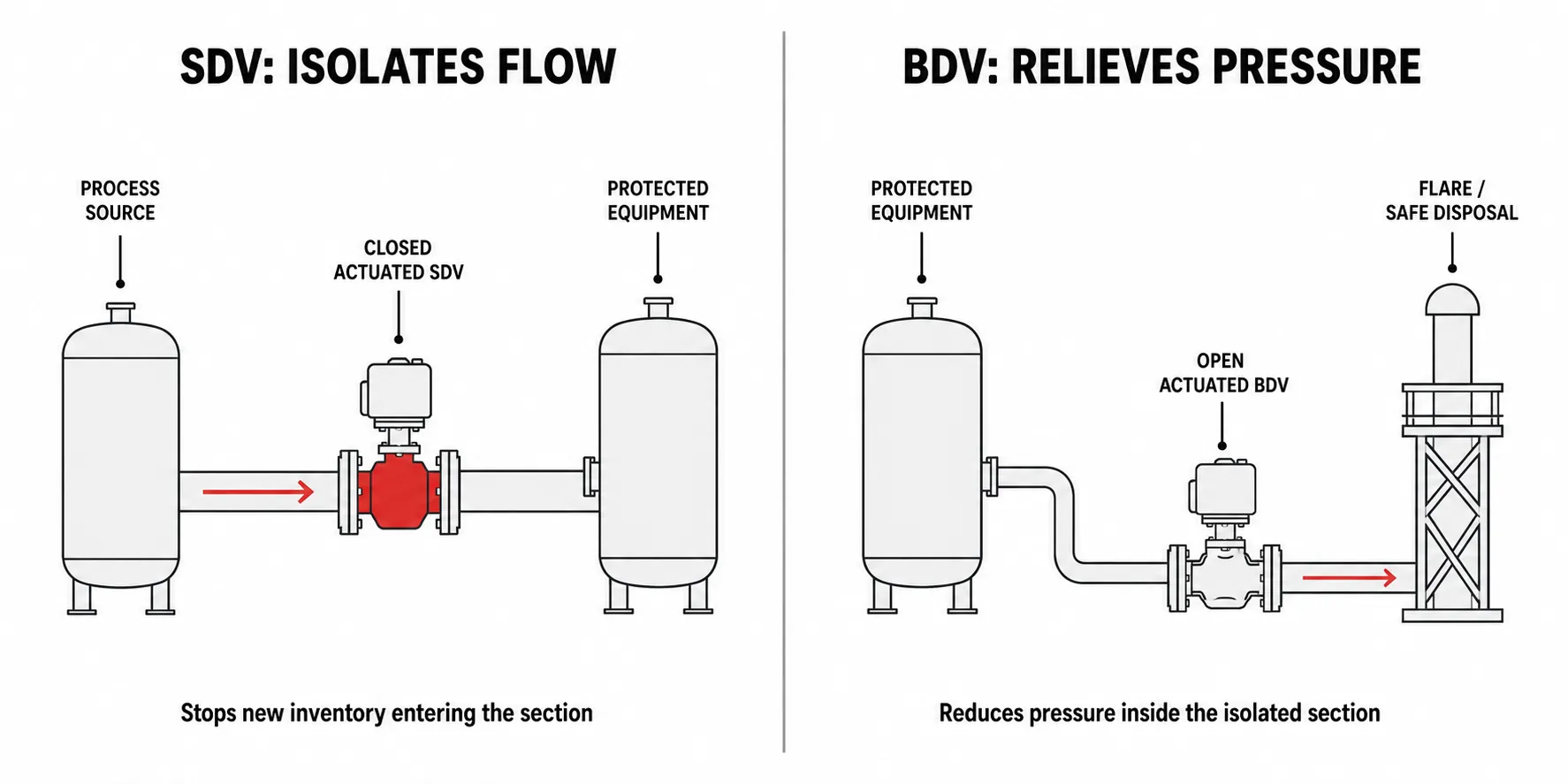

SDV, BDV, MOV and SOV do not describe the same design attribute. SDV and ESDV usually identify a shutdown function, BDV identifies a depressurisation function, XV is often a general on/off valve tag, MOV identifies motor operation, and SOV usually identifies the solenoid valve that controls an actuator.
| Tag | What It Usually Describes | Typical Function | Key Caution |
|---|---|---|---|
| SDV | Shutdown function | Moves to the defined safe position to isolate or redirect flow | Not universally fail-closed |
| ESDV | Emergency shutdown function | Isolates equipment or a plant section during an emergency demand | Some projects use SDV and ESDV differently; others do not |
| BDV | Blowdown or depressurisation function | Opens a route to flare or another safe-disposal system | Reduces trapped pressure; it does not replace upstream isolation |
| XV | General automated on/off valve tag | Routine process isolation, sequencing or switching | The tag alone does not establish a safety function |
| MOV | Motor-operated actuation | Uses an electric motor to open, close or position a valve | An MOV may serve as an SDV only when the complete design meets the shutdown requirements |
| SOV | Solenoid-operated pilot or control valve | Changes the pneumatic or hydraulic path to the process-valve actuator | Usually an SDV package component, not the main line-isolation valve |
The cause-and-effect chart, P&ID, valve list and project tagging philosophy take priority over a generic acronym definition. For example, an electrically actuated valve can be both an MOV and an SDV because one term describes its actuator and the other describes its assigned function. For broader valve types and applications outside the SIF boundary, see the emergency shut-off valve guide.
How to Select an SDV for the Safety Function
Select an SDV against the defined safety function, not the line size or valve type alone. Four points determine whether the complete package can perform the required shutdown:
- Required safe action: define whether the valve must close, open or remain in position after a trip or loss of motive power. This decision controls the actuator and fail-action arrangement.
- Isolation capability: confirm that the valve body, pressure rating, materials and seat design suit the medium, temperature, maximum differential pressure and required shutoff leakage.
- Actuator capacity: verify torque or thrust at the minimum available air, hydraulic or electrical supply and the maximum credible process load. Normal operating conditions are not enough for this check.
- Stroke time and testability: the valve must reach its safe state within the process safety time without creating an unacceptable pressure surge. The supplied package must also support the proof-test method assumed in the safety verification.
The final selection should be assessed as one package: valve, actuator, SOV, power supply, feedback and test arrangement. A suitable valve body does not compensate for an undersized actuator or an untestable shutdown function.
Proof Testing, Partial Stroke Testing and Maintenance
A partial stroke test can reveal selected hidden failures, but it does not prove full travel, final shutoff or every part of the trip path. The valve moves through only part of its stroke so that the process can normally remain online. This may detect excessive friction, a stuck valve, actuator problems or incorrect position feedback, depending on the test design and diagnostic equipment.
A full shutdown valve proof test should exercise the complete safety function covered by the procedure. It may verify the trip signal, SOV operation, actuator movement, full stroke, travel time, final position feedback and seat shutoff. Leakage testing requires a defined pressure, flow direction and acceptance limit; a closed limit switch alone does not prove process isolation. The distinction between proof testing and partial stroke testing of final elements is therefore important when estimating diagnostic coverage and residual risk.
The proof-test interval is set by the safety verification, failure assumptions, required SIL performance and operating experience. There is no single interval suitable for every SDV. Maintenance should also track changes in stroke time, air or hydraulic pressure, exhaust condition, solenoid response, mechanical friction and feedback calibration rather than recording only a pass or fail result.
Any bypass used during testing must be authorised, visible to operations and removed after the work. Before returning the SDV to service, confirm the normal valve position, SOV state, power or air supply, limit-switch indication, alarms and reset status. An incomplete reset can leave a correctly tested valve unavailable for the next demand.
Why an SDV May Fail to Reach Its Safe State
A slow or failed SDV trip can begin in the electrical command, pilot air path, actuator, valve mechanism, feedback device or bypass logic. The observed symptom should guide the inspection, but it does not identify the root cause by itself.
| Observed symptom | Possible causes | Inspection direction |
|---|---|---|
| No valve movement after a trip | Missing trip output, SOV fault, isolated air supply, actuator damage or an active bypass | Trace the command and energy path from the logic solver to the actuator before dismantling the valve |
| Slow or incomplete travel | Low supply pressure, restricted exhaust, undersized tubing, actuator leakage, high valve friction or insufficient torque | Compare supply pressure and stroke time with the approved baseline, then inspect the exhaust path and mechanical load |
| Closed indication but process leakage remains | Incorrect switch setting, debris at the seat, seat damage, insufficient seating torque or unsuitable leakage acceptance | Verify actual valve travel and perform the specified seat-leakage test; do not rely on the limit switch alone |
| Valve moves but feedback is wrong or unstable | Loose linkage, misaligned limit switch, wiring fault, moisture ingress or incorrect calibration | Compare local mechanical position with control-system indication and test each feedback channel separately |
| SDV does not return correctly after testing | Bypass left active, incomplete reset, manual override engaged, incorrect SOV state or unavailable motive power | Follow the return-to-service checklist and confirm valve position, alarms, bypass status and actuator supply |
Trend data is often more useful than a single pass result. Increasing stroke time, falling actuator pressure or repeated feedback adjustment can reveal degradation before the SDV fails on an actual demand. For a closer look at the pneumatic path, see these common pneumatic actuator failure causes.
Where Shutdown Duty Changes the Valve Choice
Compressor inlet isolation, cryogenic transfer and fired-heater fuel shutdown place different demands on shutoff, materials, closure time and reset logic. The same SDV package should not be carried from one duty to another without checking these differences.
Compressor and Separator Isolation
A compressor inlet SDV usually needs low pressure loss in normal operation, tight isolation after a trip and a closure time coordinated with the compressor protection sequence. Closing too slowly may continue feeding the hazard, while an unnecessarily fast stroke can disturb the connected process. The actuator calculation should include the highest differential pressure expected during the shutdown, not only the normal running condition. These trade-offs are common in oil and gas valve service conditions.
LNG and Cryogenic Service
Low-temperature service changes the body, trim, seat, stem-seal and gasket requirements. Material toughness and thermal contraction must be considered at the minimum design temperature, and the valve must still develop the required shutoff after cooling. Extended bonnets, cavity-pressure management and fire-safe documentation may also be required by the project. Standard ambient-temperature soft seats or elastomers should not be assumed suitable.
Chemical and Fired-Heater Fuel Isolation
Chemical duty is driven by corrosion compatibility and the consequence of leakage. Fired-heater fuel isolation adds strict shutoff, trip sequencing and controlled reset requirements because fuel must not be admitted before the permissive conditions are satisfied. Seat design, packing, gasket materials and fire-safe qualification should match the specified medium and project standard rather than a general valve description.
HIPPS Final Elements
A high-integrity pressure protection system isolates a high-pressure source before downstream pressure exceeds the protected limit. Its final-element arrangement may use redundant shutdown valves when required by the verified architecture. Each valve package must be assessed for differential pressure, response time, common-cause exposure, feedback and proof testing as part of the complete HIPPS design; adding a second valve does not by itself establish the required SIL performance.
Need Help Reviewing an SDV Package?
An SDV package should be reviewed against one defined shutdown scenario: the required safe position, maximum differential pressure, closure time, shutoff requirement and available actuator supply. The valve body, actuator, SOV, feedback and test arrangement must work together under those conditions.
