A butterfly valve is a compact, quarter-turn device used to control flow in pipelines, tanks, and fluid systems around the world. To ensure global compatibility and performance consistency, the American Petroleum Institute introduced the API 609 butterfly valve standard. It defines the design, materials, dimensions, and testing criteria for both resilient-seated and high-performance configurations. Whether used in oil & gas, chemical processing, or water treatment, an API 609 butterfly valve offers the reliability, efficiency, and compliance demanded by modern industrial systems. This article explains what makes it a trusted choice in critical applications.
What Does API 609 Stand For?
API 609 refers to the American Petroleum Institute standard that defines the engineering design, materials, dimensions, and testing criteria for butterfly valves—specifically those built as double‑flanged, lug or wafer types. It specifies two main categories:
Category A: concentric, resilient‑seated butterfly valves
Category B: double‑ or triple‑offset high‑performance valves capable of higher pressures and temperatures
API 609 ensures consistency in valve construction, marking, and purchaser specifications, making it the global benchmark for industrial butterfly valve applications
Pressure ratings and temperature limits
Valve ratings under API 609 typically span ANSI Classes 150 up to 2500 psi, backed by prototype testing of pressure, leakage, and seat integrity.
The pressure-retaining capability declines as temperature rises; bodies built to ASME B16.34 withstand lower pressure at elevated temperature while seat materials like PTFE and RTFE limit use in steam and high‑temp scenarios (~100 psi for RTFE at moderate temps).
Material specifications
Body materials commonly include ASTM A216 WCB carbon steel or CF8/CF8M stainless steel; shafts often use 17‑4 PH stainless for strength and corrosion resistance per API 609 guidelines.
Disc materials may range from ductile iron, bronze to stainless, depending on the valve class and media.
Seat construction includes phenolic‑backed EPDM, Buna‑N, Viton for resilient seals, or metal/graphite laminate seats for high‑performance, zero‑leak service.
Size ranges and dimensions
API 609 valves cover sizes from roughly ½″ up to NPS 48 (DN50‑1200), depending on valve category.
Face‑to‑face dimensions conform to universal standards such as MSS SP‑67, ISO 5752, and ASME B16.10 to enable seamless interchangeability across manufacturers.

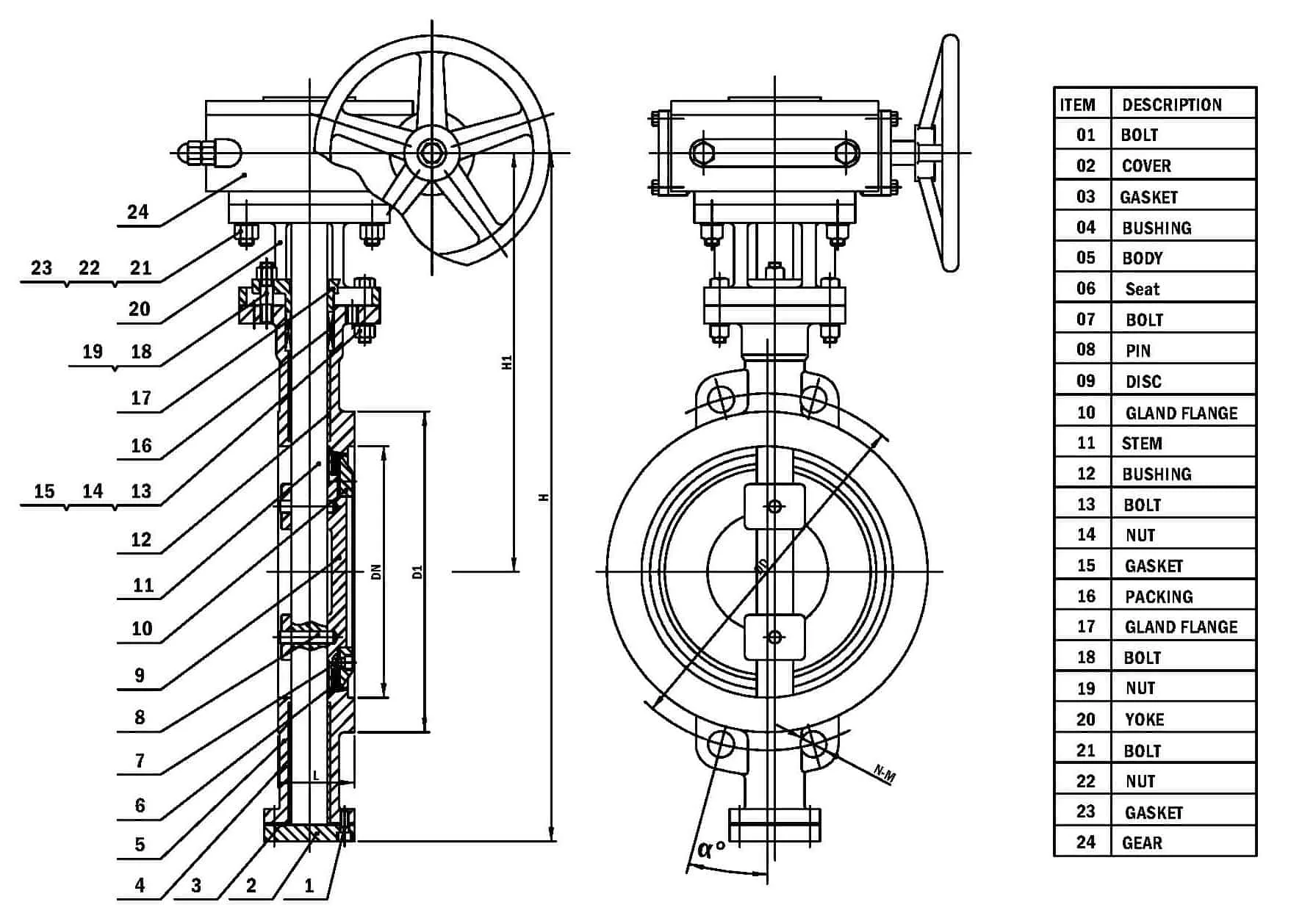

Design Features of API 609 Butterfly Valves
Body construction
Bodies are typically wafer-style or lug-style castings in ductile iron or steel, designed for ASME Class 125/150 flanges or higher.
One-piece construction ensures strength and tolerance for dead-end service in lug models, with top-mounted ISO 5211 pads for easy actuator installation.
Disc and shaft design
The disc is machined (often from 316 stainless or carbon steel), profiled for minimal turbulence and tight sealing. Precision taper pins secure the disc to the shaft, minimizing leakage and deflection.
The stem shaft is blow-out-proof, commonly made from 17‑4 PH or 316SS, supported by multiple bushings and weather seals to reduce friction and prevent corrosion.
Seat configurations
Soft-seated (Category A) valves use elastomeric seats—EPDM, NBR, Viton—bonded to seat rings to provide bubble-tight shutoff, often able to withstand temperatures up to ~170 °C depending on material.
High-performance (Category B) valves feature metal or metal-graphite laminate seats, often self-adjusting, to ensure zero leakage and long life in high temp/high pressure environments.
Why API 609 Standard Matters in Industrial Applications
Adhering to API 609 ensures valves meet strict performance and compatibility requirements that matter in critical sectors such as oil & gas, petrochemical, water treatment, and power generation.
Key advantages include:
Global interoperability: consistent face‑to‑face dimensions and flange drilling enable cross‑brand compatibility and interchangeability
Performance assurance: standardized testing protocols—including leakage, pressure and seat testing—ensure reliability under expected operating loads
Flexibility: covers a range of valve categories, materials, seating types, and fire‑safe or fugitive emission options for specific project needs
In essence, API 609 aligns engineering, procurement, and inspection across suppliers and clients—boosting safety, regulatory compliance, and peace of mind in high-stakes installations.
Wafer vs. Lug Style API 609 Butterfly Valves
Wafer-style valves are sandwiched between two flanges and held by long bolts that do not thread into the valve body. This makes them cost-effective and compact, ideal for applications where ease of replacement and minimal footprint are priorities. However, wafer-style valves cannot be used in end-of-line or dead-end service, as removal requires shutting down the entire line.

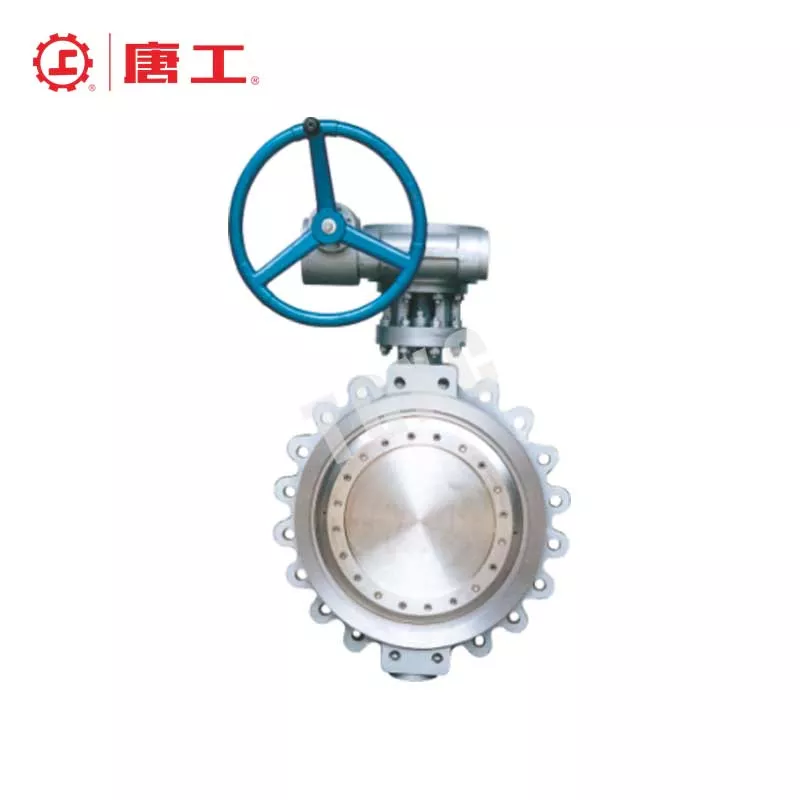

Lug-style valves feature threaded lugs on each flange side, allowing independent flange connections and enabling removal of one side without disturbing the other. This design supports end-of-line service when used with a blind flange. Lug-style valves are generally more robust and suitable for systems requiring isolation or maintenance flexibility.
API 609 supports both wafer and lug variants in its face-to-face and body design requirements.
Seat Material Options
Under API 609, butterfly valves offer a wide spectrum of seat materials to suit varied applications:
Soft resilient seats: EPDM, NBR (Buna‑N), and FPM/Viton® are common for general service (water, oil, air). These deliver bubble-tight shutoff in Category A valves and typically operate up to ~120–170 °C depending on the elastomer.
PTFE and RTFE seats: Often bonded to backup rings or O-rings, they offer superior chemical compatibility and steam resistance. PTFE seats can handle up to ~275 °F (135 °C); RTFE + AFLAS “O” seat combinations can extend steam capability to ~100 psi at moderate temperatures.
Metal or metal‑graphite laminate seats: Found in Category B offset/high-performance designs, these provide Class V shutoff with virtually zero leakage and high cycle life in extreme temperature or pressure scenarios.
Many manufacturers allow field-replaceable seat cartridges and support peroxide‑safe or fire‑safe configurations depending on certification needs.
Actuator Compatibility
API 609 valves typically include ISO 5211 mounting pads, enabling seamless integration with manual gear operators, electric actuators, or pneumatic actuators. Both wafer and lug styles support actuator mounting directly via square stems and pad interfaces.
Lug-style valves are well-suited for end-of-line actuation and dead-end isolation.
Wafer-style valves, while also actuator-compatible, are preferred in inline services where compact installation and minimal torque are prioritized.
Disc and stem designs—often two‑piece shafts with blow‑out protection and PTFE or bronze bushings—ensure smooth low-torque operation and extend actuator lifespan even under heavy media or thermal cycling.
Applications and Industries
Common Applications for API 609 Butterfly Valves
Isolation and flow control in demanding pipeline systems, with fast quarter-turn operation for tight shut-off and modulation.
Widely used in chemical, petrochemical, and refining plants to handle corrosive fluids where pressure-tight sealing and leak prevention are critical.
Routine valve of choice in power generation facilities, managing steam, cooling circuits, and utilities thanks to high-pressure and high-temp capabilities of offset designs.
In water and wastewater treatment, wafer- or lug-style soft-seated valves regulate treated water and sludge flows, offering cost-effective, low-maintenance isolation.
Found in fire protection and HVAC systems, where lug-style valves support bidirectional shut-off and ease of assembly in ductwork or fire mains.
Industries That Rely on API 609 Standards
Oil & Gas and Refining: Standard compliance allows critical isolation applications with bubble-tight sealing, compliance mandates, and cross-brand interchangeability.
Petrochemical and Chemical Processing: Handles corrosive, toxic, or abrasive media; requires valves certified for API 609 test protocols and construction standards.
Power Plants (Thermal & Nuclear): Suitable for high pressure and temperature cycles, with high-performance butterfly valves supporting steam isolation, water feed, and auxiliary systems.
Water Utilities & Wastewater Treatment: Use API 609 soft-seated valves for efficient isolation in large-diameter conduits and bi-directional shut-off needs.
Food & Beverage, Pulp & Paper, and Pharmaceutical: Require hygienic, corrosion-resistant, chemical-compatible valve systems—API 609 standards ensure reliability and operational consistency.
Suitable Media and Operating Conditions
API 609 valves support both gaseous and liquid media, including HVAC air, industrial water, natural gas, oil, petrochemical fluids, and slurry mixtures.
Soft-seated concentric Category A valves are ideal for non-corrosive water, air, low-pressure oil or gas, typically up to ASME Class 150–300 service.
High-performance double-offset and triple-offset Category B valves, with metal or metal-graphite seats, are built for high-temperature, high-pressure, steam, or toxic chemical service, offering zero-leak Class V shutoff.
Cryogenic and LNG services use specially configured API 609 valves with low-temperature materials and extended stems to maintain seal integrity at extremely low temperatures.
Benefits and Advantages
Why Choose API 609 Butterfly Valves?
Compact & Lightweight Design: Compared to gate or ball valves, API 609 butterfly valves have a smaller footprint and weigh less, reducing installation complexity and supporting structures.
ISO Interchangeability: Standardized face‑to‑face dimensions, flange drilling, and pressure‑temperature ratings ensure compatibility across manufacturers, simplifying procurement and replacements.
Flexible Mounting Options: Available in wafer, lug, and flanged bodies, offering versatility for inline, bi‑directional shutoff, and end-of-line configurations.
Performance Benefits
Reliable Leak Protection: API 609 Category B double- and triple-offset designs deliver bubble-tight, Class V shutoff using precision disc‑to‑seat engagement and metal or metal‑graphite seats where required.
Reduced Operating Torque: Eccentric geometries reduce friction during actuation—cutting torque needs by up to 30–50%, enabling smaller actuators and smoother operation.
Smooth Flow Control: The optimized disc profile minimizes pressure drop and disturbance, giving accurate throttling and flow modulation in sensitive process systems.
High-Temperature and High-Pressure Capability: Built to operate under ASME Class 150–600 (and higher through design), these valves handle demanding steam, chemical, and thermal cycles reliably.
Cost‑Effectiveness and Reliability
Lower Lifecycle Costs: Fewer parts, minimal maintenance, and longer seat life (especially with pressure-assisted or replaceable seat designs) reduce both downtime and total cost of ownership.
Easy Automation & Maintenance: ISO 5211 mounting pads, blow-out-proof stems, and replaceable seats simplify actuator integration and serviceability in the field.
Broad Media Compatibility: With seat options including EPDM, PTFE, Viton, and metal-graphite, API 609 valves offer performance across diverse fluids—from water and air to corrosive petrochemicals and slurries.
Installation and Maintenance
Installation Guidelines for API 609 Butterfly Valves
Pre‑installation checks: Inspect the valve and packaging for damage. Ensure the valve nameplate data matches the application pressure, temperature, and material requirements.
Pipe preparation: Clean pipelines of debris, scale, and welding slag. Align flange faces parallel and center the valve body correctly between flanges.
Valve positioning: Install with the disc slightly open to avoid obstruction during insertion.
Bolting procedure: For wafer variants, insert the valve between flanges and tighten bolts diagonally and gradually in cross‑pattern to avoid distortion or leakage. Lug‑style bolting is similar but allows independent flange connections.
Flange and gasket guidance: Use appropriate gaskets per ASME/API standards. Valve flange bolting torque should conform to flange class; do not rely on flange bolting to compress seat excessively.
Final functional check: Once installed, operate the valve fully open and closed to verify smooth action and correct disc clearance inside the pipe.
Maintenance Best Practices
Routine inspections: Schedule periodic checks at intervals (suggested 6 months) to assess sealing integrity, presence of leaks, corrosion or wear on discs and seats.
Lubrication: Lightly grease stem-bushing surfaces and pivot points using suitable lubricants to minimize friction and wear.
Valve operation: Cycle valve regularly through open/close positions to confirm smooth actuation. Manual valves: anticlockwise to open, clockwise to close.
Stem seal maintenance: Check for leakage around stem area and replace O‑rings or packing as needed. For metal‑seated designs, follow specific torque sequences when replacing gland components.
Seat replacement: When leakage persists, remove valve, clean disc and seat areas, replace seat retainer and new seat using crisscross tightening to manufacturer torque settings.
Storage care: Valves not installed immediately should be stored indoors in dry, covered conditions with protected flange faces. Inspect stored units every three to six months.
Troubleshooting Common Issues
Leakage at seat (bubble test fail): Possible causes include actuator stops mis-adjusted, seat wear, or flange misalignment. Solution: verify full closure, check flange torque, inspect seat for damage and replace if necessary.
Valve binding or stiffness: Often due to improper alignment during installation or friction in stem seal area. Remedy: loosen bolts slightly, align better, test disc movement, lubricate stem bushings.
Stem seal leakage: Likely worn O‑rings, gland nuts loose or mis-torqued. Replace stem seals and tighten using recommended cross‑pattern torque sequence.
Disc obstruction inside piping: If piping ID is too tight, the disc may drag during movement. Confirm pipe ID meets clearance tables per API 609. Re-align or reconfigure piping or valve position to resolve.
Compliance and Certification
API 609 Certification Requirements
Manufacturers seeking API 609 compliance must follow criteria set by the American Petroleum Institute (API), including strict design protocols, materials usage, face-to-face dimensions, pressure-temperature ratings, and valve documentation.
Purchasers often reference the API Monogram Program, which ensures that the valve is produced under an API-approved quality system and meets all chapters of API 609 in effect during manufacturing.
Purchase orders should clearly specify critical details per Annex B of the standard, including:
Valve size, class, body style, and category (A or B)
Flow direction, sealing requirements, dead-end service, and connection type
Materials, actuator type, inspection, and optional API 607 compliance if fire-safe certification is required.
Quality Assurance and Testing Standards
API 609 mandates a series of quality tests, including visual inspection, dimensional checks, sealing and pressure tests, and seat integrity verification to ensure bubble‑tight or Class V shut-off levels as specified.
Cross-standard compliance is commonly needed: API 598 covers hydrostatic seat and shell testing, while API 607 addresses fire-safe capability when flame exposure adds risk—API 609 helps align with these protocols as needed.
The 2021 (8th edition) of API 609 expands requirements to include butt‑weld end connections alongside wafer, lug, and double‑flanged types, addressing modern engineering needs.
Regulatory Compliance Considerations
API 609 valves are frequently deployed in regulated sectors—oil & gas, petrochemical, water treatment, and power generation—where compliance with global safety, environmental, and industry standards is mandatory.
For applications in volatile or explosive environments, compliance with fugitive emissions standards (e.g. API 641 or local environmental regulations) and fire-safe performance per API 607 is often required.
Manufacturers catering to international markets may also pursue CE marking, ATEX certification, or ISO 5752/ASME B16.34 alignment to meet jurisdictional and buyer-specific specifications
How to Choose the Right API 609 Butterfly Valve
Match application conditions: Begin by detailing your fluid’s chemical nature, pressure, and temperature. API 609 valves—divided into Category A (concentric) and Category B (offset)—serve distinct needs: use Category A for low-pressure general service, Category B for high-pressure/temperature or zero-leak environments.
Confirm pressure-temperature class: Align the valve’s ANSI pressure class (e.g. 150, 300, 600) with your system’s Cold Working Pressure and temperature demands. API 609 requires clear documentation of the valve’s pressure-temperature performance.
Select appropriate material: Body, disc, stem, and seat materials must tolerate your fluid’s corrosiveness, temperature, and erosion risks. Stainless steels, duplex alloys, and metal-graphite seats offer high strength and chemical resistance under stress.
Choose the right body style: Note wafer, lug, or flanged models. Wafer-style is compact; lug-style allows downstream isolation (end-of-line use); flanged is ideal for high-pressure applications, all in line with API 609 dimensions.
Decide on actuation and automation: If remote operation or frequent cycling is required, choose valves with ISO 5211 mounting pads suitable for pneumatic or electric actuators. Wafer and lug styles support direct actuator coupling.
Key Factors to Consider
Fluid properties: Evaluate viscosity, abrasiveness, temperature, and corrosiveness. Elastomeric seats (EPDM, NBR, Viton) suit water/air; PTFE or metal seats are best for high-temp or chemical media.
Line size vs valve size and Cv: A valve should match pipeline size only if its flow coefficient (Cv) aligns with system requirements. Oversizing or undersizing can impair performance and control.
Leakage class requirements: Standard concentric valves may not meet tight shutoff demands. Define leakage class (like Class V) early—triple-offset designs offer zero-leak sealing per the API 609 standard.
** flange compatibility**: Ensure bolt patterns and face-to-face dimensions follow ISO 5752 or ASME B16.10 standards for interchangeability and correct installation.
Materials certification: Confirm materials come with traceable certification and testing per API/ASME standards, ensuring full regulatory compliance.
Common Sizing and Selection Mistakes to Avoid
Under‑sizing or Over‑sizing the valve: Choosing a valve that doesn’t align with system flow and pressure can lead to leakage, high wear, or poor throttling. Always calculate required Cv and pick a model rated for normal and peak flows.
Ignoring seat material compatibility: Failing to match seal material to media chemistry and temperature can damage seals—avoid EPDM or NBR in steam or corrosive service unless specified for it.
Misaligning flange or bolt standards: Mixing ANSI and ISO or metric bolt patterns often causes installation failure. Accurate flange compatibility is essential for safe sealing and torque during assembly.
Overlooking actuator torque and mounting: Selecting a valve without considering actuator torque requirements or ISO 5211 mounting can lead to poor operation or mechanical failure.
Not specifying leakage class: Especially with concentric designs, neglecting seat leakage class (like Class V) may result in valves not suitable for critical or containment applications.
Conclusion
API 609 butterfly valves are a proven standard for reliable, efficient flow control in demanding industrial environments. With well-defined classifications, strict material and testing requirements, and global compatibility, they offer strong performance in sectors like oil & gas, power, and water treatment. Choosing the right API 609 valve ensures safety, durability, and compliance—making it a smart investment for any project that values long-term reliability and standardized quality.
