A control valve changes its opening during operation to keep flow, pressure, temperature, or level near a setpoint. An on-off valve moves between fully open and fully closed positions to start, stop, switch, or isolate flow. The choice depends on whether the process requires continuous regulation or a discrete state change.
In common process specifications, “control valve” usually means a modulating valve assembly, while “on-off valve” refers to discrete operation. In broader instrumentation language, both may be final control elements, and both can be automated. Open and closed position feedback confirms an on-off valve’s end state; it does not provide modulating control between those positions.
Body style alone does not define the duty. Ball, butterfly, and globe valves can be configured for either service when the trim, seat, actuator, and control accessories suit the intended function. Process objective, command signal, flow behaviour, and shutoff requirement provide the clearer selection boundary.
Control valve vs on-off valve: the decisive difference
Valve position is only the manipulated condition; the process result defines the duty. In a typical feedback loop, the controller changes valve position to counter disturbances and keep flow, pressure, temperature, or level near a setpoint. The valve may remain at any suitable position while that condition is maintained.
Open-close control can also respond to a measured process variable. A tank-level valve may open at a low limit and close at a high limit, allowing the level to move through a permitted band instead of regulating it through continuous valve-position changes.
Intermediate travel alone does not make a valve suitable for modulating service. Control valve duty requires repeatable positioning and a useful relationship between valve movement and installed flow across the intended range. Open-close action is normally sufficient when the process only needs two defined states, but it is usually inadequate when a variable must remain near a target despite changing conditions.
How the two control chains work
An actuator only supplies motion. Whether a valve can regulate a process or only move to an end position depends on the command, feedback, actuator control, and valve assembly around it.

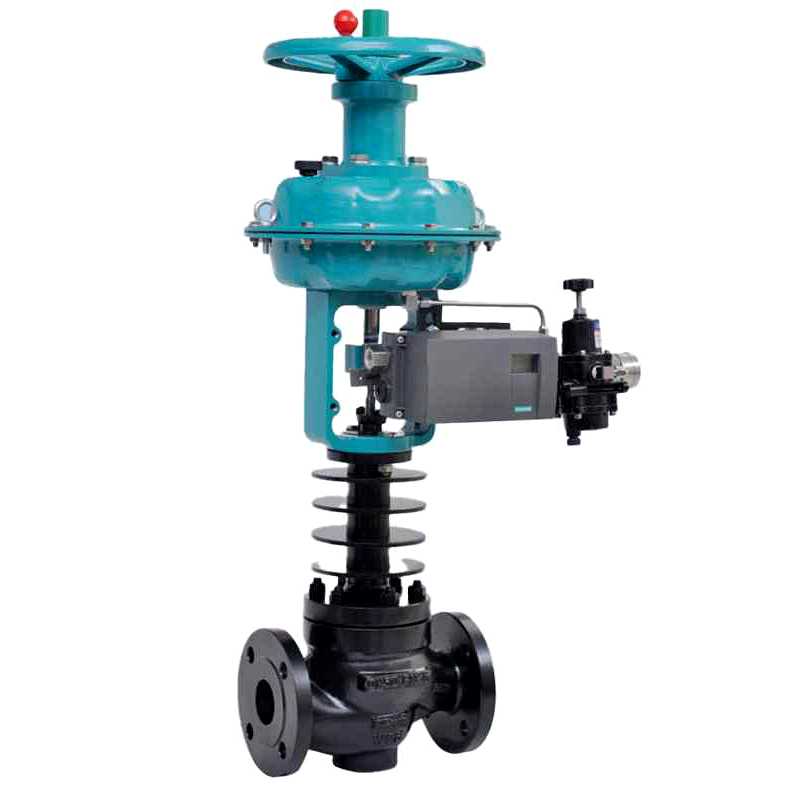

A modulating control loop
In a typical closed-loop arrangement, a sensor or transmitter measures the process variable, and a controller compares that value with the setpoint. The controller then sends a varying command to the final control assembly. Signals may be analogue, digital, or networked; 4 to 20 mA is common but not universal.
A positioner compares the commanded valve position with the measured stem or shaft position and corrects the actuator output. The actuator supplies the required force or torque, while the valve trim changes the restriction seen by the process. The positioner controls valve travel locally, but the sensor and process controller close the wider process loop.
Accurate travel does not guarantee useful process control. Valve movement must also produce a suitable installed flow response across the required operating range. The actuator must have enough force or torque to overcome process loads, packing friction, and other resistance throughout the stroke.
A discrete on-off command
An automated on-off valve commonly receives an open or close instruction from a programmable logic controller (PLC), distributed control system, relay, or interlock. A pneumatic arrangement may use a solenoid valve to route instrument air, while an electric actuator may receive the discrete command directly. The actuator then drives the valve to the commanded end position.
Limit switches or proximity sensors can report fully open and fully closed status to the control system. This feedback confirms whether the requested state was reached; it does not measure or correct the process variable between those states. A process measurement may trigger the command, but the valve action and end-position feedback remain discrete.
The valve body can overlap, but the duty cannot
The same valve body family can be engineered for either service. A ball valve may be a full-port isolation valve, or it may use a characterised V-port or segmented ball to produce a more useful relationship between travel and flow. The term ball identifies the closure geometry, not the process duty.
Butterfly valves show the same overlap. A resilient-seated concentric butterfly valve can be selected for open-close service, while a purpose-designed control butterfly valve may be sized and actuated for throttling. Suitability depends on its installed pressure drop, operating range, torque demand, seat design, medium, and required shutoff performance.
Globe valves are commonly associated with modulating control because suitable plug and seat arrangements can provide a characterised flow response. However, a globe body is not automatically a complete control valve. Trim selection, actuator sizing, positioner performance, and actual service conditions still determine whether the assembly can control the process.
A standard isolation valve may physically stop at intermediate travel, but that does not prove it is suitable for repeated throttling. Depending on the construction and service, operation in a partly open position can produce unstable flow response, concentrated velocity, vibration, cavitation, or seat damage. Different control valve body types should therefore be compared by their engineered flow characteristic, pressure-drop capability, shutoff requirement, and actuator demand rather than by body name alone.
Control valve vs on-off valve comparison
The following criteria compare typical control and on-off duties without treating either configuration as a fixed rule for every valve.
| Criterion | Control valve | On-off valve |
|---|---|---|
| Primary duty | Regulate a process variable by changing flow restriction | Start, stop, switch, or isolate flow by reaching an end state |
| Typical travel | Operates across a useful modulating range and may remain at intermediate positions | Normally moves to the fully open or fully closed position |
| Typical command | Varying analogue, digital, or networked command | Discrete open or close command |
| Typical feedback | Valve position is often fed back locally; process measurement closes the wider loop | Open and closed indication commonly confirms the end state |
| Flow response | Travel should produce a repeatable and useful installed flow change | Intermediate flow characteristic is usually not the selection basis |
| Shutoff objective | Specified separately; modulation capability does not prove isolation-grade shutoff | Often central to the duty; actual leakage depends on design, test conditions, and service |
| Performance basis | Sized for required Cv, available pressure drop, and controllable operating range | Selected for flow capacity, pressure conditions, actuator demand, and shutoff duty |
| Possible constructions | May use globe, characterised ball, or control butterfly configurations | May use ball, butterfly, gate, plug, or other isolation configurations |
| Common misuse | Assuming accurate valve position guarantees stable process control | Using an isolation valve for throttling without verifying its flow response and service limits |
When to use each valve
Must the process hold a variable or reach a state? That distinction normally identifies the required valve duty before body style or actuator type is considered.
Use a control valve to hold a process variable
A modulating control valve suits processes where flow, pressure, temperature, or level must remain near a target as operating conditions change. Examples include adjusting steam flow to maintain heat-exchanger temperature and varying liquid flow to control downstream pressure.
The expected operating points must fall within a controllable part of the valve’s installed range. Meeting the maximum flow requirement at full opening is not enough if normal operation occurs where small travel changes produce excessive or unstable flow changes. Purpose-designed industrial control valves combine the body, trim, actuator, and positioning equipment required for this modulating duty.
Use an on-off valve to reach a defined state
An on-off valve suits duties where the required result is to start or stop transfer, change the flow path, fill or drain between defined limits, or isolate equipment during normal operation. For example, a transfer valve may open for a batch step and close when that step is complete.
On-off duty still requires engineering around the actual service. Differential pressure changes actuator force or torque demand, frequent cycling affects the valve and actuator package, and the seat construction determines the available shutoff performance for the medium and operating conditions.
Use separate valves when regulation and isolation are independent duties
A process line may use a control valve for normal throttling and a separate isolation valve upstream or downstream. This arrangement allows the flow-control and shutoff functions to be selected and verified independently. A control valve’s ability to move to its closed position does not by itself establish suitability for maintenance or safety isolation.
Safety-critical isolation requires separate project verification for the required fail action, accepted leakage, operating conditions, testing, and applicable safety requirements. Suitability for that duty cannot be inferred from the terms “control valve” or “on-off valve” alone.
Can one valve do both jobs?
Yes, but only if the valve is specifically designed and verified for both modulation and shutoff. If the line requires independent isolation and that dual performance has not been verified, use a control valve for regulation and a separate on-off valve for isolation.
A control valve may be designed to meet a defined closed-seat leakage requirement. Simply reaching the closed position does not make it an isolation valve; its tested shutoff performance must match the project’s closure requirement.
An on-off valve can cycle to keep a process variable between upper and lower limits. This is two-position control, not continuous modulation. Modulating duty requires repeatable intermediate positioning and a predictable installed flow response.
The selection rule is clear: use one valve for both duties only when both are stated in the design basis and verified independently. Otherwise, assign regulation and isolation to separate valves.
